Yellow digital multimeter XL830L with LCD display, kickstand, probes and 9V battery

JacobsParts Inc.

JacobsParts Inc. XL830L Digital Multimeter

SKU CH-ZWR1-W1Y6W

Measures AC/DC voltage, current, resistance, continuity, diodes and transistors with data-hold and back-light

  • TypeDigital Multimeters
  • Measures up to 600 V AC and DC
  • Tests current from 0.1 µA to 10 A
  • Resistance ranges cover 0.1 Ω to 2 MΩ
  • Built-in buzzer confirms continuity instantly
  • Data hold and back-light simplify reading

Digital Multimeter for Electronics

The JacobsParts XL830L is a digital multimeter designed for electronics testing and general electrical work. It covers a wide range of measurement functions suitable for hobbyists, students and technicians. Probes and a 9V battery are included in the package.

Measurement Ranges Up to 600 Volts and 10 Amps

The meter offers DC voltage ranges from 200mV to 600V and DC current ranges from 200µA to 10A. AC voltage is measured up to 600V. Resistance spans from 200Ω to 2MΩ with appropriate resolution steps. These ranges define the safe operating limits for the instrument.

Continuity Buzzer Diode

A built-in buzzer sounds for continuity checks while the diode test shows forward voltage drop. Transistor hFE testing supports NPN and PNP types up to 1000. Data hold and backlight buttons add convenience. The meter is not suited for high-energy industrial panels or specialised calibration tasks.

Highlights

  • Measures up to 600 V AC and DC
  • Tests current from 0.1 µA to 10 A
  • Resistance ranges cover 0.1 Ω to 2 MΩ
  • Built-in buzzer confirms continuity instantly
  • Data hold and back-light simplify reading

Specifications

TypeDigital Multimeters

Questions about this item

What DC voltage ranges and resolutions does the XL830L cover for automotive and bench work?

The meter offers five DC voltage ranges: 200 mV at 100 µV resolution, 2 V at 1 mV, 20 V at 10 mV, 200 V at 100 mV, and 600 V at 1 V resolution.

Which current ranges are available and what is the maximum measurable current?

DC current spans 200 µA, 2 mA, 20 mA, 200 mA, and 10 A ranges with resolutions from 0.1 µA to 10 mA; the highest range is 10 A.

What physical features help the meter stay stable on a bench and what power does it need?

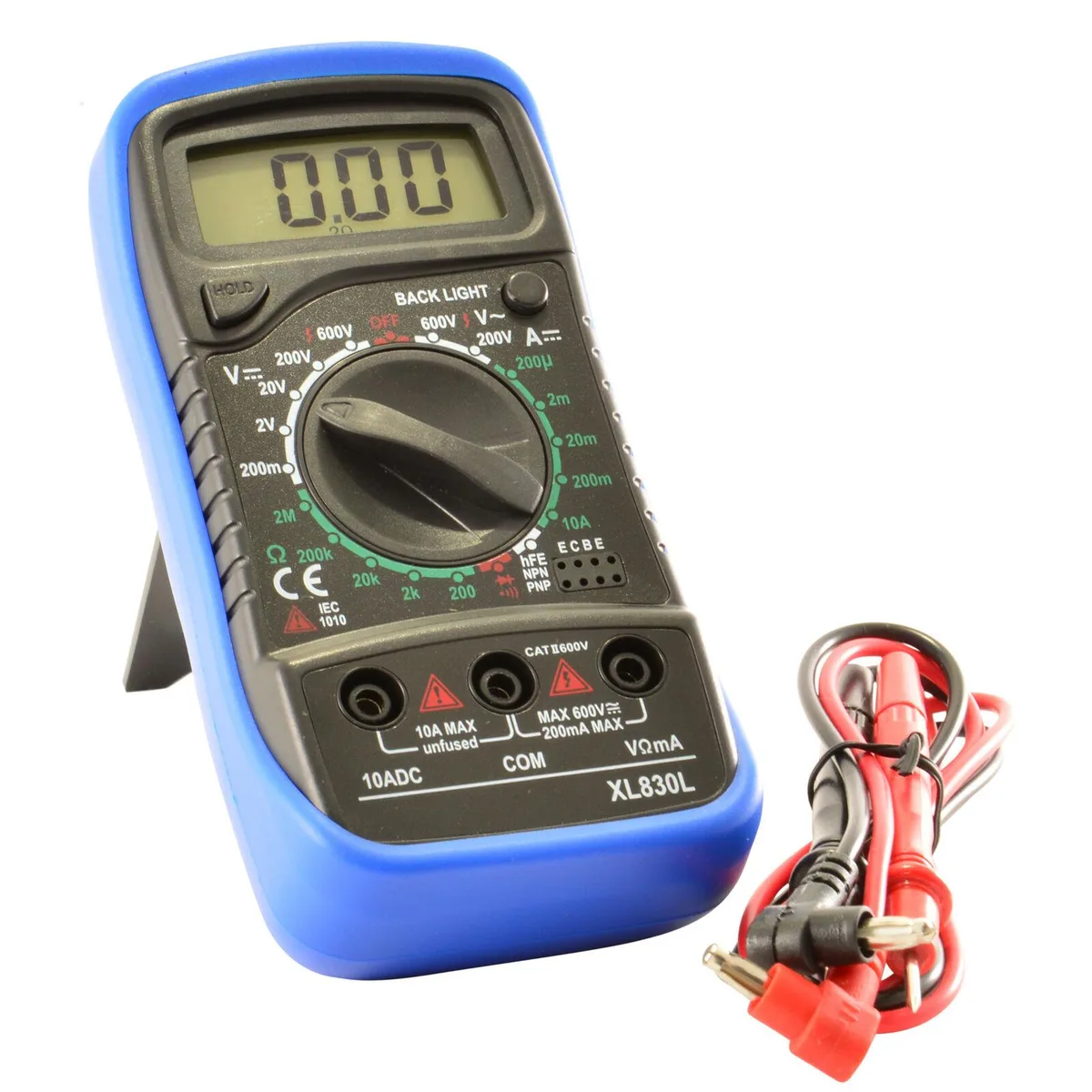

A built-in kickstand props the unit at a viewing angle, and it runs on the included 9 V battery.
