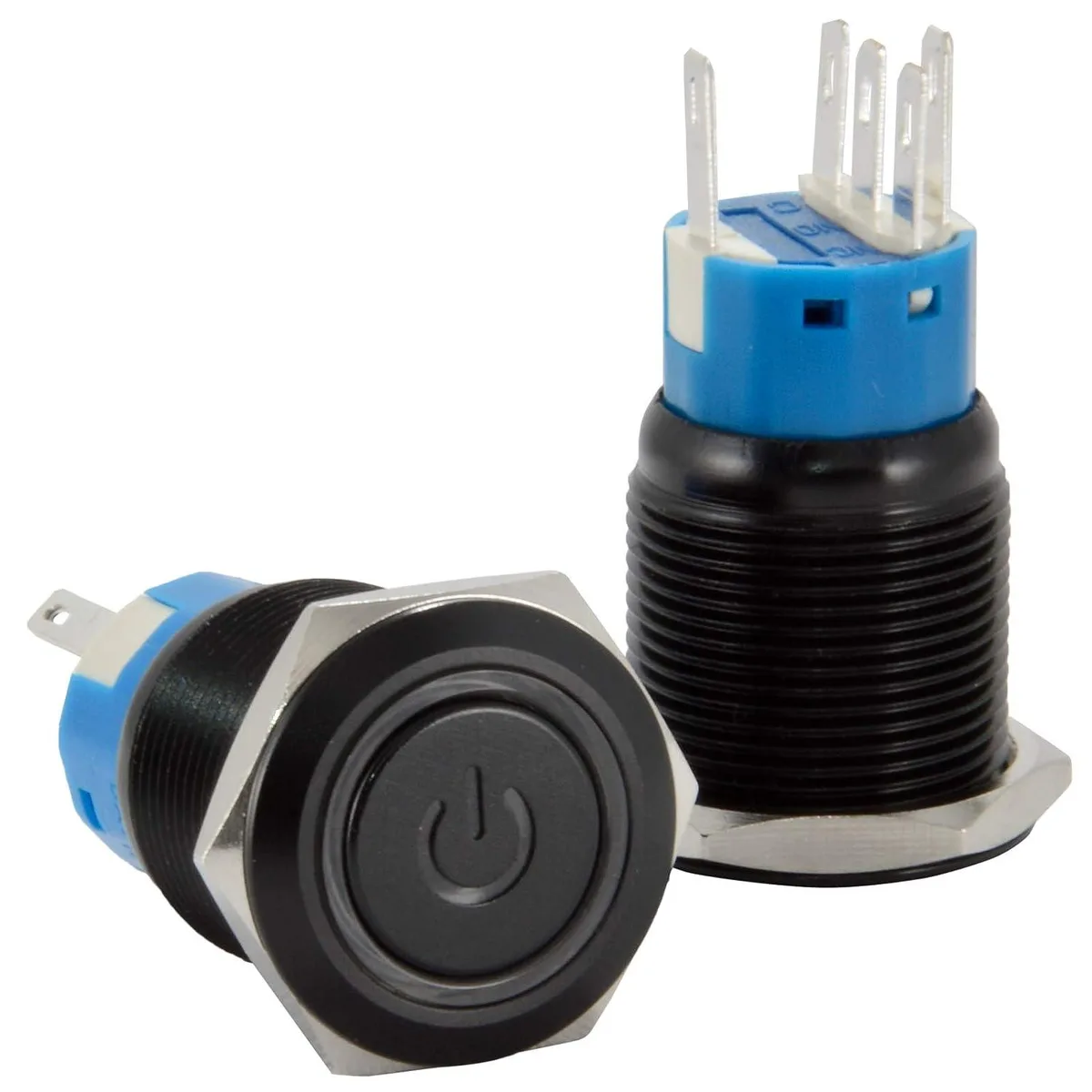

Round blue illuminated pushbutton switch, 19mm panel cutout, aluminium body, IP67 waterproof

JacobsParts Inc.

JacobsParts Inc. LTCH-E4-BLU 19mm IP67 latching pushbutton disconnect 12V blue LED

SKU CH-QP8Y-RKWQ6 MPN LTCH-E4-BLU

IP67-rated 19 mm latching push-button switch with blue 12 V LED for panels up to 17.5 mm thick

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialAluminum
  • IP RatingIP67
  • FeaturesWaterproof
  • Latching push-on push-off action simplifies power control
  • IP67 rating survives heavy rain and splashes
  • Blue 12 V LED illuminates the button face

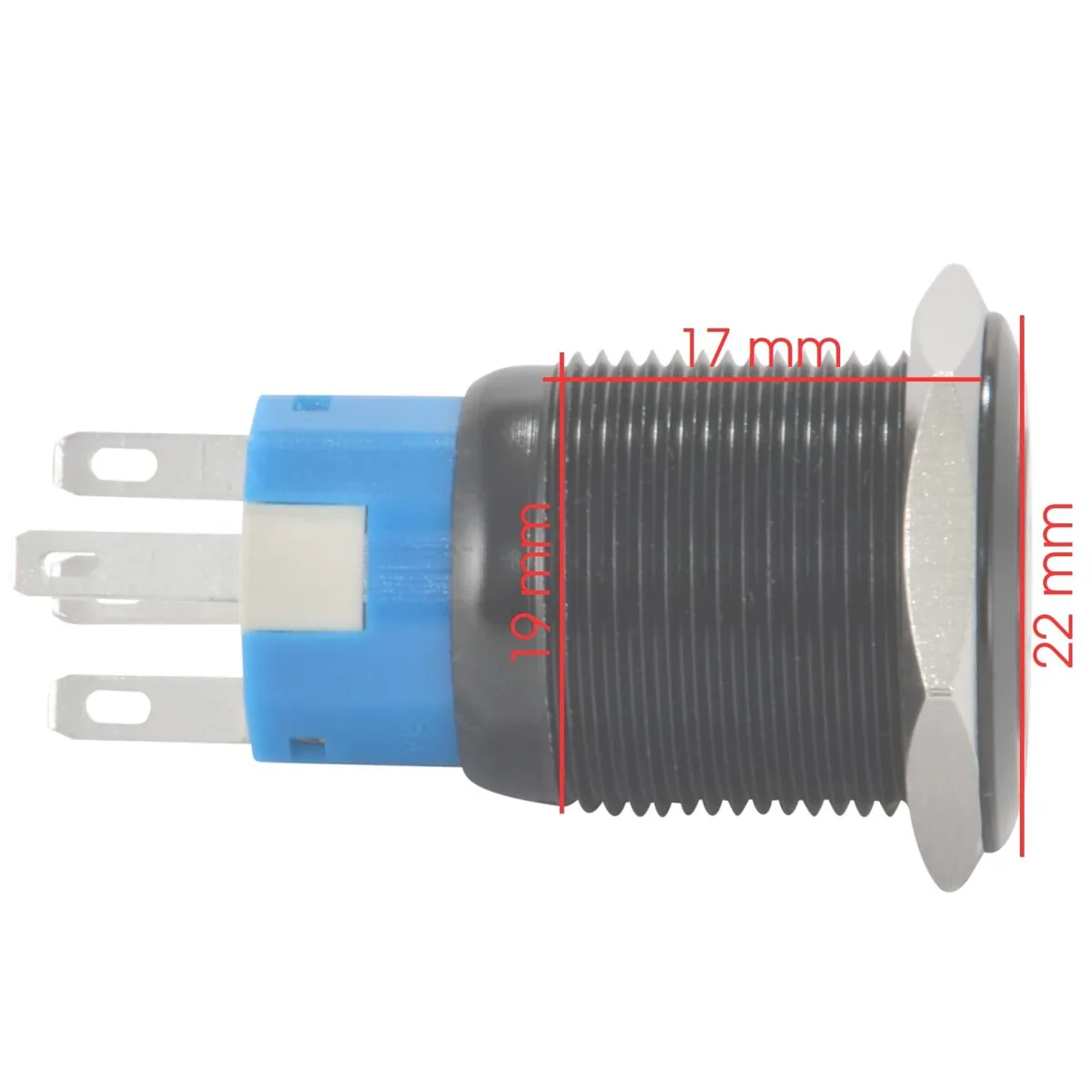

  • 19 mm panel cutout fits standard 3/4 inch holes
  • SPDT contacts with screw terminals support 250 V 5 A switching

19mm IP67 Latching Pushbutton Switch

This 19mm panel-mount switch provides a maintained on-off action with a blue LED indicator. The aluminium zinc alloy body carries an IP67 rating for water and dust resistance. It is designed for a 19mm circular cutout and includes a metal securing nut plus an optional rubber O-ring for extra sealing.

Suits 12V DC Projects Needing a Visible Power

Builders wiring auxiliary lighting, marine accessories or custom electronics panels will appreciate the separate LED circuit that can stay lit or follow the switch state. The 5 A, 250 V contact rating covers many low-voltage DC loads. Installers who need momentary action, a different actuator colour or a non-illuminated switch should look elsewhere.

Handles Up to 5 A at 250 V with 12 V LED Headroom

The SPDT contacts (one normally open, one normally closed) comfortably switch resistive loads within the 5 A limit. The blue LED draws 15 mA at 12 V DC, leaving ample margin for standard vehicle or battery supplies. Exceeding the 5 A contact rating or applying voltage above 250 V will exceed the switch’s rated capacity.

Highlights

  • Latching push-on push-off action simplifies power control
  • IP67 rating survives heavy rain and splashes
  • Blue 12 V LED illuminates the button face
  • 19 mm panel cutout fits standard 3/4 inch holes
  • SPDT contacts with screw terminals support 250 V 5 A switching

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialAluminum
IP RatingIP67
BrandJacobsParts
ModelLTCH-E4-BLU
FeaturesWaterproof

Questions about this item

What size panel cutout does the 19mm switch require?

Cut a 19mm (3/4 inch) circular hole in the panel; the threaded neck screws in and is secured from behind with the included metal nut.

Can the blue LED run on the same 12V circuit that the switch controls?

The LED is rated for 12V DC at 15mA and is wired independently, so you can connect it to stay on constantly or only when the switch is latched ON.

How do I confirm the switch is latched correctly after wiring?

Press the button once — the LED should light (if wired that way) and the connected load activates; press again and both turn off, confirming the maintained ON-OFF action.
