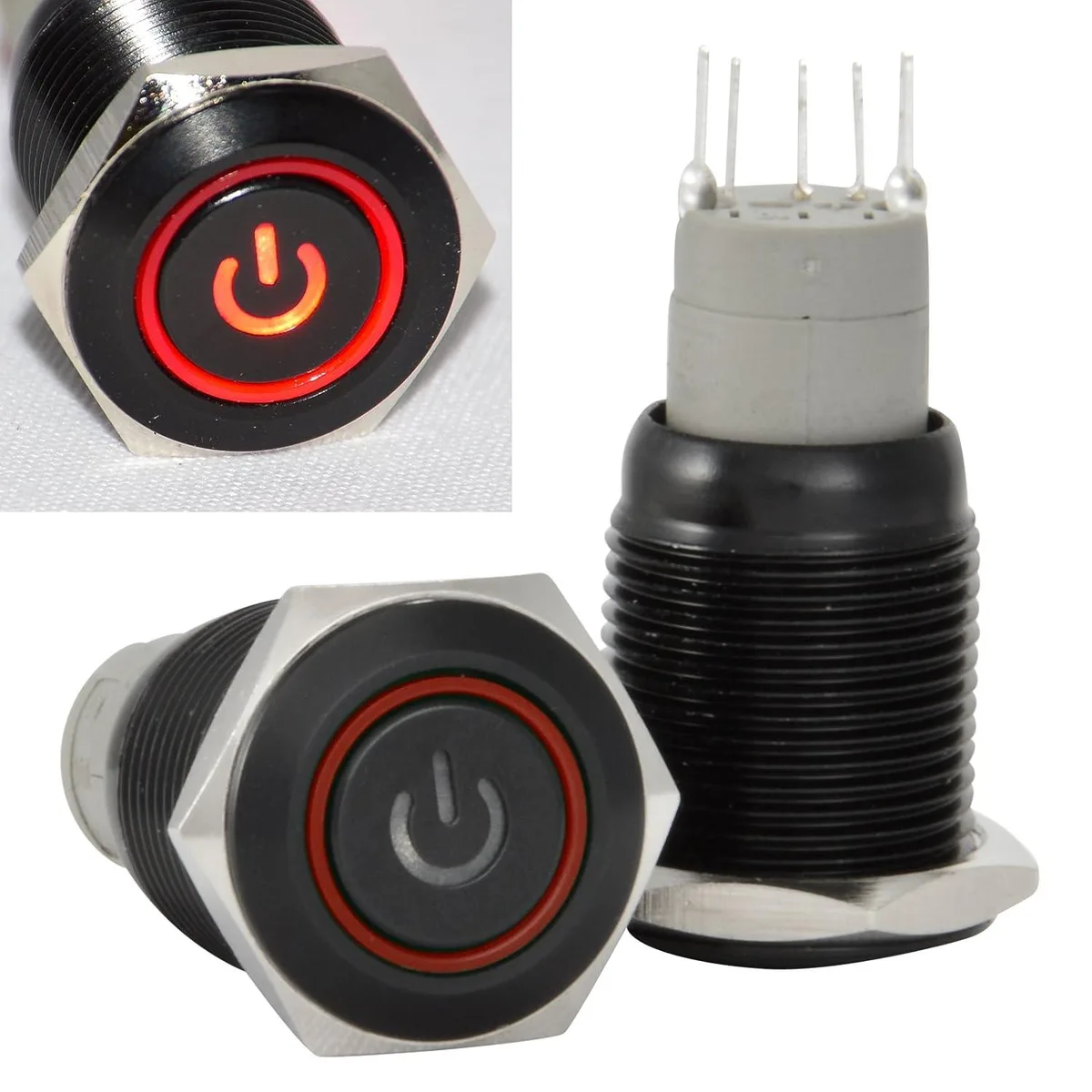

Black metal 16mm latching pushbutton switch with red LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-E3-RED 16mm IP67 Latching Pushbutton Disconnect 250V 3A 12V LED

SKU CH-DWN9-WSEDE MPN LTCH-E3-RED

IP67-rated 16mm latching pushbutton switch with 12V LED, 250V 3A rating and SPDT contacts

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialAluminum
  • FeaturesWaterproof
  • Latching maintained action stays on until pressed again
  • IP67 rating withstands heavy rain and splashes
  • 12 V LED draws 15 mA and wires independently
  • 16 mm panel cutout fits standard 5/8 inch hole
  • 250 V 3 A SPDT contacts handle AC or DC loads

16 mm IP67 latching pushbutton disconnect

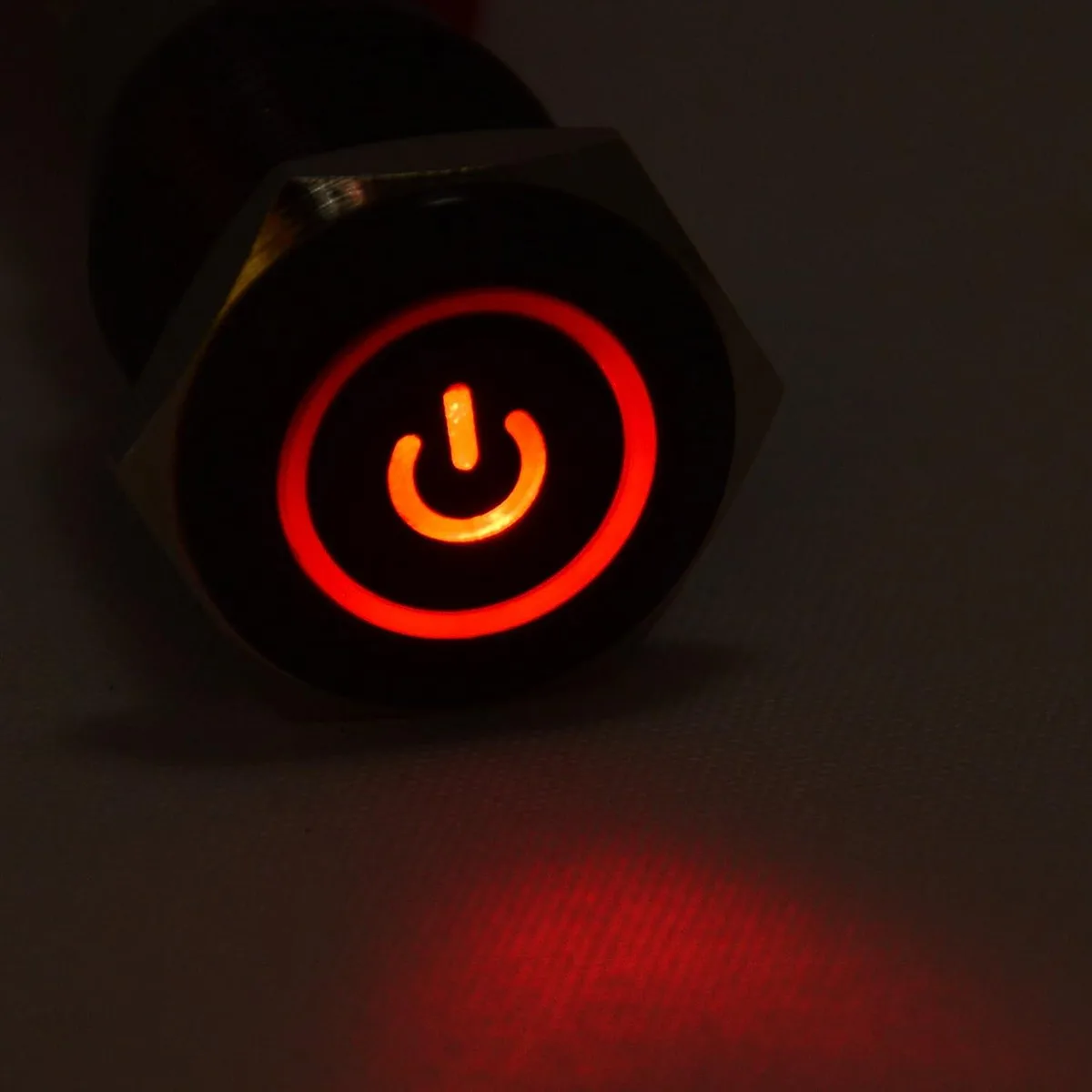

This 16 mm panel-mount switch provides a maintained on/off action for circuits up to 250 V AC/DC at 3 A. A built-in 12 V LED illuminates the red power symbol and can be wired to stay lit constantly or only when the switch is on. The IP67-rated aluminium zinc alloy body suits automotive, marine and electronics projects that face moisture or dust.

Check panel thickness and wiring plan

Verify the mounting surface can accommodate a 16 mm cutout and the 16 mm thread depth before drilling. The switch uses a single-pole double-throw contact block with one normally open and one normally closed pair, so confirm your circuit needs that configuration. The LED draws 15 mA at 12 V DC and requires a suitable current-limiting arrangement if driven directly from a higher voltage source.

Aluminium alloy body with sealed mounting

The faceplate measures 18 mm across and the total depth behind the panel is 36 mm including contacts. A metal locking nut and a rubber O-ring are supplied; fitting the O-ring between the neck and panel preserves the IP67 seal. The assembly operates from -20 °C to 55 °C, making it reliable for exterior vehicle or boat installations where vibration and temperature swings are common.

Highlights

  • Latching maintained action stays on until pressed again
  • IP67 rating withstands heavy rain and splashes
  • 12 V LED draws 15 mA and wires independently
  • 16 mm panel cutout fits standard 5/8 inch hole
  • 250 V 3 A SPDT contacts handle AC or DC loads

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialAluminum
BrandJacobsParts
ModelLTCH-E3-RED
FeaturesWaterproof

Questions about this item

Does the LTCH-E3-RED include the mounting nut and O-ring, or must I order them separately?

The package includes the switch, a metal nut, and a rubber O-ring for optional extra water resistance.

Which LED voltage suits a 12 V vehicle system — the only option listed?

The built-in LED is rated for 12 V DC at 15 mA, matching standard automotive electrical systems.

Will the 3 A, 250 V rating handle a 12 V, 2 A LED light bar on my truck?

Yes — at 12 V the 3 A limit allows up to 36 W, so a 2 A load is well within the switch capacity.
