Compact black video capture box with dual HDMI ports USB-C and 3.5 mm audio jacks

j5create

j5create JVA06 Dual HDMI Video Capture 1080p 60 Hz

SKU CH-DKQF-NTH9D

Captures two HDMI sources at 1080p 60 Hz via USB-C with six PIP/PBP modes, audio mixer and 60 W power pass-through

  • Dual HDMI inputs capture two 1080p 60 Hz sources simultaneously
  • USB-C 3.1 Gen1 delivers uncompressed full HD video and audio

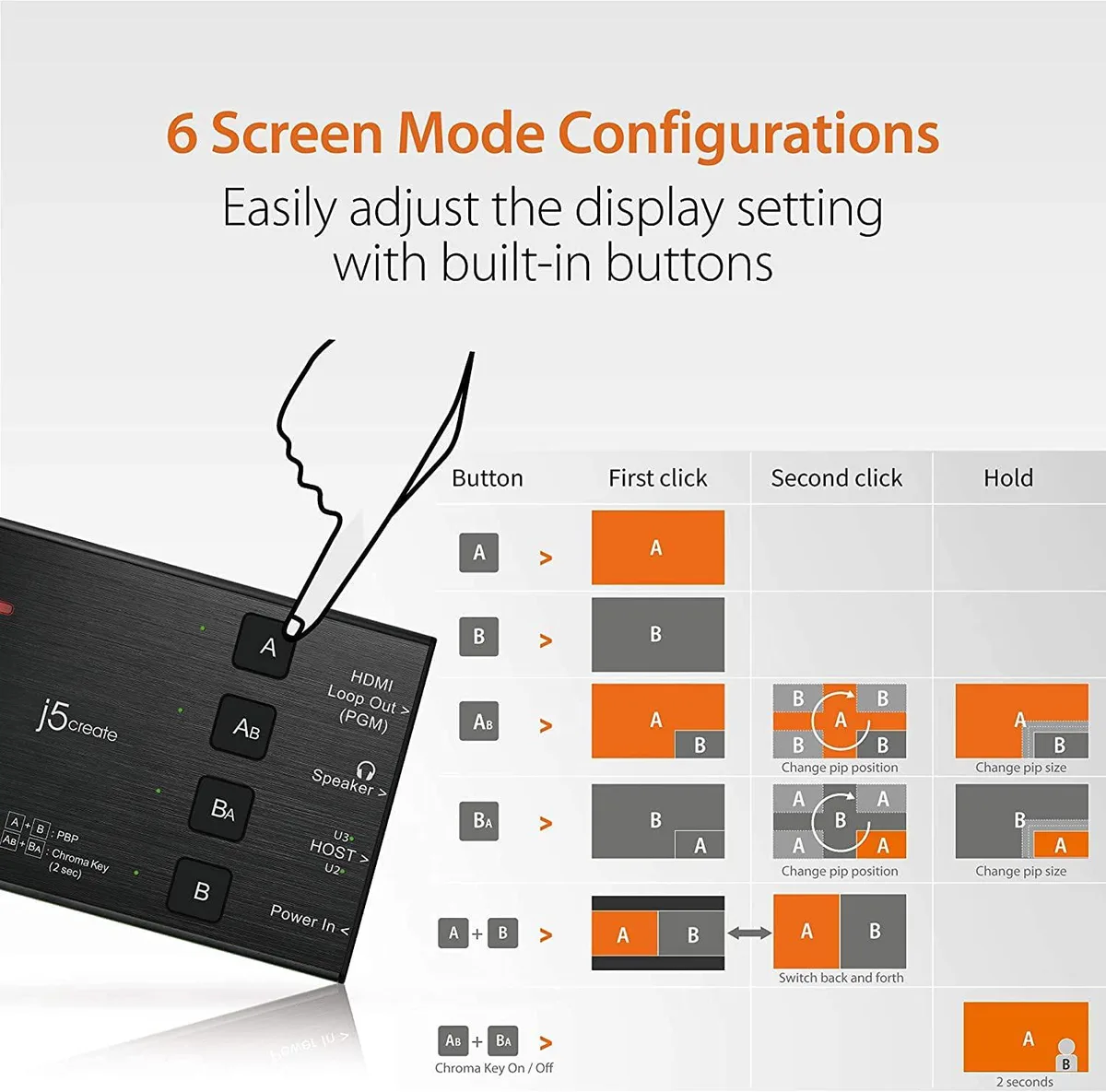

  • Six screen modes include picture-in-picture and picture-by-picture layouts
  • Flexible audio via HDMI or 3.5 mm mic-in and speaker-out jacks
  • Three-channel audio mixer with individual on/off switches and volume indicators

Dual HDMI capture for live production

The JVA06 captures two uncompressed 1080p 60 Hz HDMI sources through a single USB-C 3.1 Gen 1 link. Six screen modes including picture-in-picture and picture-by-picture let streamers switch layouts instantly. A built-in audio mixer with three on/off switches and volume indicators handles HDMI or 3.5 mm analogue sources.

Streamers needing two simultaneous sources

Creators who must combine gameplay and a camera feed, or dual-camera podcasts, will use every input. Single-source broadcasters or users without USB-C 3.1 Gen 1 ports gain no advantage from the second channel. The device also lacks internal encoding, so the host computer carries the full processing load.

Two HDMI 1.3a inputs at 1080p 60 Hz

Uncompressed dual capture at 1080p 60 Hz is the specification that decides fit. If your workflow requires only one source, or needs 4K or higher frame rates, this capture card does not meet the requirement.

Highlights

  • Dual HDMI inputs capture two 1080p 60 Hz sources simultaneously
  • USB-C 3.1 Gen1 delivers uncompressed full HD video and audio
  • Six screen modes include picture-in-picture and picture-by-picture layouts
  • Flexible audio via HDMI or 3.5 mm mic-in and speaker-out jacks
  • Three-channel audio mixer with individual on/off switches and volume indicators

Specifications

No published specifications for this item yet.

Questions about this item

Does the JVA06 include everything needed to connect two HDMI sources and a USB-C host, or must I buy cables separately?

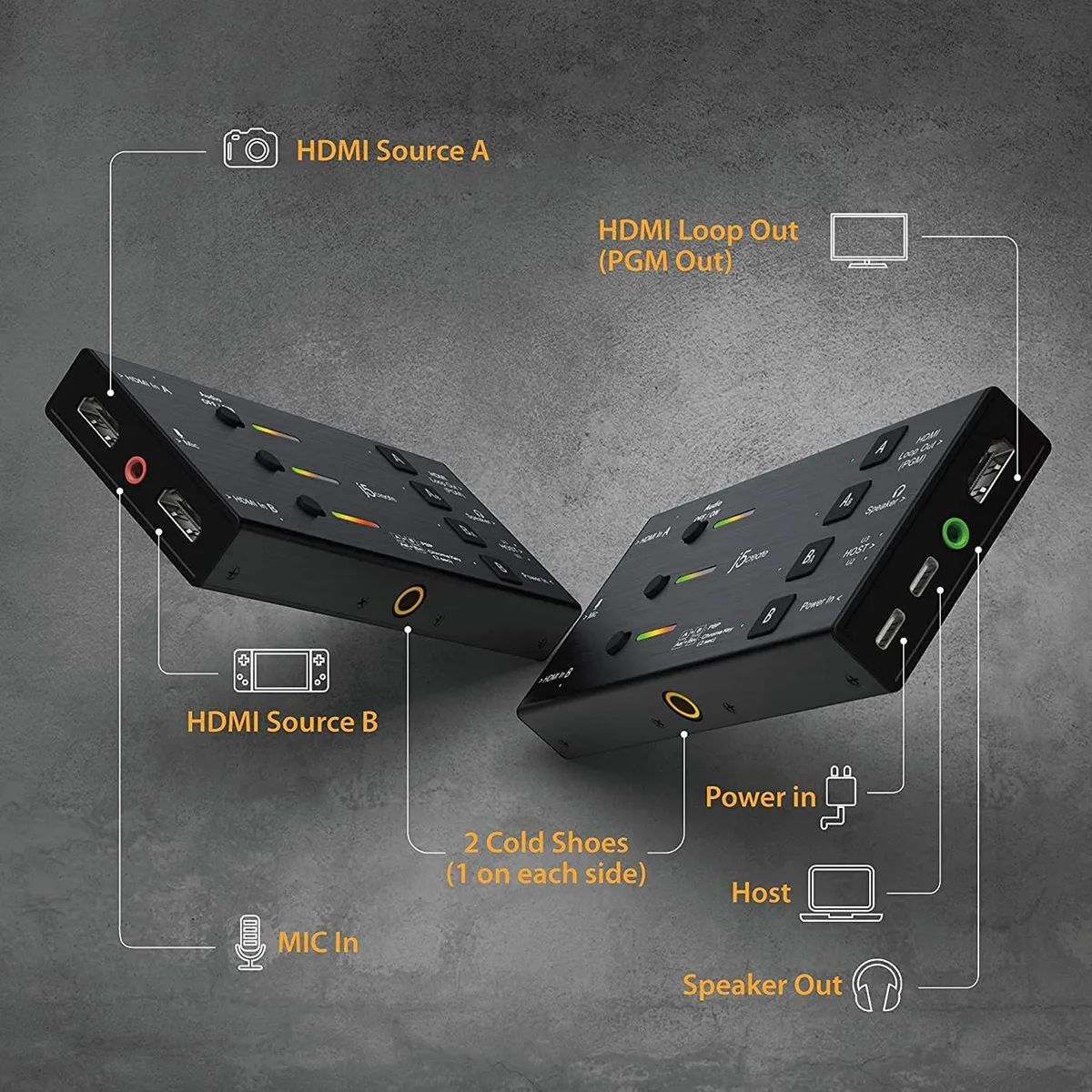

The unit provides dual HDMI inputs, a USB-C 3.1 Gen1 connection, 3.5 mm mic-in and speaker-out jacks, plus a cold-shoe adapter; HDMI and USB-C cables are not included.

Should I choose a different capture model if I need 4K or higher frame rates, or is 1080p 60 Hz the only option?

This device captures uncompressed 1080p at 60 Hz via HDMI 1.3a; no 4K or higher-frame-rate versions are offered.

What does the 1080p 60 Hz rating mean when I plug the JVA06 into my streaming PC?

It delivers two simultaneous, uncompressed Full HD streams at 60 frames per second over USB-C 3.1 Gen1, with six screen-mode layouts including PIP and PBP.
