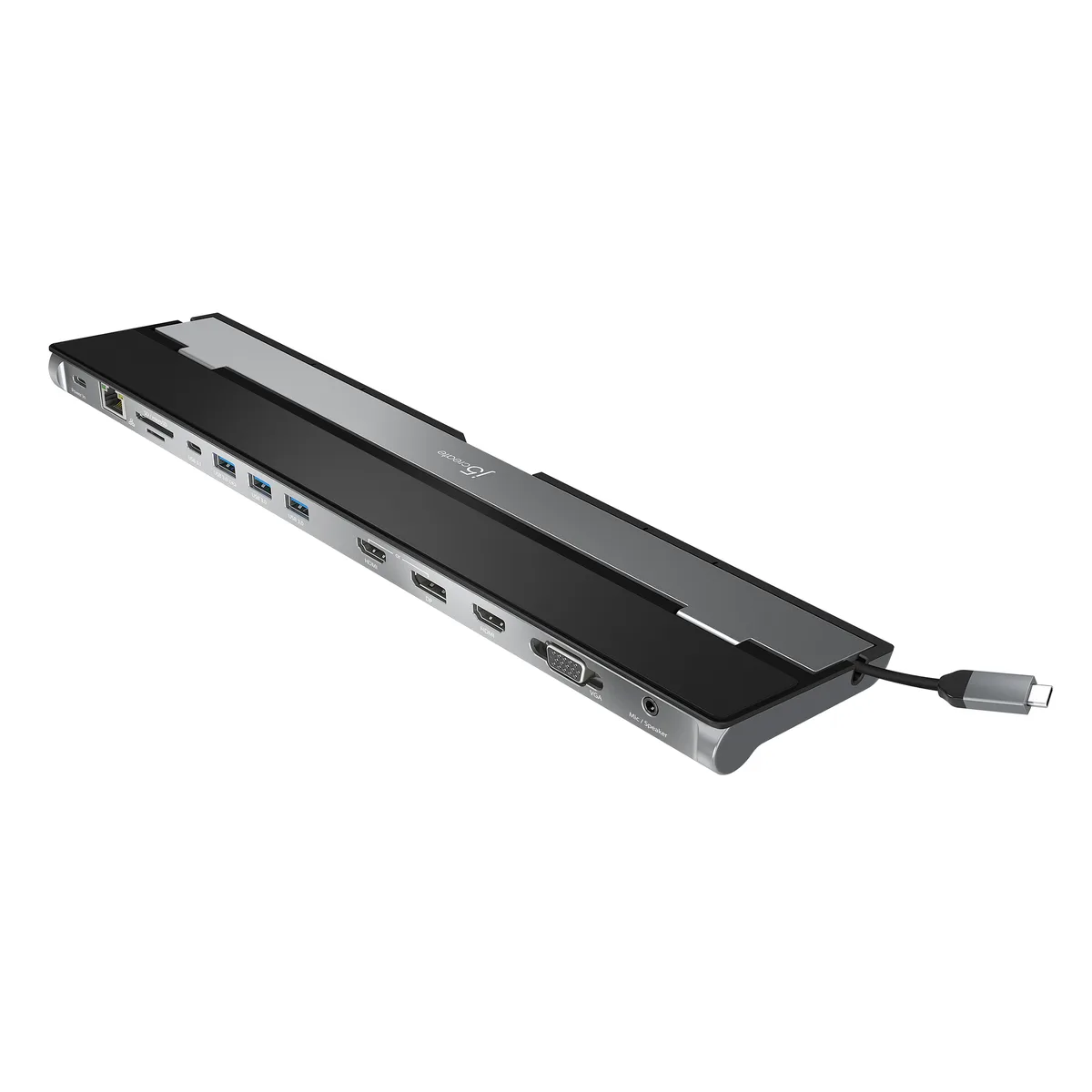

j5create JCD543 USB-C Triple Display Docking Station
Connects three external monitors via DisplayPort, HDMI and VGA at up to 4K 30 Hz while delivering 100 W pass-through power and adding Gigabit Ethernet, SD/microSD slots and four USB 3.0 ports
- ColorBlack
- Dimension3.24 (W) x 0.92 (H) x 13.78 (D) in., USB-C™ cable length: 1.
- Weight.66 lb
- Charge laptop up to 100 W via USB-C power delivery pass-through
- Connect three external monitors using DisplayPort, HDMI and VGA outputs
- Transfer files quickly with three USB-A 5 Gbps ports and one USB-C 5 Gbps port
- Access SD and microSD cards directly through built-in card reader slots
- Wired Gigabit Ethernet port provides stable network connectivity
Triple Display Docking Station
The j5create JCD543 is a USB-C docking station that adds three external video outputs, gigabit ethernet, four USB ports and SD card slots through a single cable. It delivers up to 100 W of pass-through power to the host laptop while driving simultaneous DisplayPort, HDMI and VGA signals.
Suited for multi-monitor workflows
Professionals who need to extend a laptop across three external screens at 4K 30 Hz or 1080p will find the three native video ports convenient. Buyers whose displays require refresh rates above 30 Hz at 4K or who need more than three external monitors should consider other solutions.
100 W pass-through power delivery
The single specification that decides compatibility is the 100 W USB-C power delivery pass-through; the host laptop must accept charging over USB-C at that wattage for the dock to power it while driving three displays.
Highlights
- Charge laptop up to 100 W via USB-C power delivery pass-through
- Connect three external monitors using DisplayPort, HDMI and VGA outputs
- Transfer files quickly with three USB-A 5 Gbps ports and one USB-C 5 Gbps port
- Access SD and microSD cards directly through built-in card reader slots
- Wired Gigabit Ethernet port provides stable network connectivity
Specifications
| Brand | j5create |
|---|---|
| Model | JCD543 |
| Color | Black |
| Dimension | 3.24 (W) x 0.92 (H) x 13.78 (D) in., USB-C™ cable length: 1.5 ft/450 mm |
| Weight | .66 lb |
Questions about this item
What USB-C capability must my laptop support to drive three external monitors through the JCD543?
Your laptop must support DisplayPort Alt Mode over its USB-C port to enable the docking station’s triple-display output.
Will my existing VGA monitor work alongside newer HDMI and DisplayPort screens on this dock?
Yes — the dock provides simultaneous DisplayPort, HDMI and VGA outputs, supporting extended or mirrored modes across all three interfaces.
How can I verify the dock is delivering 100 W pass-through power to my laptop after connecting everything?
Check your laptop’s battery indicator; it should show charging while the dock’s USB-C power adapter port is connected to a 100 W PD source.
