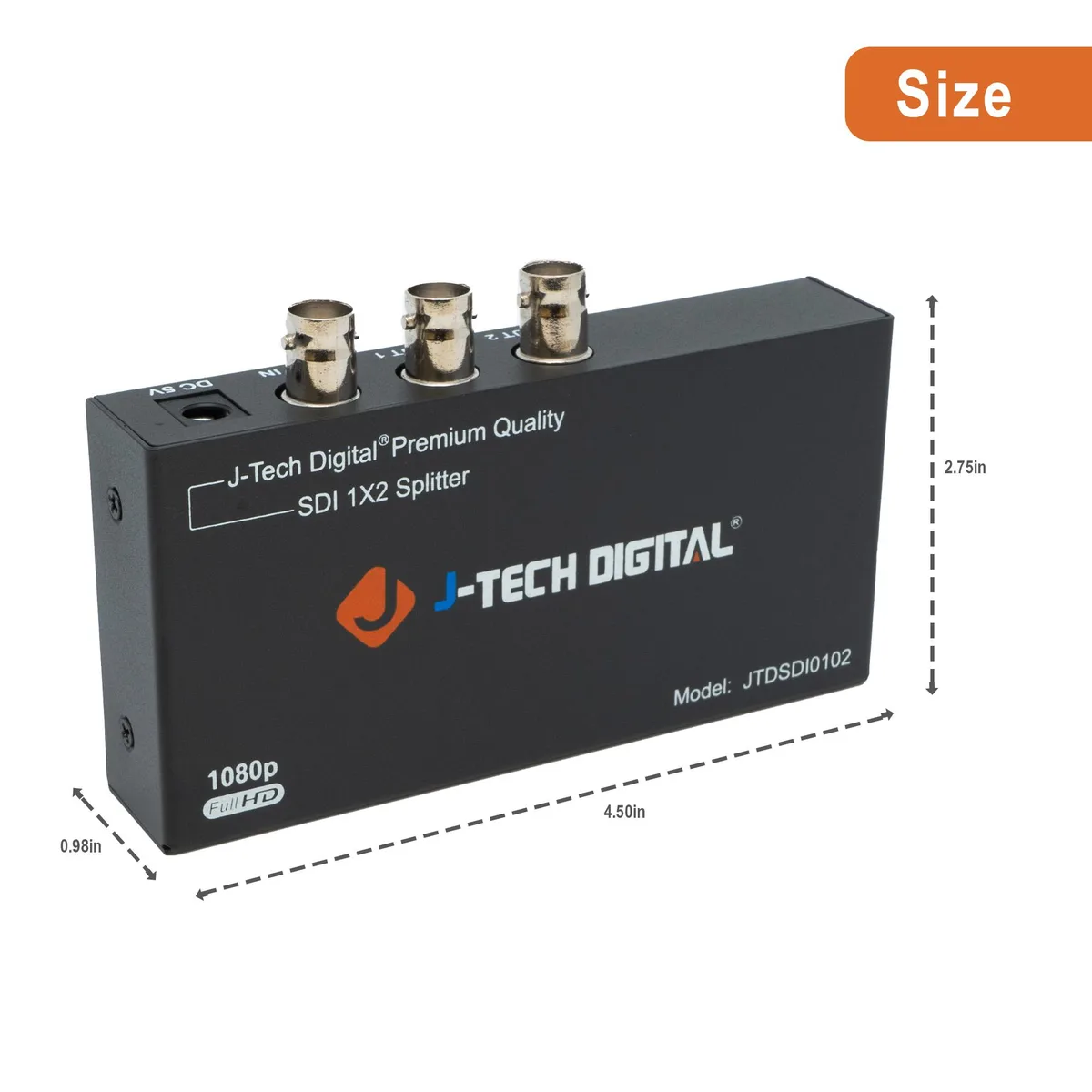

Compact metal box with BNC connectors labelled one input two outputs

J-Tech Digital Inc.

J-Tech Digital Premium Quality SDI Splitter 1x2

SKU CH-0P6B-GM2M1

Distributes one SDI signal to two simultaneous outputs supporting SD-SDI, HD-SDI and 3G-SDI formats up to 1320 ft with automatic signal detection

  • TypeA/V Converter
  • Distributes one SDI signal to two simultaneous outputs
  • Supports SD-SDI, HD-SDI and 3G-SDI up to 2.97 Gbps
  • Equalised re-clocked transmission reaches 1320 ft on SD-SDI
  • Automatic signal detection enables plug-and-play operation
  • Wide DC 5 V to 30 V input suits varied installations

J-Tech Digital 1x2 SDI Splitter

This new J-Tech Digital 1x2 SDI splitter distributes one SDI signal to two simultaneous SDI outputs. It supports SD-SDI at 270Mbps, HD-SDI at 1.485Gbps and 3G-SDI at 2.97Gbps with equalized and re-clocked transmission. The unit accepts DC 5V to 30V input and features a durable metal enclosure with plug-and-play operation.

Who this suits and who it does not

Ideal for broadcast rooms, non-linear editing, CCTV security systems and training showrooms requiring lossless distribution of SD 525i, 625i, 720p, 1080i and 1080p signals up to 60Hz. Buyers needing more than two outputs or signal conversion to HDMI, DisplayPort or IP-based formats should look at other devices.

Key specification deciding fit

Maximum cable reach is 1320 ft for SD-SDI, 660 ft for HD-SDI and 330 ft for 3G-SDI using Belden 1694A cable, with automatic signal detection across 270Mbps to 2.97Gbps data rates and support for 8-bit, 10-bit and 12-bit deep color in RGB or YCbCr 4:4:4, 4:2:2 or 4:2:0 sampling.

Highlights

  • Distributes one SDI signal to two simultaneous outputs
  • Supports SD-SDI, HD-SDI and 3G-SDI up to 2.97 Gbps
  • Equalised re-clocked transmission reaches 1320 ft on SD-SDI
  • Automatic signal detection enables plug-and-play operation
  • Wide DC 5 V to 30 V input suits varied installations

Specifications

TypeA/V Converter

Questions about this item

What power input does the 1x2 SDI splitter require?

The unit accepts a wide DC range from 5 V up to 30 V, with the minimum operating voltage at 5 V, so any compliant supply in that window will power it.

How is the splitter installed, and what step is often missed?

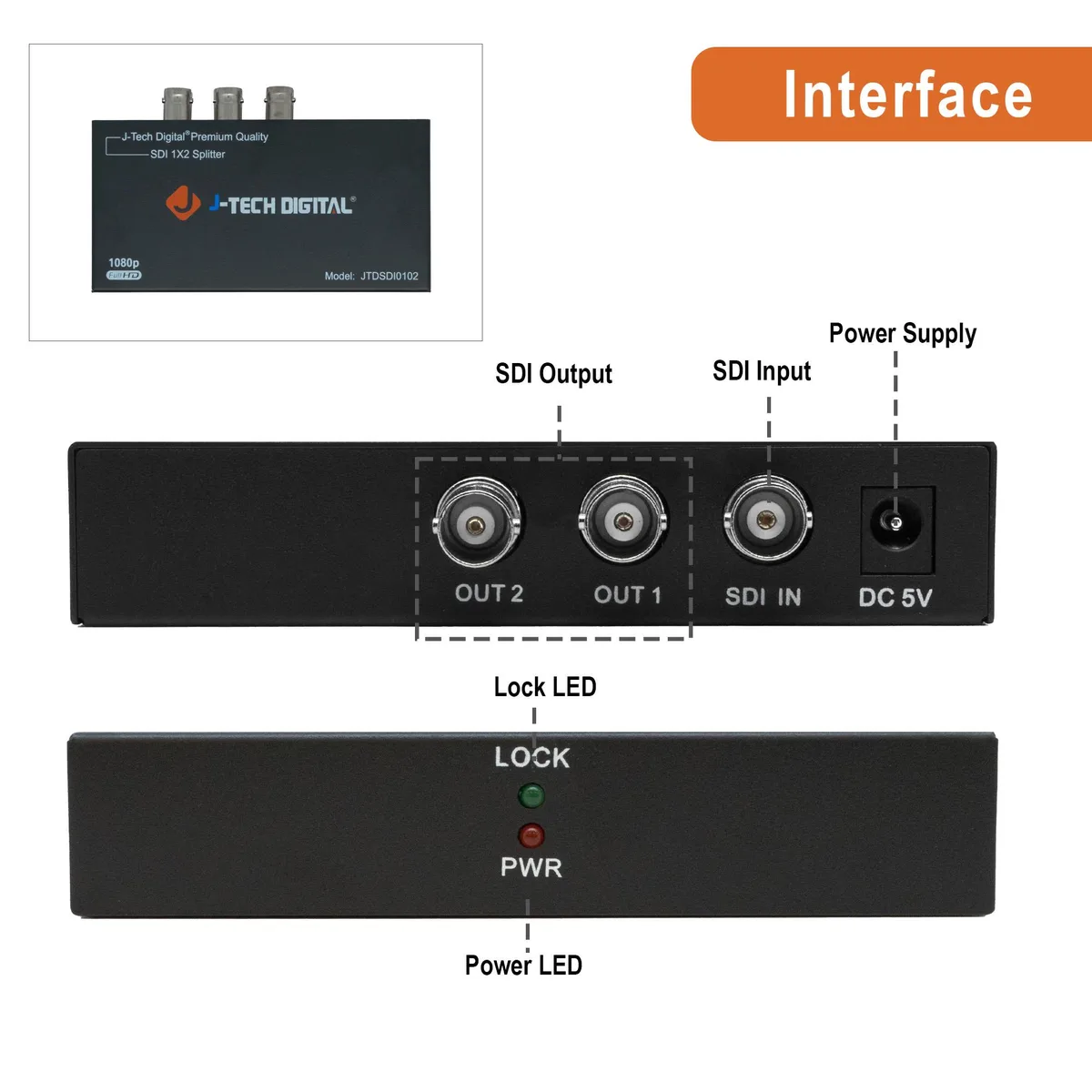

Connect the source to the single SDI input and the two displays to the outputs, then apply power; the device auto-detects the incoming SDI format, so no manual configuration is needed.

What cable distance limits should I plan for when using Belden 1694A?

With Belden 1694A cable the equalised outputs reach 1320 ft for SD-SDI, 660 ft for HD-SDI and 330 ft for 3G-SDI; beyond those lengths the signal will need re-clocking again.
