Black 3U rackmount server chassis, aluminum front bezel with key lock, two 5.25in bays, one 3.5in bay, front USB ports

iStarUSA Inc.

iStarUSA Inc. D-300-FS 3U rackmount server chassis

SKU CH-ZATV-1PHMD MPN D-300-FS

A 3U rackmount chassis holding two 5.25" and six 3.5" drives with front-mounted PSU and seven expansion slots

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard CompatibilityATX / Micro ATX
  • External 5.25" Drive Bays2

Model D-300-FS

  • 3U rackmount fits standard server racks
  • Front-mount ATX PSU simplifies cable routing
  • Seven expansion slots support PCI, PCI 64-bit, AGP and PCI-Express cards
  • Two 5.25" and six 3.5" bays enable high-density storage
  • Aluminium front bezel with key lock secures physical access

3U rackmount server chassis

The iStarUSA D-300-FS is a 3U rackmount chassis built from aluminium and steel in a black finish. It accepts ATX and Micro-ATX motherboards and is aimed at system integrators assembling web servers, database servers or storage nodes that need dense drive capacity in a standard rack.

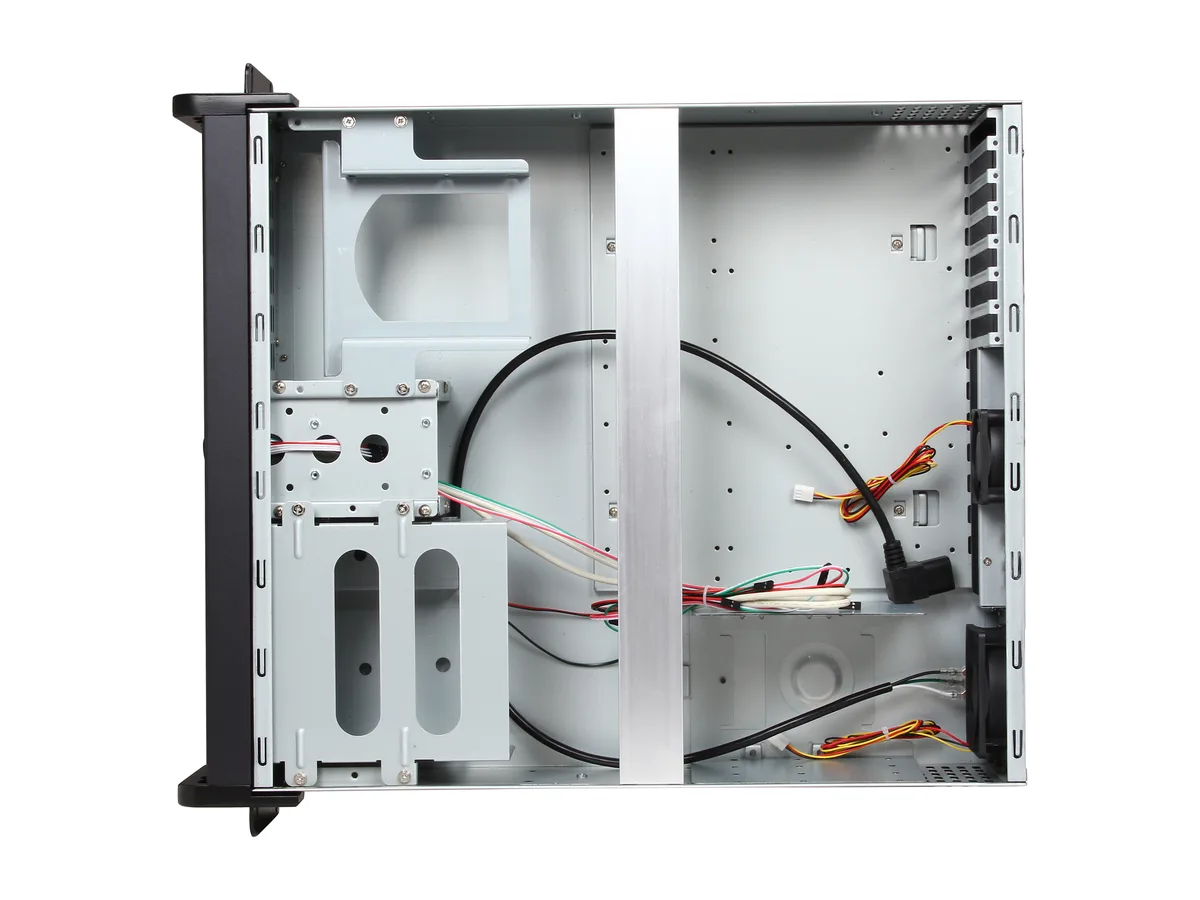

Seven expansion slots and eight drive bays

Seven full-height expansion slots support PCI, 64-bit PCI, AGP and PCI-Express add-in cards for future upgrades. Storage density comes from two external 5.25-inch bays, one external 3.5-inch bay and five internal 3.5-inch bays, giving eight bays in total for high-density RAID or backup arrays.

Front-mounted PSU with dual-fan cooling

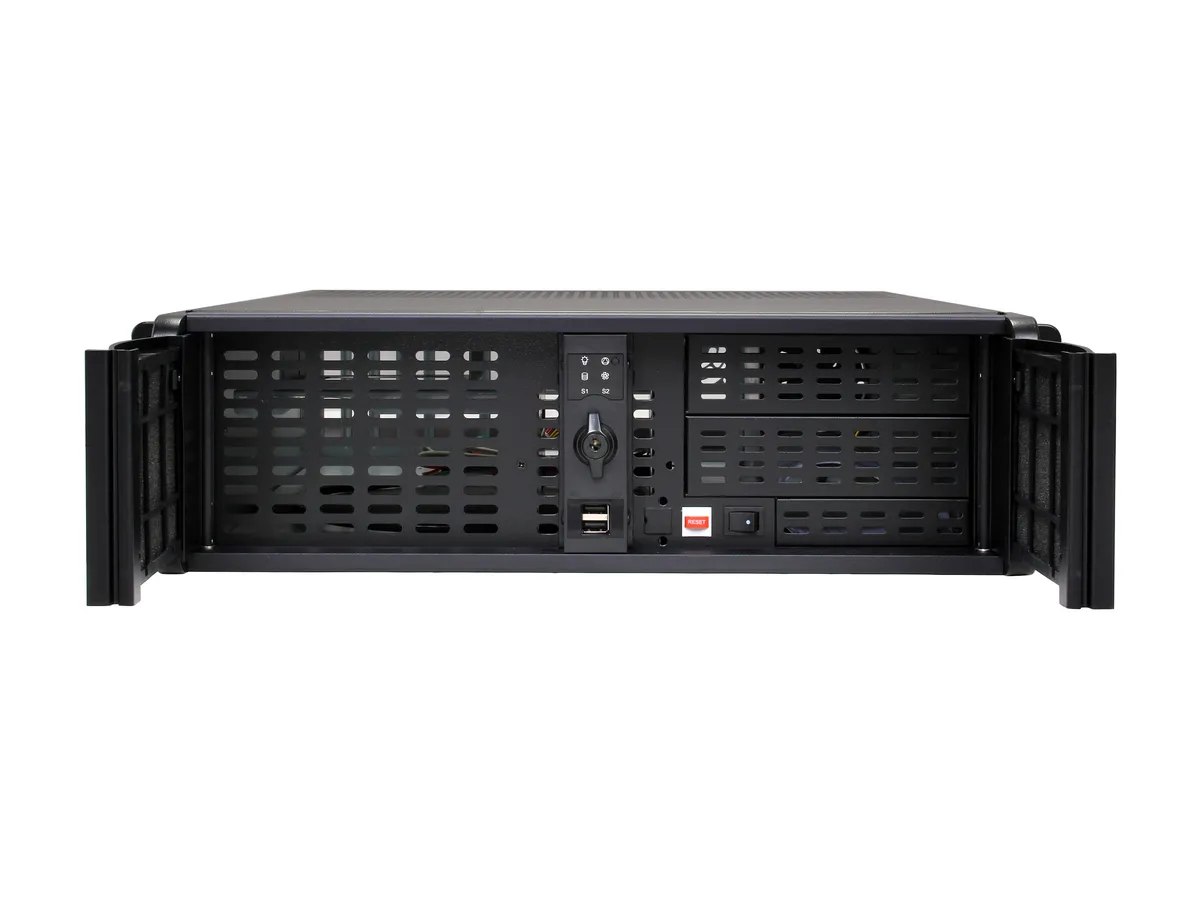

A front-mounted ATX power supply feeds airflow through the chassis, assisted by one 80 mm fan and one 60 mm fan. A removable air filter sits behind the lockable aluminium front bezel, while front-panel LEDs show power, drive activity, temperature and fan status when the optional sensor board is fitted.

Highlights

  • 3U rackmount fits standard server racks
  • Front-mount ATX PSU simplifies cable routing
  • Seven expansion slots support PCI, PCI 64-bit, AGP and PCI-Express cards
  • Two 5.25" and six 3.5" bays enable high-density storage
  • Aluminium front bezel with key lock secures physical access

Specifications

BrandiStarUSA
ModelD-300-FS
Chassis TypeRackmount
Form Factor3U
ColorBlack
Case MaterialAluminum / Steel
Motherboard CompatibilityATX / Micro ATX
External 5.25" Drive Bays2
External 3.5" Drive Bays1
Internal 3.5" Drive Bays5
Expansion Slots7
Front Ports2 x USB 2.0
60mm Fans1
80mm Fans1
FeaturesColor of Front Bezel: Black
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Security: Front Bezel Key Lock
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Dimensions19.00" x 5.25" x 20.80"
Shipping weight12.56 kg
Package size683 × 546 × 239 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 3U height mean for rack installation?

The 3U form factor occupies 5.25 inches of vertical rack space and fits standard 19-inch rails, leaving room above and below for other equipment.

Which expansion-slot standard do the seven slots follow, and what card lengths are supported?

The seven slots accept PCI, PCI 64-bit, AGP and PCI-Express add-in cards for future upgrades.

How deep is the chassis and what clearance is needed for the front-mounted power supply?

Overall depth is 20.80 inches; the front-mounted ATX power supply sits behind the front bezel, so allow cable-bend radius in front of the rack.
