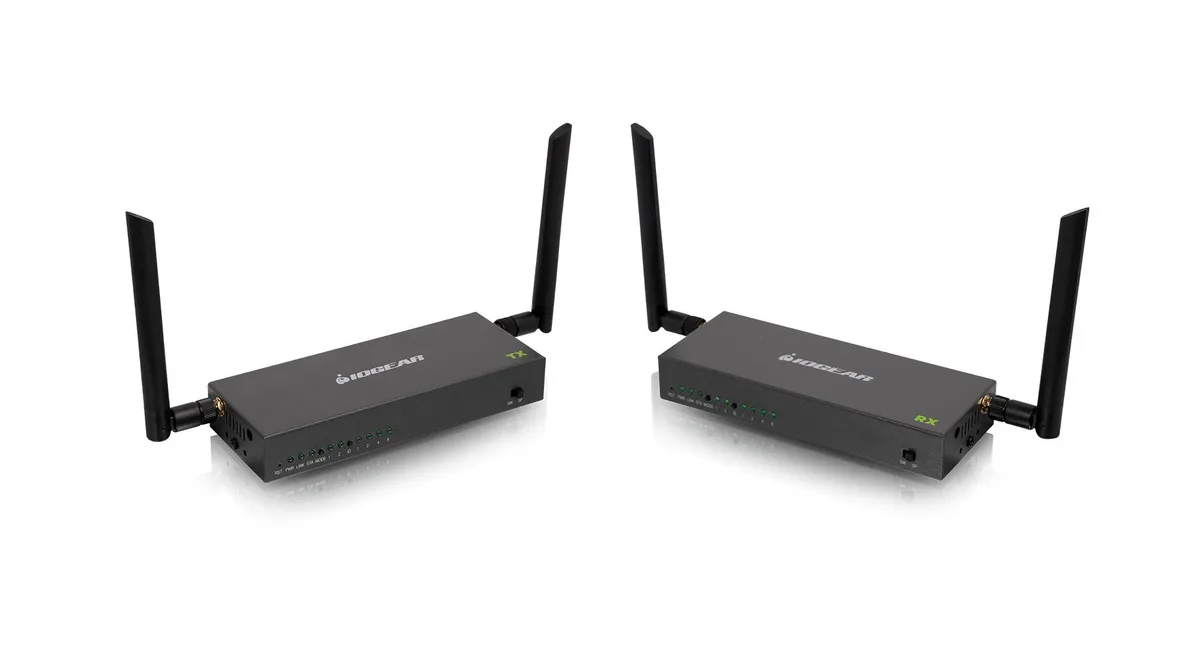

Two small rectangular boxes with matte black finish and detachable antennas, one transmitter and one receiver

IOGEAR

IOGEAR GWLRSSKIT4K 4K Wireless HDMI Repeater Kit 600ft

SKU CH-0WAR-ZF3D4 MPN GWLRSSKIT4K

Wirelessly extends 4K@30Hz HDMI up to 600 ft with IR control, USB keyboard/mouse pass-through, and local HDMI loop-out

  • Extender & Repeater TypeTransmitter
  • Frequency Band RangeIR Emitter & Receiver: 38kHz, 47kHz & 56kHz
  • Resolution Support640 x 480 to 4K@30Hz
  • VideoVideo Streaming Approx. 70ms Latency
  • AudioAudio Output: PCM Stereo
  • USB PortTransmitter: 1 x USB HID Input (for Mouse & Keyboard); Recei
  • Wireless 4K video up to 600 ft range
  • Local HDMI pass-through at 4K 60Hz while streaming
  • IR control relay over 3.5 mm port
  • USB keyboard and mouse remote console
  • Switch or splitter mode up to four displays

Pro A/V Extender & Repeater Kit

The IOGEAR GWLRSSKIT4K is a long-range wireless HDMI transmitter and receiver kit designed for installers and integrators who need to place a 4K display up to 600 feet from the source without running cables. It supports switch or splitter modes for flexible multi-screen digital signage in commercial, education or hospitality environments.

600-foot wireless 4K transmission range

The kit delivers uncompressed 4K video at 4096x2160 resolution up to 30 Hz wirelessly over a 4.9 to 5.9 GHz high-gain MIMO link, with a maximum line-of-sight range of 600 feet (182 meters) when paired with a single receiver. Local wired pass-through on the transmitter maintains 4K at 60 Hz for a nearby monitor while the remote display receives the wireless signal.

HDMI source with USB HID and IR control

The transmitter connects to any HDMI source and provides a USB HID port for keyboard and mouse input, while the receiver offers two USB-A ports for remote KVM control of the host PC. A 3.5 mm IR emitter and receiver pair extends remote-control commands, and a 3-pin RS-232 block connector allows serial control of projectors or other end devices. Both units require the included 12 V DC power supplies.

Highlights

  • Wireless 4K video up to 600 ft range
  • Local HDMI pass-through at 4K 60Hz while streaming
  • IR control relay over 3.5 mm port
  • USB keyboard and mouse remote console
  • Switch or splitter mode up to four displays

Specifications

BrandIOGEAR
SeriesWireless Video Extender
ModelGWLRSSKIT4K
Part NumberGWLRSSKIT4K
Extender & Repeater TypeTransmitter
Frequency Band RangeIR Emitter & Receiver: 38kHz, 47kHz & 56kHz
Resolution Support640 x 480 to 4K@30Hz
VideoVideo Streaming Approx. 70ms Latency
AudioAudio Output: PCM Stereo
USB PortTransmitter: 1 x USB HID Input (for Mouse & Keyboard); Receiver: 2 x USB Input (for Mouse & Keyboard)
S-VideoVideo Input Transmitter: 1 x HDMI Input; Receiver: 1 x HDMI Output
Video Output Transmitter: 1 x HDMI Output (Local Pass-through); Receiver: 1 x HDMI Output
Other ConnectorLink: Transmitter/Receiver: 3.5mm IR port
Power: Transmitter/Receiver: 1 x 12VDC Power Jack
RS-232: Transmitter/Receiver: 1 x 3-Pin Block Connector
System RequirementsOperating Temperature
-32°F~131°F (0°C~55°C)
Source (Transmitter Side):
1x HDMI Out
1x USB-A (for Keyboard and Mouse)
Display (Receiver Side):
1x HDMI In to Display
1x USB-A Keyboard
1x USB-A Mouse
Power SupplyVoltage 100~240v - 12V DC Jack
Amps 1A@12VDC
SpecificationVideo Streaming: Approx. 70ms Latency
Audio Output: PCM Stereo
Frequency: 4.9 ~ 5.9GHz
Antenna Type: 5GHz High-Gain
Range: Maximum video transmission range is 600ft (182m)
Power Switch: 1 x Push Button (Transmitter and Receiver)
Amps: 1A@12VDC
Warranty: 1-year
DimensionsUnit Dimensions
Height 1" (without antennas)
Length 9.75"
Width 2.50"
Unit Package Dimensions
Height 5.9"
Length 9.30"
Depth 4.00"
WeightUnit Pack Wt. 3.46 lb
Unit Wt. 0.70 lb x 2
Package Content1 x Transmitter
1 x Receiver
2 x 12V/1A Power Supply
4 x Antennas
2 x Mounting Kits
1 x IR Receiver Cable
1 x IE Emitter Cable
2 x HDMI Cables
1 x USB-A Male to USB-A Male Cable
1 x Quick Start Guide for Transmitter
1 x Quick Start Guide for Receiver
2 x Warranty Cards
Shipping weight1.81 kg
Package size236 × 150 × 107 mm

Questions about this item

What does the 4K@30Hz wireless resolution mean for my display?

The kit transmits up to 4096x2160 at 30 Hz wirelessly, so a connected 4K screen will show that resolution and refresh rate over the air.

How does the 4.9–5.9 GHz band and 600 ft range work together in practice?

The 5 GHz high-gain antennas deliver up to 600 ft (182 m) line-of-sight; walls or interference will reduce the usable distance.

What mounting options and space do the transmitter and receiver need?

Each unit measures 9.75" x 2.50" x 1" (without antennas) and includes a mounting kit for wall or shelf installation.
