IOGEAR
IOGEAR GUV302P 4K input 1080p capture video capturing device
Captures 4K video input and streams 1080p at 60 fps via USB 3.1, with USB-C power pass-through and a 1/4" mount for PC or smartphone use
- System RequirementsWindows 7 and above with UVC (USB Video Class) v1.1 support
- SpecificationVideo connections Input: 4K = 3840 x 2160 24p/25p/30p/59.54p
- FeatureSupports 4K video input 1080p UVC Video Capture via USB 3.1
- Dimensions0.79" x 4.49" x 3.34"
- Weight0.20 lb.
- Package Content1 x GUV302P 1 x 1/4" Camera Adapter Screw 1 x USB-C to C Cab
- Capture 4K sources at up to 60 frames per second
- Record or stream in 1080p via USB 3.1 Gen 1 UVC
- Switch between PC and smartphone capture modes
- Keep devices powered with USB-C PD pass-through charging
- Mount on tripods using the built-in 1/4-inch screw hole
Capture input and output

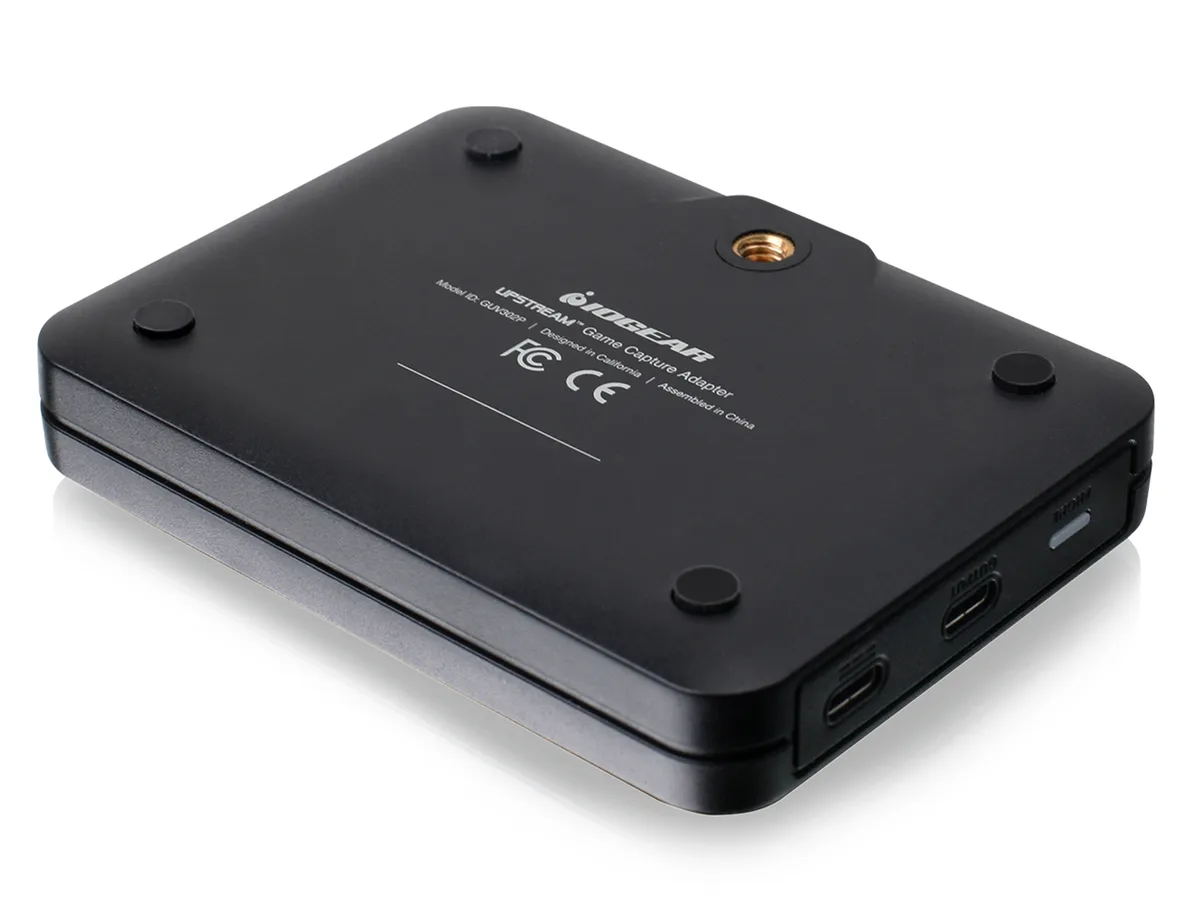

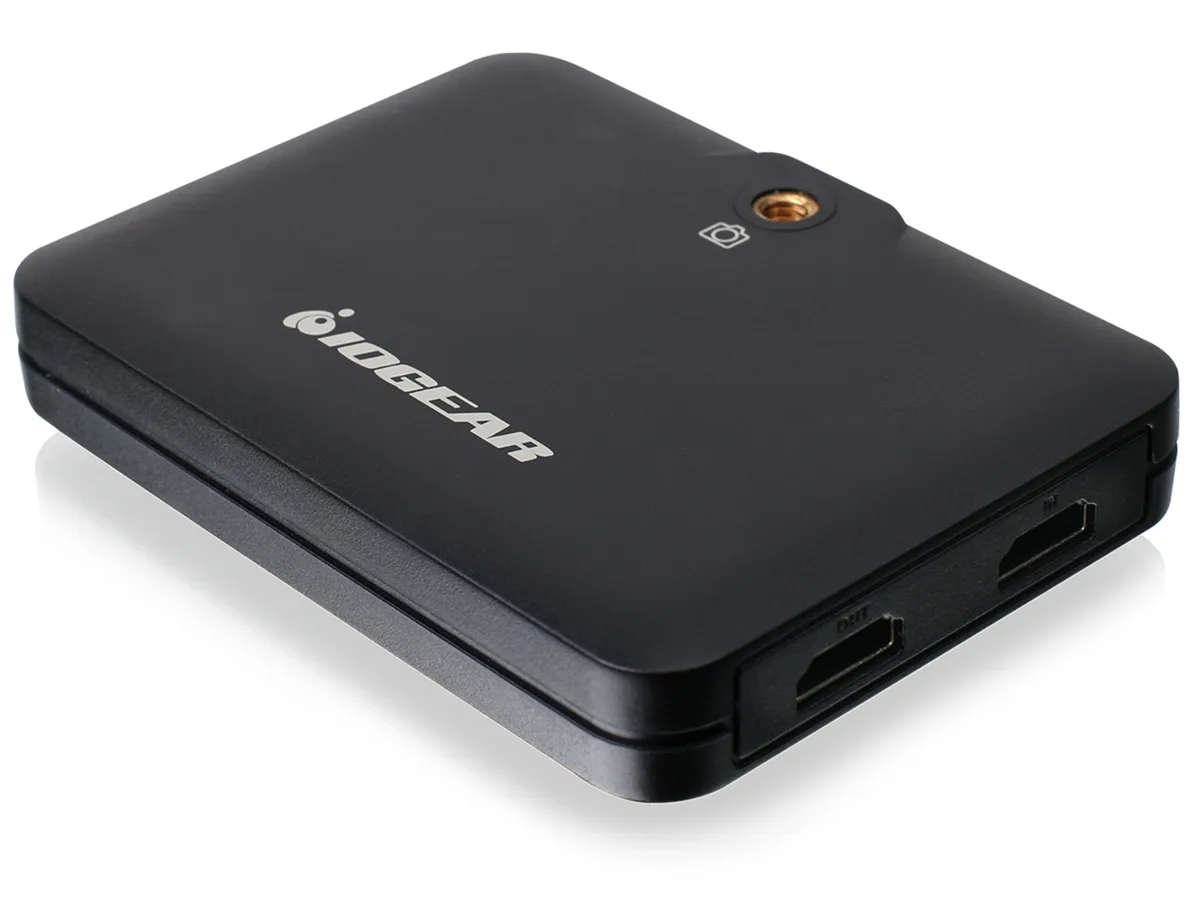

The IOGEAR GUV302P accepts 4K video at 3840 x 2160 up to 60 frames per second and captures at 1080p through a USB 3.1 Gen 1 connection. It works with Windows 7 or later, macOS 10.13 or later, and Android devices that support UVC 1.1. A 1/4-inch mounting hole lets you attach the unit to a camera rig or tripod.
4K pass-through 1080p capture

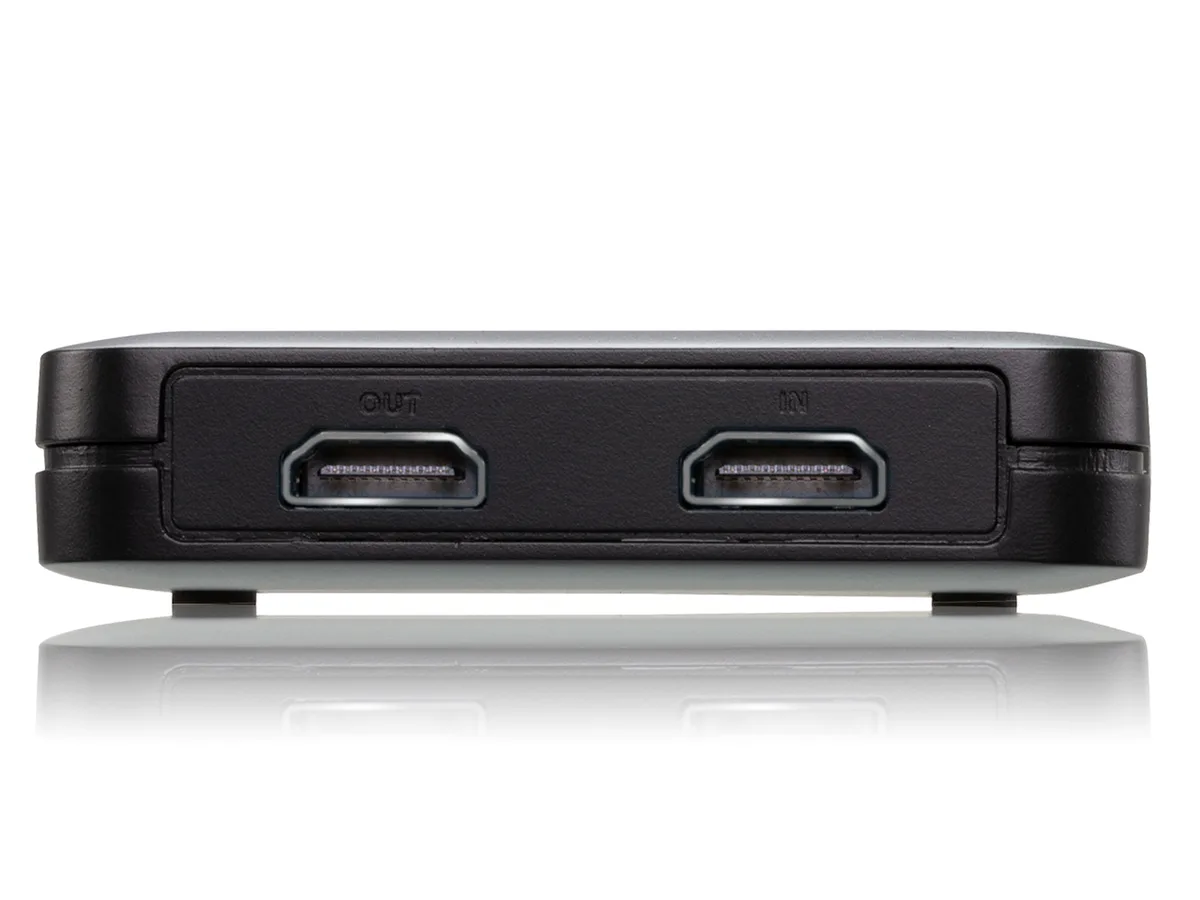

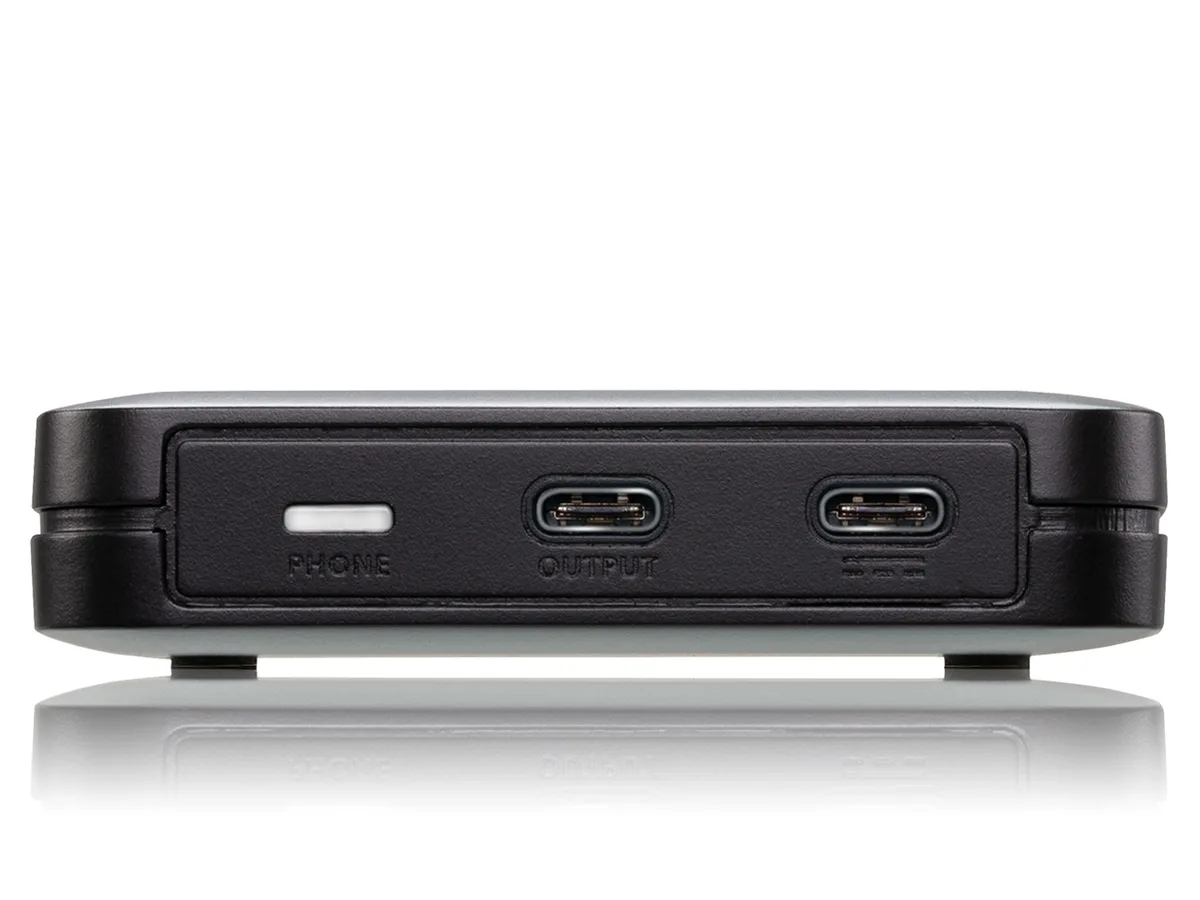

The adapter passes 4K signals through its output while recording 1080p at 60 frames per second in YUV format over USB 3.1 for PC streaming. For smartphones it captures 1080p Motion JPEG over USB 2.0. USB-C Power Delivery pass-through up to 60 watts keeps a connected phone charged during long sessions.
Upgrade from basic USB capture
This device replaces simple 1080p capture dongles that lack 4K pass-through or phone charging. The jump is worth it when you need to monitor a 4K source while streaming 1080p, or when you stream from a smartphone and cannot spare a separate power brick. It does not suit users who require 4K recording or internal PCIe capture.
Highlights
- Capture 4K sources at up to 60 frames per second
- Record or stream in 1080p via USB 3.1 Gen 1 UVC
- Switch between PC and smartphone capture modes
- Keep devices powered with USB-C PD pass-through charging
- Mount on tripods using the built-in 1/4-inch screw hole
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GUV302P |
| System Requirements | Windows 7 and above with UVC (USB Video Class) v1.1 support Mac OSX 10.13 and above with UVC support Android smartphone with UVC support System requirements: CPU: Intel Core i3 2.8 GHz or higher Memory: 4GB or more One USB-A or USB-C 3.1 port Stream software with UVC device support Stream software support: YouTube, Facebook, and Twitch OBS Xsplit |
| Specification | Video connections Input: 4K = 3840 x 2160 24p/25p/30p/59.54p/60p1080P = 1920 x 1080 59.54p/60p720P= 1280 x 720 59.94p/60p480P= 640 x 480 60p Output: 4K = 3840 x 2160 24p/25p/30p/59.54p/60p1080P = 1920 x 1080 59.54p/60p720P= 1280 x 720 59.94p/60p480P= 640 x 480 60p Upstream Port USB-C: 1080P@60, 720P@60, 480P@60 Video Resolution: YUV/1080P/USB3 (for PC) & MotionJEPG/1080P/USB2 (for Smart Phone) Power Connections: Support DC 5V 2A (for Smartphone) Support USB PD3.0 at 5V/9V/15V/20V up to 60W Cable Type: USB-C to USB3.1 Gen1 Type-A Cable USB-C to USB-C cable |
| Feature | Supports 4K video input 1080p UVC Video Capture via USB 3.1 Gen 1 Two capture modes for PC and Smartphone streaming Supports USB-C PD Pass-Through Charging 1/4" mounting hole Compatible with most streaming software (OBS, Streamlabs, Xsplit, CameraFi, etc.) |
| Dimensions | 0.79" x 4.49" x 3.34" |
| Weight | 0.20 lb. |
| Package Content | 1 x GUV302P 1 x 1/4" Camera Adapter Screw 1 x USB-C to C Cable 1 x USB-C to A Cable |
| Option | GUV302P |
| Shipping weight | 0.27 kg |
| Package size | 193 × 140 × 62 mm |
Questions about this item
Will the GUV302P pass a 4K 60p signal from my camera to a monitor while I capture 1080p 60fps on an older PC with a USB 3.0 port?
Yes. The device accepts 4K at 60p on its HDMI input and loops the same 4K 60p signal to the HDMI output while sending 1080p 60fps over USB 3.1 Gen 1 to the PC.
How can I confirm the GUV302P is capturing at 1080p 60fps in OBS after I plug it in?
Open OBS, add a Video Capture Device source, select the GUV302P, and check that the resolution dropdown shows 1920x1080 at 60fps with YUV format over USB 3.1.
Does the box include the 1/4 inch mounting screw and both USB-C to C and USB-C to A cables needed to connect camera, phone and PC?
Yes. The package contains the GUV302P, a 1/4 inch camera adapter screw, a USB-C to C cable and a USB-C to A cable.
