IOGEAR
IOGEAR GUC211V KVM Switch 1920 x 1200 @ 60 Hz
Connects a laptop to a target computer for direct desktop access, file transfer and macro control via VGA and USB at 1920 x 1200 @ 60 Hz
- TypeD-Sub, USB
- PC ConnectorsMonitor 1 x VGA Male (Blue) Keyboard & Mouse 1 x USB Type A
- Console ConnectorsKeyboard, Mouse, and Monitor 1 x Mini-USB Female (Black)
- Video Resolution1920 x 1200 @ 60 Hz
- LED IndicatorsOn Line 1 x Blue
- TemperatureOperation: 0 to 40 Degree C Storage: -20 to 60 Degree C
- Instant laptop-to-server access via direct USB connection
- 1920 x 1200 video at 60 Hz for clear diagnostics
- Plug-N-Play operation requires no software installation
- Programmable hotkeys and macros speed up repetitive tasks
- Compact 2.38 x 2.18 x 0.75 inch design fits any kit

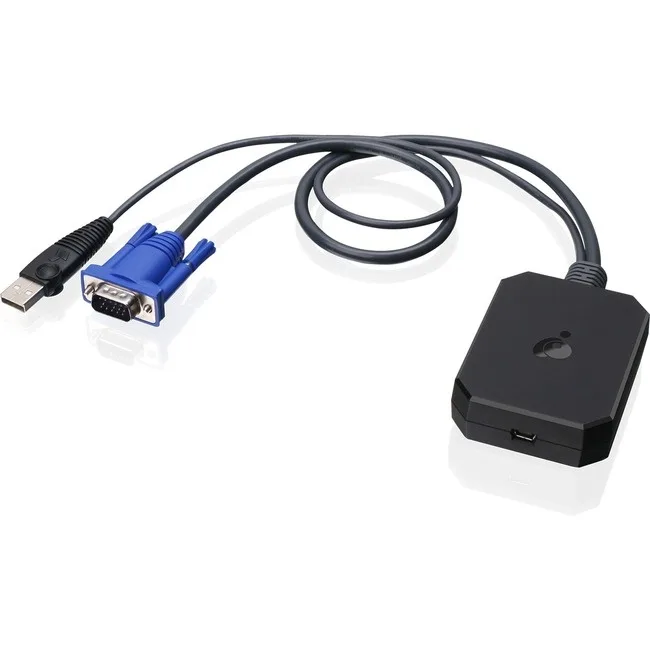

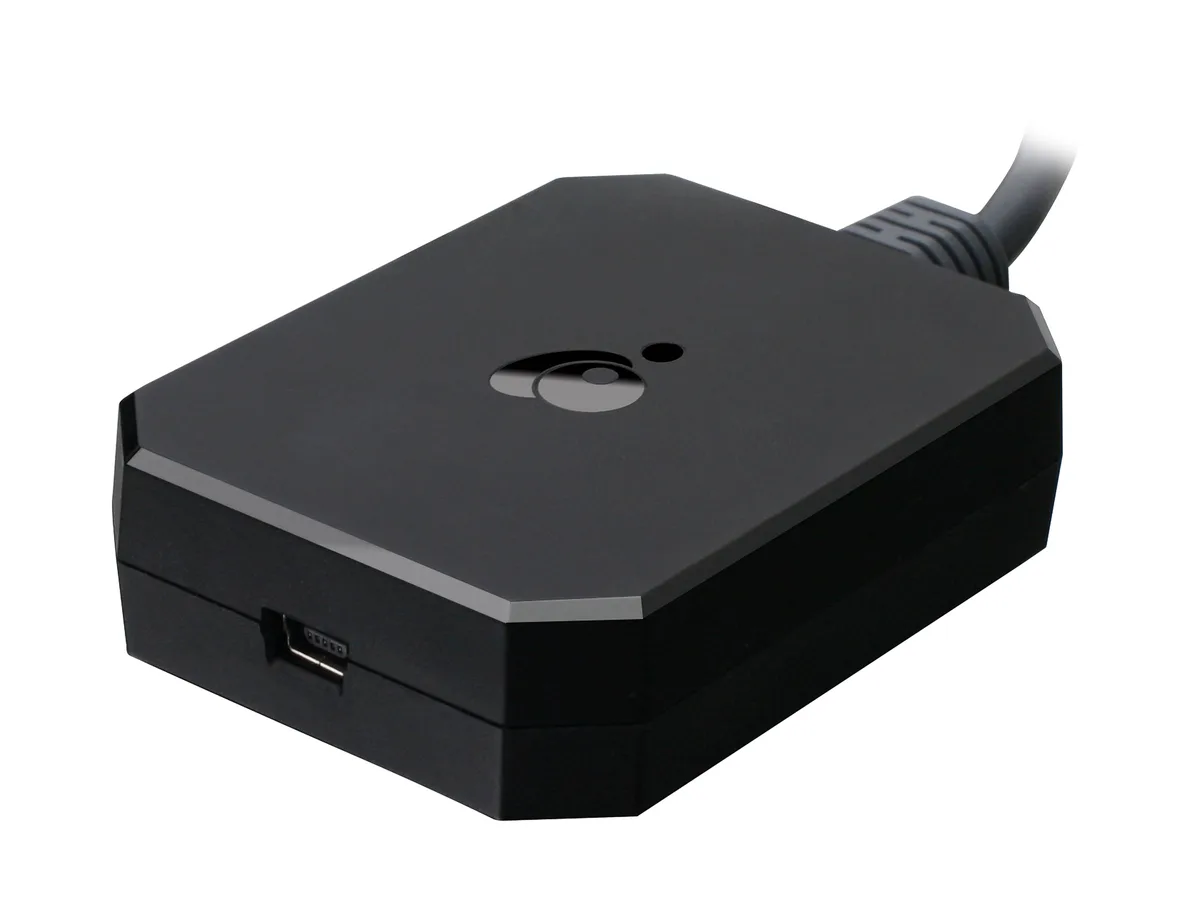

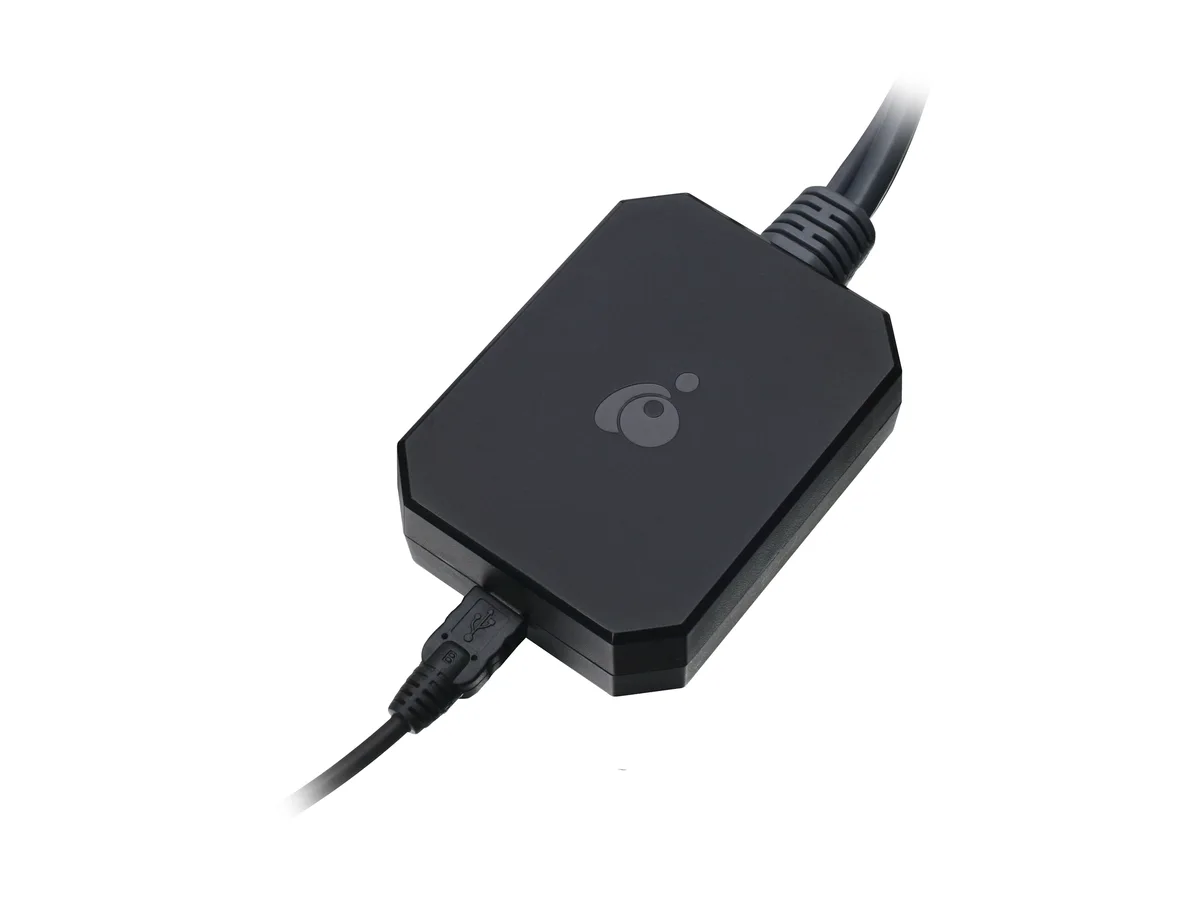

Portable Crash Cart Adapter
The IOGEAR GUC211V connects a laptop directly to a target computer, kiosk or server so IT staff can access the remote desktop without a dedicated monitor, keyboard or mouse. It is built for technicians who need instant console access in data centres, labs or field service calls.
1920 x 1200 @ 60 Hz video support
The adapter passes video at up to 1920 x 1200 resolution at 60 Hz through the VGA connector, which decides whether the attached display will show a usable image. Higher resolutions or refresh rates are not supported by this unit.
Plug-N-Play with USB Mini-B link
No driver installation is required; the executable runs from the laptop once the USB Type A to Mini-B cable is connected. The short 0.75 inch profile fits tight rack spaces, but the Mini-B port can loosen if the cable is pulled during use.
Highlights
- Instant laptop-to-server access via direct USB connection
- 1920 x 1200 video at 60 Hz for clear diagnostics
- Plug-N-Play operation requires no software installation
- Programmable hotkeys and macros speed up repetitive tasks
- Compact 2.38 x 2.18 x 0.75 inch design fits any kit
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GUC211V |
| Type | D-Sub, USB |
| PC Connectors | Monitor 1 x VGA Male (Blue) Keyboard & Mouse 1 x USB Type A Male (Black) |
| Console Connectors | Keyboard, Mouse, and Monitor 1 x Mini-USB Female (Black) |
| Video Resolution | 1920 x 1200 @ 60 Hz |
| LED Indicators | On Line 1 x Blue |
| Temperature | Operation: 0 to 40 Degree C Storage: -20 to 60 Degree C |
| Humidity | 0% to 80%,Non-Condensing |
| Features | Provides direct Laptop-to-Computer desktop access Programmable macros and hotkeys Plug-N-Play - No additional software needed Bi-directional file transfer between connected laptop and computer Access laptop applications in virtual window without switching windows VGA - resolutions up to 1920 x 1200 @ 60 Hz Perform OS patching, software installation and diagnostic testing on remote computer Video recording and capture of remote computer* Mouse DynaSync - automatically synchronizes the laptop and connected computer's mouse movements On-screen virtual keyboard with multi-language suppor |
| Dimensions | 2.38" x 2.18" x 0.75" |
| Weight | 0.40 lbs. |
| Package Contents | 1 x GUC211V Portable Laptop Console Crash Cart Adapter 1 x USB Type A to USB Mini-B Cable 1 x QSG |
| Shipping weight | 0.26 kg |
| Package size | 160 × 119 × 61 mm |
Questions about this item
Will the 1920 x 1200 @ 60 Hz resolution work on my target server's VGA port?
The adapter outputs up to 1920 x 1200 at 60 Hz over its VGA male connector, so the target computer's VGA port must support that resolution and refresh rate for the image to display correctly.
What does the USB Type-A connection on the PC side actually carry?
The single USB Type-A male plug on the PC side handles keyboard, mouse, video data and the bi-directional file-transfer channel between the laptop and the target computer.
How much clearance do I need behind the rack to plug in the 2.38" x 2.18" x 0.75" adapter?
The unit measures 2.38 inches wide, 2.18 inches deep and 0.75 inches high, so allow at least that depth plus the 6 ft USB cable bend radius behind the target computer's VGA and USB ports.
