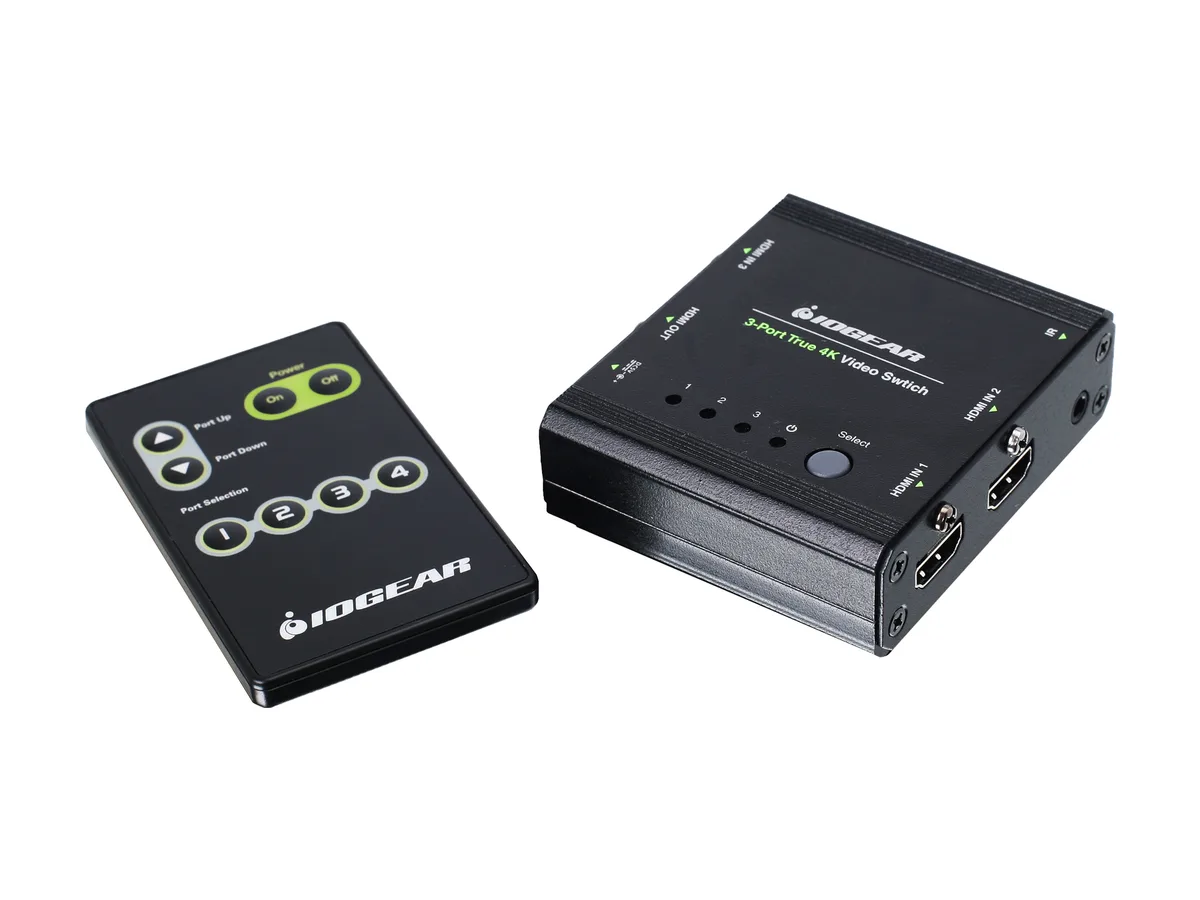

Compact black box with three HDMI inputs one output and front LED indicators

IOGEAR

IOGEAR GHSW8431 3-Port True 4K HDMI Production Switcher

SKU CH-EXGR-N4X1R MPN GHSW8431

Switches three HDMI sources to one display at 4096 x 2160 60Hz 4:4:4 with 18 Gbps bandwidth and 7.1 audio

  • Resolution SupportMax 4096 x 2160@60Hz (4:4:4)
  • VideoVideo Streaming: 18 Gbps
  • Audio7.1 LPCM, Dolby True HD and DTS-HD Master Audio digital audi
  • HDMIVideo Input: 3 x HDMI Video Output: 1 x HDMI

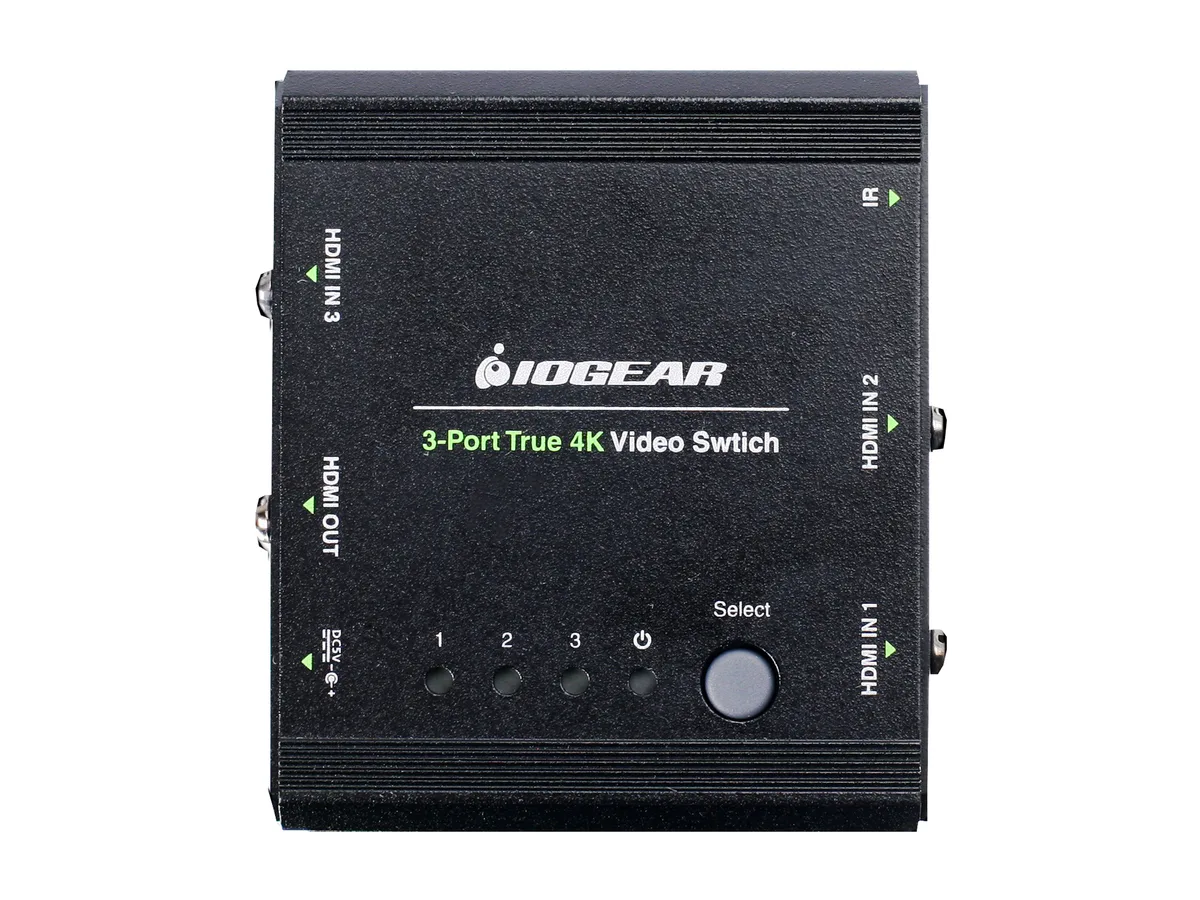

  • LED IndicatorPower On: 1 LED Port ID: 1 per port
  • System RequirementsHDMI source HDMI Display or projector
  • Switch three HDMI sources to one display
  • True 4K at 4096 x 2160 @ 60Hz 4:4:4
  • Uncompressed 7.1 LPCM, Dolby TrueHD and DTS-HD Master Audio
  • Cascade up to three levels for 27 source ports
  • Auto-switch detects new connections plus IR remote and push-button control

Three-Source HDMI Switcher

The IOGEAR GHSW8431 connects three HDMI sources to one display, supporting true 4K resolution at 4096 x 2160 @ 60Hz with 4:4:4 chroma sampling. It handles uncompressed 7.1 LPCM, Dolby True HD and DTS-HD Master Audio signals. Front-panel push buttons, an IR remote and an auto-switch mode provide flexible source selection. The unit is HDCP 2.2 compliant and includes CEC support for integrated device control.

Sustained 18 Gbps Throughput

Video streaming runs at 18 Gbps without compression, maintaining full 4:4:4 colour fidelity during extended production sessions. LED indicators show power status and active port ID at a glance. A no-slip locking power mechanism secures the 5V/500mA supply against accidental disconnection. The metal chassis dissipates heat passively, so the switcher stays stable through long recording or streaming workloads.

Expands From Single-Input Displays

This switcher replaces a direct HDMI cable when a display or projector has only one input but the workflow requires three sources. Cascading up to three levels expands capacity to 27 source ports for larger installations. Buyers who need more than three simultaneous sources or require built-in scaling and format conversion should look at a multi-format production switcher instead.

Highlights

  • Switch three HDMI sources to one display
  • True 4K at 4096 x 2160 @ 60Hz 4:4:4
  • Uncompressed 7.1 LPCM, Dolby TrueHD and DTS-HD Master Audio
  • Cascade up to three levels for 27 source ports
  • Auto-switch detects new connections plus IR remote and push-button control

Specifications

BrandIOGEAR
ModelGHSW8431
Resolution SupportMax 4096 x 2160@60Hz (4:4:4)
VideoVideo Streaming: 18 Gbps
Audio7.1 LPCM, Dolby True HD and DTS-HD Master Audio digital audio signals
HDMIVideo Input: 3 x HDMI
Video Output: 1 x HDMI
LED IndicatorPower On: 1 LED
Port ID: 1 per port
System RequirementsHDMI source
HDMI Display or projector
Power Supply5V/500mA
FeatureConnect and switch between 3 HDMI sources on 1 HDMI display
True 4K resolutions to 4096 x 2160 @ 60Hz (4:4:4)
Cascade up to 3 levels (27 source ports)
Distribute uncompressed audio formats
Flexible control via push-button, IR remote control
Auto-Switch mode detects & selects new HDMI port connections
Supports high-speed data rates up to 18 Gbps
No-slip locking power supply mechanism
HDCP 2.2 Compliant
CEC Support
Dimensions1.65" x 5.08" x 4.88"
Weight0.33 lb.
Package ContentGHSW8431 3-Port True 4K HDMI Switch
Remote Control
IR Extension Cable
USB to Micro USB Power Cable
User Guide
Warranty Card
Shipping weight0.32 kg
Package size129 × 124 × 42 mm

Questions about this item

Does the GHSW8431 run hot or draw much power when left on all day?

It uses a 5V 500mA supply so power draw is very low and the compact metal case stays cool during continuous operation.

What cables or sources must I already have to use this switcher?

You need up to three HDMI source devices and one HDMI display or projector; all HDMI cables are user-supplied.

Will my older 1080p cameras and 4K monitor work together through the GHSW8431?

Yes, the switch passes 18 Gbps signals and supports HDCP 2.2 so mixed-resolution sources display correctly on a 4K screen.
