IOGEAR
IOGEAR GCS72U 2-Port USB KVM Switch with Audio
Control two USB computers with one VGA monitor, keyboard, mouse, and 2.1 stereo audio using built-in 3' cables
- TypeD-Sub, USB
- PC ConnectorsMonitor: VGA Keyboard & Mouse: USB
- Console ConnectorsMonitor: VGA Keyboard & Mouse: USB
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536, DDC2B
- Control two computers with one USB keyboard, mouse and VGA monitor
- Switch between Internet and Intranet systems at the push of a button
- Supports 2048 x 1536 resolution with DDC2B for clear VGA video
- Built-in 2.1 stereo audio and microphone pass-through for sound and voice
- Driver-free plug-and-play operation on Windows, Mac and Sun Solaris
Two-Port USB KVM Switch
The IOGEAR GCS72U lets one USB keyboard, USB mouse and VGA monitor control two computers. It is built for home-office users or small-business desks that need to keep separate systems on a single screen. No drivers or software are required, so setup is immediate on Windows, Mac or Sun Solaris workstations.
Integrated Audio and Cabled Design

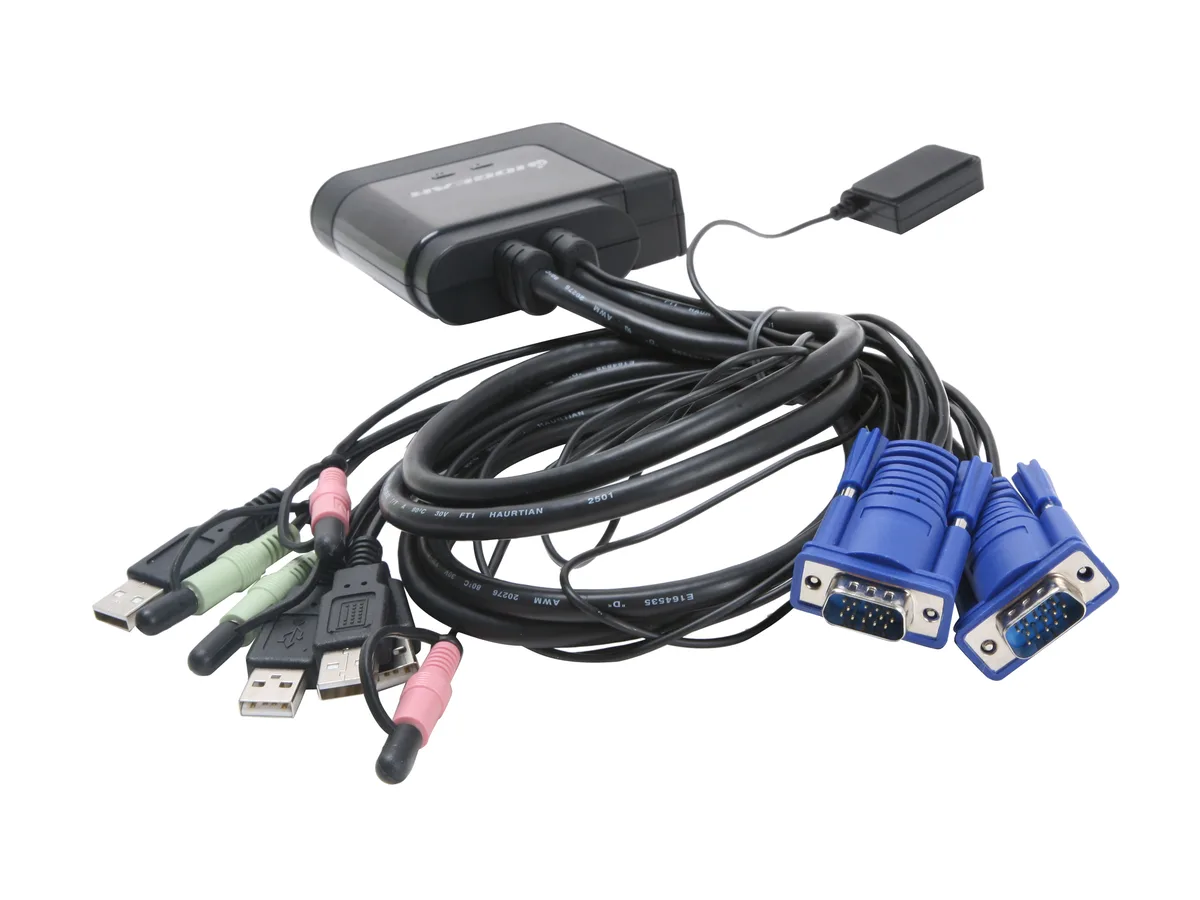

The switch adds 2.1 stereo audio and microphone pass-through, letting speakers and a headset stay connected while you toggle between machines. Three-foot molded cables are permanently attached to the unit, removing the need to source or route separate video and USB leads. Plug-and-play monitor support means the display is recognised instantly after each switch.
Compact Metal Enclosure

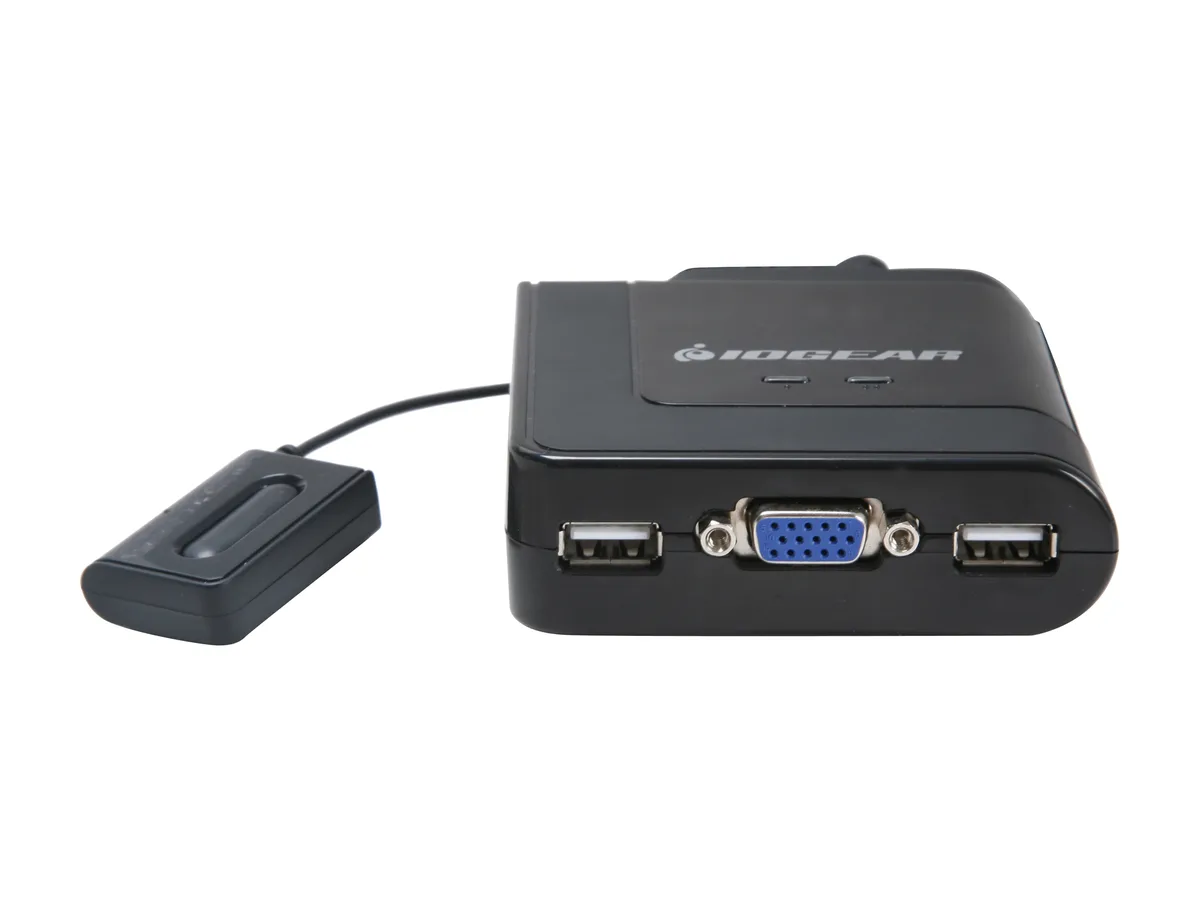

The housing measures 6.25" x 8.88" x 2.25" and weighs 1.04 lbs, so it sits unobtrusively on a desk or shelf. Front-panel push buttons give tactile switching without hot-key memorisation. VGA and USB console ports face the user for quick access, while the fixed cables run to each host computer, keeping cable clutter to a minimum.
Highlights
- Control two computers with one USB keyboard, mouse and VGA monitor
- Switch between Internet and Intranet systems at the push of a button
- Supports 2048 x 1536 resolution with DDC2B for clear VGA video
- Built-in 2.1 stereo audio and microphone pass-through for sound and voice
- Driver-free plug-and-play operation on Windows, Mac and Sun Solaris
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS72U |
| Type | D-Sub, USB |
| PC Connectors | Monitor: VGA Keyboard & Mouse: USB |
| Console Connectors | Monitor: VGA Keyboard & Mouse: USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536, DDC2B |
| Features | One USB keyboard, USB mouse, and VGA monitor control two computers Max resolution: 2048 x 1536, DDC2B 2.1 Stereo audio and microphone support Plug-n-Play monitor support 3' long molded-in cables to simplify setup Compact design features two attached KVM (USB and VGA) cables Compatible with PC, MAC and SUN operating platforms Supports Windows XP or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher No software drivers required - simply connect the cables to the computers Computer selection via convenient a one touch pushbutton switch that can be placed on your desk Full Mac keyboar |
| Dimensions | 6.25" x 8.88" x 2.25" |
| Weight | 1.04 lbs. |
| Shipping weight | 0.53 kg |
| Package size | 216 × 150 × 58 mm |
Questions about this item
Will the built-in 3' cables need to be replaced if a connector fails?
The cables are molded into the unit, so a damaged connector cannot be swapped separately; the whole switch would need replacement.
What video limit appears first when running at the maximum 2048 x 1536 resolution?
The switch is rated for 2048 x 1536 via VGA, so the analog VGA bandwidth is the limiting factor at that resolution.
Does the GCS72U generate noticeable heat or fan noise during all-day operation?
The unit has no fan and draws minimal power, so it runs silently with only slight warmth during continuous use.
