IOGEAR

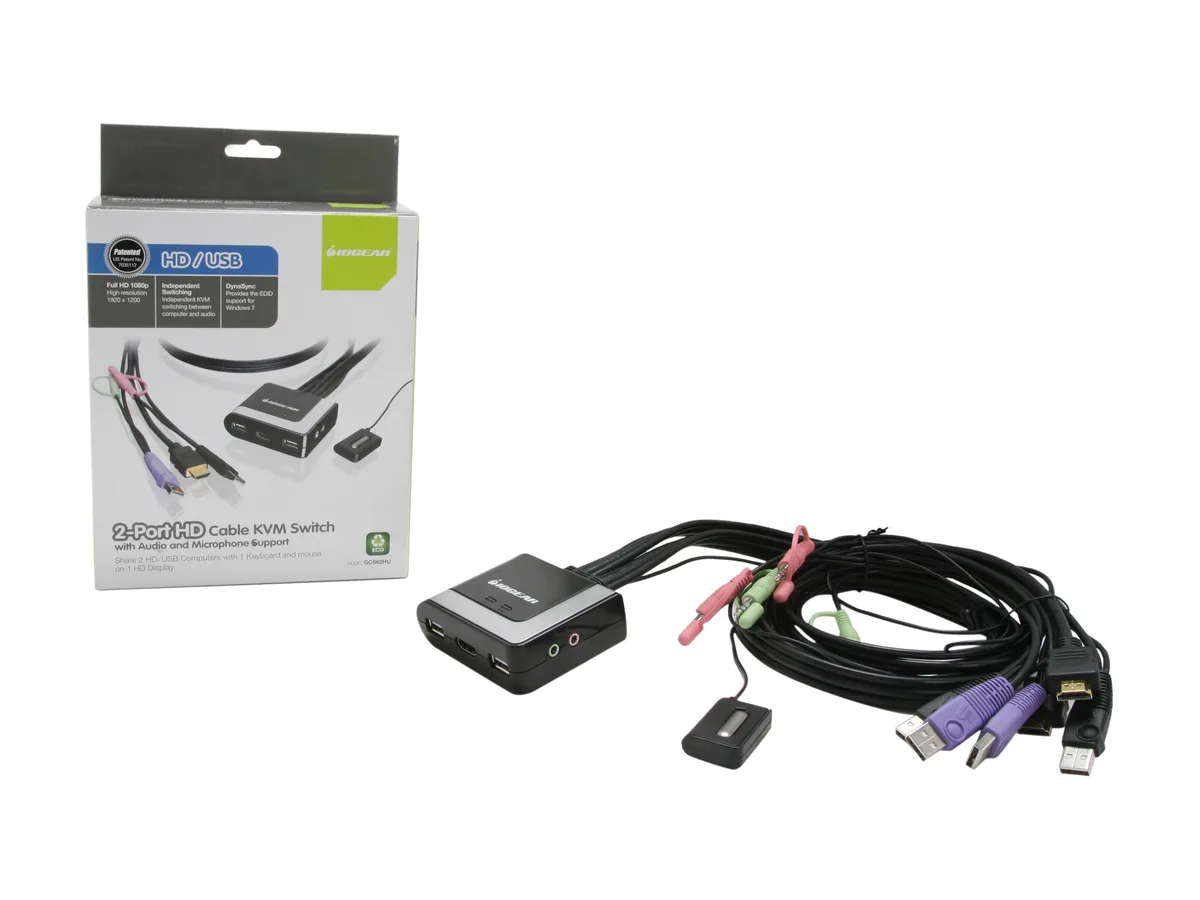

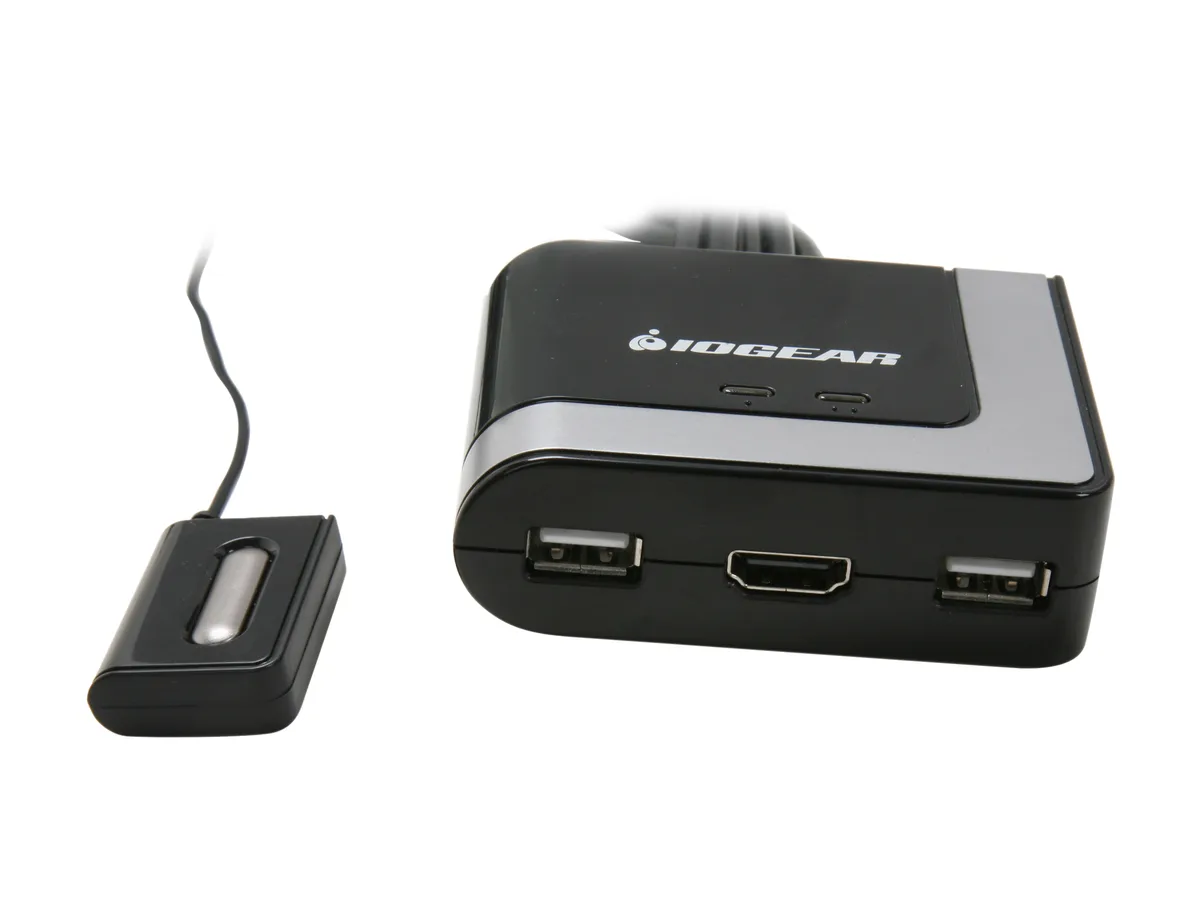

IOGEAR GCS62HU 2-Port HDMI KVM Switch with Audio
Share an HDMI display, USB keyboard, mouse and audio between two computers at up to 1920 x 1200@60Hz
- TypeHDMI, USB
- PC ConnectorsMonitor: 2 x HDMI Type A Male Keyboard: 2 x USB Type A Male
- Console ConnectorsMonitor: 1 x HDMI Type A Female Keyboard: 1 x USB Type A Fem
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video ResolutionUp to 1920 x 1200@60Hz
- Share one HDMI display between two computers
- Switch instantly via hotkey, button or mouse
- Supports up to 1920 x 1200 at 60 Hz
- Includes 3.5 mm audio and microphone pass-through
- Compact 9.25 x 6.50 x 2.75 inch design
Two-Port HDMI KVM Switch
The IOGEAR GCS62HU lets one HDMI monitor, USB keyboard and mouse control two computers. Built-in 3.5 mm audio and microphone jacks pass sound to a single headset or speaker set. Hot-key, push-button or mouse-gesture switching changes the active system instantly.
Home-office users isolating work and personal PCs
Ideal for anyone who needs to keep an internet-facing machine and a secure intranet machine physically separate while sharing one desk setup. Not suited for setups requiring more than two computer ports, resolutions above 1920 x 1200, or digital audio formats beyond analogue stereo.
Handles 1920 x 1200 at 60 Hz on a single screen
Comfortably drives standard office monitors at full refresh rate with keyboard, mouse and analogue audio. Runs out of headroom if you need 4K output, multi-monitor spanning, or more than two connected hosts.
Highlights
- Share one HDMI display between two computers
- Switch instantly via hotkey, button or mouse
- Supports up to 1920 x 1200 at 60 Hz
- Includes 3.5 mm audio and microphone pass-through
- Compact 9.25 x 6.50 x 2.75 inch design
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS62HU |
| Type | HDMI, USB |
| PC Connectors | Monitor: 2 x HDMI Type A Male Keyboard: 2 x USB Type A Male (Purple) Mouse: 2 x USB Type A Male (Black) Audio: 2 x 3.5mm Mini Stereo Jack Male (Green) Microphone: 2 x 3.5mm Mini Stereo Jack Male (Pink) |
| Console Connectors | Monitor: 1 x HDMI Type A Female Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Audio: 1 x 3.5mm Mini Stereo Jack Female (Green) Microphone: 1 x 3.5mm Mini Stereo Jack Female (Pink) |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | Up to 1920 x 1200@60Hz |
| PC Selection | Hotkey, Remote Pushbutton or Mouse Switching |
| AutoScan Interval | 3, 5, 10 , 20 seconds (Default 5 seconds) |
| LED Indicators | On Line: 2 x Green |
| Features | Share a display with HDMI connection, a USB keyboard and mouse, with 2 USB computers Separate the Internet and Intranet with the click of a button Superior Video Resolution: Up to 1920 x 1200 @60Hz Digital Audio support HDCP Compliant Multi OS platform support Works with game consoles Port switching via remote switch button, mouse or hotkeys Hotkeys allows independent KVM and audio switching between computers Includes 2.1 stereo sound and microphone support IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when sw |
| Dimensions | 9.25" x 6.50" x 2.75" |
| Weight | 0.94 lbs. |
| Package Contents | 1 x 2-Port HD Cable KVM Switch 1 x Installation Guide 1 x Warranty Card |
| Shipping weight | 0.54 kg |
| Package size | 198 × 157 × 74 mm |
Questions about this item

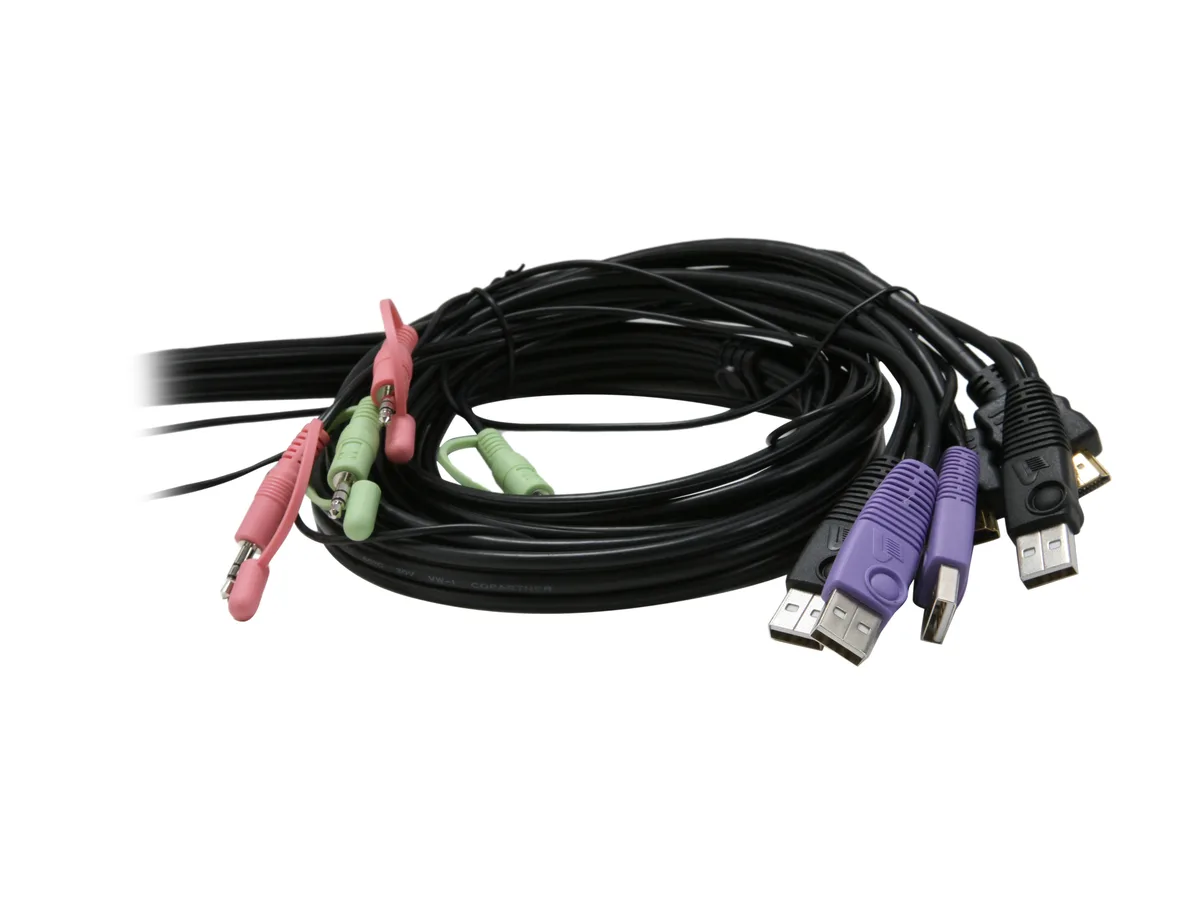

What cables do I need on each computer for the GCS62HU to carry video, keyboard, mouse, speakers and microphone?
Each computer requires an HDMI cable for video, two USB Type A cables for keyboard and mouse, a 3.5mm stereo jack for audio output and a 3.5mm jack for microphone input.
Will my 1920 x 1200 monitor at 60Hz work through this switch without scaling issues?
The switch supports up to 1920 x 1200 at 60Hz, so a monitor at that native resolution will display correctly.
How can I confirm the active computer after I press the remote pushbutton?
The green On Line LED for the selected port lights up, showing which computer is currently connected to the console.
