IOGEAR

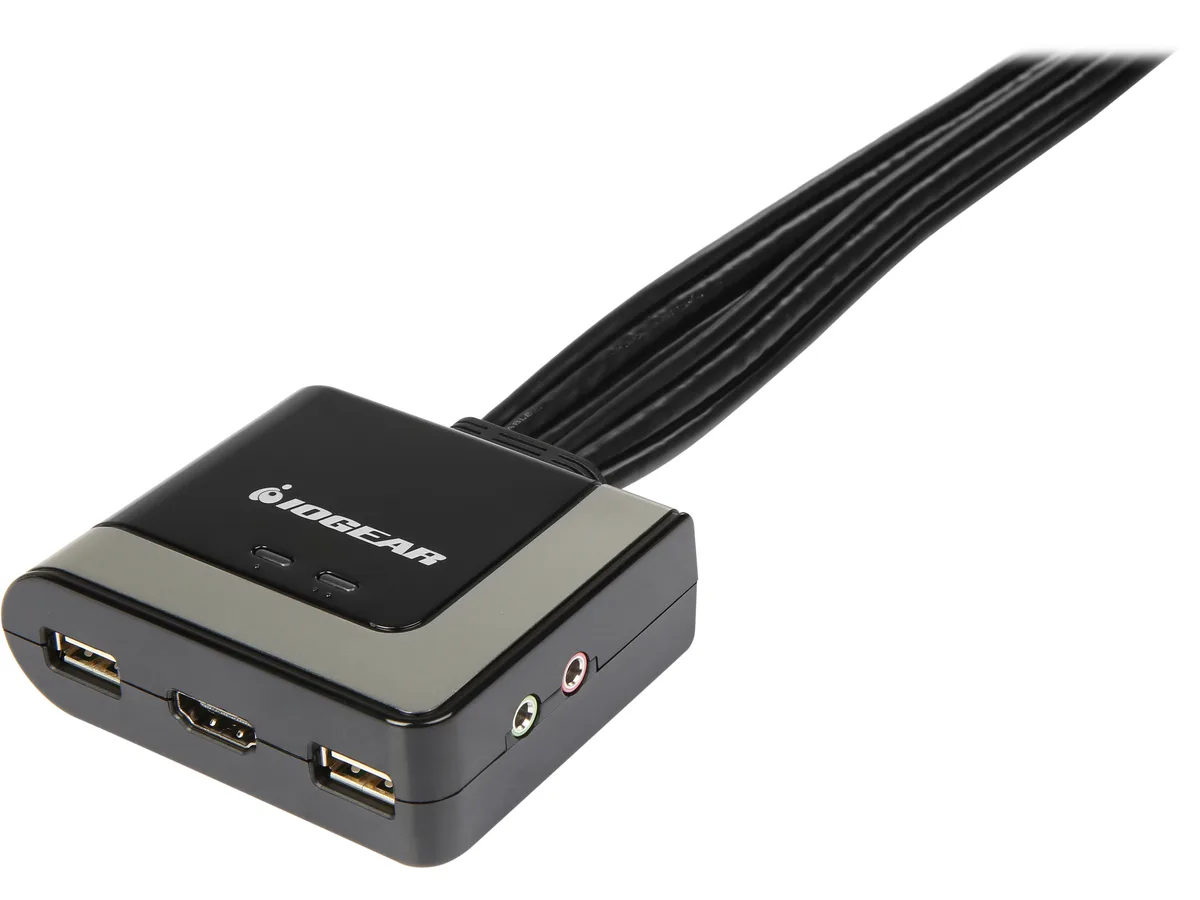

IOGEAR GCS62HDPKIT 2-Port HDMI DisplayPort Cable KVM Switch
Controls two computers from one HDMI monitor, keyboard and mouse with push-button, hotkey or mouse switching, supports 1080p and 1920 x 1200 resolution, includes DisplayPort adapters and all cables.
- TypeUSB
- PC ConnectorsMonitor: 2 x HDMI Male; 2 x DisplayPort Male (with adapter)
- Console ConnectorsMonitor: 1 x HDMI Female Audio: 1 x 3.5mm Mini Stereo Jack F
- Video Resolution1080p; 1920x1200
- PC SelectionRemote Switch, Hotkey, and Mouse
- AutoScan Interval3, 5, 10 , 20 seconds (Default 5 seconds)
- Control two computers from one keyboard and mouse
- Mix HDMI and DisplayPort sources with included adapters
- 1920 x 1200 resolution at 60 Hz via single HDMI display

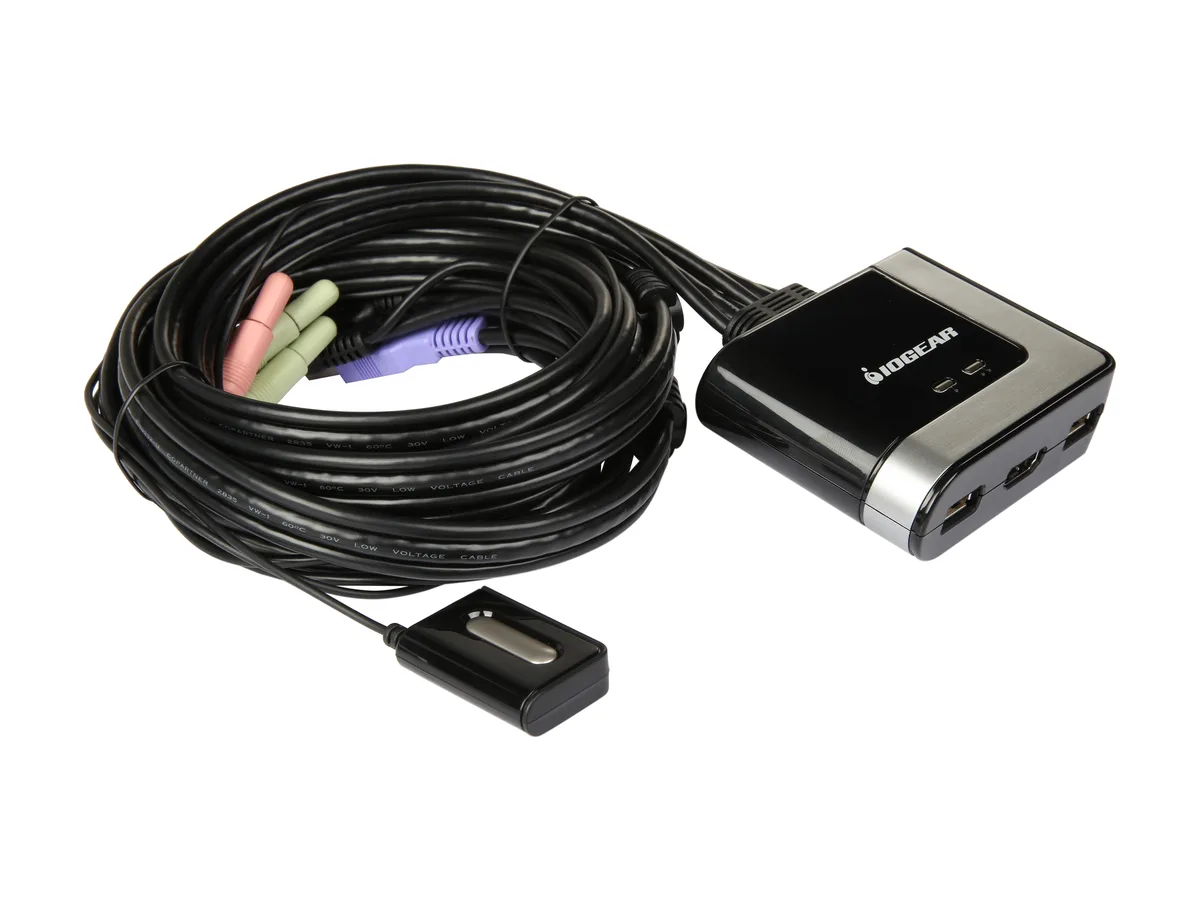

- Switch instantly by remote button, hotkeys or mouse gesture
- Powered entirely by USB — no external adapter needed
Dual-computer HDMI and DisplayPort KVM
This IOGEAR GCS62HDPKIT lets one user control two computers with a single USB keyboard, mouse and HDMI monitor. The kit includes two DisplayPort-to-HDMI adapters so each host can connect through HDMI or DisplayPort 1.1a. No external power supply is required, and all necessary cables are integrated into the unit.
Sustained 1080p operation without external power
The switch delivers full 1080p and up to 1920 x 1200 at 60 Hz continuously across both ports. Because it draws power from the attached computers, there is no separate adapter to overheat or fail during long sessions. Auto-scan intervals of 3, 5, 10 or 20 seconds cycle the view without user intervention, and front-panel LEDs show the active channel at all times.
Plug-and-play setup with hotkey or remote switching
Connect the fixed cables to each computer and the console cables to the shared peripherals; the device is recognised instantly by the operating systems. Switching works via the wired remote button, keyboard hotkeys or mouse gestures, giving three fallback methods if one conflicts with host software. The only common issue is forgetting to install the included DisplayPort adapters on hosts that lack native HDMI outputs.
Highlights
- Control two computers from one keyboard and mouse
- Mix HDMI and DisplayPort sources with included adapters
- 1920 x 1200 resolution at 60 Hz via single HDMI display
- Switch instantly by remote button, hotkeys or mouse gesture
- Powered entirely by USB — no external adapter needed
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS62HDPKIT |
| Type | USB |

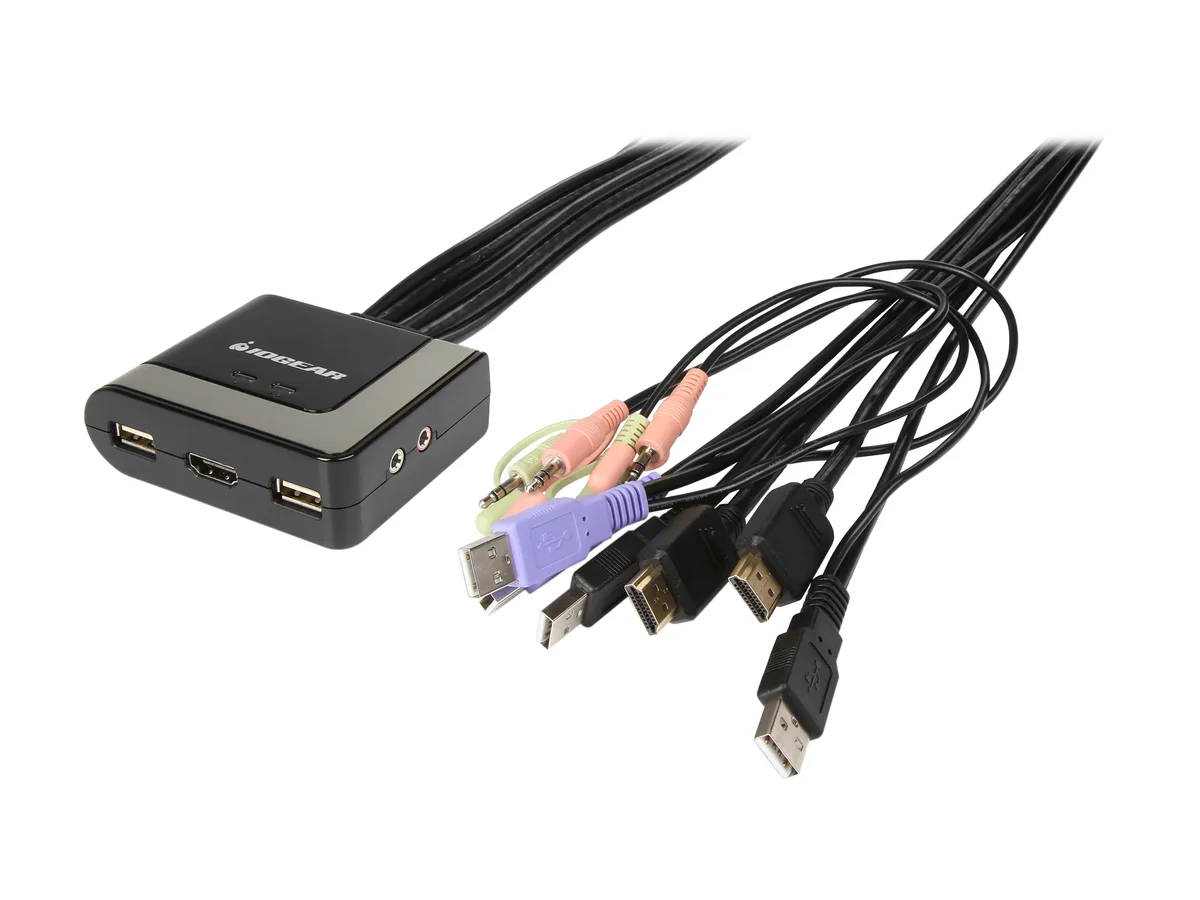

| PC Connectors | Monitor: 2 x HDMI Male; 2 x DisplayPort Male (with adapter) Audio: 2 x 3.5mm Mini Stereo Jack Male (Green) Microphone: 2 x 3.5mm Mini Stereo Jack Male (Pink) Keyboard: 2 x USB Type A Male (Purple) Mouse: 2 x USB Type A Male (Black) |
| Console Connectors | Monitor: 1 x HDMI Female Audio: 1 x 3.5mm Mini Stereo Jack Female (Green) Microphone: 1 x 3.5mm Mini Stereo Jack Female (Pink) Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female |
| Video Resolution | 1080p; 1920x1200 |
| PC Selection | Remote Switch, Hotkey, and Mouse |
| AutoScan Interval | 3, 5, 10 , 20 seconds (Default 5 seconds) |
| LED Indicators | On Line: 2 x Green |
| Temperature | Storage Temperature: -20 to 60 degree C Operation Temperature: 0 to 50 degree C |
| Humidity | 0% to 80%,Non-Condensing |
| Features | Connect and control two HD or DisplayPort USB 2.0 interface computers with a single keyboard and mouse Full 1080p and up to 1920 x 1200 @ 60Hz Port switching via remote switch button, mouse or hotkeys Hotkeys allows independent KVM and audio switching between computers Includes 2.1 stereo sound and microphone support USB 2.0 Peripheral Sharing via mouse port. Connect a powered USB Hub to expand your USB connectivity USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers Power-On Detection - If one of the computers is powered off |
| Dimensions | 2.50" x 3.13" x 1.00" |
| Weight | 0.94 lbs. |

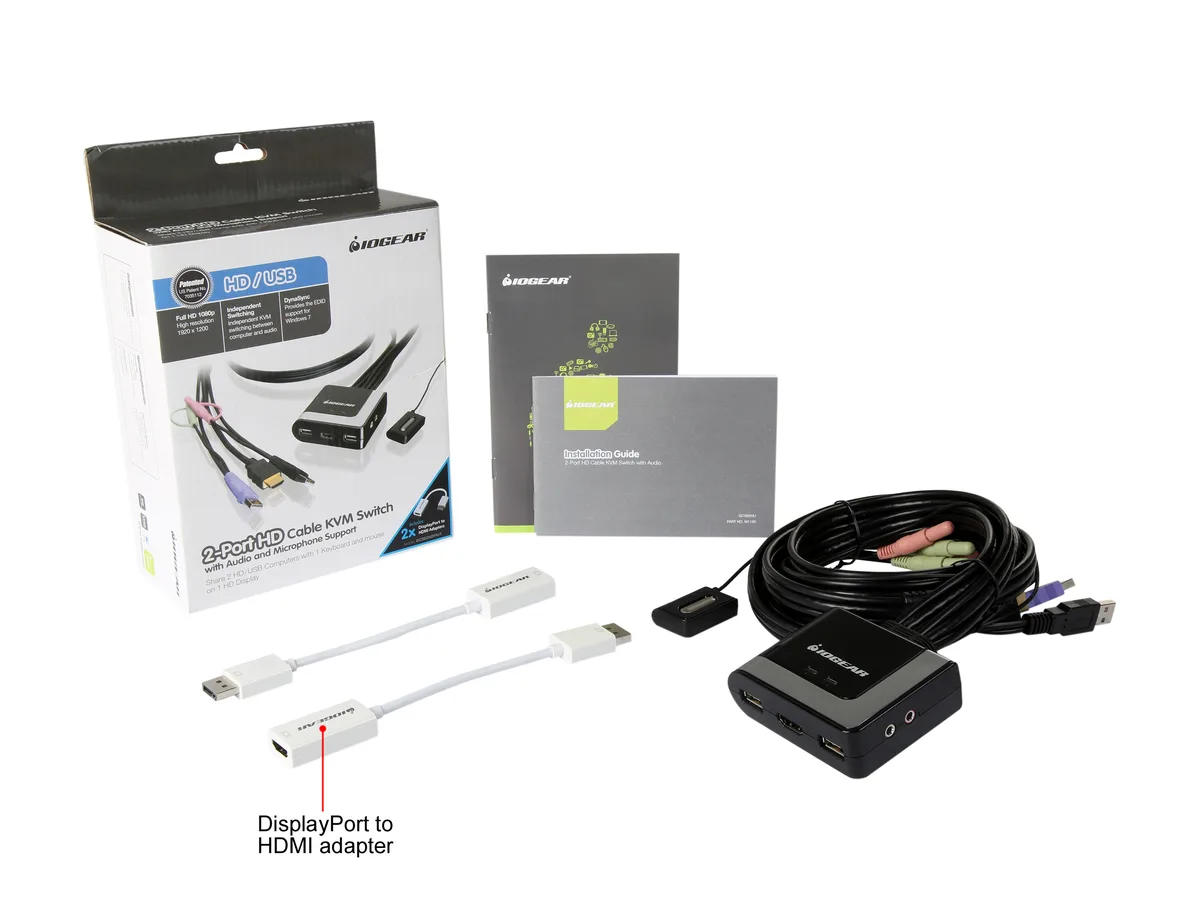

| Package Contents | 1 x GCS62HU 2 x DisplayPort to HDMI Adapters 1 x Installation Guide 1 x Warranty Card |
| Shipping weight | 0.60 kg |
| Package size | 198 × 165 × 74 mm |
Questions about this item
Does the GCS62HDPKIT generate noticeable heat or noise when left on all day?
It has no fan or external power supply, so it runs silently and stays within a 0 to 50 °C operating range during continuous use.
What cables or peripherals must I already own to use this KVM kit?
You need one HDMI monitor, a USB keyboard and a USB mouse; all computer‑side HDMI, DisplayPort, USB, audio and microphone cables are included in the box.
Will my older 1920 x 1200 @ 60 Hz monitor work with the GCS62HDPKIT?
Yes, the switch supports up to 1920 x 1200 at 60 Hz over its HDMI console port, matching that resolution exactly.
