IOGEAR

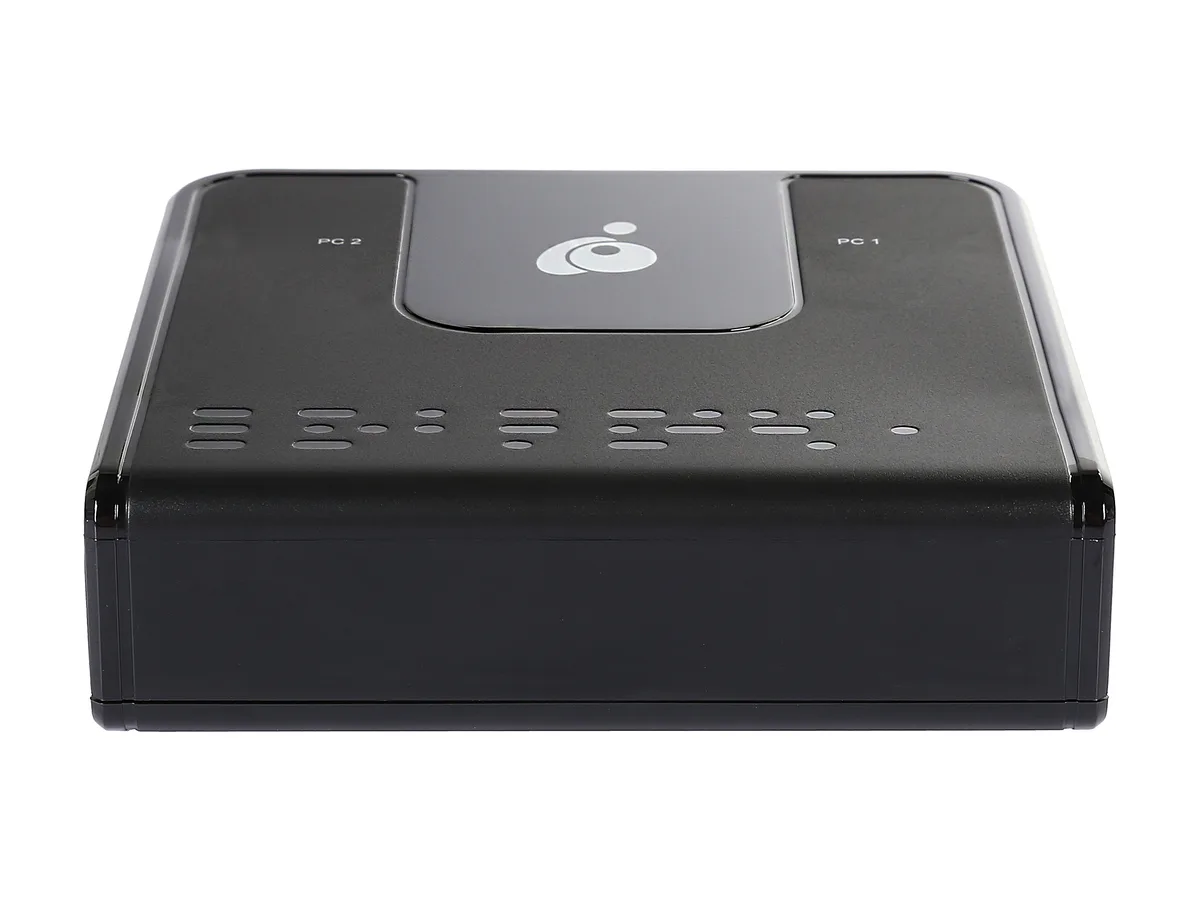

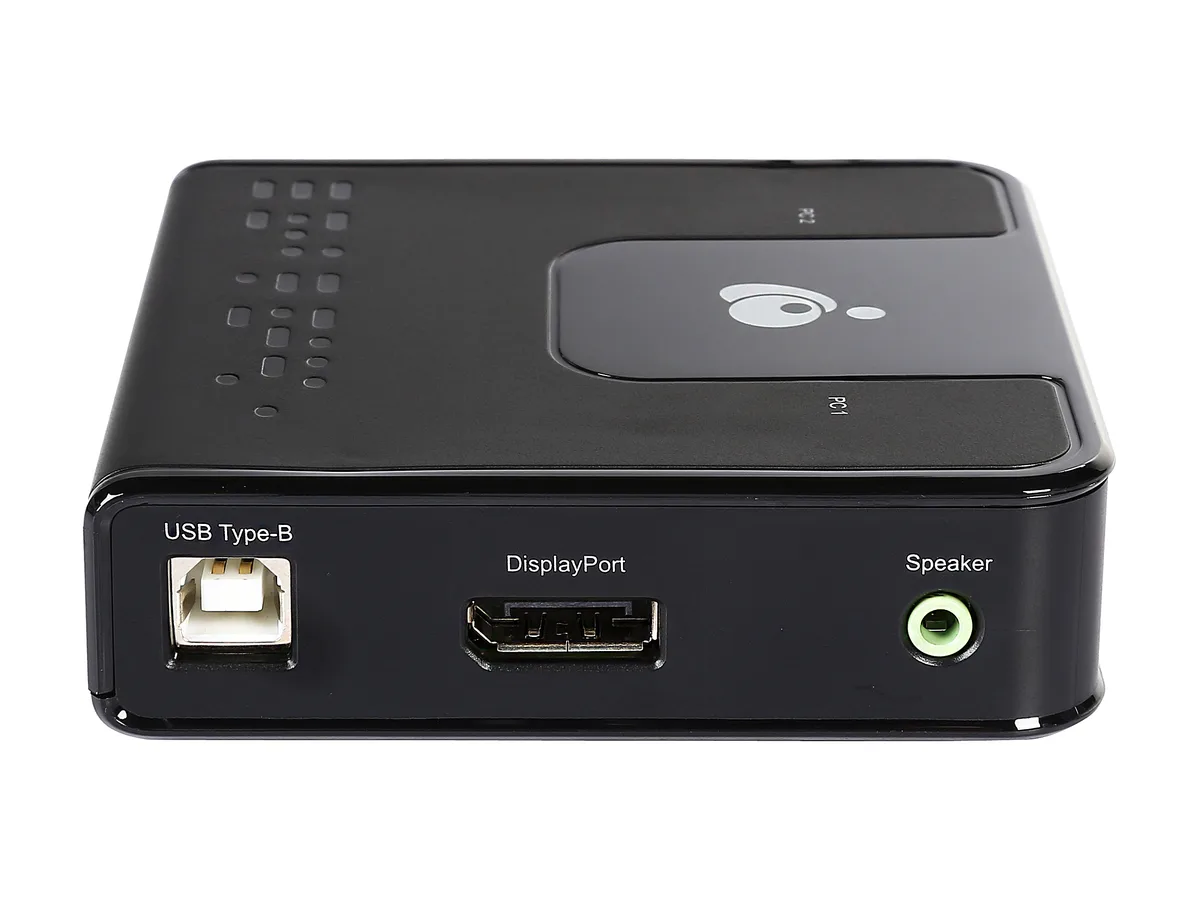

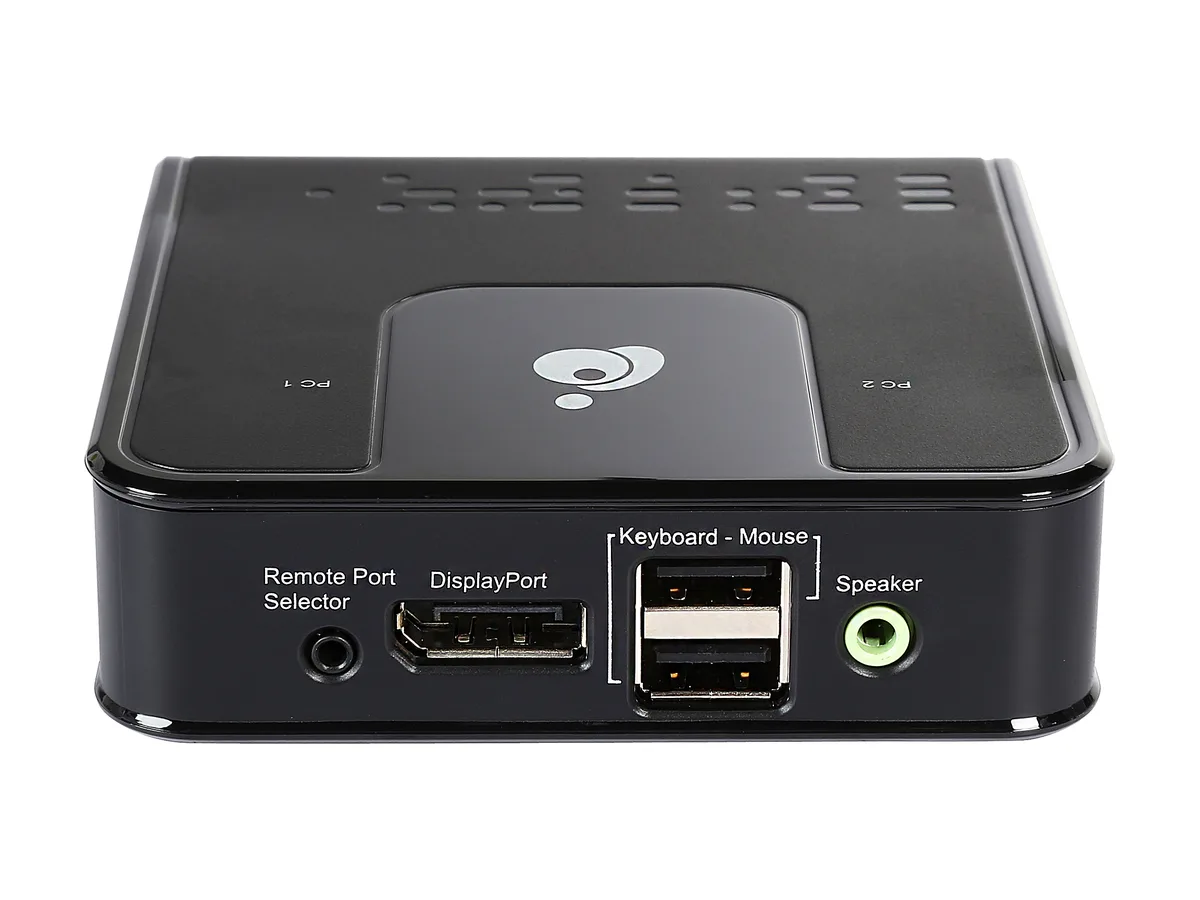

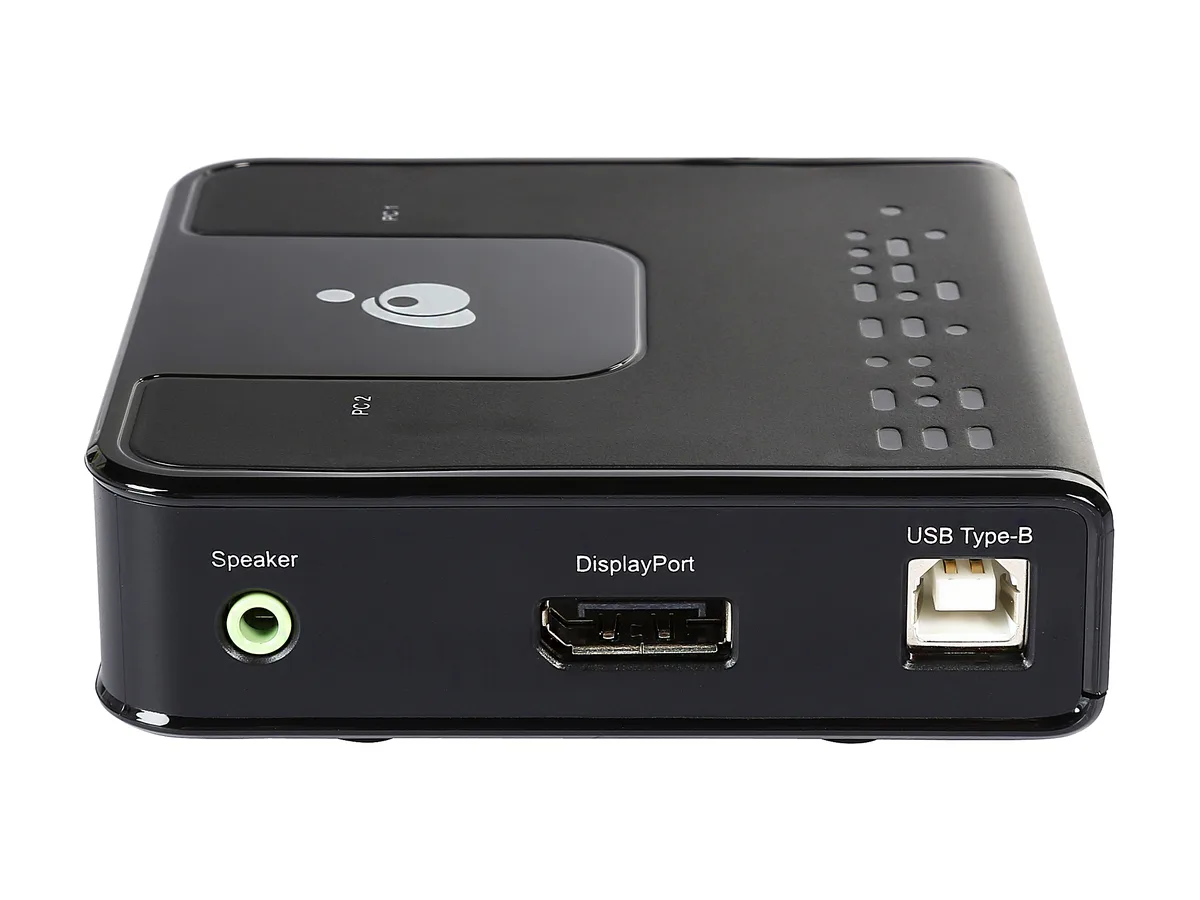

IOGEAR GCS62DP 2-Port DisplayPort KVM Switch
Controls two DisplayPort computers from one keyboard, mouse and 4096 x 2160 @ 60 Hz monitor using hotkeys, push-button or mouse switching
- TypeAccessories
- Computer Connections2 Ports
- PC SelectionHotkeys, Mouse, or Port Selection Remote
- Featuresontrol 2 computers using a single keyboard, mouse, and Displ
- Dimensions1.06" x 3.75" x 3.75"
- Weight0.25 lb.
- Control 2 computers with 1 keyboard, mouse and DisplayPort monitor
- 4096 x 2160 @60Hz Cinema 4K resolution for sharp video
- Switch via pushbutton, hotkeys or USB mouse
- All required cables included in the box
- Compact 1.06" x 3.75" x 3.75" design saves desk space
Two-Port DisplayPort KVM Switch
The IOGEAR GCS62DP lets you operate two DisplayPort computers from a single keyboard, mouse and monitor. It supports Cinema 4K resolution at 4096 x 2160 at 60 Hz and complies with DisplayPort 1.2 and HDCP standards. The unit weighs 0.25 lb and measures 1.06 x 3.75 x 3.75 inches.
Verify Your DisplayPort Connections
Before ordering, confirm that each computer provides a DisplayPort video output and a USB port for keyboard and mouse signals. The switch requires DisplayPort 1.2 sources to achieve the stated 4096 x 2160 at 60 Hz resolution. Ensure your monitor accepts the same DisplayPort input and that you have desk space for the 3.75-inch square footprint.

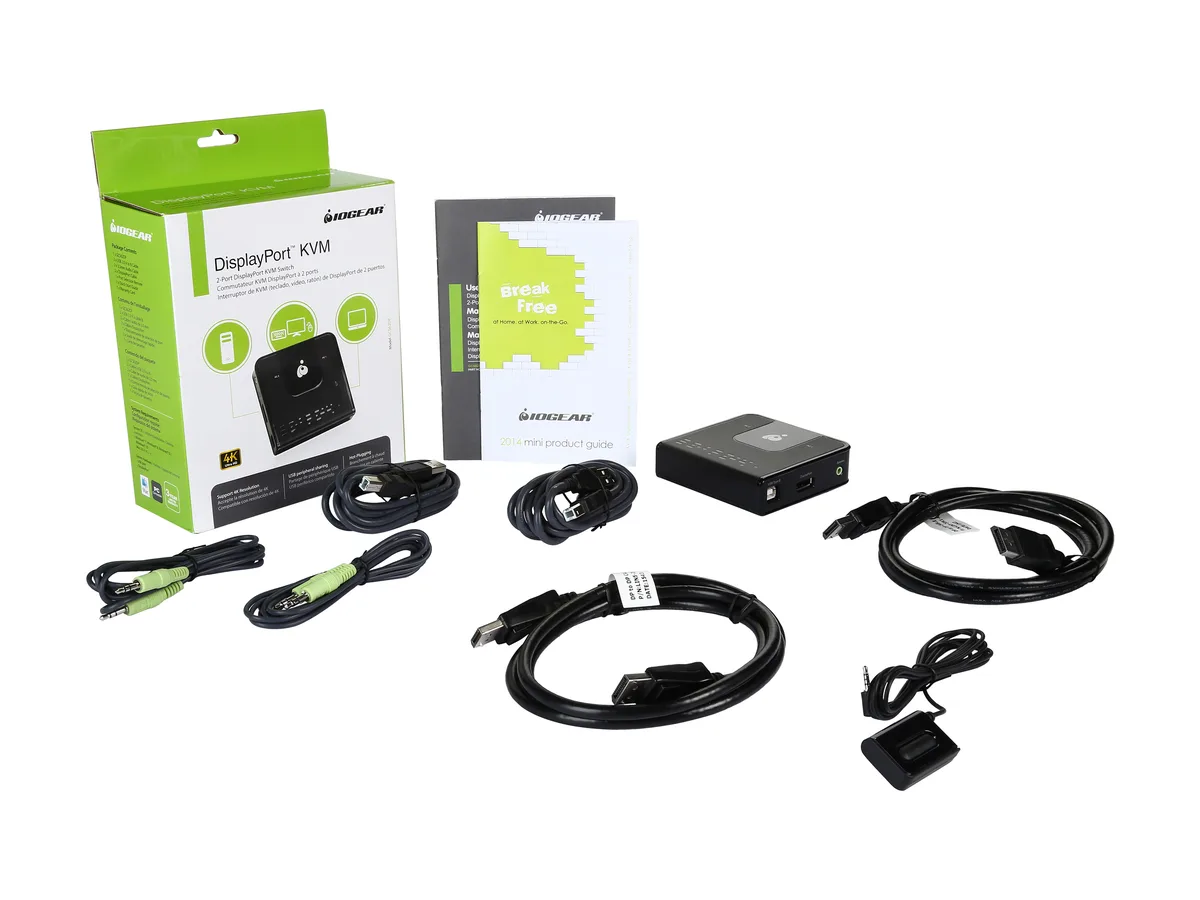

All Cables Included
The package supplies every cable needed to connect both computers, the monitor, keyboard and mouse, eliminating separate cable purchases. Switching between systems is handled by a front pushbutton, keyboard hotkeys or USB mouse gestures. Firmware updates can add features over time, extending the switch's useful life.
Highlights
- Control 2 computers with 1 keyboard, mouse and DisplayPort monitor
- 4096 x 2160 @60Hz Cinema 4K resolution for sharp video
- Switch via pushbutton, hotkeys or USB mouse
- All required cables included in the box
- Compact 1.06" x 3.75" x 3.75" design saves desk space
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS62DP |
| Type | Accessories |
| Computer Connections | 2 Ports |
| PC Selection | Hotkeys, Mouse, or Port Selection Remote |
| Features | ontrol 2 computers using a single keyboard, mouse, and DisplayPort video console DisplayPort 1.2 Compliant, HDCP Compliant Computer selection via console selection button, hotkeys, and USB mouse1 Superior video quality – up to 4K Cinema (4096 x 2160 @ 60Hz) Multiplatform support – Windows®, Mac, Linux Supports MST (Multi-Stream Transport), enabling multiple monitors to be used via a single DisplayPort connector2 Supports DisplayPort Dual Mode (DP++) for directly outputting single-link HDMI or DVI signals via a powered DisplayPort-to-HDMI/DVI DP++ adapter3 Compatible with widescreen L |
| Dimensions | 1.06" x 3.75" x 3.75" |
| Weight | 0.25 lb. |
| Shipping weight | 0.70 kg |
| Package size | 201 × 165 × 74 mm |
Questions about this item
Does the GCS62DP come with every cable needed to connect two computers and one DisplayPort monitor?
Yes, the manufacturer states all cables are included in the box so you can operate two DisplayPort computers with one keyboard, mouse, and monitor immediately.
How do I switch between the two connected PCs on the GCS62DP?
You can switch by pressing the console selection button, using hotkey combinations, or through a USB mouse gesture.
What video resolution and refresh rate does the GCS62DP support on a 4K DisplayPort monitor?
It supports Cinema 4K resolution up to 4096 x 2160 at 60 Hz, compliant with DisplayPort 1.2 and HDCP.
