IOGEAR
IOGEAR GCS52DP 2-Port DisplayPort KVM Switch
Control two DisplayPort computers from one monitor, keyboard and mouse using a compact switch with built-in cables and a remote pushbutton
- TypeDisplayPort, USB
- Console ConnectorsMonitor: 1 x DisplayPort Keyboard: 1 x USB Type A Mouse: 1 x
- Computer ConnectionsMonitor: 2 x DisplayPort Keyboard & Mouse: 2 x USB 2.0 Type
- Monitor Connections2 Ports
- Video Resolutionup to 4096 x 2160 @30Hz
- PC SelectionRemote Pushbutton
- Control two DisplayPort computers from one keyboard, mouse and monitor
- Supports cinema 4K resolution up to 4096 x 2160 at 30Hz
- Built-in cables eliminate the need for extra cords
- Switch systems with the 6 ft remote pushbutton
- Compact 3.38 x 3.25 x 1.06 inch design fits any workspace
Dual DisplayPort KVM with built-in cables

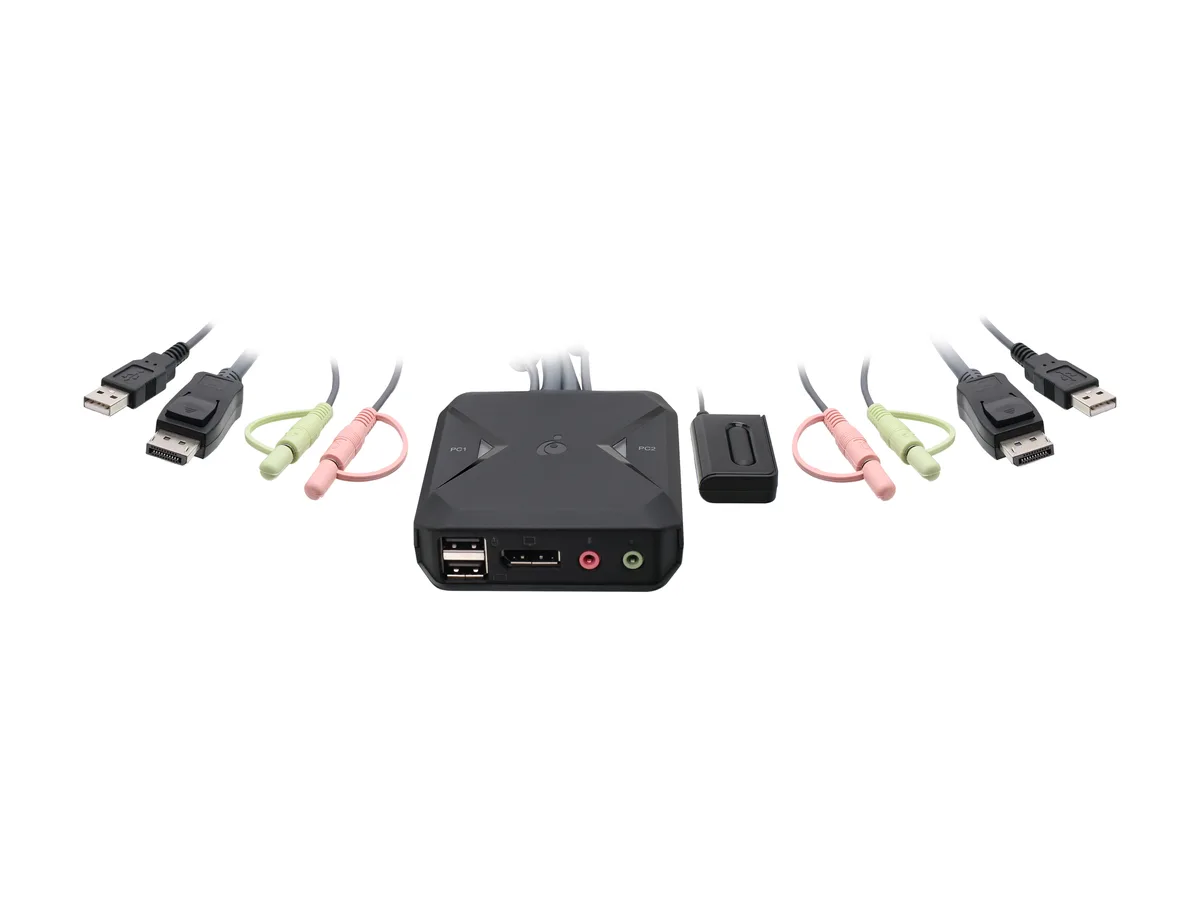

The IOGEAR GCS52DP is a two-port DisplayPort KVM switch that lets one keyboard, one mouse and one monitor control two computers. It ships with all cables attached and draws power from the USB connections, so no external adapter is required. A 6 ft remote push-button handles the computer selection.
Sustained operation within rated limits
The unit is specified for continuous use between 0 and 50 °C at up to 80 % non-condensing humidity. Because it has no fan or active cooling, thermal performance depends on ambient airflow around the compact enclosure. The DisplayPort 1.1 link and HDCP handshake remain stable during long sessions at the supported resolution.
DisplayPort 1.1 bandwidth ceiling
Video is limited to 4096 x 2160 at 30 Hz by the DisplayPort 1.1 interface, so higher refresh rates or deeper colour depths at that resolution are not possible. Audio and microphone paths use 3.5 mm analogue jacks rather than the digital audio channels in the DisplayPort stream. USB 2.0 ports handle keyboard and mouse only; they do not support high-speed peripherals.
Highlights
- Control two DisplayPort computers from one keyboard, mouse and monitor
- Supports cinema 4K resolution up to 4096 x 2160 at 30Hz
- Built-in cables eliminate the need for extra cords
- Switch systems with the 6 ft remote pushbutton
- Compact 3.38 x 3.25 x 1.06 inch design fits any workspace
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS52DP |
| Type | DisplayPort, USB |
| Console Connectors | Monitor: 1 x DisplayPort Keyboard: 1 x USB Type A Mouse: 1 x USB Type A Audio: 1 x 3.5mm Mini Stereo Jack (Green) Microphone: 1 x 3.5mm Mini Stereo Jack (Pink) |
| Computer Connections | Monitor: 2 x DisplayPort Keyboard & Mouse: 2 x USB 2.0 Type A Audio: 2 x 3.5mm Mini Stereo Jack Microphone: 2 x 3.5mm Mini Stereo Jack |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 4096 x 2160 @30Hz |
| PC Selection | Remote Pushbutton |
| LED Indicators | KVM: 2 x White |
| Temperature | 0 ~ 50 degree C |
| Humidity | 0~80% RH, Non-condensing |
| Features | DisplayPort computer switch Switch between 2 DisplayPort computers from a single keyboard, mouse, and DisplayPort monitor DisplayPort1.1 and HDCP compliant Computer switching via remote switch button Built-in cables Plug-N-Play Expand USB ports by adding a USB hub Bus powered* Supports 7.1 HD audio *may require external power supply via micro USB port |
| Dimensions | 3.38" x 3.25" x 1.06" |
| Weight | 0.90 lbs. |
| Package Contents | 1 x GCS52DP DisplayPort KVM 1 x Manual |
| Shipping weight | 0.51 kg |
| Package size | 185 × 155 × 58 mm |
Questions about this item
Does the GCS52DP generate noticeable heat or noise when left running all day?
The unit operates silently with no fan and stays within a 0 to 50 °C range, so it adds virtually no heat or noise to a desk that runs continuously.
What cables or peripherals must I already own to use this KVM switch?
You need two computers with DisplayPort outputs and USB 2.0 ports, plus a single DisplayPort monitor, USB keyboard and USB mouse; all connection cables are built into the switch.
Will the GCS52DP work with an older 1080p DisplayPort monitor I want to keep?
Yes, the switch supports resolutions up to 4096 x 2160 at 30 Hz and will downscale to 1080p or any lower DisplayPort timing your monitor accepts.
