IOGEAR GCS24U 4-Port USB VGA KVM Switch
Share one VGA monitor, USB keyboard and USB mouse across four computers with push-button switching and 2048 x 1536 resolution
- TypeD-Sub, USB
- PC ConnectorsMonitor 4 x HDB-15 Male Keyboard & Mouse 4 x Type-A Male
- Console ConnectorsMonitor 1 x HDB-15 Female Keyboard 1 x Type-A Female Mouse 1
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control four computers with one monitor, keyboard and mouse via integrated KVM cables
- Supports video resolution up to 2048 x 1536 with DDC2B for clear display output
- Plug-and-play operation requires no drivers or software installation across Windows, Mac and Sun
- USB bus-powered design eliminates the need for an external power adapter
- Wired remote push-button switch enables convenient manual PC selection from your desk
Shared control for four PCs

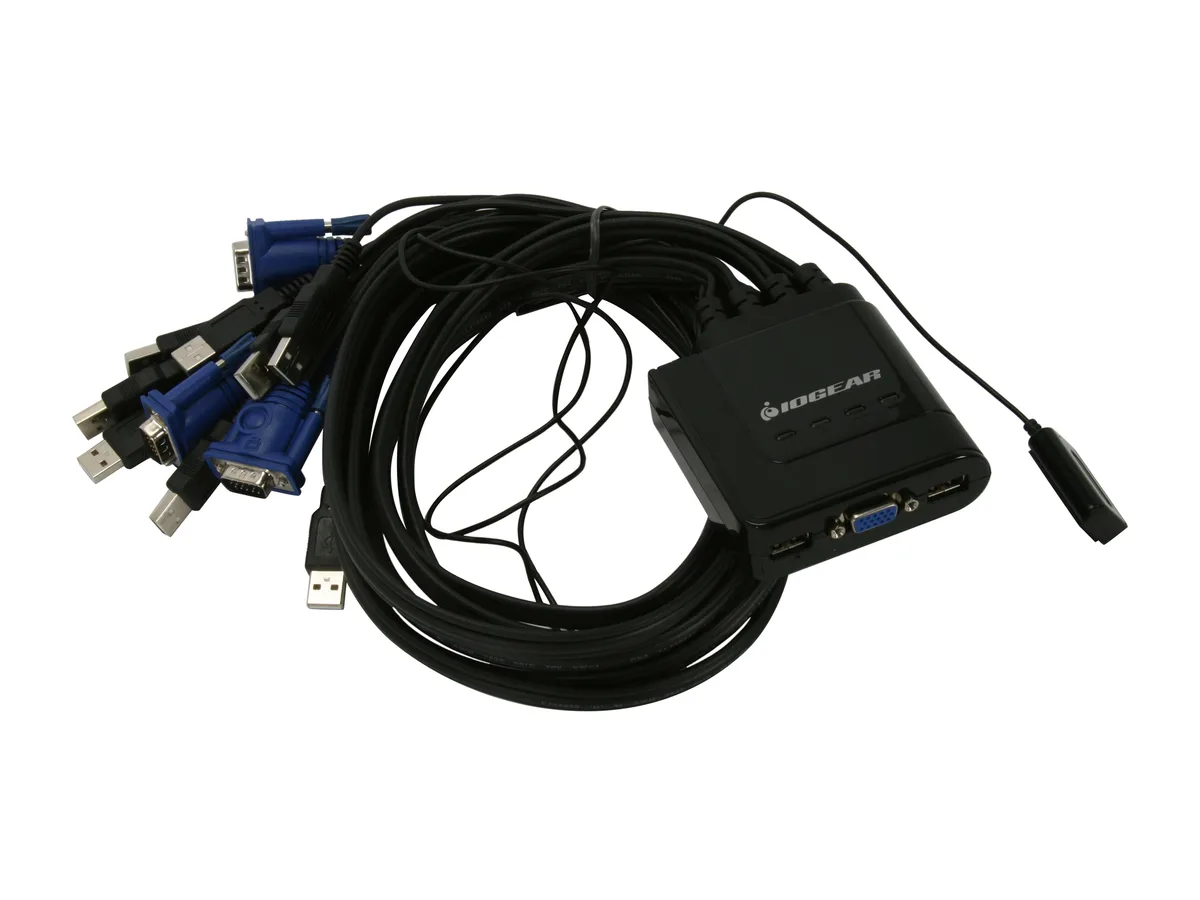

The IOGEAR GCS24U lets one VGA monitor, USB keyboard and USB mouse operate four computers. A wired push-button remote selects the active system without software or drivers. USB bus power removes the need for an external adapter. The unit targets home-office users and small labs that need basic multi-system access.
Passive cooling within 0–50 °C
The switch operates silently because it has no fans and draws minimal power from the host USB ports. Operating temperature range is 0 to 50 °C and storage range reaches -20 to 60 °C. Humidity tolerance spans 0 % to 80 % non-condensing. No active thermal management is required in normal desktop environments.
Molded cables and compact footprint

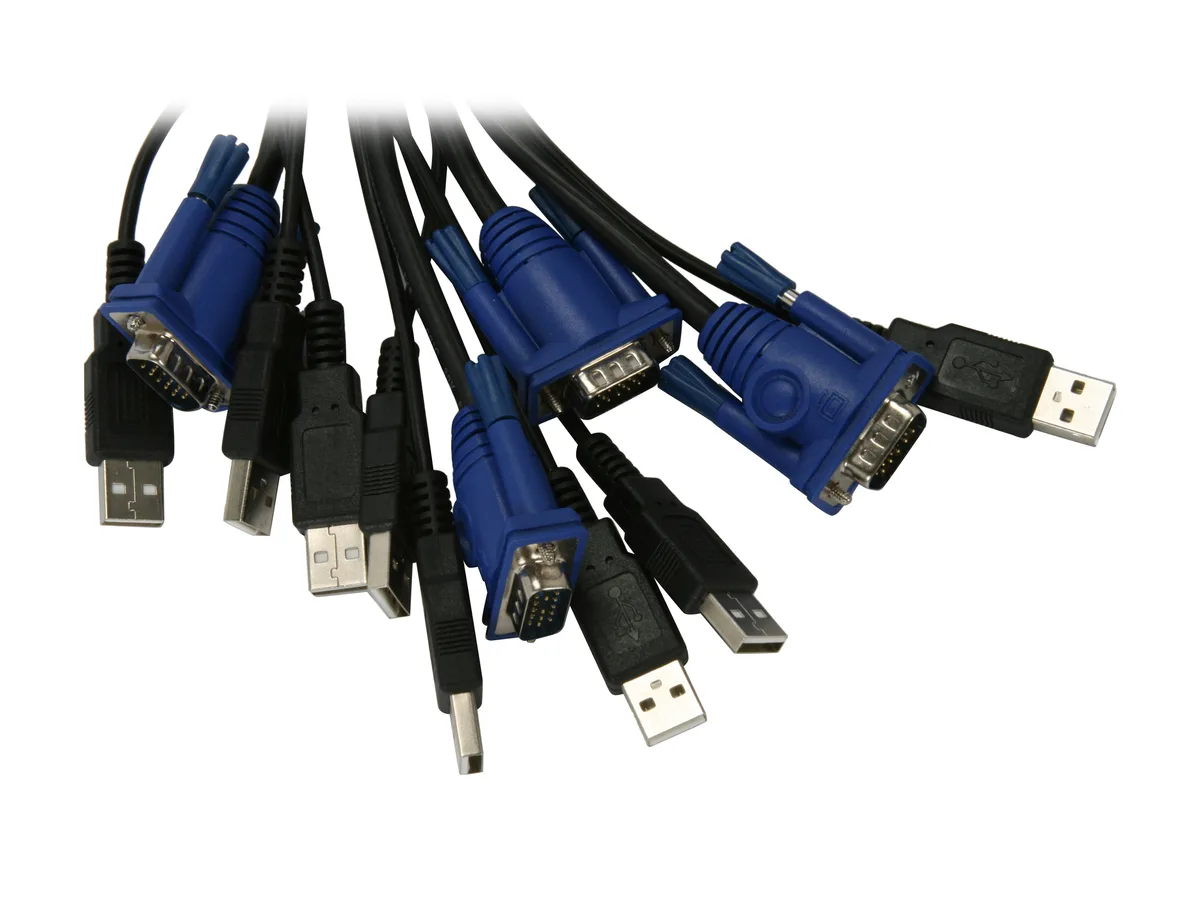

Four integrated USB-and-VGA cable sets reduce separate cable clutter and simplify initial setup. Console side provides one HDB-15 female video port plus USB Type-A female ports for keyboard and mouse. The enclosure measures 6.38 x 7.88 x 2.38 inches and weighs 1.46 lbs. Buyers needing DisplayPort, HDMI or more than four ports should consider other solutions.
Highlights
- Control four computers with one monitor, keyboard and mouse via integrated KVM cables
- Supports video resolution up to 2048 x 1536 with DDC2B for clear display output
- Plug-and-play operation requires no drivers or software installation across Windows, Mac and Sun
- USB bus-powered design eliminates the need for an external power adapter
- Wired remote push-button switch enables convenient manual PC selection from your desk
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS24U |
| Type | D-Sub, USB |
| PC Connectors | Monitor 4 x HDB-15 Male Keyboard & Mouse 4 x Type-A Male |
| Console Connectors | Monitor 1 x HDB-15 Female Keyboard 1 x Type-A Female Mouse 1 x Type-A Female |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons |
| Temperature | Operational: 0 to 50 degree C Storage: -20 to 60 degree C |
| Humidity | 0% to 80%,Non-Condensing |
| Features | One USB keyboard, USB mouse, and VGA monitor control four computers Max resolution: 2048 x 1536, DDC2B Plug-n-Play monitor support Molded-in cables to simplify setup Compact design features two attached KVM (USB and VGA) cables Compatible with PC, MAC and SUN operating platforms Supports Windows 2000 or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher No software drivers required - simply connect the cables to the computers Computer selection via 6 ft. remote control cable that can be placed on your desk for easy reach Full Mac keyboard support Supports programmable mice No powe |
| Dimensions | 6.38" x 7.88" x 2.38" |
| Weight | 1.46 lbs. |
| Shipping weight | 0.79 kg |
| Package size | 235 × 171 × 76 mm |
Questions about this item
How do I install the GCS24U and what step is often missed?
Connect the four attached HDB-15 and USB-A cables to each computer, plug your monitor, keyboard and mouse into the console ports, then press the wired remote button to switch — the step often missed is ensuring each computer detects the USB keyboard and mouse before switching.
What maintenance or replacement will the GCS24U need later?
The unit has no user-serviceable parts; if a molded-in cable or the push-button remote fails, the entire switch must be replaced.
What limit appears first during sustained use of the GCS24U?
The operating temperature ceiling of 50 °C is the first limit reached under continuous load in a warm enclosure.
