IOGEAR GCS22DPKIT 2-Port VGA DisplayPort KVM Switch Kit
A 2-port KVM kit lets you share one VGA monitor, USB keyboard and mouse between two computers with mixed VGA or DisplayPort outputs.
- TypeVGA and DisplayPort
- PC ConnectorsMonitor: 2 x VGA; 2 x DisplayPort (with adapters) Keyboard &
- Console ConnectorsMonitor: VGA Keyboard: USB Mouse: USB
- Monitor Connections2 Ports
- Video Resolutionup to 2048x1536 (VGA), up to 1920x1200 (with adapters)
- PC SelectionPush Buttons
- Switch between two computers with a push button
- Mix and match VGA and DisplayPort computer connections
- Includes two DisplayPort to VGA adapters
- No external power required for operation
- Plug and play with no software installation needed
2-Port VGA and DisplayPort KVM Switch Kit

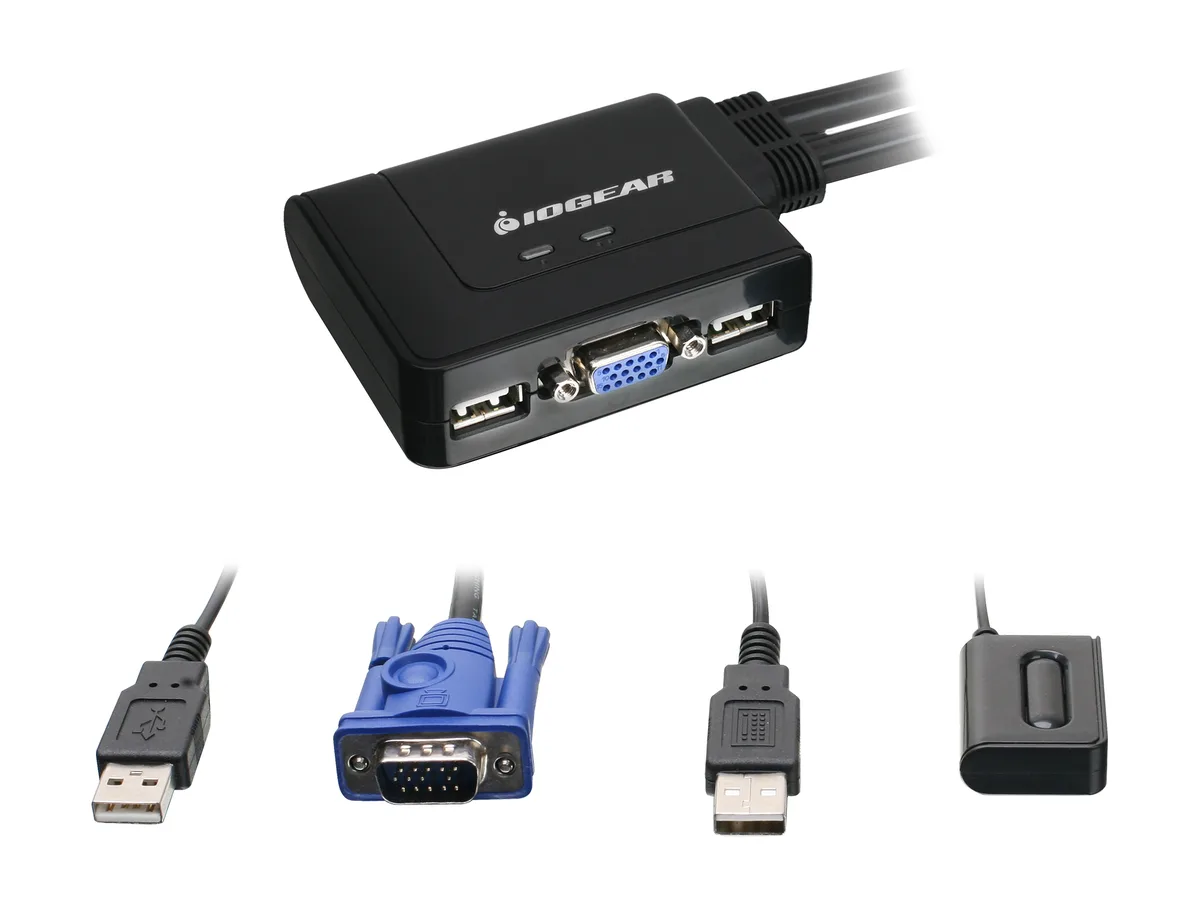

The IOGEAR GCS22DPKIT lets one VGA monitor, USB keyboard and USB mouse control two computers that may use VGA or DisplayPort outputs. It is aimed at home offices and small businesses wanting a simple way to share a single console. No software or external power supply is required for operation. The unit weighs 1.2 units.
Included DisplayPort to VGA adapters and cabling

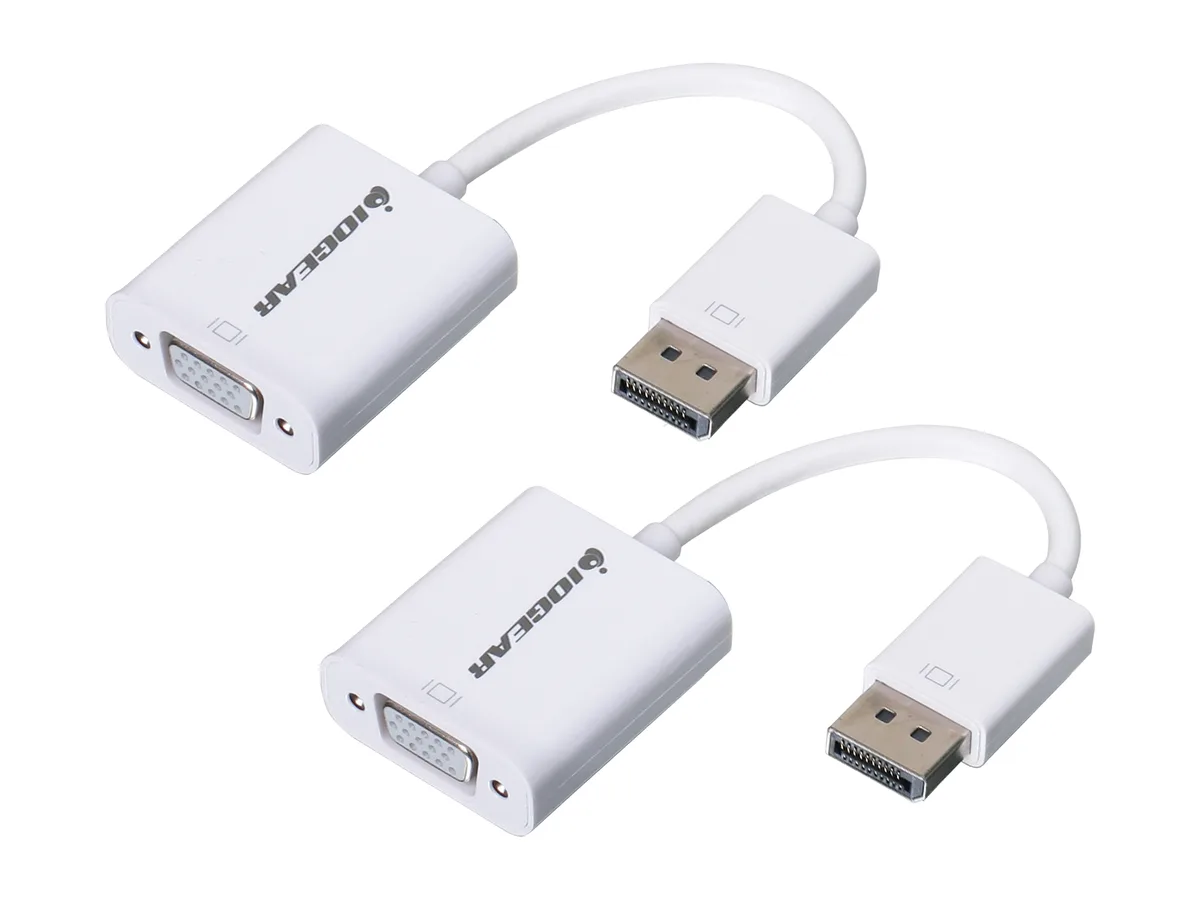

Two DisplayPort to VGA adapters are bundled so DisplayPort-equipped computers can connect directly to the VGA console port. This removes the need to buy separate converters and enables mixed VGA and DisplayPort sources. Built-in cables keep the installation tidy and support video up to 1920 x 1200 at 60Hz. A quick start guide and warranty card complete the package.
Push-button switching and USB hot-plug support
Switching between the two connected PCs is done by pressing the front button; green LEDs show the active port. USB hot-plugging allows keyboards or mice to be added or removed without powering down the computers. Buyers who need audio switching or support for resolutions above 1920 x 1200 will find this kit does not meet those needs.
Highlights
- Switch between two computers with a push button
- Mix and match VGA and DisplayPort computer connections
- Includes two DisplayPort to VGA adapters
- No external power required for operation
- Plug and play with no software installation needed
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS22DPKIT |
| Type | VGA and DisplayPort |
| PC Connectors | Monitor: 2 x VGA; 2 x DisplayPort (with adapters) Keyboard & Mouse: 2 x USB |
| Console Connectors | Monitor: VGA Keyboard: USB Mouse: USB |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 2048x1536 (VGA), up to 1920x1200 (with adapters) |
| PC Selection | Push Buttons |
| LED Indicators | On Line: Green |
| Application | Console: 1 x VGA display 1 x standard 104 key wired USB keyboard 1 x standard 2 or 3 button wired USB mouse Computers: VGA or DisplayPort port USB ports 3.5mm audio port (optional) Operating Systems: Windows Vista, Windows 7, Windows 8.1, Windows 10 Mac OS 9 to 10.x Oracle Solaris Linux, Unix and other USB supported systems* *Additional drivers and support may be needed |
| Features | Switch between two computers with the push of a button Offers the flexibility to mix and match VGA & DisplayPort computer connections Includes 2 x DisplayPort to VGA adapters No external power needed Cost effective, Plug-N-Play solution, no software needed One USB keyboard, USB mouse, and VGA monitor controls two computers Max resolution: 2048 x 1536, DDC2B 3' Long molded-in cables to simplify setup Compatible with PC, MAC and SUN operating platforms Supports Windows7 or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher Full Mac keyboard support Supports programmable mice All cab |
| Weight | 1.2 |
| Package Contents | 1 x 2-Port USB Cable KVM 2 x DisplayPort to VGA Adapters 1 x Quick Start Guide 1 x Warranty Card |
| Shipping weight | 0.53 kg |
| Package size | 191 × 157 × 58 mm |
Questions about this item
Will the included DisplayPort-to-VGA adapters need replacement if I upgrade to a DisplayPort monitor?
The kit ships with two DisplayPort-to-VGA adapters; if you later connect a native DisplayPort display you can simply remove the adapters and use the DisplayPort inputs directly.
What video resolution ceiling will I hit first when running both computers all day?
The console VGA output is limited to 2048 x 1536, while the DisplayPort paths top out at 1920 x 1200 @ 60 Hz, so the lower 1920 x 1200 limit appears first.
Does the unit get hot or noisy when left on continuously without an external power brick?
It draws power from the USB ports of the connected PCs, has no fan, and runs silently; typical warmth is barely noticeable during all-day operation.
