IOGEAR
IOGEAR GCS1934 4-Port DisplayPort 1.2 KVMP Switch
A 4-port DisplayPort 1.2 KVMP switch controlling four computers from one keyboard, mouse and 4K monitor with USB 3.1 hub and audio
- TypeUSB, DisplayPort
- PC ConnectorsMonitor: 4 x DisplayPort Keyboard & Mouse: 4 x USB 3.1 Gen1
- Console ConnectorsMonitor: 1 x DisplayPort Keyboard: 1 x USB Type A Mouse: 1 x
- PC SelectionPushbutton, Hotkeys, Mouse (mouse port switching only works
- AutoScan Interval1 - 99 seconds (5 seconds default)
- Monitors Supported4096 x 2160 @ 60Hz (4K)
- Control four computers from one DisplayPort console
- True 4K video at 4096x2160 and 60 Hz
- DisplayPort 1.2 and HDCP compliant
- Two-port USB 3.1 Gen1 hub at 5 Gbps
- Pushbutton, hotkey or mouse-wheel switching
Four-computer DisplayPort KVM
The IOGEAR GCS1934 lets one DisplayPort monitor, keyboard and mouse control four computers. It supports 4096 x 2160 at 60 Hz video and switches audio and microphone signals alongside the video. A built-in two-port USB 3.1 Gen1 hub shares peripherals across all connected systems. The switch is TAA compliant for government procurement.
Verify ports and cables before ordering
Each computer needs a DisplayPort 1.2 output, a USB 3.1 Gen1 Type-B port and two 3.5 mm jacks for audio and microphone. The console side requires one DisplayPort input, two USB Type-A ports for keyboard and mouse plus front and rear audio jacks. Four DisplayPort cables, four USB 3.0 cables and eight audio cables are included in the box. Confirm your graphics cards and motherboards match these connectors.
Bundled cables and hub expand connectivity
The package supplies every cable needed to link four computers immediately, removing the need to source separate DisplayPort, USB and audio leads. The integrated two-port USB 3.1 Gen1 hub adds SuperSpeed 5 Gbps peripheral sharing without an extra hub on the desk. A 5.3 V power adapter is also included so the switch operates without drawing power from the connected computers.
Highlights
- Control four computers from one DisplayPort console
- True 4K video at 4096x2160 and 60 Hz
- DisplayPort 1.2 and HDCP compliant
- Two-port USB 3.1 Gen1 hub at 5 Gbps
- Pushbutton, hotkey or mouse-wheel switching
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1934 |
| Type | USB, DisplayPort |
| PC Connectors | Monitor: 4 x DisplayPort Keyboard & Mouse: 4 x USB 3.1 Gen1 Type B Audio: 4 x 3.5mm Mini Stereo Jack Microphone: 4 x 3.5mm Mini Stereo Jack |
| Console Connectors | Monitor: 1 x DisplayPort Keyboard: 1 x USB Type A Mouse: 1 x USB Type A Audio: 2 x 3.5mm Mini Stereo Jack (Front and Rear) Microphone: 2 x 3.5mm Mini Stereo Jack (Front and Rear) |
| PC Selection | Pushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode) |
| AutoScan Interval | 1 - 99 seconds (5 seconds default) |
| Monitors Supported | 4096 x 2160 @ 60Hz (4K) |
| LED Indicators | Mode: 4 x Orange KVM: 4 x Orange Audio: 4 x Orange USB Peripherals: 4 x Green |
| Temperature | Operation: 0 to 50 degree C Storage: -20 to 60 degree C |
| Humidity | 0% to 80%,Non-Condensing |
| Audio Features | Offers audio and microphone switching |
| Power Features | DC 5.3V |
| Features | Control 4 computers using a single keyboard, mouse, and DisplayPort video console Superior video quality - True 4K(4096x2160@60Hz) DisplayPort 1.2 compliant, HDCP compliant 2-Port USB3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate MST (Multi-Stream Transport) DP++ supports HDMI and DVI output Computer selection via front panel pushbuttons, hotkeys, and mouse Independent switching of the KVM, USB, and audio Supports HD audio through DisplayPort Full bass response for high quality 2.1 channel audio Mouse emulation or bypass feature supports most mouse drivers and multifunction mice Mu |
| Dimensions | 2.94" x 10.25" x 1.69" |
| Weight | 1.98 lbs. |

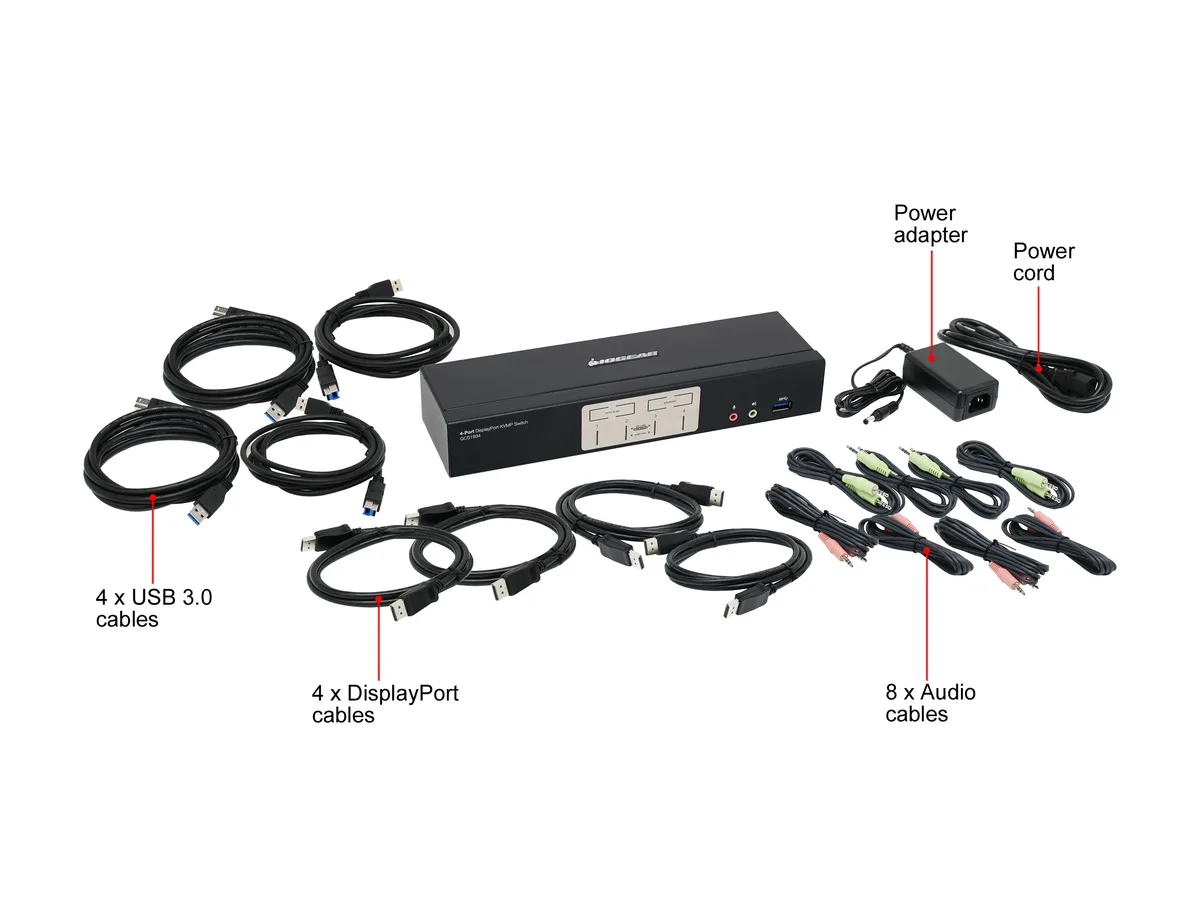

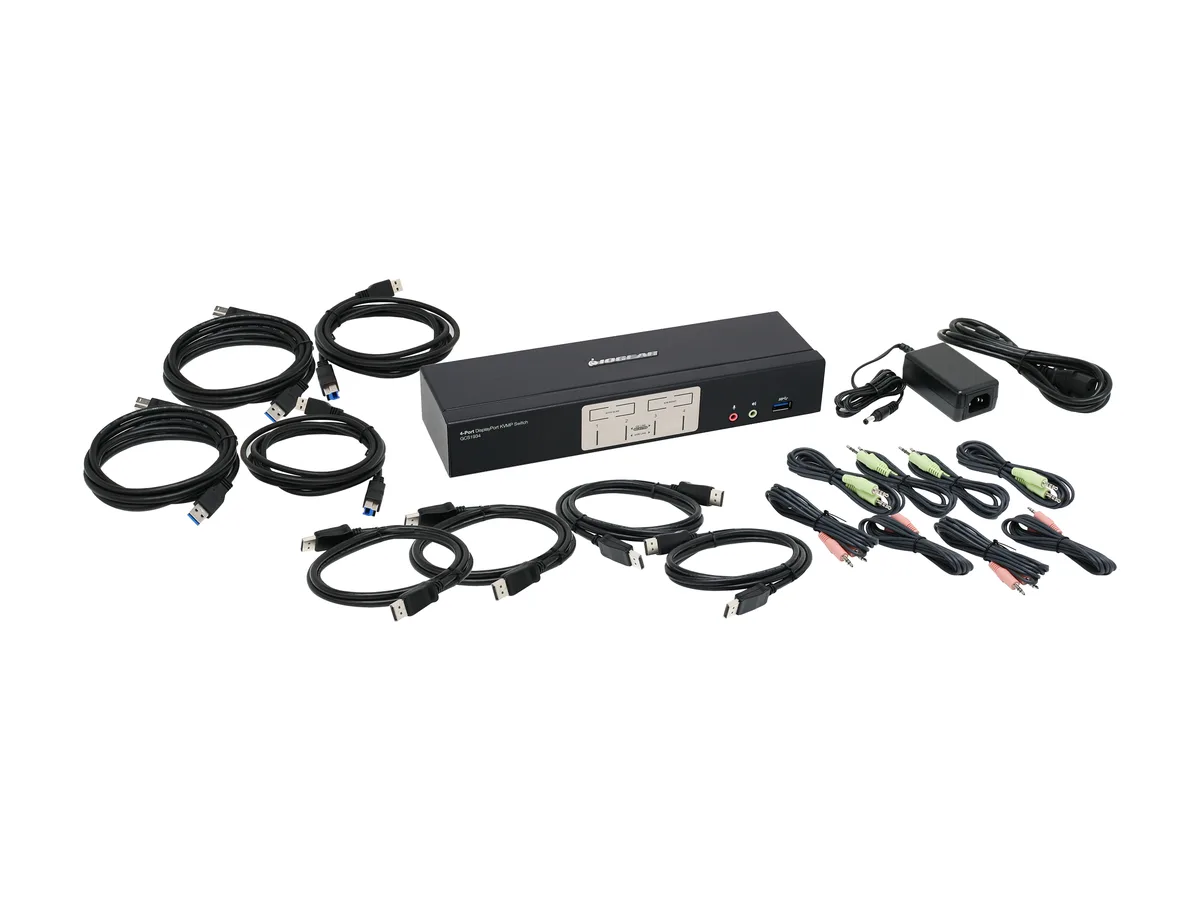

| Package Contents | 1 x GCS1934 4 x DisplayPort Cables 4 x USB 3.0 Cables 8 x Audio Cables 1 x Power Adapter 1 x Manual |
| Shipping weight | 2.50 kg |
| Package size | 325 × 221 × 104 mm |
Questions about this item
What cables are included and what must I buy separately?
The box includes four DisplayPort cables, four USB 3.0 cables, eight audio cables, a power adapter, and the manual. No additional cables are required to connect four computers.
Which video resolution and refresh rate should I plan for with this switch?
The switch supports up to 4096 x 2160 at 60 Hz over DisplayPort 1.2, so a 4K DCI monitor at 60 Hz is the headline figure to match.
How does the USB 3.1 Gen 1 hub perform when I plug in a high-speed drive?
The built-in two-port hub runs at SuperSpeed 5 Gbps, giving full USB 3.1 Gen 1 throughput for external storage or other peripherals.
