IOGEAR
IOGEAR GCS1904 4-Port DisplayPort KVMP Switch with USB 3.0 Hub
A 4-port DisplayPort KVM switch controlling four computers from one monitor, keyboard and mouse with 4K UHD at 30 Hz and a USB 3.0 hub
- TypeDisplayPort, USB
- PC ConnectorsMonitor 4 x DisplayPort Keyboard & Mouse 4 x USB 3.0 Type B
- Console ConnectorsMonitor 1 x DisplayPort Keyboard 1 x USB 3.0 Type A Mouse 1
- Video Resolution2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz (4K UHD)
- PC Selection4 x Pushbutton
- LED IndicatorsMode 4 x Orange On Line 4 x Green KVM 4 x Orange Audio 4 x O
- Control four computers with one DisplayPort console and USB 3.0 peripherals
- View 4K UHD resolution at 3840 x 2160 @ 30 Hz
- Connect two USB 3.0 devices via integrated hub with SuperSpeed 5 Gbps
- Switch instantly using four front-panel pushbuttons
- Operate reliably from 0 to 50 °C with included power adapter
Four-Port DisplayPort KVMP Switch
The IOGEAR GCS1904 lets operators control four DisplayPort computers from one keyboard, mouse and monitor. It supports video up to 3840 x 2160 at 30 Hz or 2560 x 1600 at 60 Hz. A built-in two-port USB 3.0 hub shares peripherals across all connected systems. The unit is TAA compliant for government procurement.
Replaces four separate console sets
This switch removes the need for four keyboards, four mice and four monitors on a desk. The upgrade is worth it when workspace is limited or when switching between secure and general-purpose machines must be instant. Audio switching handles front and rear 3.5 mm sources without extra cabling.

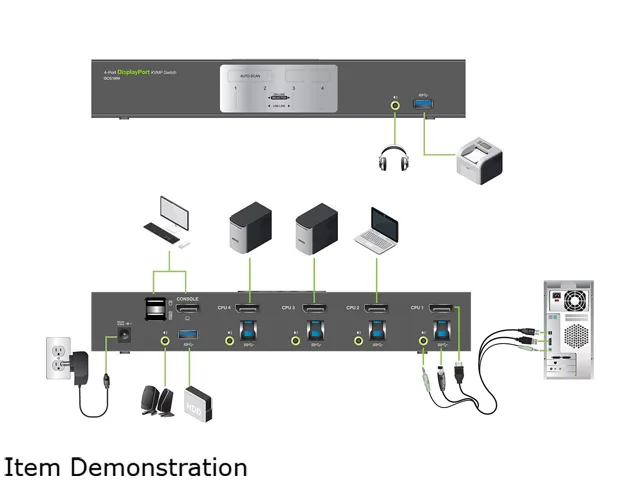

Install with included cables
The package supplies four DisplayPort cables, four USB 3.0 cables, four audio cables and a 5 V power adapter. Connect each computer to its labelled ports, attach the console, then select systems by pushbutton. Common issues include forgetting to plug the power adapter or leaving a USB 3.0 cable on a 2.0 port, which limits peripheral speed.
Highlights
- Control four computers with one DisplayPort console and USB 3.0 peripherals
- View 4K UHD resolution at 3840 x 2160 @ 30 Hz
- Connect two USB 3.0 devices via integrated hub with SuperSpeed 5 Gbps
- Switch instantly using four front-panel pushbuttons
- Operate reliably from 0 to 50 °C with included power adapter
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1904 |
| Type | DisplayPort, USB |
| PC Connectors | Monitor 4 x DisplayPort Keyboard & Mouse 4 x USB 3.0 Type B Audio 4 x 3.5mm Mini Stereo Jack |
| Console Connectors | Monitor 1 x DisplayPort Keyboard 1 x USB 3.0 Type A Mouse 1 x USB 3.0 Type A Audio 2 x 3.5mm Mini Stereo Jack (Front and Rear) |
| Video Resolution | 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz (4K UHD) |
| PC Selection | 4 x Pushbutton |
| LED Indicators | Mode 4 x Orange On Line 4 x Green KVM 4 x Orange Audio 4 x Orange USB Peripherals 4 x Green |
| Temperature | Operation: 0 to 50 C Storage: -20 to 60 C |
| Power Features | 1 x DC 5V Jack Voltage DC 5V |
| Features | Control 4 computers using a single keyboard, mouse, and DisplayPort video console Superior video quality - 4K UHD (3840 x 2160 @ 30 Hz) DisplayPort 1.1 compliant & HDCP compliant 2-Port USB 3.0 Hub with SuperSpeed 5 Gbps transfer rate Dual-Mode DP supports HDMI and DVI output1 Computer selection via front panel pushbuttons, hotkeys, and mouse2 Independent switching of the KVM, USB, and audio Supports HD audio through DisplayPort3 Full bass response for high quality 2.1 channel audio Mouse emulation or bypass feature supports most mouse drivers and multifunction mice Multi-platform su |
| Dimensions | 2.94" x 10.25" x 1.69" |
| Weight | 1.90 lbs. |
| Package Contents | 1 x GCS1904 4 x DisplayPort cables 4 x USB 3.0 cables 4 x Audio cables 1 x Power adapter 1 x Manual |
| Shipping weight | 2.31 kg |
| Package size | 323 × 213 × 102 mm |
Questions about this item
What console connectors are required for the GCS1904 to operate?
The console side needs one DisplayPort monitor, one USB 3.0 Type A keyboard, one USB 3.0 Type A mouse, and two 3.5 mm mini stereo jacks for front and rear audio.
What is the correct order for connecting the four computers to the GCS1904?
Attach each computer’s DisplayPort video, USB 3.0 Type B keyboard/mouse, and 3.5 mm audio to matching numbered ports, then connect the power adapter before turning on the PCs.
Which cables supplied with the GCS1904 will need replacement if they fail?
The package includes four DisplayPort cables, four USB 3.0 cables, four audio cables and a power adapter; any of these can be swapped with standard equivalents if damaged.
