IOGEAR GCS1902 2-Port DisplayPort KVMP Switch with USB 3.0 Hub
Controls two computers from one DisplayPort monitor, keyboard and mouse with 4K UHD at 30 Hz and a USB 3.0 hub
- TypeDisplayPort, USB
- PC ConnectorsMonitor 2 x DisplayPort Audio 2 x 3.5mm Mini Stereo Jack Key
- Console ConnectorsMonitor 1 x DisplayPort Keyboard 1 x USB 3.0 Type A Mouse 1
- Video Resolution2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz (4K UHD)
- PC Selection2 x Pushbutton
- LED IndicatorsMode 2 x Orange On Line 2 x Green KVM 2 x Orange Audio 2 x O
- Control two computers with one DisplayPort console
- 4K UHD resolution at 3840 x 2160 @ 30 Hz

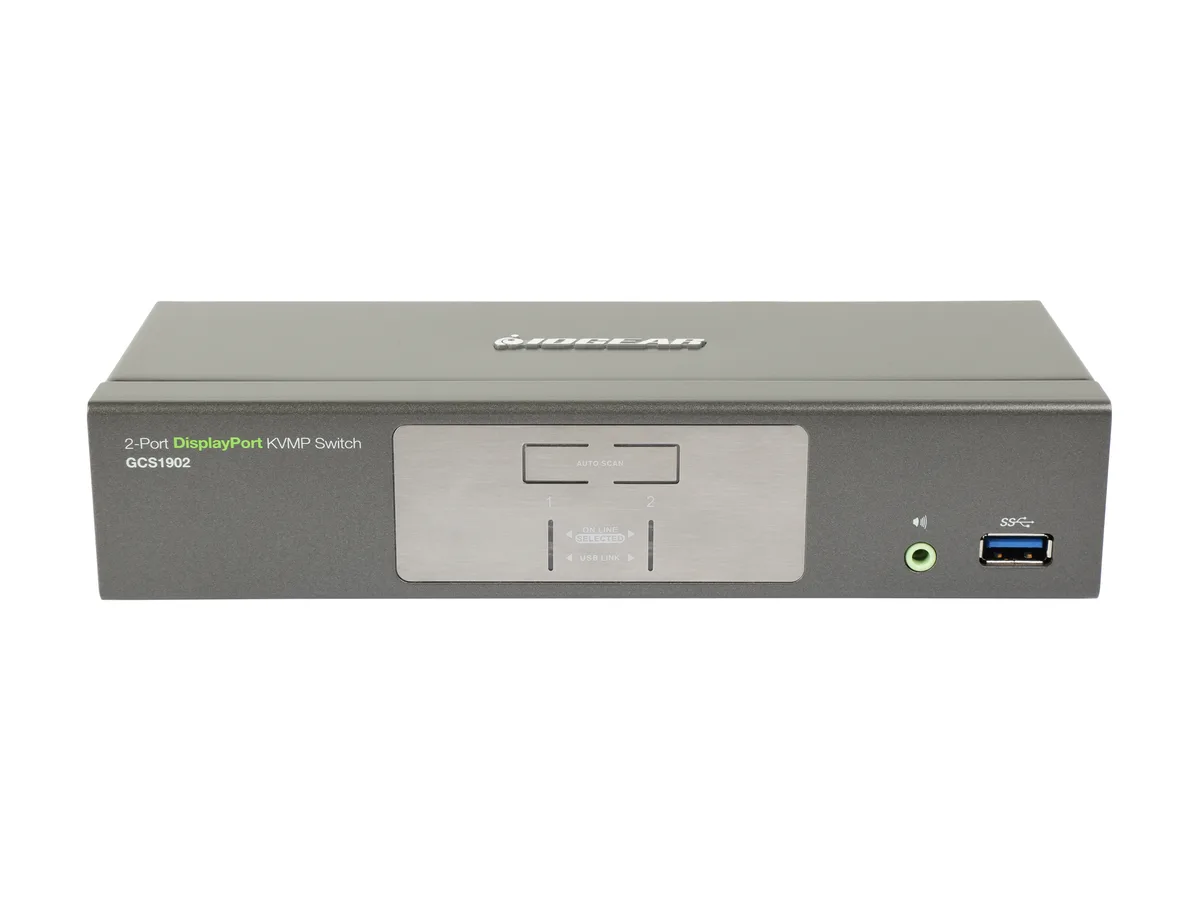

- Switch via front pushbuttons, hotkeys, or mouse
- Two USB 3.0 ports share peripherals at SuperSpeed
- Cables and power adapter included in the box
2-Port DisplayPort KVMP Switch
The IOGEAR GCS1902 lets you operate two DisplayPort computers from a single keyboard, mouse and monitor. It supports video up to 3840 x 2160 at 30 Hz and 2560 x 1600 at 60 Hz. A built-in two-port USB 3.0 hub shares peripherals between both systems. The unit ships with all required cables and a power adapter.
Suited for dual-PC workstations needing 4K at 30 Hz
This switch fits users who need to share one DisplayPort display and USB devices between two computers. It is not for buyers who require 4K at 60 Hz, more than two computer ports, or video interfaces such as HDMI or USB-C. Users needing higher refresh rates or additional console ports should consider other solutions.
Simple desktop installation with included cables

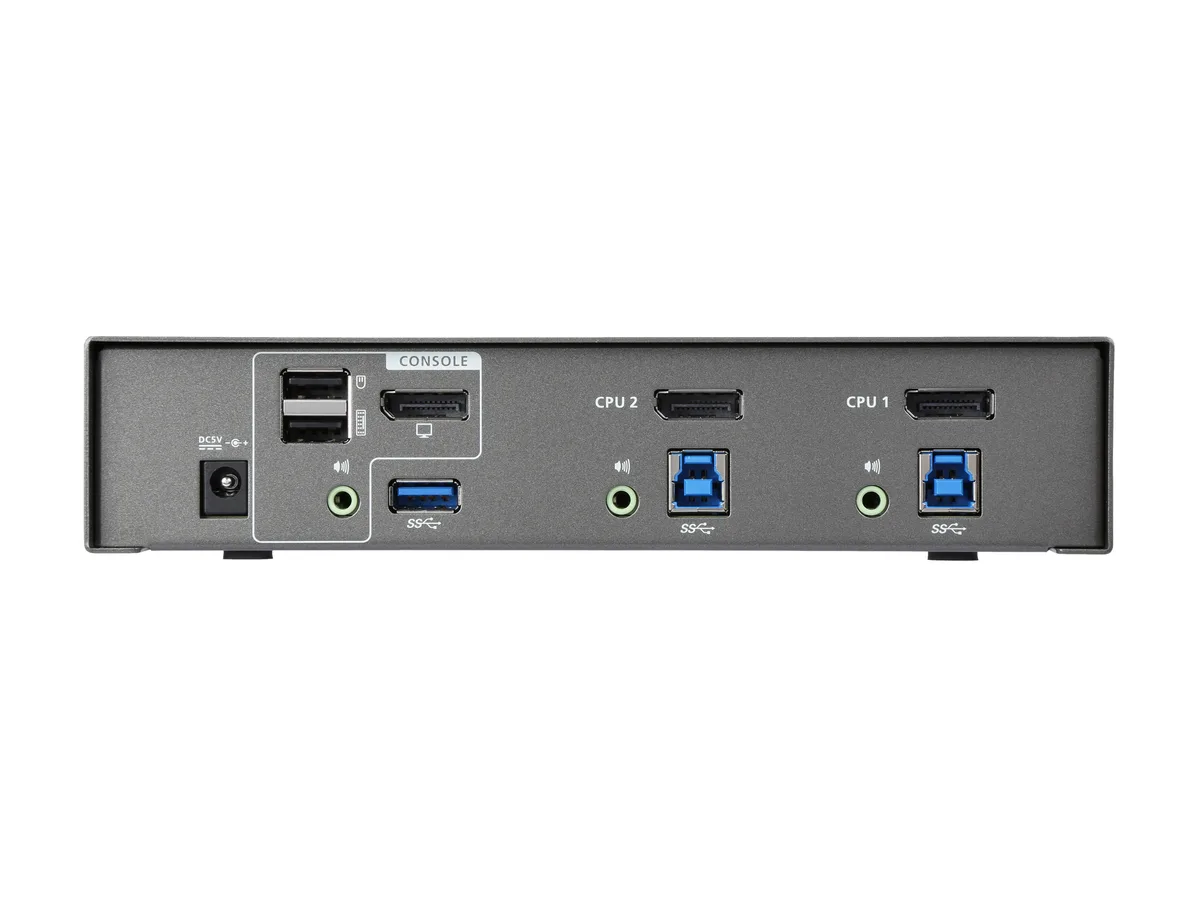

Connect the supplied DisplayPort, USB 3.0 and audio cables from each computer to the rear ports, attach your console devices to the front, and plug in the 5 V power adapter. Switching is done via front pushbuttons or keyboard hotkeys. A common issue is forgetting to connect the USB 3.0 Type-B cables, which are required for both peripheral sharing and hotkey switching to function.
Highlights
- Control two computers with one DisplayPort console
- 4K UHD resolution at 3840 x 2160 @ 30 Hz
- Switch via front pushbuttons, hotkeys, or mouse
- Two USB 3.0 ports share peripherals at SuperSpeed
- Cables and power adapter included in the box
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1902 |
| Type | DisplayPort, USB |
| PC Connectors | Monitor 2 x DisplayPort Audio 2 x 3.5mm Mini Stereo Jack Keyboard & Mouse 2 x USB 3.0 Type B |
| Console Connectors | Monitor 1 x DisplayPort Keyboard 1 x USB 3.0 Type A Mouse 1 x USB 3.0 Type A Audio 2 x 3.5mm Mini Stereo Jack (Front and Rear) |
| Video Resolution | 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz (4K UHD) |
| PC Selection | 2 x Pushbutton |
| LED Indicators | Mode 2 x Orange On Line 2 x Green KVM 2 x Orange Audio 2 x Orange USB Peripherals 2 x Green |
| Temperature | Operation: 0 to 50 C Storage: -20 to 60 C |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | 1 x DC 5V Jack Voltage DC 5V |
| Features | Control 2 computers using a single keyboard, mouse, and DisplayPort video console Superior video quality - 4K UHD (3840 x 2160 @ 30 Hz) DisplayPort 1.1 compliant & HDCP compliant 2-Port USB 3.0 Hub with SuperSpeed 5 Gbps transfer rate Dual-Mode DP supports HDMI and DVI output1 Computer selection via front panel pushbuttons, hotkeys, and mouse2 Independent switching of the KVM, USB, and audio Supports HD audio through DisplayPort3 Full bass response for high quality 2.1 channel audio Mouse emulation or bypass feature supports most mouse drivers and multifunction mice Multi-platform su |
| Dimensions | 2.94" x 7.88" x 1.69" |
| Weight | 1.45 lbs. |

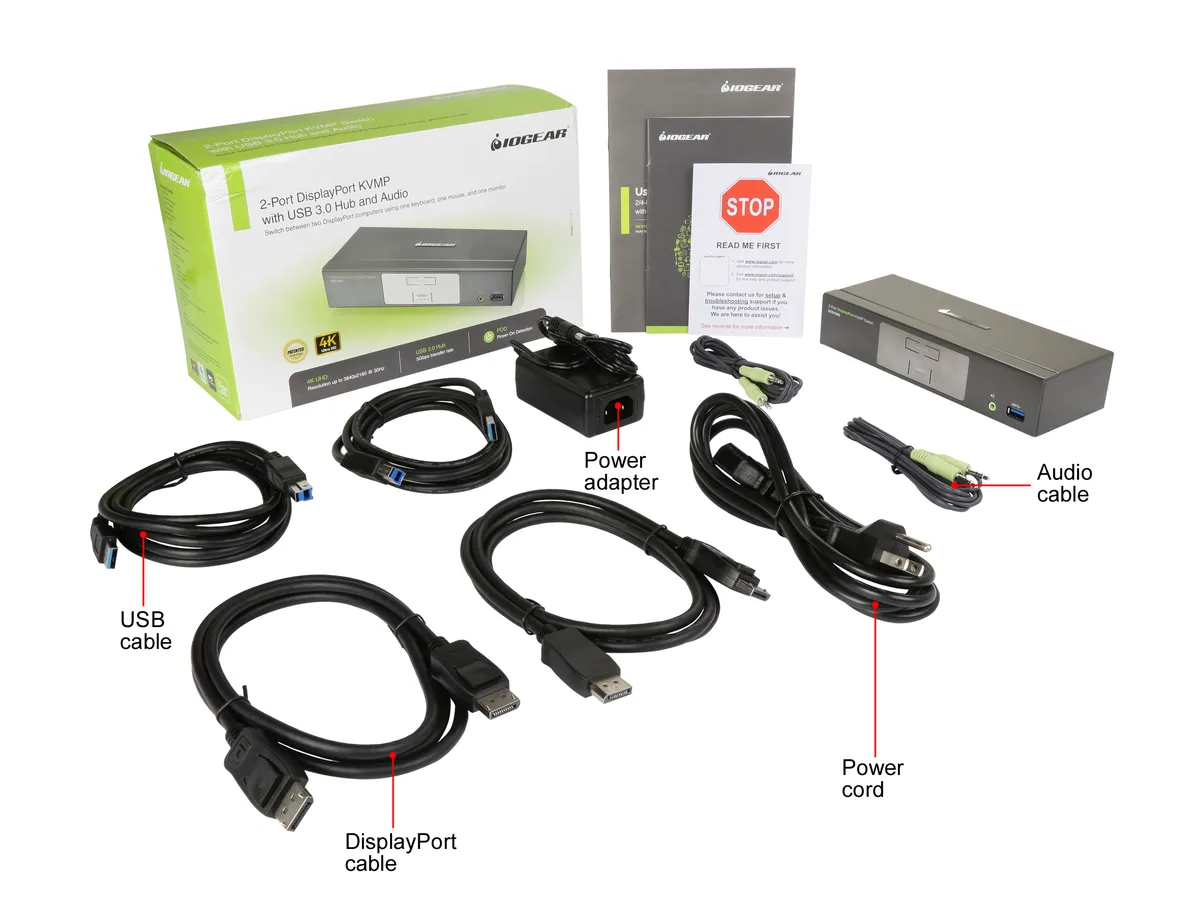

| Package Contents | 1 x GCS1902 2 x DisplayPort cables 2 x USB 3.0 cables 2 x Audio cables 1 x Power adapter 1 x Manual |
| Shipping weight | 1.66 kg |
| Package size | 282 × 175 × 104 mm |
Questions about this item
What DisplayPort cables do I need to connect my two computers to the GCS1902?
Two DisplayPort cables are required, one for each computer, and both are included in the package.
Can I keep using my existing USB 2.0 keyboard and mouse with the USB 3.0 Type A console ports on this switch?
Yes, USB 2.0 peripherals are backward compatible with the USB 3.0 Type A console ports for keyboard and mouse.
Which LED indicators confirm that the GCS1902 is actively switching video and USB focus to the selected computer?
The green On Line LED and the orange KVM LED for the chosen port will illuminate when that computer has focus.
