IOGEAR
IOGEAR GCS1808HKITU 8-port USB HDMI KVM switch
An 8-port HDMI KVM switch controls eight computers from one console with 1920 x 1200 video and two shared USB 2.0 ports
- TypeHDMI, USB
- PC Connectors8 x HDMI Female 8 x USB Type-B Female 8 x 3.5mm Stereo Jack
- Console Connectors1 x HDMI Female 1 x USB Type-A Female 1 x USB Type-A Female
- Computer Connections8 Ports
- Video Resolution1920 x 1200
- PC SelectionPush Buttons/Hot Keys/OSD
- Control 8 HDMI computers from one console
- Share two USB 2.0 peripherals across all systems
- Cascade three levels to manage 512 computers
- Switch via push buttons, hotkeys or OSD

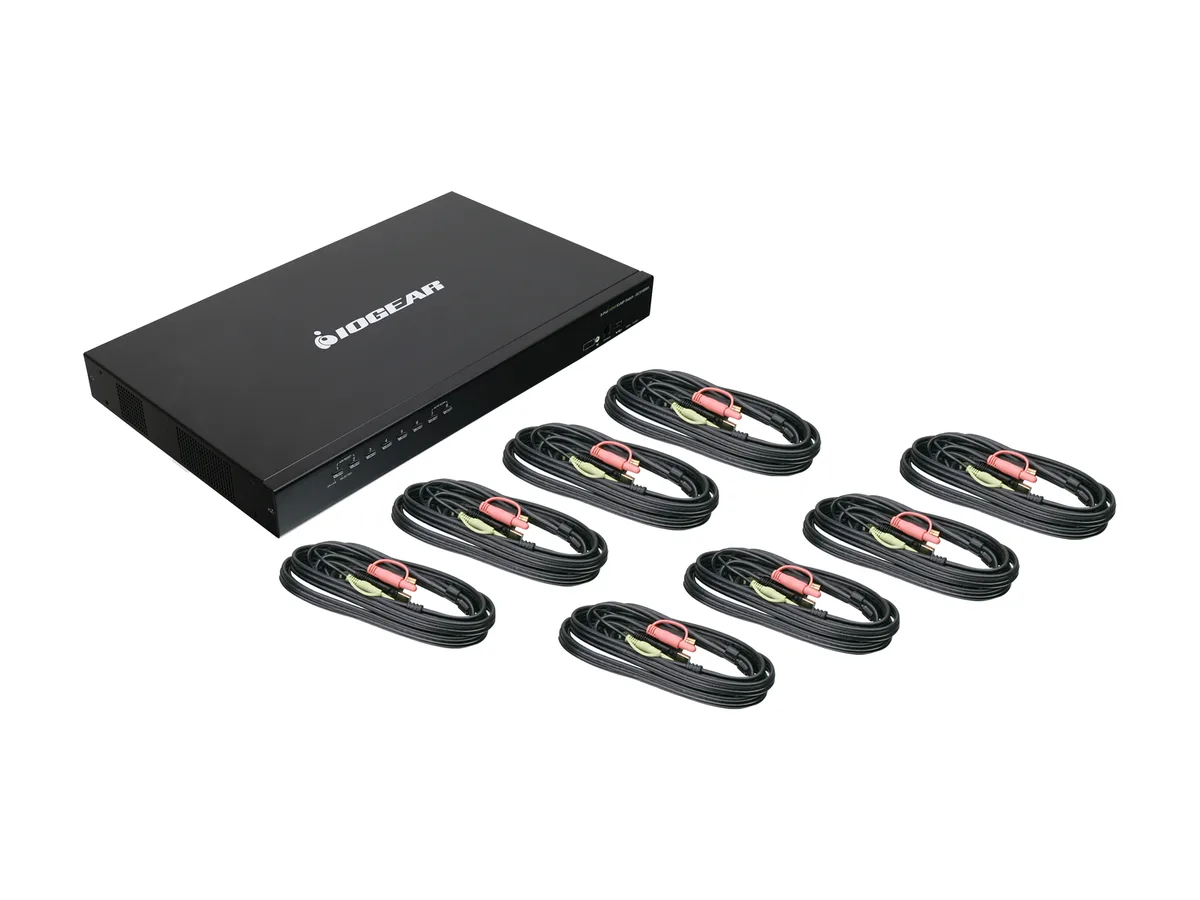

- Includes eight custom KVM cable sets for immediate use
Eight-port HDMI KVM for server rooms
The IOGEAR GCS1808HKITU is an eight-port USB HDMI KVM switch designed for administrators who need to manage multiple computers from one console. It accepts eight HDMI video sources and eight USB Type-B computer links, then routes them to a single HDMI monitor, keyboard and mouse. The unit ships with eight custom KVM cable sets so every port is ready to connect immediately.
1920 x 1200 resolution ceiling and cascade headroom
Video output tops out at 1920 x 1200 at 60 Hz, covering 480i through 1080p signals but stopping short of higher-resolution panels. The switch can cascade up to three levels, extending control to 512 computers from the same console when additional GCS1808H units are stacked. Auto-scan intervals run from 1 to 255 seconds for unattended monitoring.
Bundled cables and rack kit change deployment speed
Eight pre-assembled USB HDMI KVM cable sets eliminate the need to source matching leads for each server. A firmware upgrade cable, power adapter, foot pads, quick-start guide and full rack-mounting kit are also included, letting the unit slide straight into a standard rack without extra procurement. Two built-in USB 2.0 ports share peripherals such as printers or storage across all connected systems.
Highlights
- Control 8 HDMI computers from one console
- Share two USB 2.0 peripherals across all systems
- Cascade three levels to manage 512 computers
- Switch via push buttons, hotkeys or OSD
- Includes eight custom KVM cable sets for immediate use
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1808HKITU |
| Type | HDMI, USB |
| PC Connectors | 8 x HDMI Female 8 x USB Type-B Female 8 x 3.5mm Stereo Jack Female |
| Console Connectors | 1 x HDMI Female 1 x USB Type-A Female 1 x USB Type-A Female 2 x 3.5mm Stereo Jack Female (1 x Front Panel; 1 x Rear Panel) |
| Computer Connections | 8 Ports |
| Video Resolution | 1920 x 1200 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1 - 255 Seconds (Default: 5 sec) |
| Monitors Supported | 480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200 @60Hz |
| LED Indicators | USB Peripherals: 8 (Green) On Line: 8 (Orange) Power On: 1 (Dark Green) |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Audio Features | with Audio |
| Power Features | DC 5.0V; 12.2W |
| Features | Controls up to 8 HDMI sources while sharing 2 additional USB 2.0 devices Supports up to 1080p (1920 x 1200) HD video resolution Cascade up to 3 levels - Control up to 512 computers from a single console Features 2 built-in USB 2.0 ports for USB peripheral sharing Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1808H together Independent KVM and USB focus switching Password protection security for On-Screen Display (OSD) OSD Backup/Restore configuration and user profile information Broadcast Mode sends commands to all connected computers Auto Scan M |
| Dimensions | 1.75" x 17.00" x 10.00" |
| Weight | 7.75 lbs. |
| Package Contents | 1 x 8-port USB HDMI KVMP Switch 8 x Custom USB HDMI KVM Cable Sets 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x Quick Start Guide 1 x Rack Mounting Kit |
| Shipping weight | 7.55 kg |
| Package size | 577 × 513 × 140 mm |
Questions about this item
Will the GCS1808HKITU pass 1920 x 1200 @60Hz from my older HDMI sources to a single monitor?
Yes, the switch supports up to 1920 x 1200 @60Hz across all eight HDMI inputs, so legacy sources at that resolution will display correctly.
How can I confirm the KVM is switching properly after connecting eight PCs?
The front panel shows eight green USB peripheral LEDs and eight orange On Line LEDs; the active port lights orange while its USB link lights green, and the dark green power LED stays on.
What cables and accessories are included, and do I need anything else for eight computers?
The box contains the switch, eight custom USB HDMI KVM cable sets, a firmware upgrade cable, power adapter, foot pads, quick start guide, and rack mounting kit — no extra cables are required for eight PCs.
