IOGEAR GCS1794DPKIT 4-Port HDMI DisplayPort KVM switch
Controls four HDMI or DisplayPort computers with one keyboard, mouse and 1080p display
- TypeUSB
- PC ConnectorsMonitor: 4 x HDMI; 2 x DisplayPort (with adapters) Keyboard:
- Console ConnectorsMonitor: 1 x HDMI Female Keyboard: 1 x USB Type A Female Mou
- Video Resolution1080p; 1920x1200
- PC SelectionHotkeys or Front Panel Switch Button
- LED IndicatorsUSB Peripherals: 4 x Green On Line: 4 x Orange
- Control four computers from one keyboard and mouse
- Switch sources with hotkeys or the front-panel button
- Connect HDMI or DisplayPort PCs using included adapters
- Share audio and USB peripherals across all systems
- Operates reliably from 0 to 50 °C
Four-Computer HDMI and DisplayPort Control
This KVM switch lets one USB keyboard, USB mouse and single HDMI display manage four computers that each use HDMI or DisplayPort outputs. It is suited to a home office or small-to-medium business desk where multiple systems share one monitor and peripherals. The box includes two DisplayPort-to-HDMI adapters so DisplayPort sources connect directly to the HDMI console port.
Bundled Cables and Adapters Remove Extra Purchases

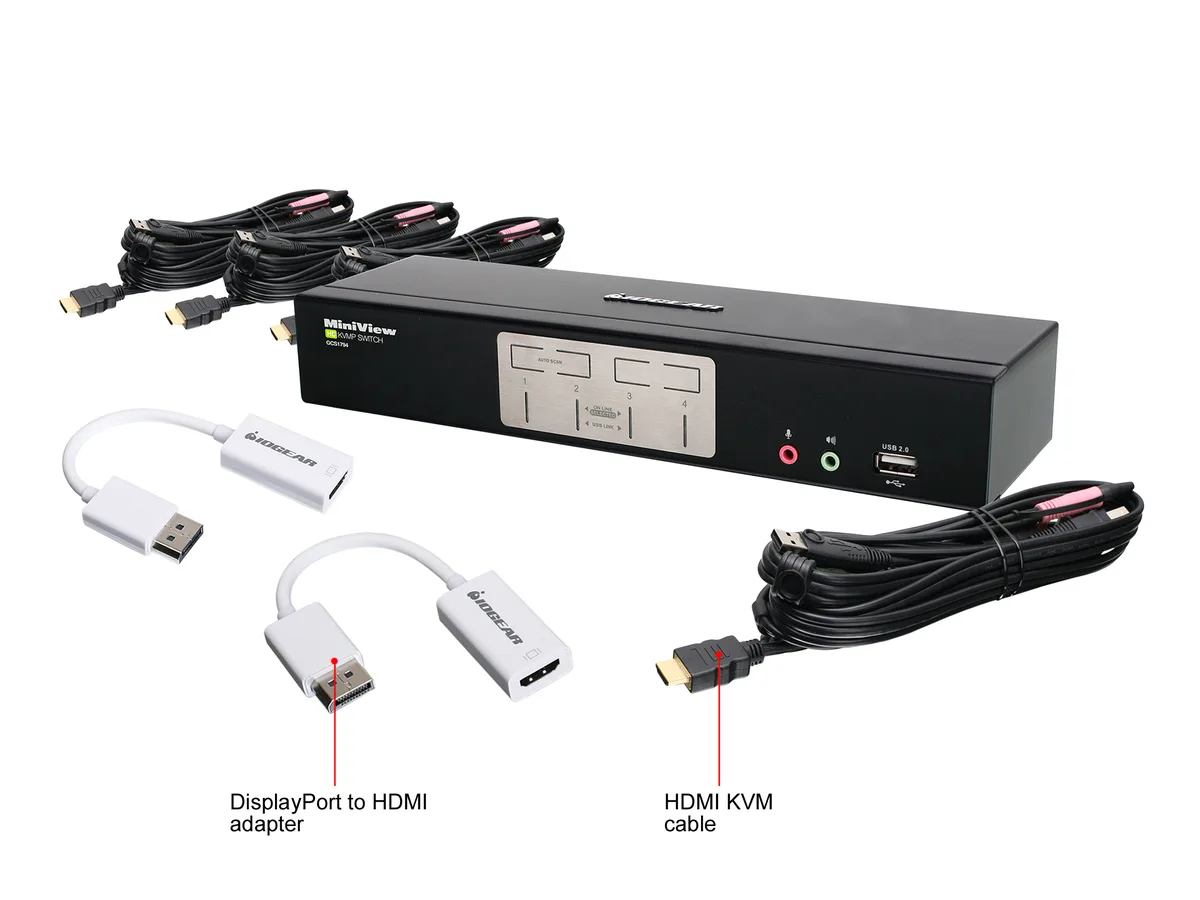

Four HDMI KVM cables carry video, USB and audio for every connected PC in a single run. Two DisplayPort-to-HDMI adapters convert DisplayPort signals without separate converters. A firmware-upgrade cable and power adapter are also supplied, so the unit can be updated and powered from the mains without hunting for compatible parts.
Desktop Installation With Hotkey or Button Switching
The unit sits on the desk at 10.25 by 3.00 by 1.63 inches and weighs 1.98 lbs, powered by a 5.3 V 2.4 A adapter. Switch between computers using front-panel buttons or keyboard hotkeys; LED indicators show the active port and USB status. No driver install is required, but DisplayPort sources must use the included adapters to reach the HDMI console.
Highlights
- Control four computers from one keyboard and mouse
- Switch sources with hotkeys or the front-panel button
- Connect HDMI or DisplayPort PCs using included adapters
- Share audio and USB peripherals across all systems
- Operates reliably from 0 to 50 °C
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1794DPKIT |
| Type | USB |
| PC Connectors | Monitor: 4 x HDMI; 2 x DisplayPort (with adapters) Keyboard: 4 x USB Type B Female Mouse: 4 x USB Type B Female Audio: 4 x Mini Stereo Jack Female (Green) Microphone: 4 x Mini Stereo Jack Female (Pink) |
| Console Connectors | Monitor: 1 x HDMI Female Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Audio: 2 x Mini Stereo Jack Female (Green; 1 x Front Panel, 1 x Rear Panel); through HDMI Type A Female if CPU's audio is sending through HDMI port along with Video Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x Front Panel, 1 x Rear Panel) Flash ROM Upgrade: 1 x 4-conductor 3.5mm Jack (Black) |
| Video Resolution | 1080p; 1920x1200 |
| PC Selection | Hotkeys or Front Panel Switch Button |
| LED Indicators | USB Peripherals: 4 x Green On Line: 4 x Orange |
| Temperature | Operation Temperature: 0 to 50 degree C Storage Temperature: -20 to 60 degree C |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | Voltage: 5.3V Amps: 2.4A |
| Features | Share a Keyboard, Mouse, Surround Sound System, USB device(s) and an HDTV or HD display between 4 HD or DisplayPort interface computers Video Resolutions: 480i, 480p, 720i, 720p, 1080i and 1080p Maximum video resolution: 1920 x 1200 Built in USB 2.0 hub to share your peripherals between four connected computers Dolby True HD and DTS HD Master Audio Support Multi-platform OS support - Windows, Mac, Sun Solaris , Linux HDCP compliant IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or bootin |
| Dimensions | 10.25" x 3.00" x 1.63" |
| Weight | 1.98 lbs. |
| Package Contents | 1 x GCS1794 2 x DisplayPort to HDMI Adapters 4 x HDMI KVM Cables 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card |
| Shipping weight | 2.34 kg |
| Package size | 330 × 216 × 102 mm |
Questions about this item
How often should the included power adapter be checked or replaced?
The unit runs on a 5.3 V, 2.4 A external adapter; keep the supply clean and verify the cable and connector annually, replacing it if the plug shows wear or the output drifts.
What resolution ceiling will limit sustained multi-computer use?
Video output tops out at 1920 × 1200 (1080p), so any source set higher will be down-scaled and that becomes the practical limit during continuous operation.
How much heat does the switch produce when left on all day?
Operating temperature is rated 0 to 50 °C; the device draws 5.3 V at 2.4 A, so expect modest warmth but no active cooling is required within that range.
