IOGEAR
IOGEAR GCS1742 2-Port Dual View KVM Switch
Controls two dual-monitor computers from one dual-monitor console with USB peripheral sharing and audio support
- TypeD-Sub, USB
- PC ConnectorsMonitor: USB/Video1: 2 x SPHD-15 Female, Audio/Video2: 2 x S
- Console ConnectorsKeyboard: 1 x USB Type A Female Monitor: 2 X HDB15 Female Mo
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution2048 x 1536
- Control two dual-display computers from one console
- Supports up to 2048 x 1536 video resolution per monitor
- Share USB peripherals and audio between both systems
- Switch via push buttons, hot keys or auto-scan 1-99 seconds
- Compact 7.9 x 2.9 x 1.7 inch metal enclosure
Dual-view KVM for two computers
The IOGEAR GCS1742 lets a single dual-monitor console control two dual-display computers. It combines USB keyboard and mouse switching with VGA video, stereo audio and microphone paths. Two SPHD-15 cable sets connect each system and a front-panel push button or hot-key sequence selects the active PC.
VGA resolution and peripheral limits
Video output tops out at 2048 x 1536 across both monitor ports. The switch passes analog VGA only, so digital-only sources require an active converter not supplied. USB peripheral sharing is limited to the two Type-A ports on the console side and the unit draws 1.25 W from its 5 V adapter.
Replaces two separate KVMs or manual cable swaps
Consolidating dual-head setups into one box saves desk space and eliminates the need to reach behind machines. The jump is worthwhile when you run two computers with dual VGA monitors and want shared USB devices and audio without software drivers. It does not suit single-monitor systems or digital video workflows.
Highlights
- Control two dual-display computers from one console
- Supports up to 2048 x 1536 video resolution per monitor
- Share USB peripherals and audio between both systems
- Switch via push buttons, hot keys or auto-scan 1-99 seconds
- Compact 7.9 x 2.9 x 1.7 inch metal enclosure
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1742 |
| Type | D-Sub, USB |
| PC Connectors | Monitor: USB/Video1: 2 x SPHD-15 Female, Audio/Video2: 2 x SPHD-15 Male Peripherals: 2 x USB Type A female |

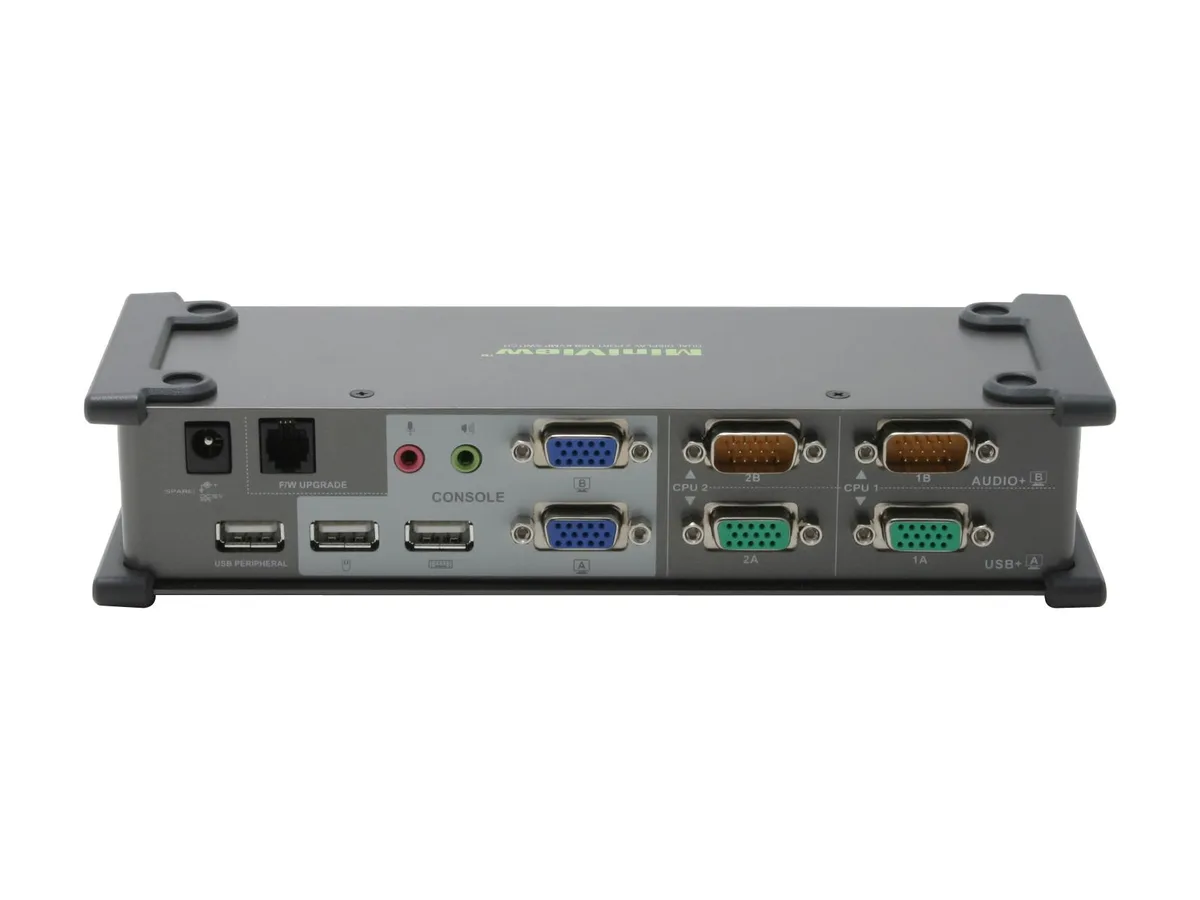

| Console Connectors | Keyboard: 1 x USB Type A Female Monitor: 2 X HDB15 Female Mouse: 1 x USB Type A Female Audio: 1 x Earphone Jack Female, 1 x Microphone Jack Female Flash ROM Upgrade: 1 x RJ11 Socket |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 1-99 seconds |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | DC5V, 1.25W |
| Features | One dual monitor console controls two dual monitor computers Additional VGA display channel provided for dual display of each computer Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc. Audio jacks provided for speaker and microphone sharing Independent switching of KVM, USB, and audio Easy to install - no software required - connecting cables is all it takes Easy to operate - computer selection via push button switches or hotkeys Auto Scan function to monitor computer operation Hotkey selection |
| Dimensions | 7.9" x 2.9" x 1.7" |
| Weight | 4.7 lbs. (include package) |

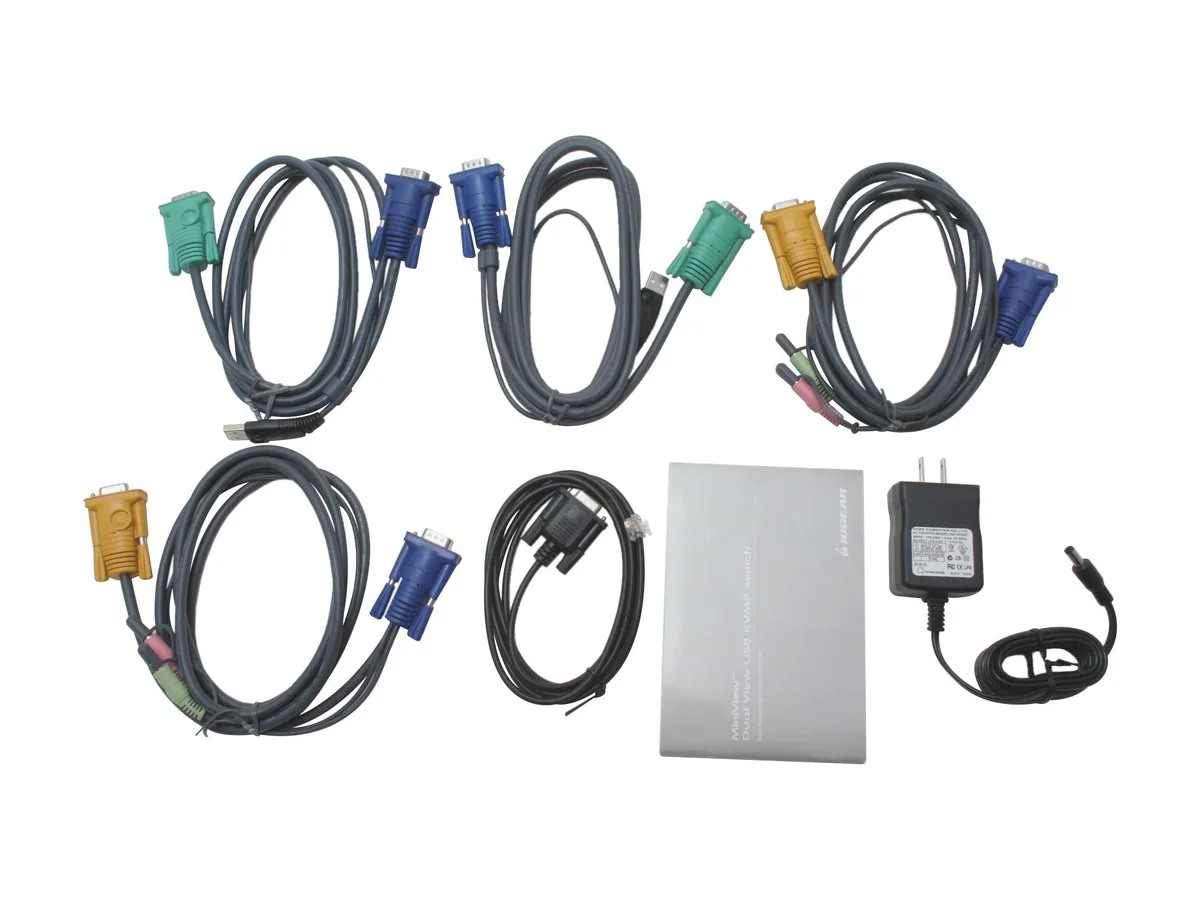

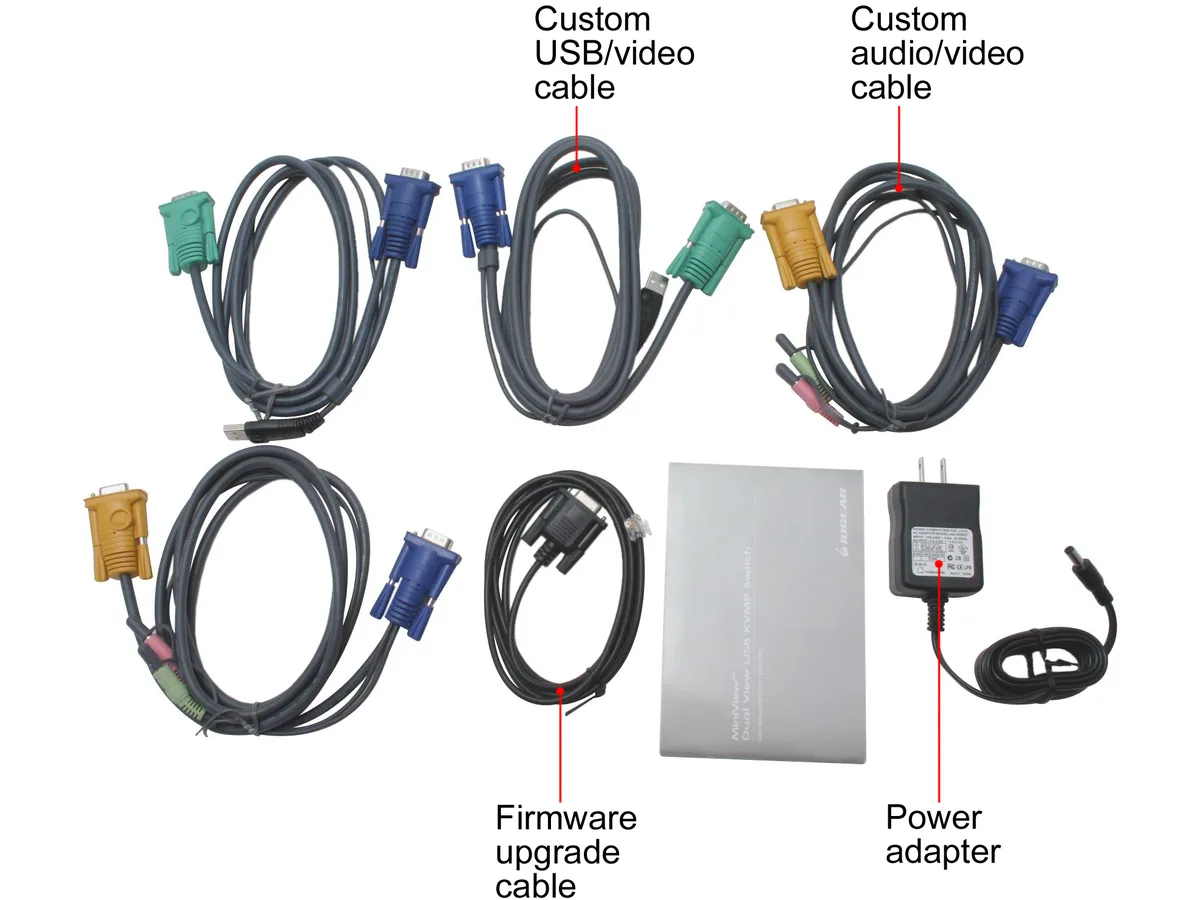

| Package Contents | 1 x GCS1742 USB KVM Switch 1 x Power adapter 2 x Custom audio/video cables (6 ft long) 2 x Custom USB/video cables (6 ft long) 1 x Firmware upgrade cable 1 x User Manual |
| Shipping weight | 2.02 kg |
| Package size | 269 × 224 × 99 mm |
Questions about this item
Should I pick the 2-port model or a larger KVM for my two dual-monitor PCs?
The GCS1742 provides exactly two computer ports and two monitor ports, matching a pair of dual-display systems.
What does the 2048 x 1536 resolution mean when I am working at my desk?
It supports up to 2048 x 1536 on each VGA output, so both monitors can run at that resolution simultaneously.
Which video interface does the switch use and what does it limit?
It uses HDB-15 VGA connectors, capping the signal to analog VGA at the stated 2048 x 1536 maximum.
