Rectangular metal box with front push buttons and rear DisplayPort USB audio ports

IOGEAR

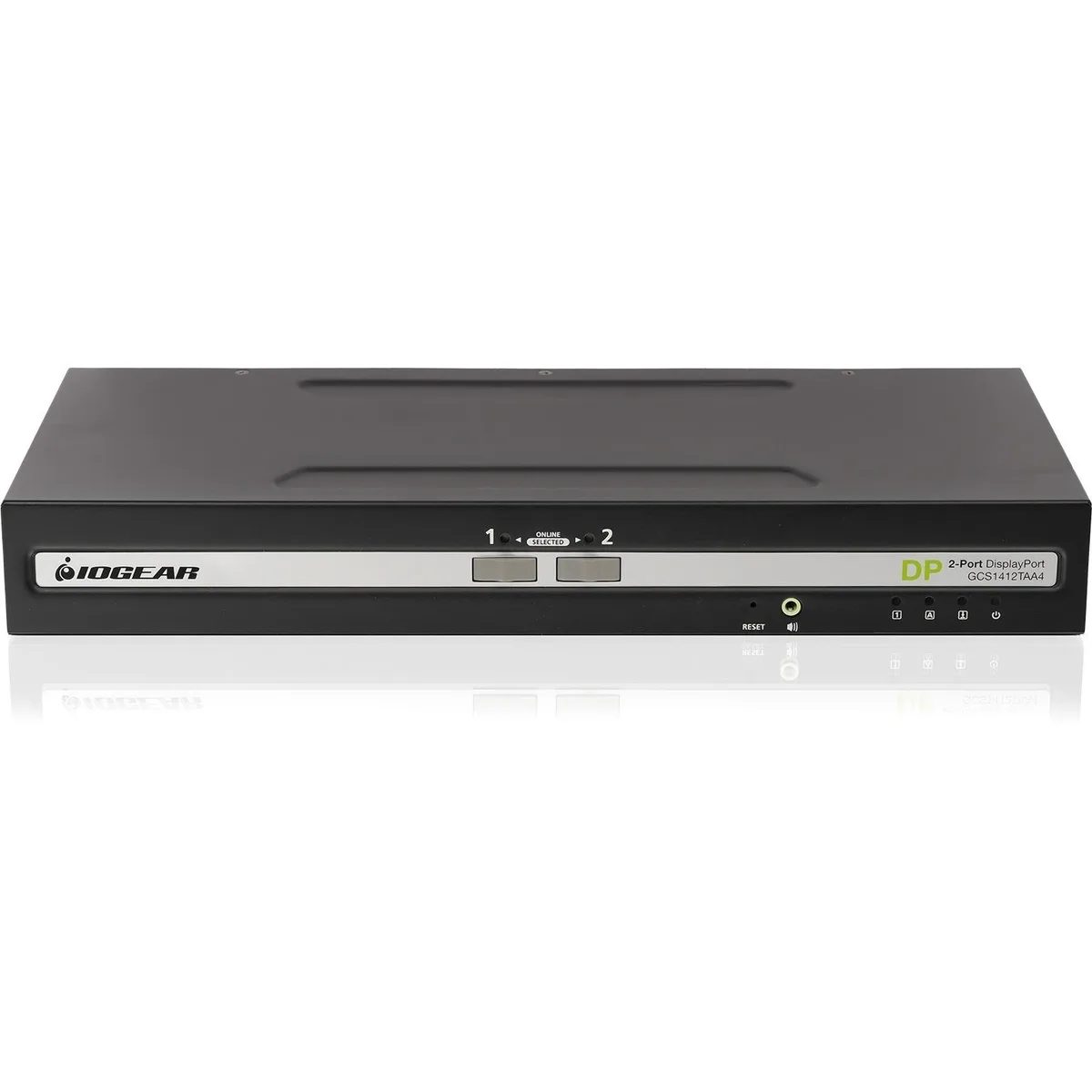

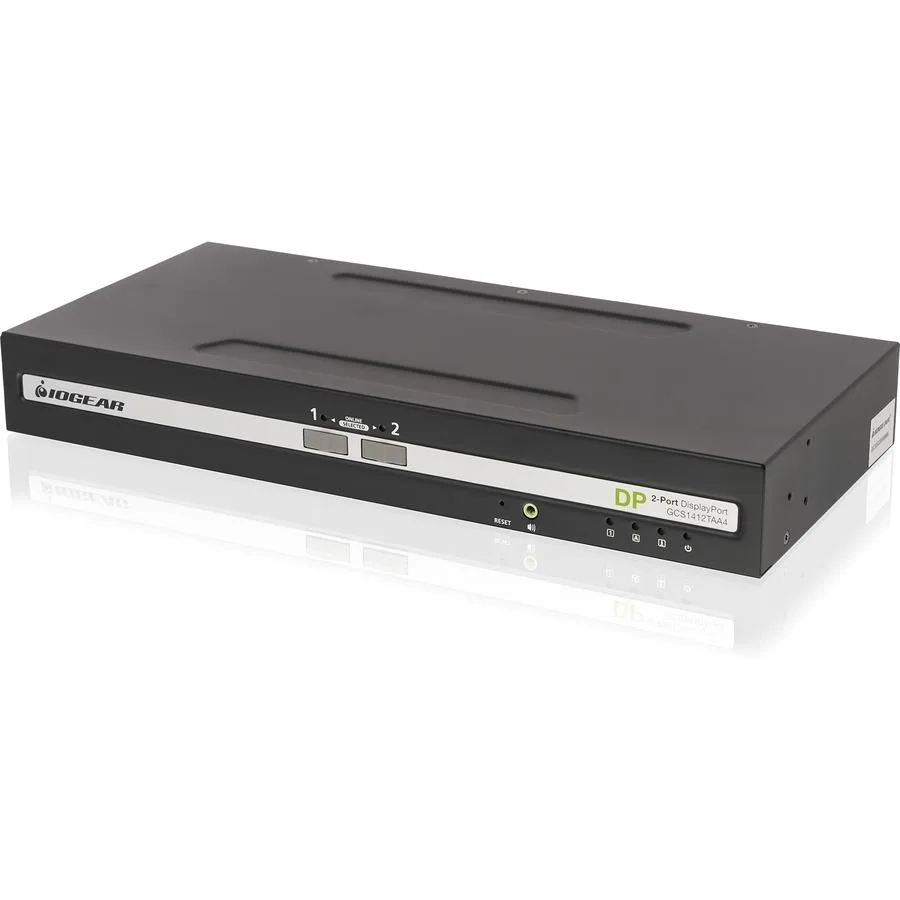

IOGEAR GCS1412TAA4 2-Port DisplayPort KVM Switch

SKU CH-BPTM-8GE2S MPN GCS1412TAA4

TAA-compliant secure KVM controls two DisplayPort computers from one 4K 30Hz console with audio

  • TypeKVM Switch
  • PC ConnectorsCPU Connectors Monitor 2 x DisplayPort Female Keyboard & Mou
  • Console ConnectorsConsole Connectors Monitor 1 x DisplayPort Female Keyboard U
  • Computer Connections2 Ports
  • TAA-compliant for regulated environments
  • NIAP Protection Profile v 4.0 certified security
  • Controls two systems with one DisplayPort console
  • Supports 4K resolution at 30Hz video
  • Includes 3.5mm audio switching for each port

Secure dual-system control

The IOGEAR GCS1412TAA4 is a two-port DisplayPort KVM switch built for environments that require strict data separation. It lets a single operator manage two connected computers from one console while maintaining hardware-enforced isolation between the systems. The switch is designed for defence, government, healthcare and other sectors where information assurance is mandatory.

DisplayPort video and audio limits

Video output is capped at 4K resolution at 30 Hz through the single DisplayPort console connector, so higher refresh rates or multi-stream configurations are not supported. Audio passes through a single 3.5 mm stereo jack on the console side, with matching 3.5 mm ports for each computer connection. The keyboard and mouse console ports are USB Type-A, while the computer links use USB Type-B.

TAA-compliant chassis and port layout

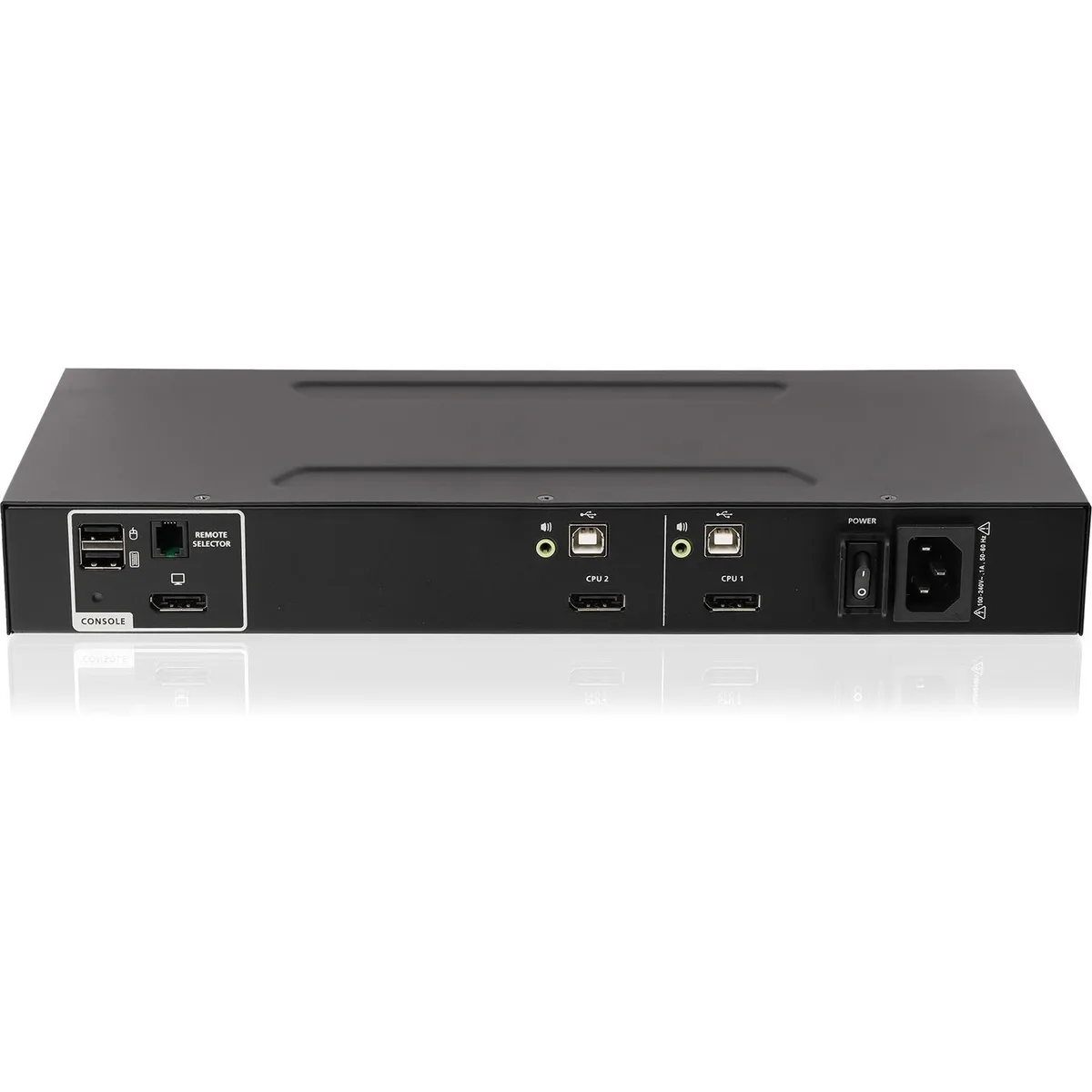

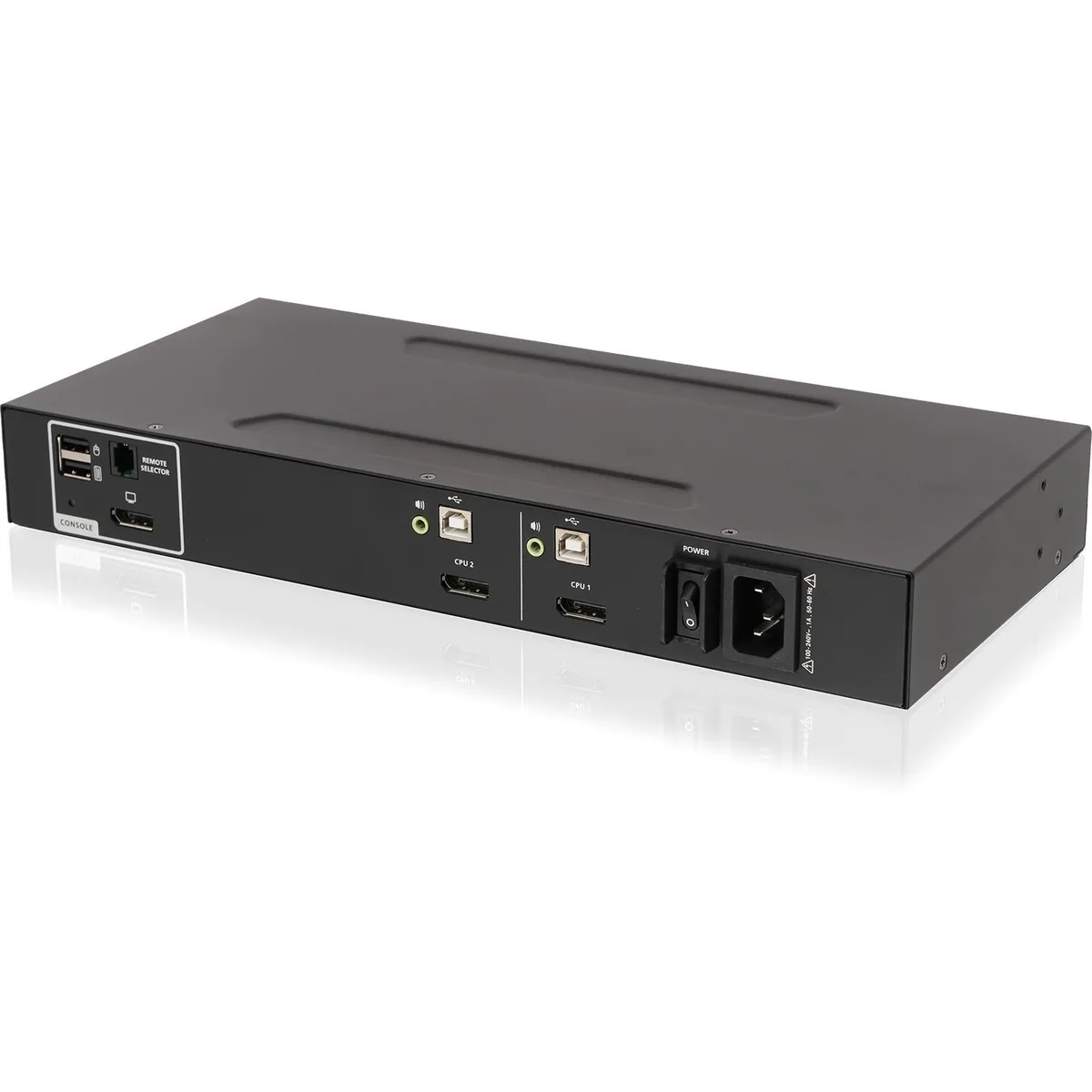

The metal enclosure measures 13.25 inches wide, 6.25 inches deep and 1.75 inches high, fitting standard rack or desktop mounting. All connectors are recessed on the rear panel to protect cables from accidental disconnection during daily operation. The unit meets NIAP Protection Profile 4.0 requirements and carries a three-year manufacturer service commitment.

Highlights

  • TAA-compliant for regulated environments
  • NIAP Protection Profile v 4.0 certified security
  • Controls two systems with one DisplayPort console
  • Supports 4K resolution at 30Hz video
  • Includes 3.5mm audio switching for each port

Specifications

BrandIOGEAR
ModelGCS1412TAA4
Part NumberGCS1412TAA4
TypeKVM Switch
PC ConnectorsCPU Connectors Monitor 2 x DisplayPort Female Keyboard & Mouse 2 x USB Type-B Female Audio 2 x 3.5 Mini
Console ConnectorsConsole Connectors Monitor 1 x DisplayPort Female Keyboard USB Type-A Mouse USB Type-A Audio 1 x 3.5mm Mini Stereo Jack Female.
Computer Connections2 Ports
Shipping weight2.31 kg
Package size337 × 159 × 44 mm

Questions about this item

Should I choose the 2-port or 4-port version for my dual-computer setup?

The GCS1412TAA4 provides exactly two computer connections, so select this model when you need to control two systems from one DisplayPort monitor, keyboard, mouse and audio devices.

What does the 4K @30Hz headline figure mean once the switch is installed?

The console DisplayPort output delivers up to 4K resolution at 30 Hz, so a compatible monitor will show that resolution at the stated refresh rate.

Which DisplayPort standard does the switch use and what does it cap in practice?

Both console and CPU ports are DisplayPort female connectors; the switch passes video up to 4K @30Hz and USB keyboard and mouse signals through the USB Type-B and Type-A links.
