IOGEAR
IOGEAR GCS1104 4-Port USB DVI KVM Switch with Audio
Controls four USB DVI computers from one console with audio, microphone and USB 2.0 peripheral sharing at 1920 x 1200 resolution
- TypeDVI, USB
- PC ConnectorsMonitor: 4 x DVI-I ports (female) Microphone: 4 x Microphone
- Console ConnectorsMouse: 1 x USB Type A socket Keyboard: 1 x USB Type A socket
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video ResolutionUp to 1920 x 1200; DDC2B
- Control 4 DVI computers from one console
- Single-link DVI up to 1920 x 1200 @ 60Hz
- Share audio, mic and USB 2.0 peripherals
- Switch via front buttons or hotkey
- Auto-scan interval adjustable 1 to 99 secs
4-Port USB DVI KVM Switch
The IOGEAR GCS1104 is a 4-port USB DVI KVM switch with audio support. It allows a single keyboard, monitor and mouse to control four computers. The unit includes integrated USB 2.0 hub functionality for sharing peripherals. Cables and a power adapter are supplied in the box.
Suits four-computer DVI setups
This switch suits administrators managing four DVI computers from one console with audio and USB peripheral sharing. It is not for buyers who need DisplayPort or HDMI video inputs. It is not for setups requiring more than four computer connections. It is not for users needing resolutions above 1920 x 1200.
Single-link DVI up to 1920 x 1200
The video interface supports single-link DVI resolution up to 1920 x 1200 at 60 Hz with DDC2B. This specification determines whether your monitors and graphics outputs are compatible. Verify that each source and the display operate within this limit before purchase.
Highlights
- Control 4 DVI computers from one console
- Single-link DVI up to 1920 x 1200 @ 60Hz
- Share audio, mic and USB 2.0 peripherals
- Switch via front buttons or hotkey
- Auto-scan interval adjustable 1 to 99 secs
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCS1104 |
| Type | DVI, USB |

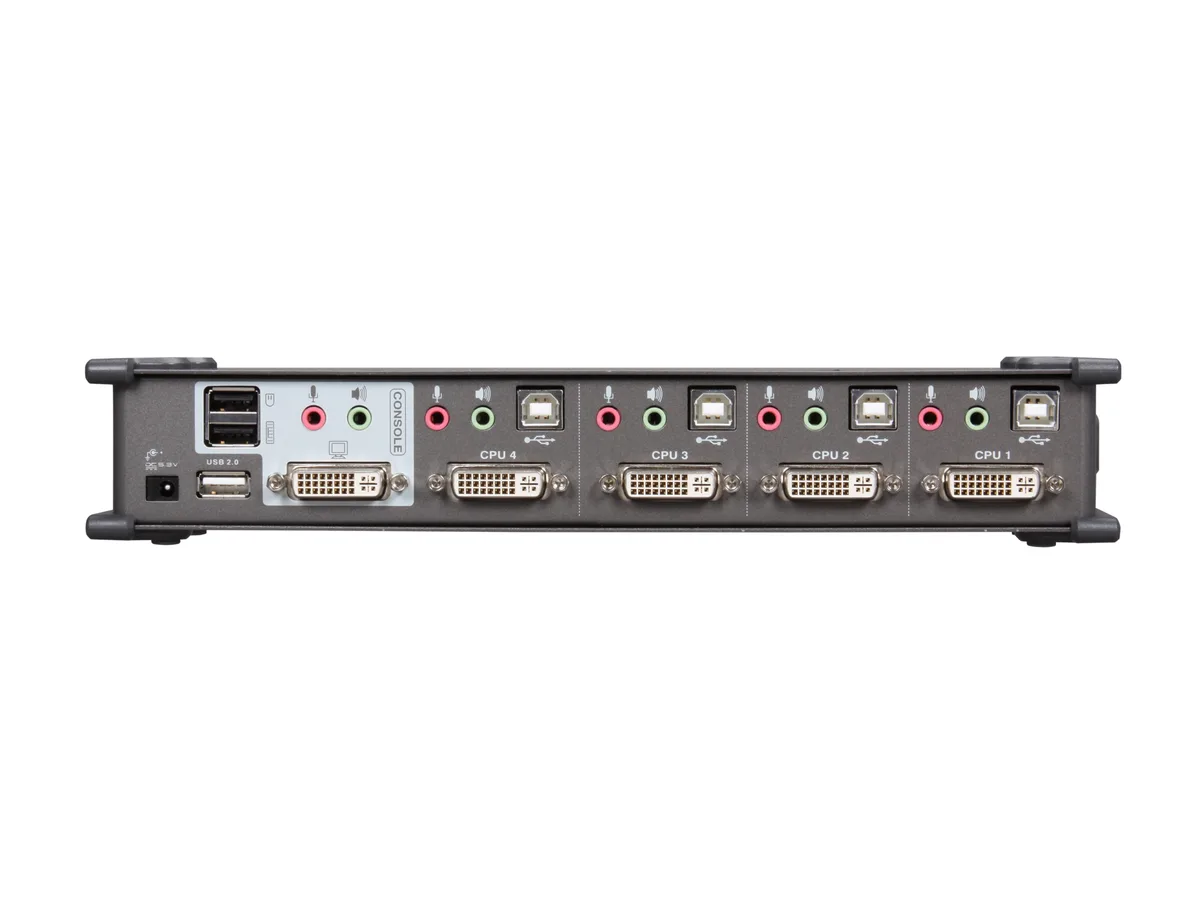

| PC Connectors | Monitor: 4 x DVI-I ports (female) Microphone: 4 x Microphone jack Audio: 4 x Stereo earphone jack Keyboard & Mouse: 4 x USB Type B sockets |
| Console Connectors | Mouse: 1 x USB Type A socket Keyboard: 1 x USB Type A socket Monitor: 1 x DVI-I (female) port Microphone: 1 x Microphone jack Audio: 1 x Stereo earphone jack |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | Up to 1920 x 1200; DDC2B |
| PC Selection | Front Panel Switches; Hotkey |
| AutoScan Interval | 1-99 secs (default: 5 secs) |
| LED Indicators | Selected: 4 x Orange On Line: 4 x Orange USB Peripherals: 4 x Green |
| Temperature | Operating: 0 - 50 °C Storage: -20 - 60 °C |
| Humidity | 0-80% RH |
| Features | One console controls 4 USB, DVI computers Single link DVI resolution up to 1920 x 1200 @ 60Hz; DDC2B 2-port USB 2.0 hub for peripherals sharing IOGEAR's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers Independent (Asynchronous) Hotkey switching between KVM focus, USB peripheral, and audio ports 2.1 Stereo audio and microphone support Computer selection via front panel switches or hotkeys LED display for easy status monitoring Auto Scan Mode - For monitoring |
| Dimensions | 10.63" x 1.88" x 3.13" |
| Weight | 2.1 lbs. |

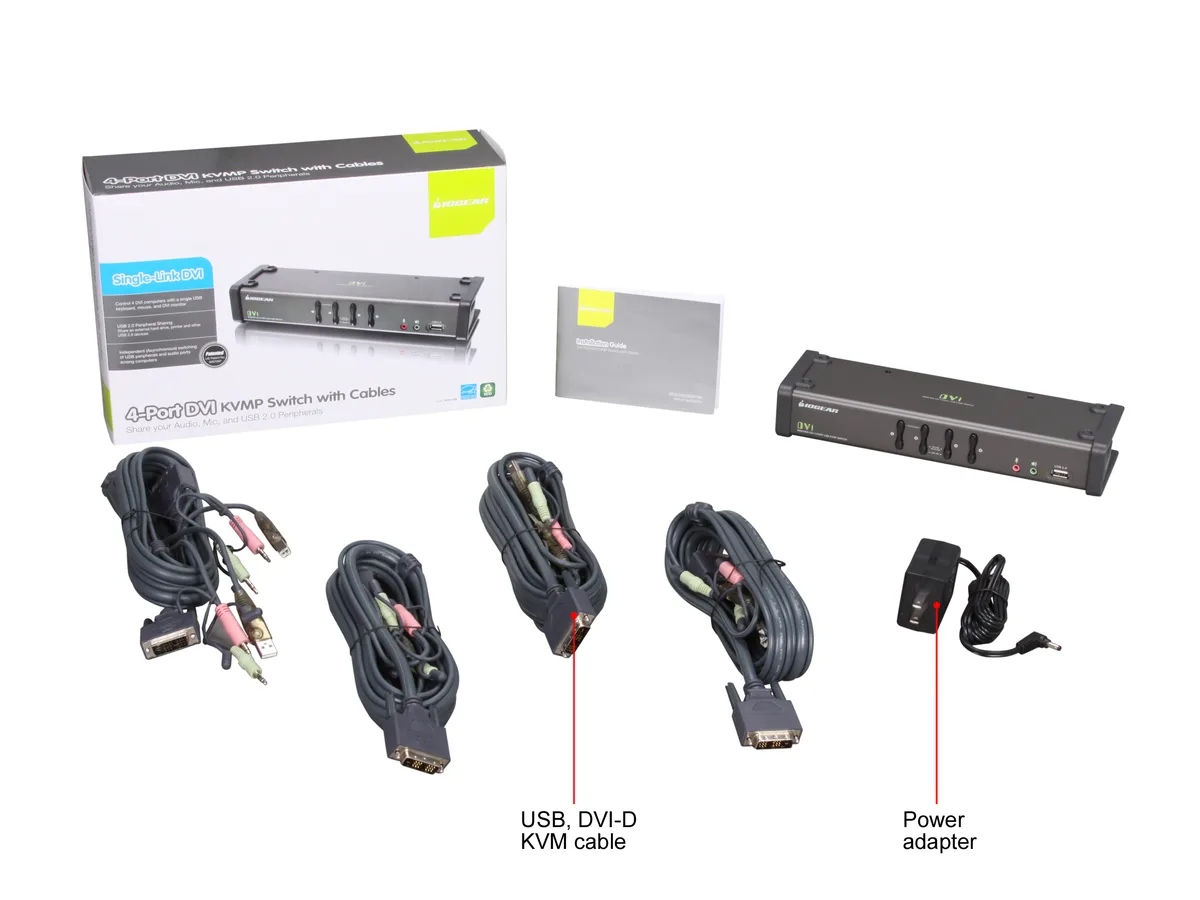

| Package Contents | 1 x 4-Port DVI KVMP Switch 4 x USB, DVI-D KVM Cables 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card |
| Shipping weight | 2.49 kg |
| Package size | 330 × 211 × 104 mm |
Questions about this item
Will the USB 2.0 hub or the DVI ports need replacement after extended use?
The switch has no moving parts in the USB 2.0 hub or DVI ports; normal desktop use does not create a scheduled replacement cycle for those interfaces.
What limit appears first when the switch runs continuously at 1920 x 1200 resolution?
The single-link DVI link caps video at 1920 x 1200 @ 60 Hz, so bandwidth is the hard ceiling before thermal or switching limits are reached.
How much fan noise and heat should I expect during all-day operation?
The unit has no fan; it operates silently and stays within the 0 – 50 °C operating range as long as ambient temperature remains in that window.
