IOGEAR
IOGEAR GCL1908W 18.5" 8-Port LCD KVM Switch
An 18.5" widescreen LCD console integrates an 8-port VGA KVM switch in a short-depth 1U rackmount housing, controlling up to 128 computers via cascading
- TypeD-Sub, USB
- PC ConnectorsDirect: 8 Daisy Chain or Cascading: 128
- Console ConnectorsComputer/KVM: 8 x SPHD-18 Male USB-A: 1 x USB Type A Female
- Computer Connections8 Ports
- Video Resolution1366 x 768@60Hz
- PC SelectionPush Buttons/Hot Keys/OSD
- 5" widescreen LCD gives clear 1366 x 768@60Hz viewing
- Eight direct ports let you manage multiple servers from one console
- Single-rail 1U design fits short-depth racks with 1.70" height
- Cascade up to 128 or 256 computers using two levels
- Front USB Type-A port adds quick peripheral access
18.5" 8-Port LCD KVM Console

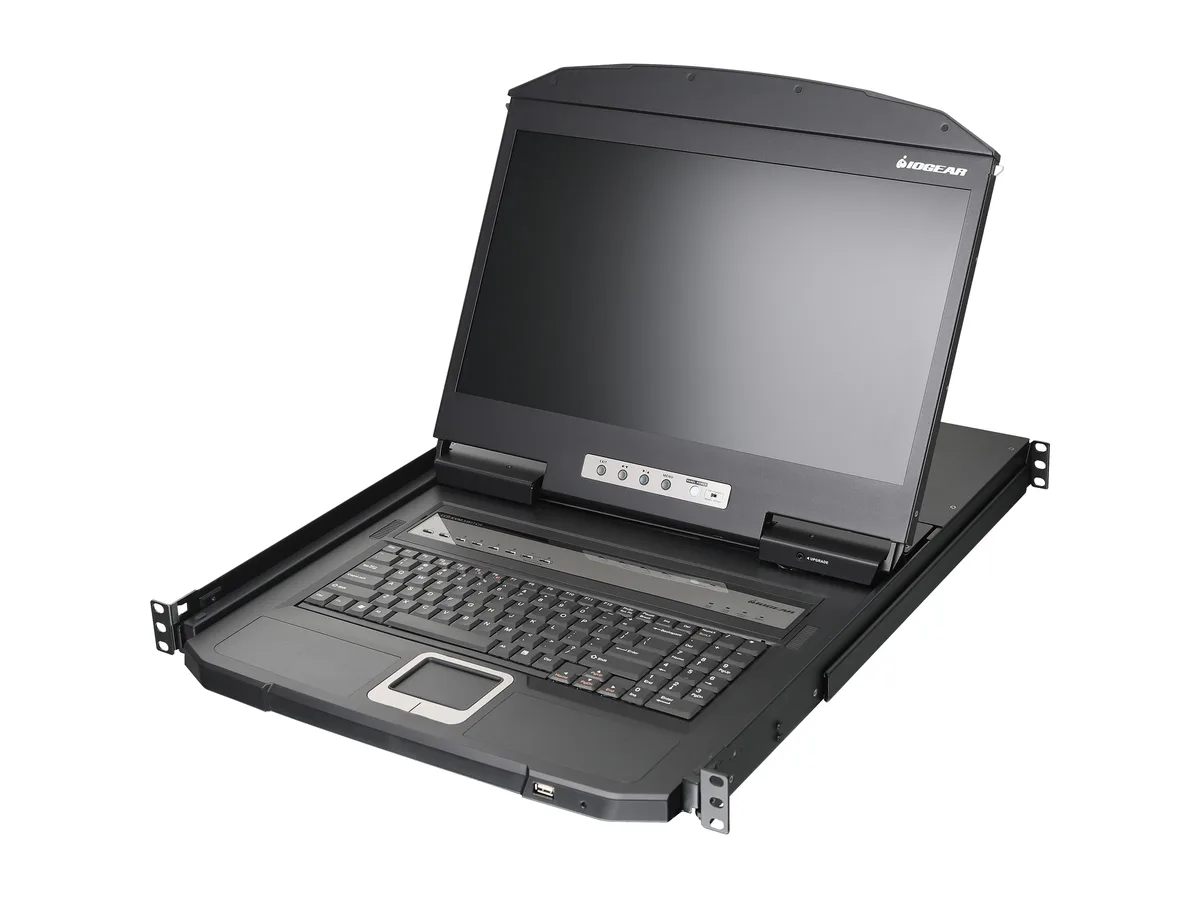

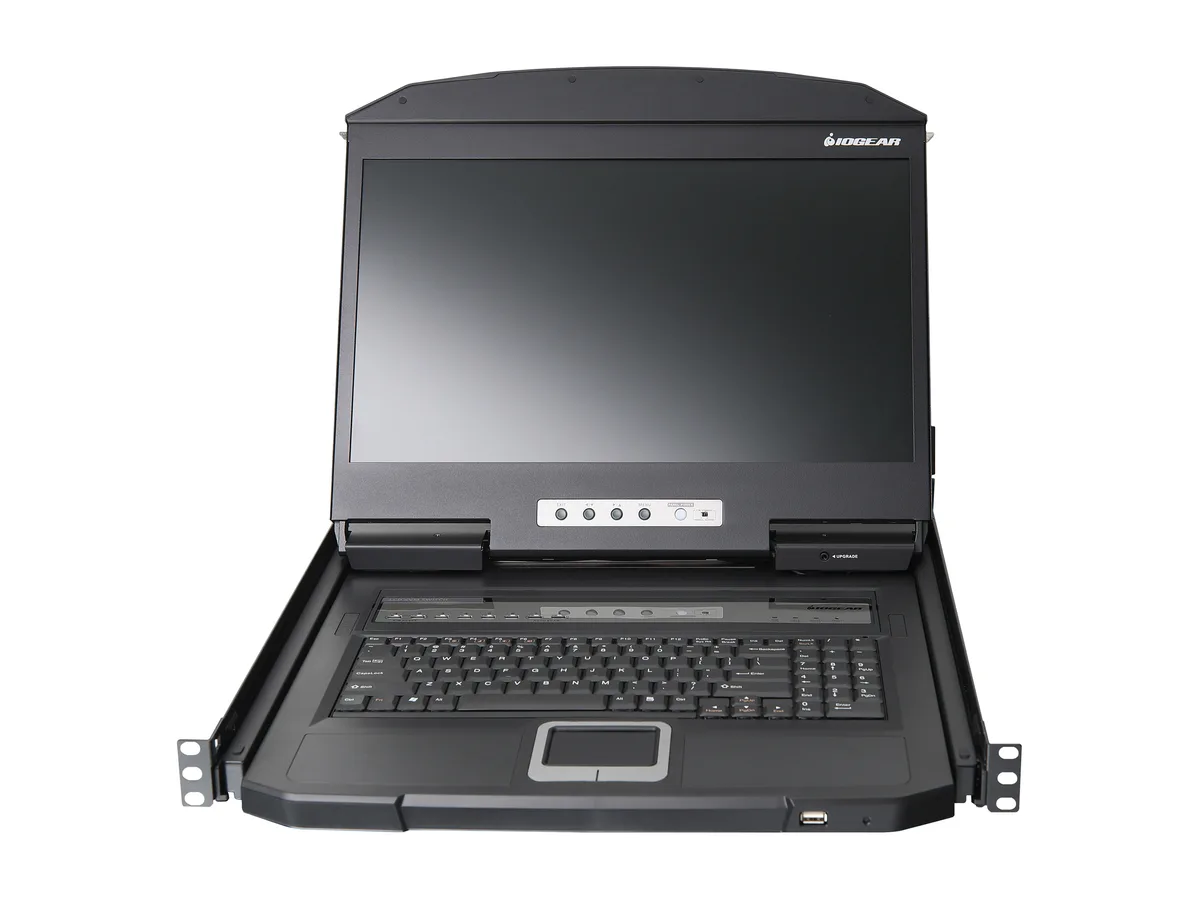

The IOGEAR GCL1908W integrates an 18.5" widescreen LCD monitor, keyboard and touchpad with an 8-port VGA KVM switch in a single 1U rack-mountable unit. It is built for administrators who manage multiple servers from one console in space-constrained racks. The short-depth chassis fits narrow cabinets while the integrated display supports 1366 x 768 resolution at 60Hz.
Bundled Cables and Mounting Kit
The package includes one USB KVM cable, one PS/2 KVM cable, a firmware upgrade cable, a grounding wire, a standard rackmount kit, a power cord and a quick start guide. These accessories let you connect up to eight computers directly using either USB or PS/2 interfaces without purchasing separate cables. The firmware cable enables future updates, and the grounding wire supports safe rack installation.
Installation Notes and Common Issues
The single-rail housing slides into a 1U rack space and requires top and bottom clearance for smooth operation. Direct connection supports eight computers; cascading with compatible IOGEAR switches can expand control to 128 or 256 systems across two levels. Buyers who need digital video inputs such as DVI or HDMI, or who require higher display resolutions, should verify compatibility before purchase.
Highlights
- 5" widescreen LCD gives clear 1366 x 768@60Hz viewing
- Eight direct ports let you manage multiple servers from one console
- Single-rail 1U design fits short-depth racks with 1.70" height
- Cascade up to 128 or 256 computers using two levels
- Front USB Type-A port adds quick peripheral access
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCL1908W |
| Type | D-Sub, USB |
| PC Connectors | Direct: 8 Daisy Chain or Cascading: 128 |
| Console Connectors | Computer/KVM: 8 x SPHD-18 Male USB-A: 1 x USB Type A Female Power: 1 x 3-Prong AC Socket |
| Computer Connections | 8 Ports |
| Video Resolution | 1366 x 768@60Hz |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1 - 255 seconds |
| LED Indicators | On Line: 8 (Orange) Power On: Dark Green |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | 100~240VAC. 50/60Hz, 1A |
| Features | Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716 LCD monitor supports resolution of 1366 x 768 @60Hz Short depth design allows for rack-mounting in narrow spaces Supports VGA video input; supports an external console with USB/VGA connectors Built-in USB Type-A port on front panel for peripheral sharing HID devices Dual Interface - Supports computers with PS/2 or USB Keyboards and Mic |
| Dimensions | 18.90" x 24.90" x 1.70" |
| Weight | 23.1 lbs. |
| Package Contents | 1 x 8-Port 18.5" Widescreen Short Depth LCD KVM Switch 1 x USB KVM Cable 1 x PS/2 KVM Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Standard Rackmount Kit 1 x Power Cord 1 x Quick Start Guide |
| Shipping weight | 14.06 kg |
| Package size | 719 × 673 × 140 mm |
Questions about this item
Does the 18.5" LCD panel or the rail mechanism need periodic replacement?
The integrated 18.5" LCD and single-rail housing are built for continuous rack use; no user-serviceable parts or scheduled replacements are identified in the specifications.
What limit appears first when the switch runs continuously at full 1366 x 768@60Hz output?
The operating temperature ceiling of 40ºC is the primary environmental limit; sustained loads must stay within the 0ºC–40ºC range to avoid thermal throttling.
How much heat and noise does the unit produce when powered all day at 100~240VAC, 1A?
The power supply draws up to 1A at 100–240VAC with no fan listed; heat output is low and acoustic noise is negligible in a 1U rack slot.
