IOGEAR
IOGEAR GCL1900W 18.5" LCD KVM Switch 1 Port 1366x768
An 18.5" widescreen LCD KVM console with single-rail short-depth design fits 1U racks and supports 1366 x 768 VGA input
- TypeD-Sub, USB
- PC ConnectorsDirect: 1
- Console ConnectorsPower: 1 x 3-Prong AC Socket Computer/KVM: 1 x SPHD Female (
- Computer Connections1 Port
- Video Resolution1366 x 768 @60 Hz
- Monitors SupportedContrast Ratio: 700:1 LCD Module: 18.5" TFT-LCD Luminance: 2
- 5" widescreen LCD gives clear 1366 x 768 @60 Hz viewing
- Single rail 1U housing slides smoothly in standard server racks
- Short depth design fits shallow or narrow rack cabinets
- Front USB Type-A port shares peripherals without rear access
- Built-in 2.1 audio and VGA support external console connections
Integrated 1U LCD KVM Console

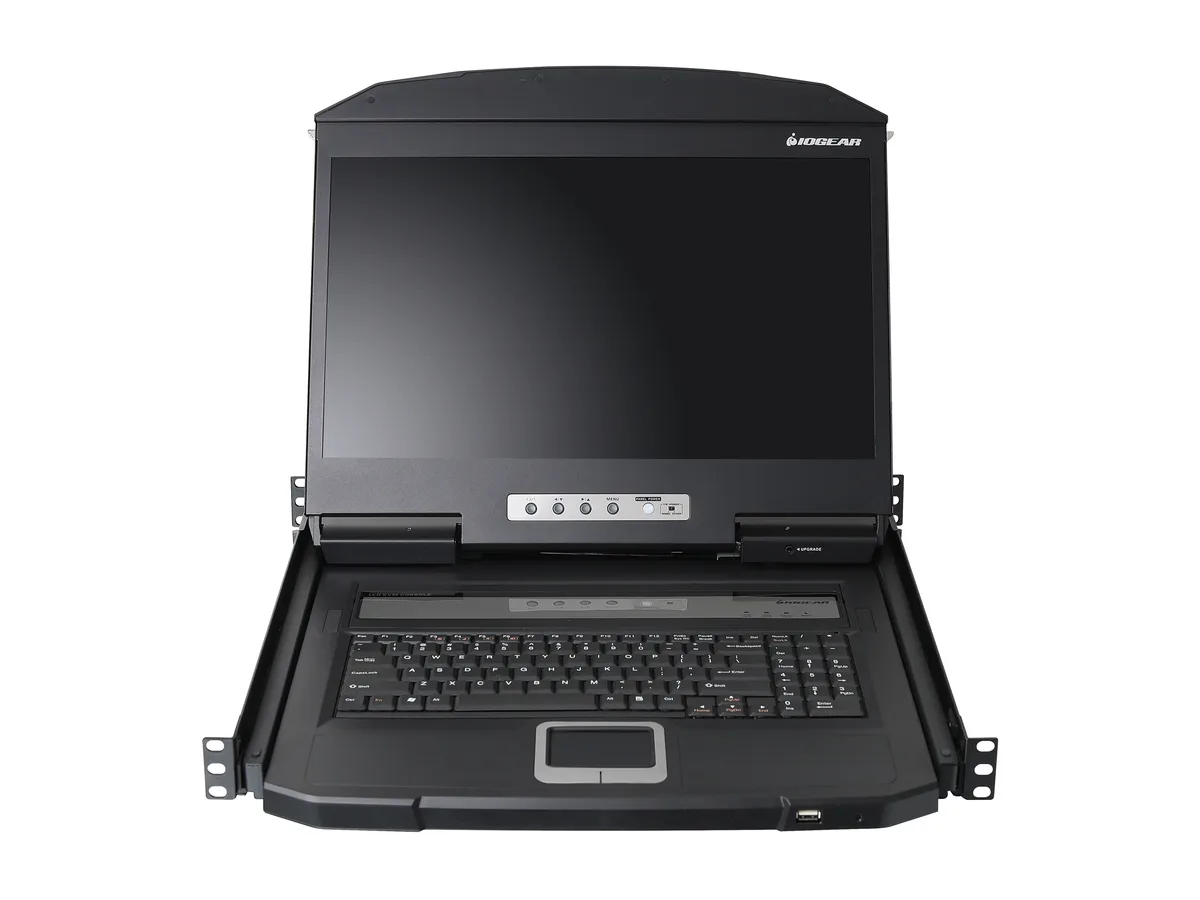

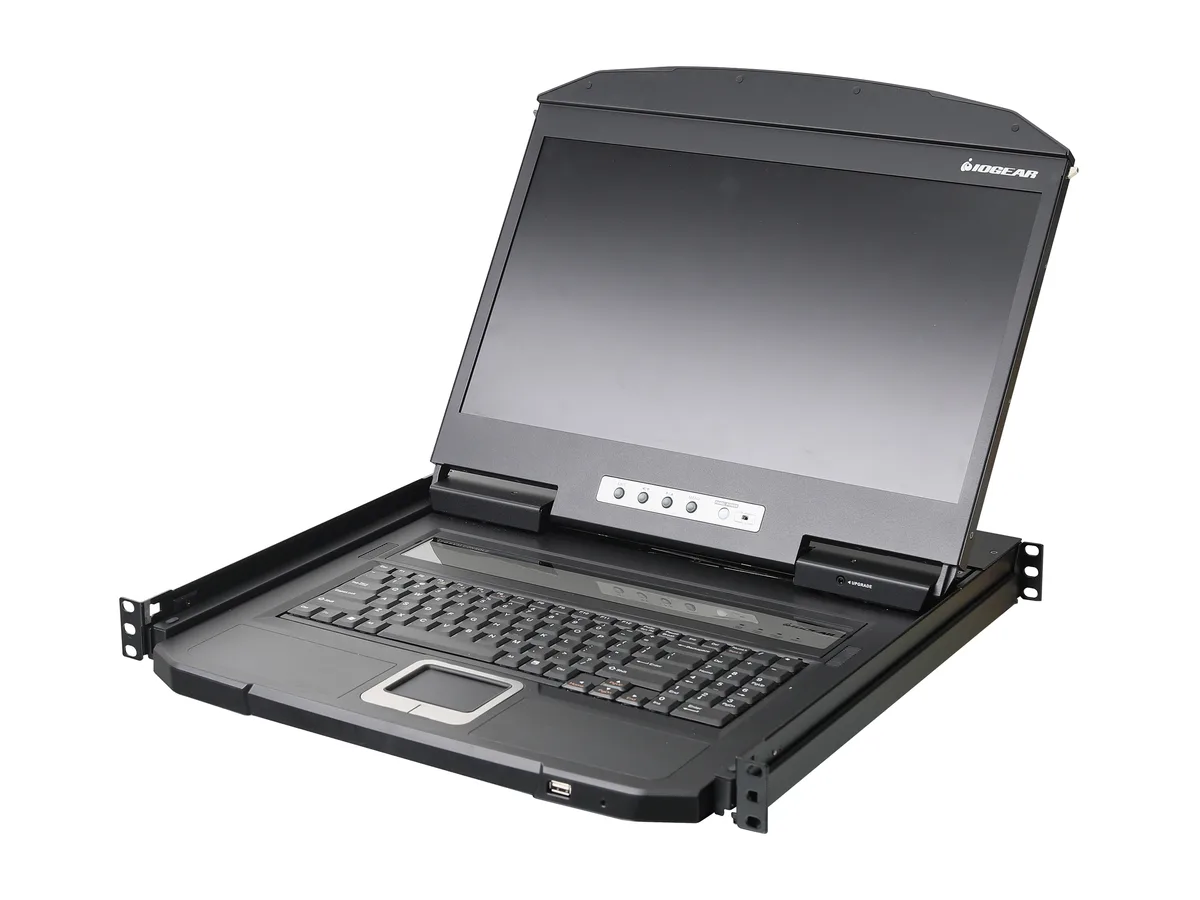

The IOGEAR GCL1900W combines an 18.5" widescreen TFT-LCD monitor, keyboard and touchpad in a single 1U rackmount drawer. It provides direct local control for one server or workstation through a single SPHD connection and includes a front USB Type-A port for peripheral sharing.
Video Limited to 1366 x 768 at 60 Hz
The built-in panel supports a maximum resolution of 1366 x 768 at 60 Hz with a 700:1 contrast ratio, 200 cd/m² luminance and 5 ms response time. VGA input is the only video interface offered, so digital sources or higher resolutions cannot be displayed without an active converter.
Depth Rail Mount with External Console Option

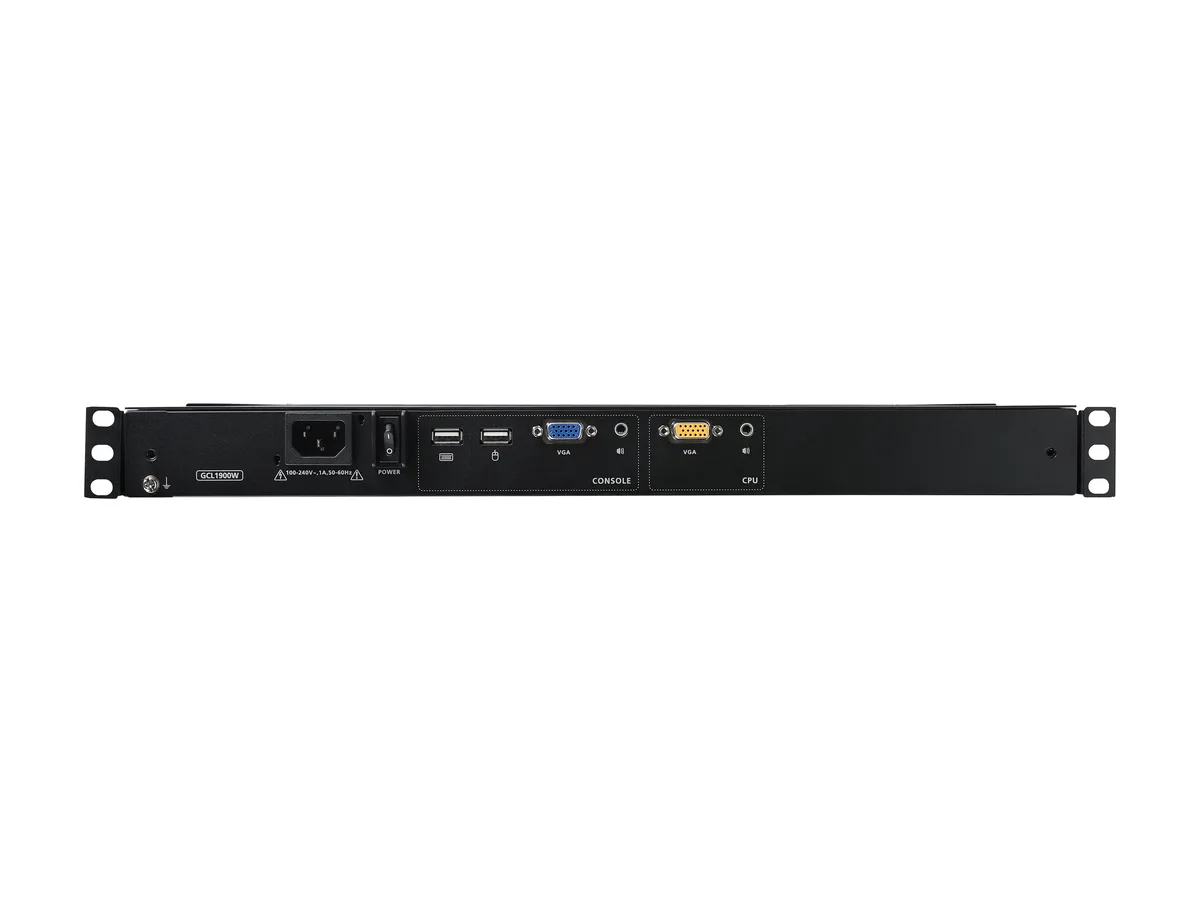

The short-depth single-rail design fits narrow racks and slides smoothly with top and bottom clearance. An external console port duplicates VGA, USB and 3.5 mm audio for a second user station, but the unit only manages one connected computer at a time.
Highlights
- 5" widescreen LCD gives clear 1366 x 768 @60 Hz viewing
- Single rail 1U housing slides smoothly in standard server racks
- Short depth design fits shallow or narrow rack cabinets
- Front USB Type-A port shares peripherals without rear access
- Built-in 2.1 audio and VGA support external console connections
Specifications
| Brand | IOGEAR |
|---|---|
| Model | GCL1900W |
| Type | D-Sub, USB |
| PC Connectors | Direct: 1 |
| Console Connectors | Power: 1 x 3-Prong AC Socket Computer/KVM: 1 x SPHD Female (Yellow) 1 x 3.5 mm Audio Jack Female (Green) USB-A: 1 External Console Ports: 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5 mm Audio Jack Female (Green) |
| Computer Connections | 1 Port |
| Video Resolution | 1366 x 768 @60 Hz |
| Monitors Supported | Contrast Ratio: 700:1 LCD Module: 18.5" TFT-LCD Luminance: 200cd/m2 Resolution: 1366 x 768 @60 Hz Response Time: 5 ms Support Color: 16.7M colors Viewing Angle: 170° (H), 160° (V) |
| Power Features | 100-240 V AC, 50-60Hz, 1A |
| Features | Integrated LCD KVM console with 18.5" widescreen LCD monitor Single rail housing with top & bottom clearance for smooth operation in a 1U high system rack LCD monitor supports resolution of 1366 x 768 @60Hz Short depth design allows for rack-mounting in narrow spaces Supports VGA video input; supports an external console with USB/VGA connectors Built-in USB Type-A port on front panel for peripheral sharing Supports 2.1 audio Console lock design enables the console drawer to remain securely locked away in position when not in use Console selection via hotkey Multilingual keyboard mapp |
| Dimensions | 18.90" x 18.80" x 1.70" |
| Weight | 20 lbs. |
| Package Contents | 1 x 18.5" Widescreen Short Depth LCD KVM Console 1 x USB KVM Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Standard Rackmount Kit 1 x Power Cord 1 x Quick Start Guide |
| Shipping weight | 12.25 kg |
| Package size | 660 × 617 × 140 mm |
Questions about this item
How do I decide between the single-port GCL1900W and a multi-port KVM for my rack?
The GCL1900W provides one computer connection via an SPHD cable; choose it when you manage a single server and need the integrated 18.5" LCD in 1U.
What does the 1366 x 768 @60 Hz panel resolution mean for daily server administration?
The 18.5" TFT-LCD shows 1366 x 768 at 60 Hz with 5 ms response, 16.7M colors, 200 cd/m² brightness and 700:1 contrast — adequate for text-heavy BIOS and OS work.
Which video and USB standards does the console port use, and what do they limit?
The external console uses an HDB-15 VGA jack and two USB-A ports, so video is capped at the panel's native 1366 x 768 @60 Hz and USB peripherals run at the host's supported speed.
