Seventeen inch rackmount LCD console with keyboard and touchpad

IOGEAR

IOGEAR GCL1800 17" LCD KVM Switch 1 Port 1280 x 1024

SKU CH-QZZ9-2FV3S MPN GCL1800

A 17-inch rack-mount LCD console with integrated keyboard and touchpad controls one computer at 1280 x 1024 resolution

  • TypeD-Sub, USB, PS/2
  • PC Connectors1 x SPHD-15 Female
  • Console ConnectorsSecond Console Video: 1 x HDB-15 Female Second Console Keybo
  • Computer Connections1 Port
  • Video Resolution1280 x 1024
  • LED IndicatorsPower On: Dark Green
  • Integrated 17" LCD console saves rack space
  • 1280 x 1024 resolution delivers sharp video display
  • Single SPHD-15 port connects one computer directly
  • Adjustable mounting depth fits varied 19" rack sizes
  • OSD and hotkeys simplify server switching operations

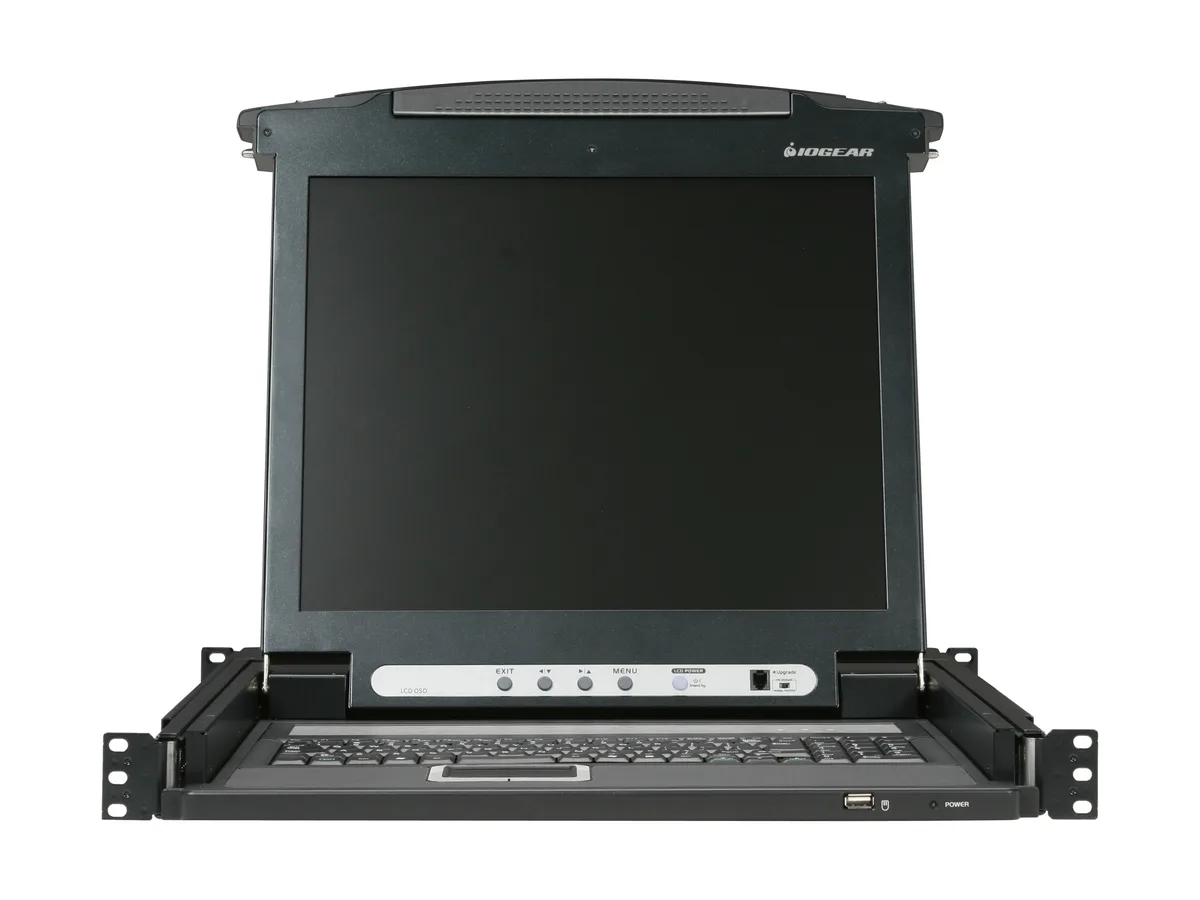

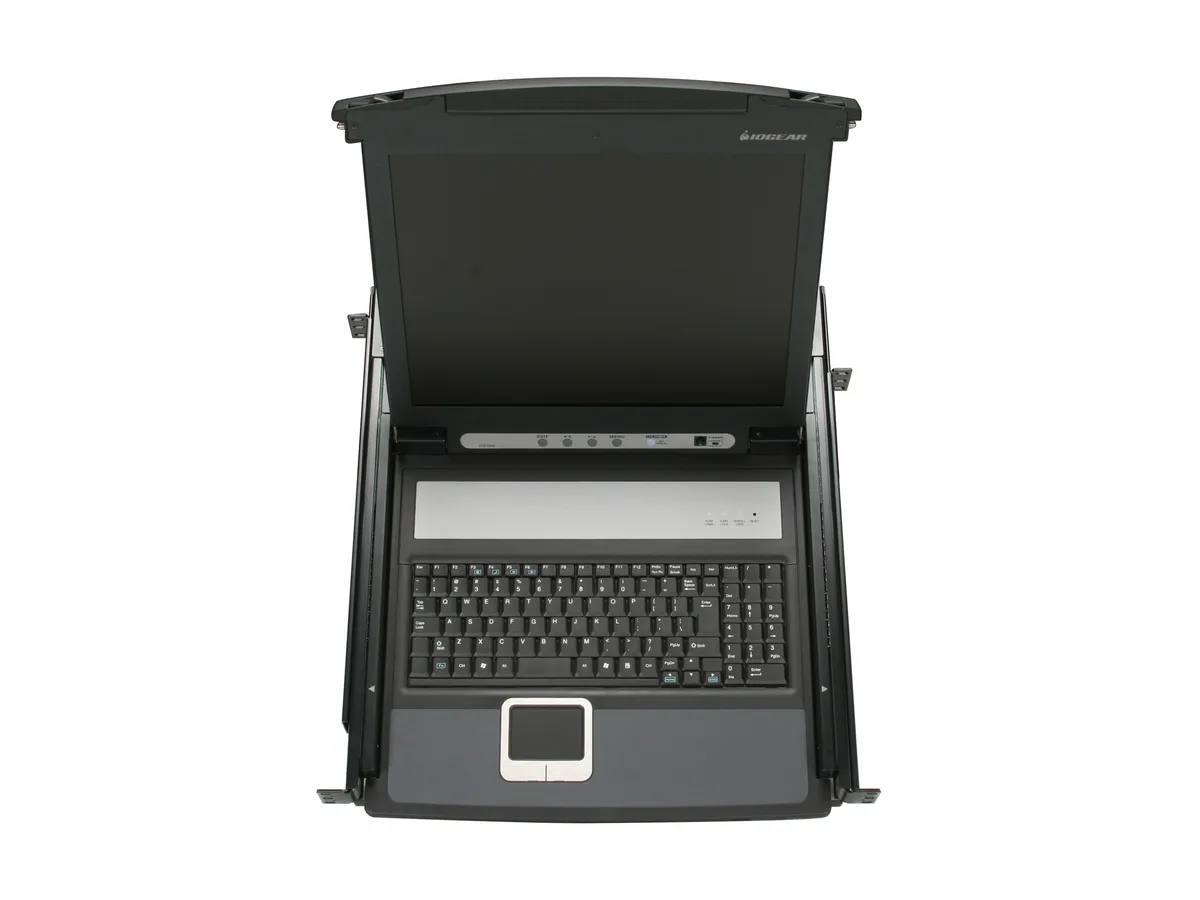

17″ rack-mount KVM console

The IOGEAR GCL1800 combines a 17″ TFT LCD, keyboard and touchpad in a 1U rack-mount chassis that adjusts in depth to fit 19″ cabinets. It provides local control for a single server through one SPHD-15 connection and offers a second console port for remote access. The unit supports Windows, Mac, Sun Solaris and Linux without additional drivers.

Thermal and power profile

Operating temperature is rated 0 to 40 °C with storage tolerance from -20 to 60 °C and humidity up to 80 % RH non-condensing. Power input accepts 100 to 240 VAC at 50/60 Hz drawing 1 A, and typical consumption at 120 V is 29.6 W. The design uses no moving cooling parts, so acoustic output is negligible in a rack environment.

Sustained operation behaviour

The console is built for continuous use in data-centre conditions within the stated temperature and humidity range. Firmware upgrades are applied through an RJ-11 port without interrupting the attached server. Server selection and OSD navigation rely on front-panel LEDs and hotkeys, providing consistent response during extended management sessions.

Highlights

  • Integrated 17" LCD console saves rack space
  • 1280 x 1024 resolution delivers sharp video display
  • Single SPHD-15 port connects one computer directly
  • Adjustable mounting depth fits varied 19" rack sizes
  • OSD and hotkeys simplify server switching operations

Specifications

BrandIOGEAR
ModelGCL1800
TypeD-Sub, USB, PS/2
PC Connectors1 x SPHD-15 Female
Console ConnectorsSecond Console Video: 1 x HDB-15 Female
Second Console Keyboard: PS/2 or USB
Second Console Mouse: PS/2 or USB
Flash ROM Upgrade: 1 x RJ-11 Female
Computer Connections1 Port
Video Resolution1280 x 1024
LED IndicatorsPower On: Dark Green
TemperatureOperation: 0~40 Degree C
Storage: -20~60 Degree C
Humidity0~80% RH; Non-condensing
Power FeaturesPower Input: 100~240VAC, 50/60Hz, 1A
Power Consumption: 120V, 29.6W
FeaturesIntegrated KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
1280 x 1024 resolution on 19" rack mount LCD provides a sharp video display
Adjustable depth to fit different sizes of racks
Multi platform OS support - Windows, Mac, Sun Solaris and Linux
Rack mountable in a 19" (1U) system rack
Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
Fully Supports DDC2B
Dimensions19" x 1.75" x 21"
Weight25.94 lbs.
Shipping weight16.99 kg
Package size719 × 676 × 140 mm

Questions about this item

How do I mount the 17" LCD KVM console into a standard 19" rack and what step is commonly missed?

Slide the unit into the rack using the adjustable-depth rails, then secure the front flange with screws; the step often missed is setting the rail depth to match your specific rack before tightening.

Which replaceable component will need attention first during long-term operation?

The CCFL backlight inside the 17" TFT LCD panel ages over time and will eventually dim, requiring a panel or backlight replacement to restore full brightness.

What thermal limit appears first when the console runs continuously at full brightness?

The operating temperature ceiling of 40 °C is the first hard limit; sustained loads in a poorly ventilated rack can push internal temperatures to that threshold.
