All-steel six-colour six-station rotary screen printing press with micro-registration knobs

Intsupermai

Intsupermai 6 Color 6 Station Screen Printing Press printmaking

SKU CH-YYYP-FJCWN

All-steel six-colour, six-station rotary screen printing press with independent 360° pallet and frame rotation plus micro-registration

  • TypePrinting Presses
  • Six-colour, six-station rotary press prints 30-50 shirts per hour with two operators
  • Independent 360° rotation of pallets and screen frames for flexible workflow
  • Micro-registration with eight adjust knobs per screen holder ensures precise alignment
  • All-steel frame with adjustable pallet height and spring-balanced screen tension for stability
  • Maximum frame capacity 18 x 24 x 1.6 inches suits large-format designs

Six-colour six-station rotary press

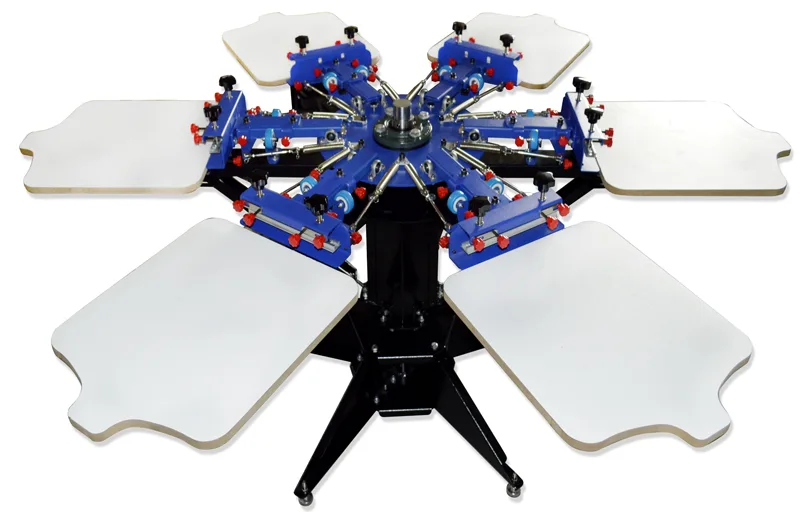

The Intsupermai 6 Color 6 Station Screen Printing Press is an all-steel rotary machine built for multi-colour textile work. It provides six independent stations and six colour positions for producing layered prints on garments. Accurate micro-registration is integrated so each screen aligns precisely without repeated manual adjustment. The press suits small production teams who need consistent repeatability across multiple shirts.

Micro-registration and throughput

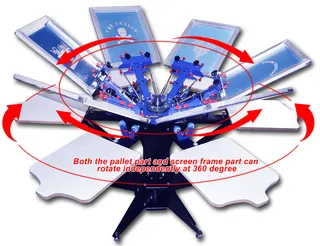

Pallet and screen frames rotate independently through 360 degrees, allowing each colour to be positioned without disturbing the others. Eight micro-adjustment knobs per screen holder enable fine alignment that holds across the run. With two operators and a flash dryer the press can output 30 to 50 six-colour shirts per hour. Once the first pallet is aligned, the remaining stations adjust automatically, reducing setup time between jobs.

Frame capacity and adjustability

Maximum frame size accepted is 18 by 24 by 1.6 inches, with pallets measuring 18 by 22 by 0.7 inches. The pallet moves back and forth up to four inches and its height can be raised or lowered by one inch via an adjustable metal support. The whole machine sits on five levelling feet with 1.6 inches of height adjustment for a stable working surface. Net weight is 160 kg and the unit measures 85 by 85 by 37 inches when assembled.

Highlights

  • Six-colour, six-station rotary press prints 30-50 shirts per hour with two operators
  • Independent 360° rotation of pallets and screen frames for flexible workflow
  • Micro-registration with eight adjust knobs per screen holder ensures precise alignment
  • All-steel frame with adjustable pallet height and spring-balanced screen tension for stability
  • Maximum frame capacity 18 x 24 x 1.6 inches suits large-format designs

Specifications

TypePrinting Presses

Questions about this item

How much floor space and power does the 85-by-85-inch, 160 kg press need for all-day production?

The machine footprint is 85 by 85 inches and weighs 160 kg, so it needs a solid, level floor area at least that large; it has no motor and draws no electrical power itself.

What screen frames and dryer must I already own to run the six-colour, six-station press?

You need six screen frames up to 18 by 24 by 1.6 inches and a separate flash dryer to reach the quoted 30 to 50 six-colour shirts per hour.

Will my existing 18-by-22-inch platens fit the 0.7-inch-thick aluminium pallets on this unit?

The supplied pallets measure 18 by 22 by 0.7 inches, so standard 18-by-22-inch screens and artwork align directly without adapters.
