Four-layer cambered screen drying cabinet with heated glass base and light-proof upper box

Intsupermai

Intsupermai 4-Layer Screen Printing Drying Cabinet Cambered 13.7x10x7.5

SKU CH-XZB5-SP3YH

Four-layer light-proof cabinet dries cambered screen plates while a 120 W heated glass table melts shaping resin below, reaching about 55 °C in 30 minutes

  • TypePrintmaking Accessories
  • Dries cambered plates up to 130×250 mm on four separate layers
  • Heats to 55 °C in 30 minutes from a 25 °C start
  • 120 W tempered-glass table resists water, glue, acid and alkali
  • Simultaneous upper drying and lower resin melting without interference
  • Electrostatic-spray cabinet resists corrosion and rust for long-term use

Cambered Screen Plate Drying Cabinet

This four-layer cabinet is built for screen-printing operations that use cambered mesh plates. It combines a heated plate with a light-proof enclosure so plates dry while shaping resin melts underneath. The unit suits print shops producing caps, masks or similar curved substrates.

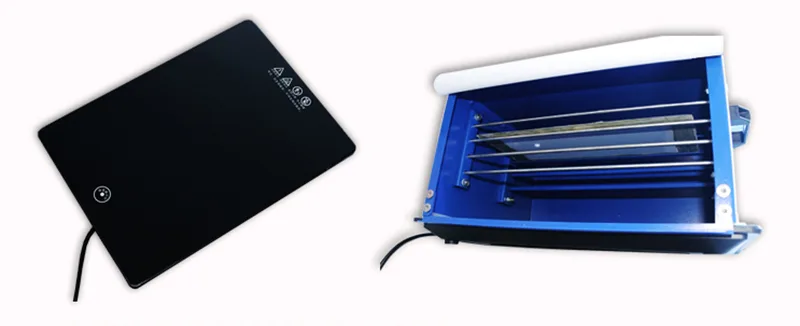

Heated Plate with Tempered Glass Surface

The plate measures 40 by 28 centimetres and delivers 120 watts through a high-quality tempered glass top that resists water, glue, acid and alkali. At a room temperature of 25 degrees Celsius the upper chamber reaches about 45 degrees after 15 minutes and stabilises near 55 degrees after 30 minutes.

Four-Layer Capacity for Curved Plates

Inner box dimensions are 35 by 26 by 19 centimetres with four partitions that accept cambered plates of 100 by 190 millimetres inner size (130 by 200 millimetres outer) or 100 by 240 millimetres inner (130 by 250 millimetres outer). Melting the shaping resin can take 40 to 50 minutes, so larger or thicker plates may need longer cycles.

Highlights

  • Dries cambered plates up to 130×250 mm on four separate layers
  • Heats to 55 °C in 30 minutes from a 25 °C start
  • 120 W tempered-glass table resists water, glue, acid and alkali
  • Simultaneous upper drying and lower resin melting without interference
  • Electrostatic-spray cabinet resists corrosion and rust for long-term use

Specifications

TypePrintmaking Accessories

Questions about this item

How hot does the cabinet get inside after it has been running for half an hour?

At a room temperature of 25 degrees Celsius the upper compartment reaches about 55 degrees Celsius after 30 minutes and then stays basically stable.

What is the power rating of the heating table and what surface does it warm?

The tempered-glass heating table is rated at 120 W and covers a 40 by 28 cm surface.

What are the internal dimensions of the light-proof box and how many screen plates can it hold?

The box measures 35 by 26 by 19 cm inside and has four layers that accept cambered mesh plates up to 130 by 200 mm or 130 by 250 mm outer size.
