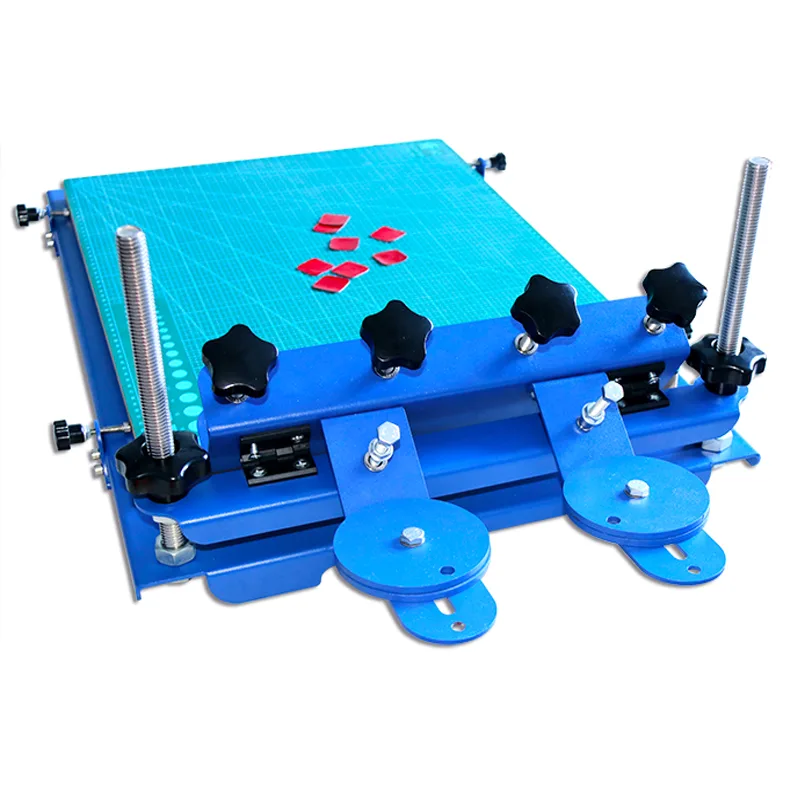

Metal screen printing press with micro-registration knobs, large rectangular pallet and four adjustable counterweight plates

Intsupermai

Intsupermai 3D Screen Printing Press Micro-Registration 23.5x17.5 Inch

SKU CH-5C86-K53RQ

Micro-registration screen printing press with a 23.5x17.5 inch pallet, adjustable gravity balance plates and precision positioning pads for PCB and rigid-material printing

  • TypePrinting Presses
  • Precise micro-registration with 3D left-right and front-back screen adjustment
  • Balanced screen lifting via four gravity plates movable within 4 inches
  • Accurate item positioning using eight pad stickers and pallet ruler
  • Durable electrostatic-coated metal body with stainless-steel parts resisting corrosion
  • Large 23.5x17.5 inch printing area supporting PCB, glass, metal and thick boards

Micro-registration screen press

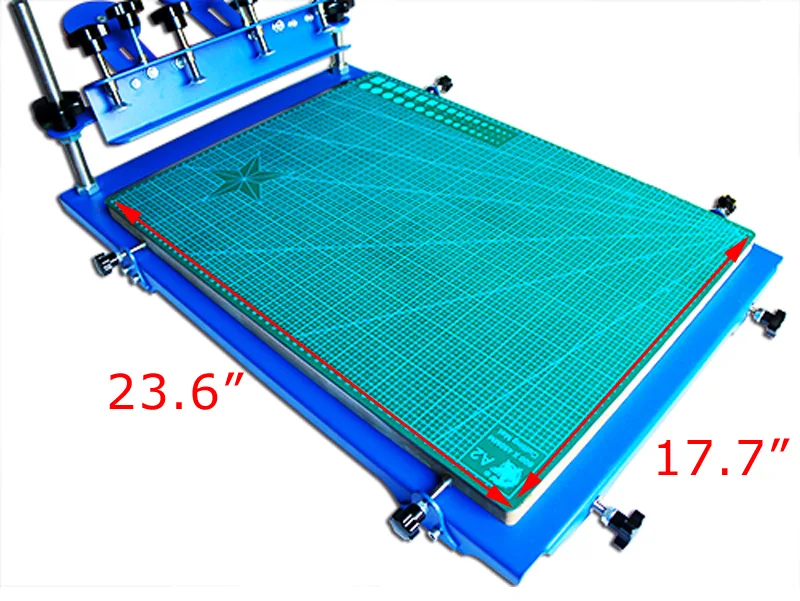

The Intsupermai 3D screen printing press provides micro-registration adjustment so the screen can be shifted left-to-right and back-to-forward for precise alignment. It is built for single-colour work on rigid substrates such as PCB blanks, metal plates, glass, wood and thick card. The supplier states it is not recommended for cloth or other textile printing. A 17.7 by 23.6 inch pallet with a ruler gives a recommended print area of 15.7 by 20.4 inches.

Installation notes

The unit ships fully assembled and weighs enough to stay stable on a sturdy bench. Eight adhesive positioning pads are included to hold the workpiece in place during printing. Four gravity balance plates slide forward or back up to 4 inches and can be added or removed to counterbalance the screen frame weight. The screen clamp accepts frames up to 14.3 by 2.6 inches with a maximum thickness of 2 inches.

Compatibility check

Verify that your screen frame does not exceed 17.7 by 23.6 by 2 inches and that the clamp opening of 14.3 by 2.6 inches suits your mesh. Ensure the workpiece fits within the 15.7 by 20.4 inch recommended print zone on the 17.7 by 23.6 inch pallet. Buyers needing multi-colour registration, textile printing or a larger bed should look elsewhere.

Highlights

  • Precise micro-registration with 3D left-right and front-back screen adjustment
  • Balanced screen lifting via four gravity plates movable within 4 inches
  • Accurate item positioning using eight pad stickers and pallet ruler
  • Durable electrostatic-coated metal body with stainless-steel parts resisting corrosion
  • Large 23.5x17.5 inch printing area supporting PCB, glass, metal and thick boards

Specifications

TypePrinting Presses

Questions about this item

How do I confirm the micro-registration is aligned after setup?

Check that the screen clamp measures 14.3" x 2.6" and the frame sits within the 17.7" x 23.6" maximum size; the left-right and back-forward adjustments should move smoothly and hold position.

What comes in the box and what must I buy separately?

The box contains the 23.5" x 17.5" PCB screen printing press (model 006569) with four gravity balance plates, eight positioning pad stickers, a ruler-marked pallet, and screen clamps; screens, inks, squeegees, and substrates are not included.

Which version should I choose for a 15.7" x 20.4" print area?

This single model supports a recommended printing area of 15.7" x 20.4" and a maximum frame of 17.7" x 23.6" x 2", so it fits that requirement without needing a different capacity.
