Intsupermai 16×16 Flash Dryer 110V 1600W 4 Platform

Screen-printing flash dryer with four platforms

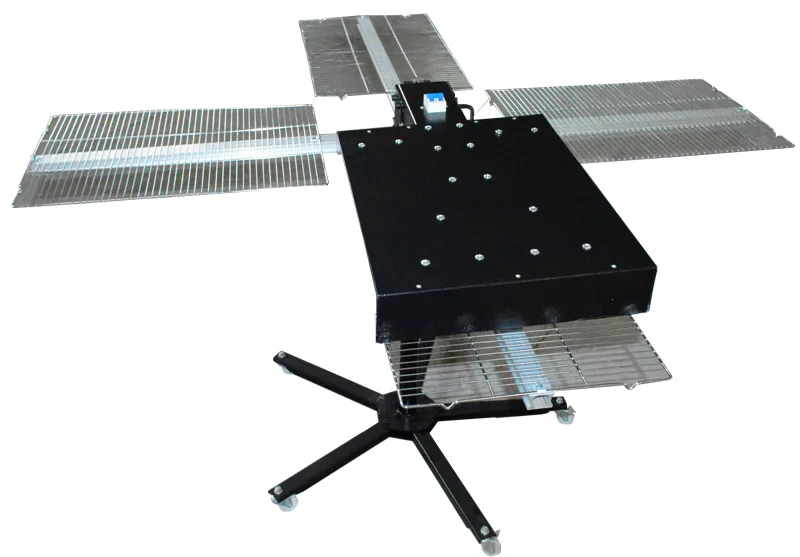

This 110 V, 1600 W flash dryer ships with four 15.7" x 23.6" platforms mounted on a powder-coated steel frame that measures 65" x 65" x 37.5" and rolls on locking casters. It is built for screen-printing shops and DIY makers who cure plastisol or water-based inks on T-shirts and other flat substrates. The unit weighs 15 kg net and arrives in a 31" x 21.6" x 10" fumigation-free wooden case. Assembly uses the included tool kit and test thermometer.

Sustained curing cycles across multiple stations

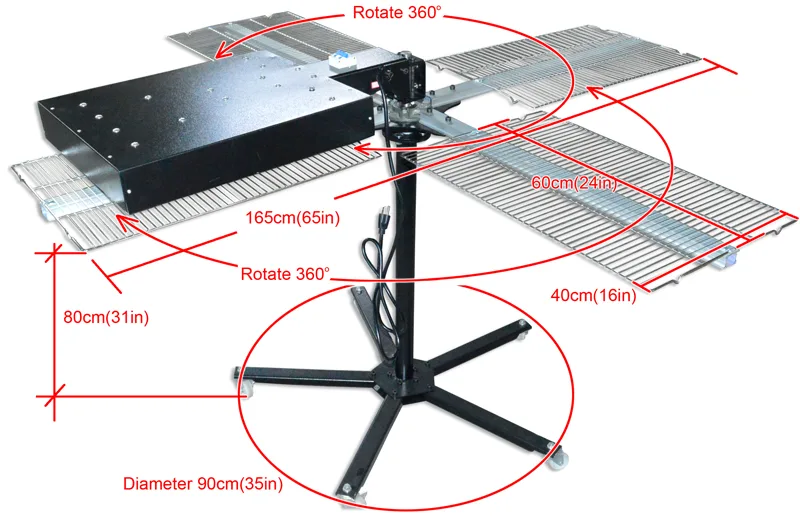

Stainless-steel heating tubes rated for 10000 hours feed an aluminium-topped drying box that rotates 360 degrees and locks at any angle. The head height adjusts 1.6" up or down so the same 16" x 16" cure zone can serve all four platforms without moving the garment. Operators can index the dryer over a multi-colour press, flash one colour, rotate to the next platform and repeat without cool-down pauses. The continuous 1600 W output keeps dwell times consistent from the first shirt to the last.

Thermal management and mobility in daily use

Powder-coated housing and the aluminium heat spreader direct radiant energy toward the substrate while limiting surface heat on the frame. Locking casters let one person reposition the 15 kg unit between jobs and lock it firmly during operation. The 110 V North-American plug draws a steady 1600 W from a standard circuit, so no special wiring is required. Included thermometer lets the operator verify surface temperature at each platform before every run.
