Large floor-standing screen drying cabinet with six stainless-steel rack layers inside a light-blocking fabric cover

Intsupermai

Intsupermai 110V 6-Layer Screen Drying Cabinet 35.4x23.6in

SKU CH-23TJ-23BC2

Holds six screens up to 35.4×23.6 in with 2.36 in layer spacing, dual 1200 W PTC heat fans, timer, light-blocking cover and 50–70 °C range

  • TypePrintmaking Accessories

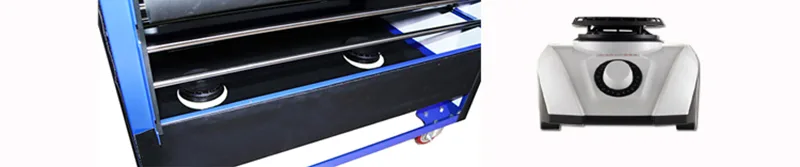

  • Dries screen plates efficiently with dual 1200 W PTC heat fans
  • Holds six frames up to 35.4 × 23.6 in with 2.36 in layer spacing
  • Adjustable 50–70 °C temperature range suits emulsion coating and curing
  • Light-blocking coated fabric cover attaches via hook-and-loop for dark storage

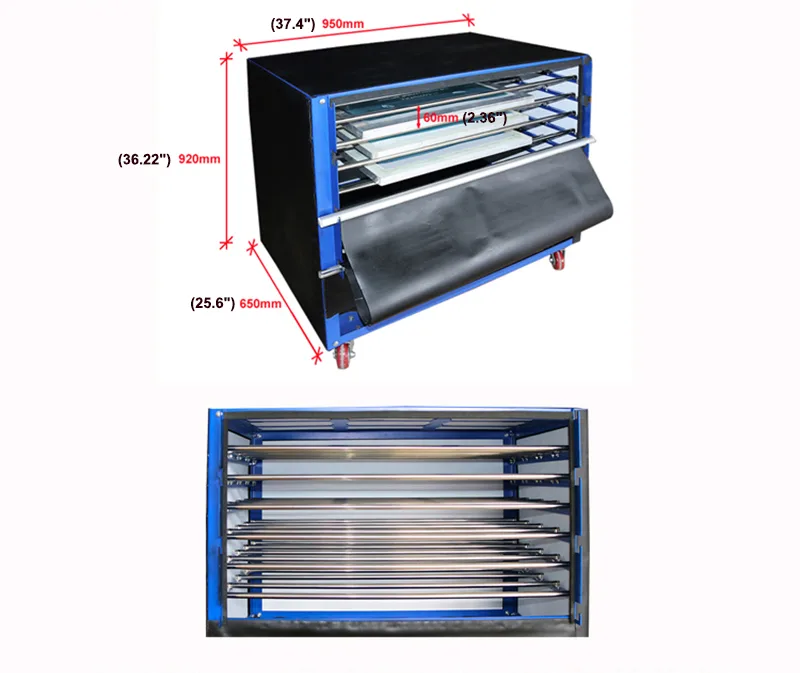

  • Floor-standing cabinet measures 37.4 × 25.6 × 36.2 in and weighs 82 lbs

Screen Drying Cabinet for Printmaking Studios

The Intsupermai 110V cabinet provides six heated layers for drying screen plates after degreasing, coating with photosensitive emulsion, or finishing. It maintains an inner temperature of 122-158°F and fits frames up to 35.4x23.6 inches. The light-shading fabric cover supports short-term dark storage.

Upgrade from Single-Layer Racks or Ambient Drying

Moving up from a single rack or room-temperature drying is worth it when you process multiple frames daily and need consistent heat without dust. The six layers spaced 2.36 inches apart let you dry six frames at once, while dual 1200W PTC heat fans with timer control replace unreliable ambient conditions.

Floor-Standing Assembly with Fabric Curtain

The unit ships in a 39x27x11 inch package weighing 82 lbs and assembles to 37.4x25.6x36.2 inches. Installation requires fitting the coated fabric to the frame using adhesive hook-and-loop strips and inserting the curtain into the four front slots. Each layer uses five 16 mm stainless tubes spaced 4.5 inches apart for small plates.

Highlights

  • Dries screen plates efficiently with dual 1200 W PTC heat fans
  • Holds six frames up to 35.4 × 23.6 in with 2.36 in layer spacing
  • Adjustable 50–70 °C temperature range suits emulsion coating and curing
  • Light-blocking coated fabric cover attaches via hook-and-loop for dark storage
  • Floor-standing cabinet measures 37.4 × 25.6 × 36.2 in and weighs 82 lbs

Specifications

TypePrintmaking Accessories

Questions about this item

What are the external dimensions of the assembled cabinet so I can check floor space?

The installed unit measures 37.4 inches wide, 25.6 inches deep and 36.2 inches high.

How do I load the frames correctly and what is the common mistake?

Place each frame on the five stainless-steel tubes spaced 4.5 inches apart; the usual error is resting the mesh directly on the tubes instead of the frame edges.

What part will need replacement after extended use?

The two 1200W PTC heating fans are the primary wear items and should be swapped when airflow or temperature drops below the 122-158°F range.
