Intermec

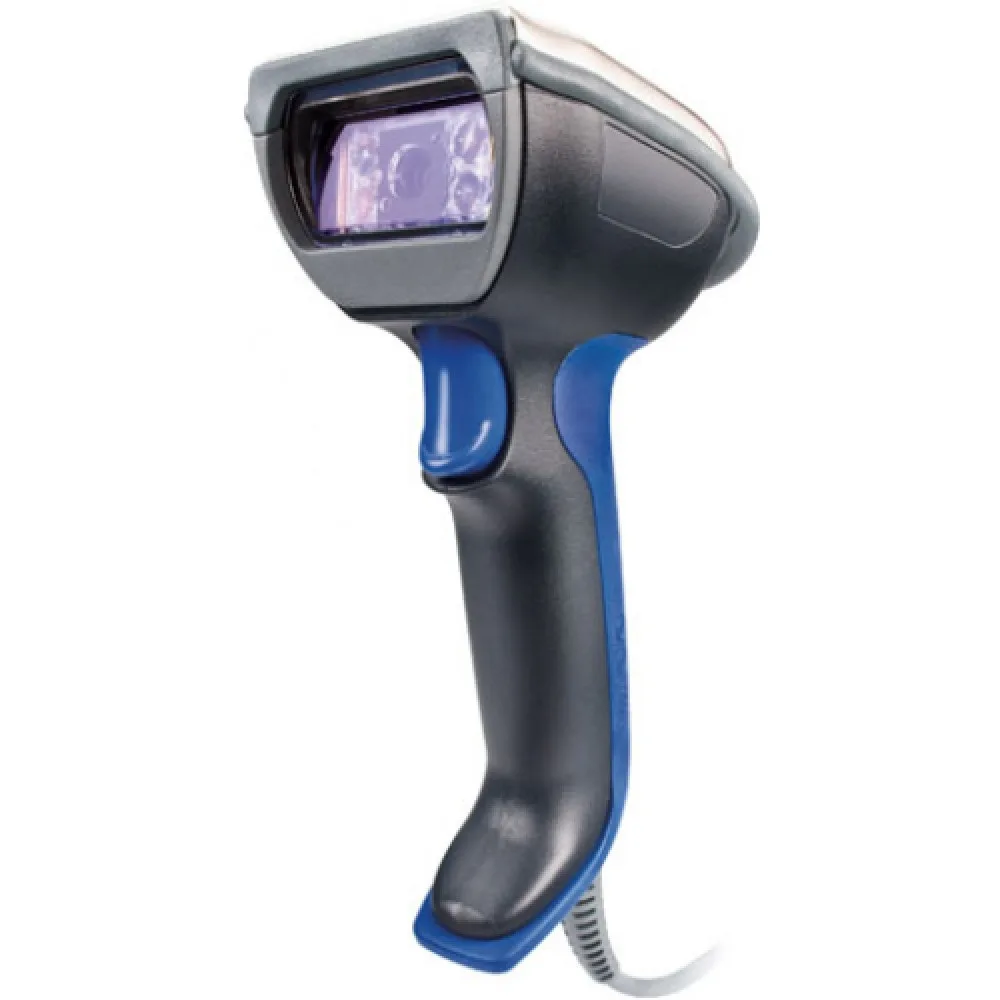

Intermec SR61TDPM-002 Handheld Tethered Barcode Scanner
Handheld corded 1D/2D imager with IP54 sealing, 1.98 m drop rating, USB 2.0 and RS232 interfaces, operating from -20 °C to 50 °C
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine1D / 2D
- Included CablesUSB Cable Included
- Interfaces SupportedRS232, USB 2.0 (HID Keyboard, Virtual Com Port), Keyboard We
- Dimensions5.20" x 2.80" x 7.60"
- 1D/2D imager reads linear and matrix codes
- USB 2.0 interface with HID keyboard and virtual COM support
- IP54 rating resists dust and water ingress
- Survives 26 drops from 1.98 m onto concrete
- Operates from -20 °C to +50 °C in harsh environments
Industrial handheld scanner
The Intermec SR61TDPM-002 is a new corded handheld scanner built for warehouse, distribution and industrial manufacturing environments. It reads 1D and 2D symbols with an omni-directional imager and connects through USB 2.0, RS232, keyboard wedge or wand emulation. A USB cable is included in the box.
Plug-and-play installation
The scanner draws 5 V DC at 1.7 A from the host port, so no external power supply is required. Simply attach the supplied USB cable and the device enumerates as HID keyboard or virtual COM port. The IP54 housing survives dust, moisture and 26 drops from 1.98 m onto concrete, reducing downtime from accidental impacts.
Verify host compatibility first
Confirm that your terminal or PC provides a powered USB 2.0 port capable of delivering 1.7 A at 5 V. Check that the operating system supports HID keyboard or virtual COM port drivers for the intended interface. Ensure the operating environment stays within -20 °C to 50 °C and 0–95 % RH non-condensing.
Highlights
- 1D/2D imager reads linear and matrix codes
- USB 2.0 interface with HID keyboard and virtual COM support
- IP54 rating resists dust and water ingress
- Survives 26 drops from 1.98 m onto concrete
- Operates from -20 °C to +50 °C in harsh environments
Specifications
| Brand | Intermec |
|---|---|
| Series | SR61T |
| Model | SR61THD |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D / 2D |
| Included Cables | USB Cable Included |
| Interfaces Supported | RS232, USB 2.0 (HID Keyboard, Virtual Com Port), Keyboard Wedge, Wand Emulation |
| Dimensions | 5.20" x 2.80" x 7.60" |
| Weight | 0.7 lb. |
| Features | Power Requirements: 5V DC, 1.7A Operating Temperature: -20°C to +50°C (-4°F to +122°F) Storage Temperature: -40°C to +70°C (-40°F to +158°F) Humidity: 0% to 95% RH, non-condensing Rain and Dust Resistance: IP54 |
| Drop | 26 drops onto concrete or steel surface from a height of 1.98 m (6.5 ft) |
| Shipping weight | 0.59 kg |
| Package size | 254 × 254 × 254 mm |
Questions about this item
How can I verify the scanner reads barcodes correctly after plugging in the USB cable?
The scanner will beep and the LED will flash when a 1D or 2D code is decoded; test with a sample label to confirm the USB 2.0 HID keyboard or virtual COM port output appears in your application.
What comes in the box and what must be purchased separately?
The SR61TDPM-002 includes the handheld imager and a USB cable; RS232, keyboard wedge or wand emulation cables and a 5 V DC 1.7 A power supply are not included and must be bought separately if those interfaces are needed.
Which scan engine version should I choose for mixed 1D and 2D codes?
This model uses the SR61THD 1D/2D imager, so it reads both linear and matrix symbologies without needing a separate laser or area-imager variant.
