Intermatic

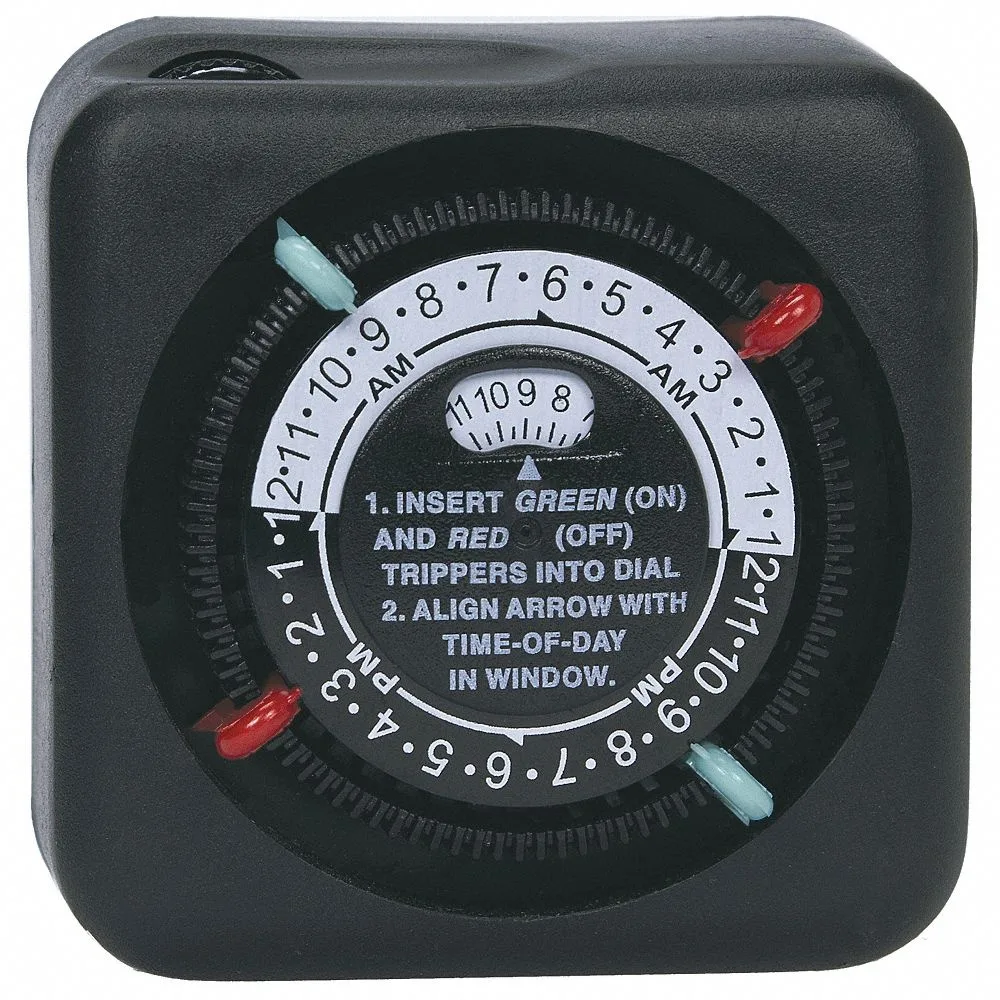

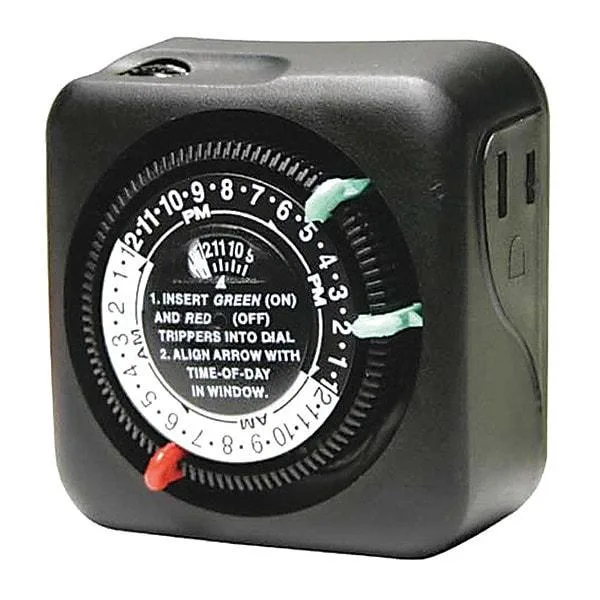

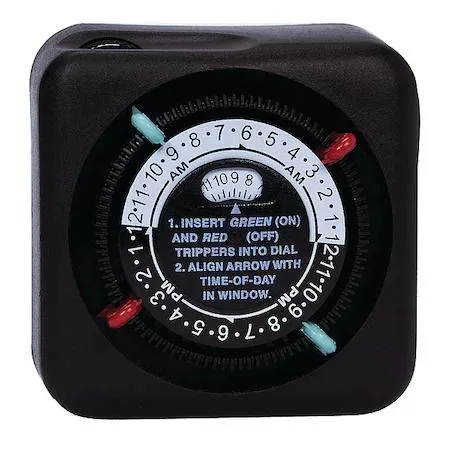

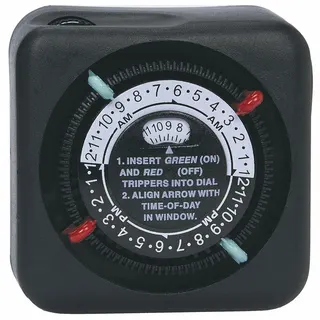

Intermatic TN111RM40 Mechanical Plug-In Timer 120V 9.5A
Mechanical plug-in timer controls one outlet with up to two daily on/off cycles at 120 volts and 9.5 amps
- Mechanical operation needs no programming or batteries
- 120 V AC rating suits standard household outlets
- 5 A capacity handles lights and small appliances
- Single 1-15R receptacle accepts common two-prong plugs
- cCSAus listed for indoor and outdoor use
Plug-In Mechanical Timer 120V
The Intermatic TN111RM40 is a mechanical plug-in timer designed for indoor or outdoor use. It provides a single grounded receptacle and operates on a standard 120V AC supply rated at 9.5 amps. The unit offers a simple way to automate lights or appliances without digital programming.
Fixed 30-Minute Interval Control
This timer suits users who need a basic on/off schedule with a minimum setting of 30 minutes and up to two cycles per 23-hour period. It is not for buyers who require shorter intervals, multiple daily programmes, battery backup or digital precision timing.
185-Watt Resistive Load Rating
The single specification that decides fit is the 185-watt resistive load limit at 120 volts. Verify that the connected device does not exceed this rating before installation. The timer carries cCSAus certification for safety compliance.
Highlights
- Mechanical operation needs no programming or batteries
- 120 V AC rating suits standard household outlets
- 5 A capacity handles lights and small appliances
- Single 1-15R receptacle accepts common two-prong plugs
- cCSAus listed for indoor and outdoor use
Specifications
| Brand | INTERMATIC |
|---|
Questions about this item
What does the 9.5 A rating mean for devices I plug into this timer?
The timer is rated for a maximum continuous load of 9.5 A at 120 V AC, which corresponds to the listed 1,185 W resistive limit. Exceeding this amperage can cause overheating or contact failure.
What does the cCSAus marking on the timer indicate for installation?
The cCSAus mark shows the timer is certified to both Canadian and US safety standards for plug-in controls. It confirms compliance for indoor or outdoor use in a covered receptacle.
What are the physical dimensions and plug style needed to mount this timer?
The unit measures 4 in long by 3 in wide by 3 in deep and uses a standard NEMA 1-15P two-blade plug with a single 1-15R grounded receptacle on the front.
