Intermatic T1906 24-hour electromechanical timer SPDT 20A 208-277V
Electromechanical timer provides 24-hour scheduling with SPDT contacts rated 20 A at 208-277 V AC
- 24-hour scheduling with 15-minute minimum settings
- SPDT contact handles 20 A at 208-277 V AC
- Steel NEMA 1 enclosure rated -40 to +130 °F
- Up to 48 on/off cycles per day
- Includes 96 trippers with extra 2E132 available
24-Hour Electromechanical Timer

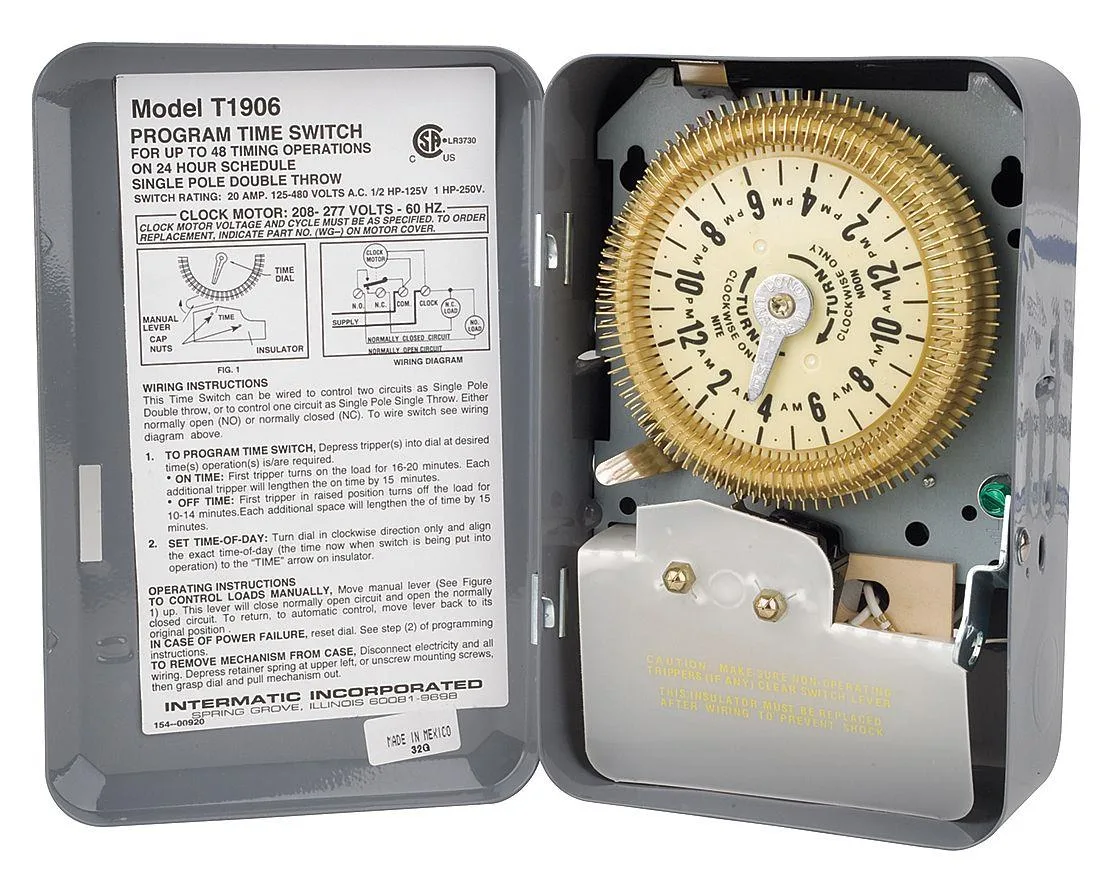

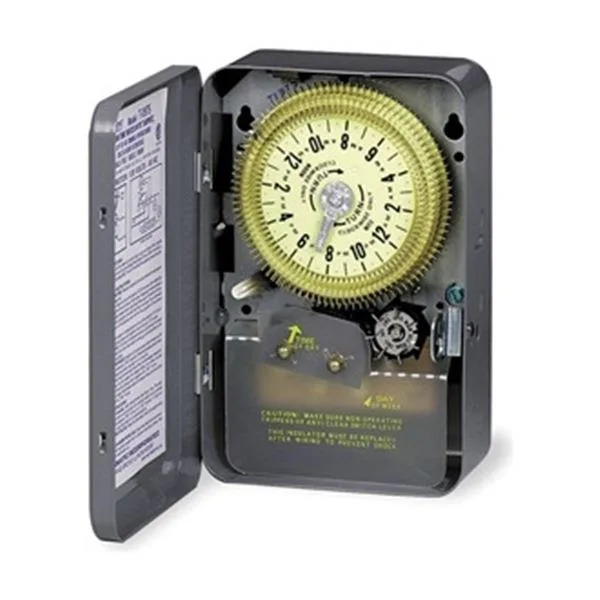

The Intermatic T1906 is a 24-hour electromechanical timer rated for 20 A at 208 to 277 V AC. It uses a single-pole double-throw contact form with a steel NEMA 1 enclosure. The unit provides up to 48 on/off cycles per day with a minimum setting of 15 minutes. It suits industrial or commercial lighting and motor control circuits.
Upgrade From Basic Time Switches
This timer replaces simpler on/off switches that lack multi-operation scheduling or day-skipper flexibility. The jump is worth it when you need 96 included trippers for complex daily patterns or a 1 hp motor rating at 240 V. It is not for buyers who want astronomic programming, battery backup, or multi-voltage auto-sensing in a single device.
Straightforward Surface Mounting
Installation uses the steel enclosure’s mounting ears for surface attachment to a junction box or panel. Wiring connects to screw terminals rated for the 20 A load. What usually goes wrong is forgetting to remove the appropriate knockout for conduit entry or exceeding the 23-3/4 hour maximum dial setting. Extra trippers are available as part 2E132.
Highlights
- 24-hour scheduling with 15-minute minimum settings
- SPDT contact handles 20 A at 208-277 V AC
- Steel NEMA 1 enclosure rated -40 to +130 °F
- Up to 48 on/off cycles per day
- Includes 96 trippers with extra 2E132 available
Specifications
| Brand | INTERMATIC |
|---|
Questions about this item
What enclosure size and NEMA rating does the T1906 require for mounting?
The timer fits in a steel NEMA 1 enclosure measuring 5 in wide, 3 in deep and 7 3/4 in high.

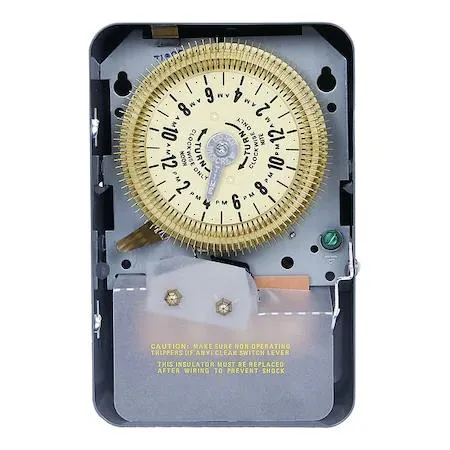

How do you set the 24-hour dial and tripper positions, and what minimum on/off interval does the mechanism enforce?
Rotate the dial to current time, insert trippers at desired switch points; the mechanism allows a minimum 15 min setting and up to 48 on/off cycles per day.
When should the 96 included trippers be replaced and what part number is used for extras?
Replace trippers when switching becomes unreliable; extra trippers use part number 2E132.
