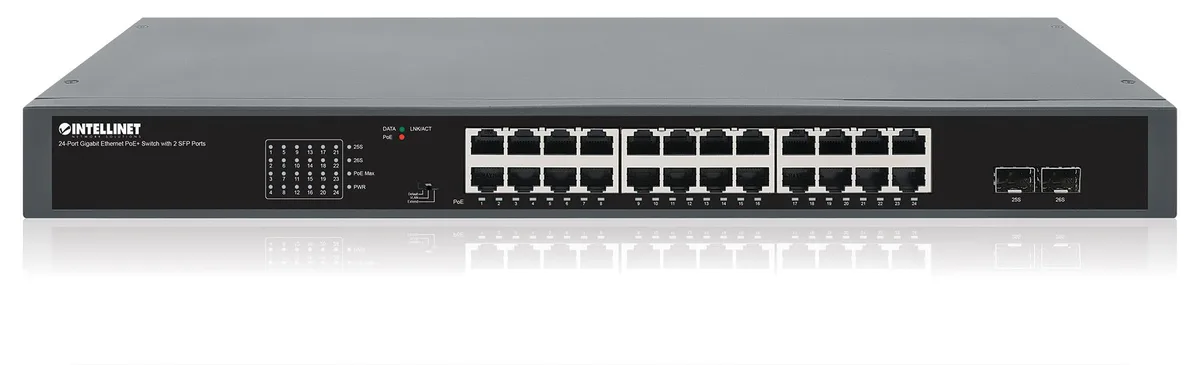

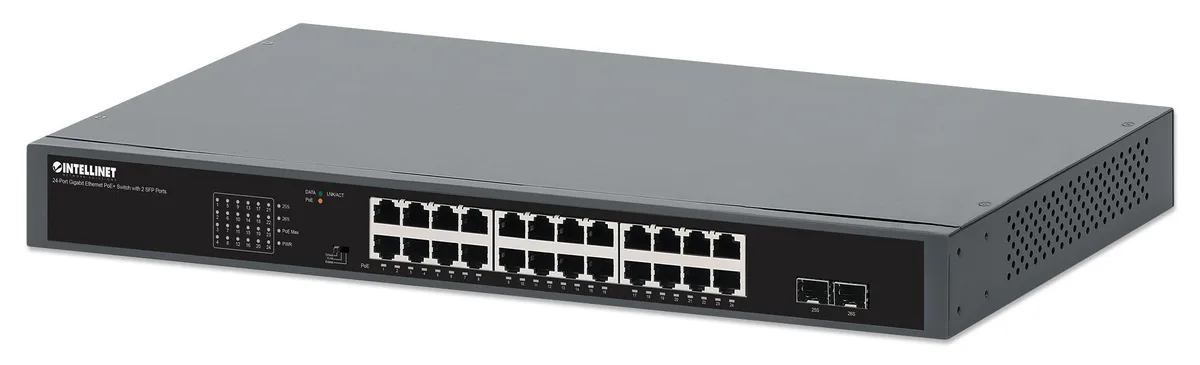

Silver rackmount switch with 24 RJ45 ports and two SFP slots

Intellinet Network Solutions

Intellinet Network Solutions IPS-24G02-370WB 24-Port Gigabit PoE+ Switch with 2 SFP Ports

SKU CH-WJQA-2WFAY

Unmanaged rackmount switch delivers power and data to 24 PoE devices at up to 30 watts per port with a 370-watt budget and adds two 1 Gbps SFP uplinks

  • Switch Typeunmanaged
  • FormatRackmount
  • StandardsIEEE 802.3 (10Base-T Ethernet) IEEE 802.3ab (Twisted Pair Gi
  • Network Management TypeUnmanaged
  • Uplink Ports2
  • Uplink InterfaceSFP
  • Powers 24 PoE devices simultaneously with a 370 W budget
  • Delivers up to 30 W per port for high-power endpoints
  • Extends PoE reach to 250 m at reduced speed for cameras
  • Two 1 Gbps SFP uplink slots for fibre aggregation
  • Self-healing PDM restarts unresponsive PoE devices automatically

24-Port Gigabit PoE+ Switch

This unmanaged rackmount switch provides 24 RJ45 ports and two SFP uplink slots for fibre modules. It delivers both data and power to PoE-compatible devices such as access points, VoIP phones and IP cameras over standard Cat5e or Cat6 cabling. The 370 W total PoE budget supports up to 30 W per port across all connected endpoints.

Sustained Load Behaviour

Store-and-forward switching with an 8 K MAC table and 512 KB buffer memory handles continuous Gigabit traffic without head-of-line blocking. IEEE 802.3az Energy Efficient Ethernet reduces power draw during low utilisation periods. The self-healing Powered Device Monitor automatically restarts any PoE device that stops responding, maintaining uptime for surveillance or wireless deployments.

Installation and Common Issues

Manual VLAN mode isolates the 24 RJ45 ports from each other while keeping uplink access on the two SFP ports, simplifying segmentation without management software. PoE extend mode drops link speed to 10 Mbps but pushes power and data out to 250 m, useful for distant cameras. Buyers needing managed features such as SNMP, link aggregation or dynamic VLAN assignment should choose a managed switch instead.

Highlights

  • Powers 24 PoE devices simultaneously with a 370 W budget
  • Delivers up to 30 W per port for high-power endpoints
  • Extends PoE reach to 250 m at reduced speed for cameras
  • Two 1 Gbps SFP uplink slots for fibre aggregation
  • Self-healing PDM restarts unresponsive PoE devices automatically

Specifications

BrandIntellinet Network Solutions
ModelUnmanaged Gigabit Ethernet PoE Switch
Part NumberIPS-24G02-370WB
Switch Typeunmanaged
FormatRackmount
StandardsIEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3af (Power over Ethernet 802.3at Type 1)
IEEE 802.3at (Power over Ethernet 802.3at Type 2)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control for full duplex mode)
Network Management TypeUnmanaged
Uplink Ports2
Uplink InterfaceSFP
Uplink Speed1 Gbps
Primary Port Count24
Primary Ports24 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames9216 bytes
Buffer Memory512KB
PoEYes
StackableNo
SNMPNo
LACPNo
Layer2
Port MirroringNo
Module SupportYes
TopologyStar
Fan2 cooling fans
PoE Ports24
PoE Power Budget370W
Max Power Consumption400W
Dimensions8.15 x 17.32 x 1.73 in.
Weight7.43 lbs
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesVLAN (Port Isolation), PoE Extend Mode
Package Contents24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, Power cable, Instructions,
19" rackmount brackets

Questions about this item

How much heat and power does the 370 W PoE budget draw when all 24 ports run all day?

The switch delivers up to 370 W total PoE power with each port capped at 30 W, and IEEE 802.3az Energy Efficient Ethernet reduces idle consumption.

What cables or modules must I already have to use the two SFP uplinks?

Two 1 Gbps SFP transceivers and matching fibre or copper patch cables are required; the switch provides only the open SFP slots.

Will my 10 Mbps legacy cameras still work if I enable the 250 m PoE extend mode?

Extend mode drops the link speed to 10 Mbps and stretches PoE reach to 250 m, so older 10Base-T cameras stay powered and connected.
