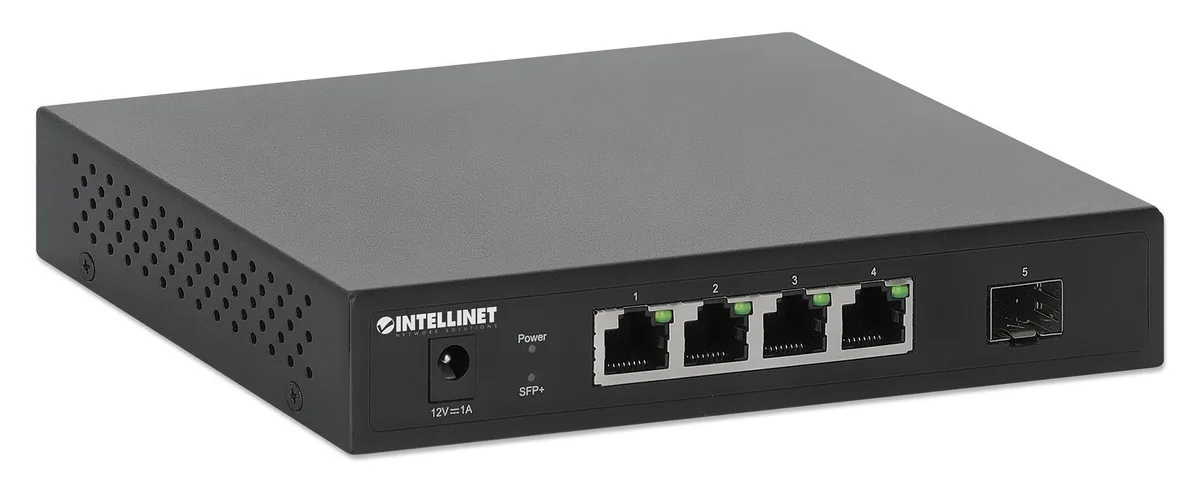

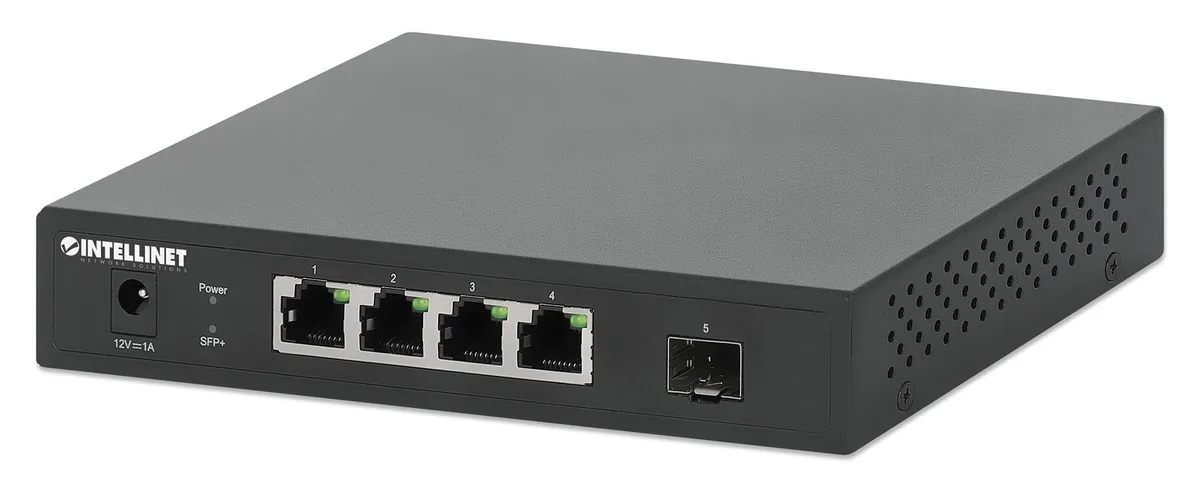

Compact metal desktop switch with four RJ45 ports and one SFP+ uplink slot

Intellinet Network Solutions

Intellinet Network Solutions IES-04-2.5G01 5-Port 2.5G Switch with 10G SFP+ Uplink

SKU CH-T1EV-NRPSJ

Connects four 2.5 Gbps devices and adds a 10 Gbps SFP+ uplink in a fanless metal case

  • FormatWall Mountable
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE 802.3bz
  • Network Management TypeUnmanaged
  • Uplink Ports1
  • Uplink InterfaceSFP
  • Uplink SpeedSFP+
  • 5 Gbps on four RJ45 ports for faster local transfers
  • 10 Gbps SFP+ uplink slot for high-speed backbone links
  • 40 Gbps switching capacity handles heavy traffic loads
  • Fanless metal chassis runs silently in any workspace
  • Wall-mount holes allow flexible desktop or rack placement

Intellinet 5-Port 2.5G Switch

This unmanaged desktop switch provides four 2.5GBASE-T RJ45 ports and one 10G SFP+ uplink slot. It supports IEEE 802.3bz and auto-negotiates speeds of 10, 100, 1000 and 2500 Mbps on every copper port. The 40 Gbps switching fabric handles full line-rate traffic across all interfaces. A fanless metal enclosure ensures silent operation.

Installation and common issues

Place the unit on a flat surface or use the integrated wall-mount holes for vertical mounting. Connect RJ45 cables and insert a compatible SFP+ transceiver into the open slot for the uplink. No software configuration is required; the switch forwards frames immediately on power-up. The only frequent issue is using a transceiver or cable that does not match the 10G SFP+ specification, which prevents the uplink from establishing a link.

Suitable for Wi-Fi 6 access points

This switch suits deployments that need multi-gigabit connectivity for Wi-Fi 6 access points, workstations or NAS devices with 2.5G NICs. It is not for networks that require VLAN segmentation, QoS prioritisation, LACP link aggregation or SNMP monitoring, because the unmanaged firmware does not support those features. Buyers needing PoE power delivery or a second 10G uplink should look at a different model.

Highlights

  • 5 Gbps on four RJ45 ports for faster local transfers
  • 10 Gbps SFP+ uplink slot for high-speed backbone links
  • 40 Gbps switching capacity handles heavy traffic loads
  • Fanless metal chassis runs silently in any workspace
  • Wall-mount holes allow flexible desktop or rack placement

Specifications

BrandIntellinet
Part NumberIES-04-2.5G01
FormatWall Mountable
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE 802.3bz
Network Management TypeUnmanaged
Uplink Ports1
Uplink InterfaceSFP
Uplink SpeedSFP+
Primary Ports4 x RJ45
Primary Port Speed2.5 Gbps
MAC Address Table4K
Switching MethodStore and Forward
VLAN SupportNo
Jumbo Frames12KB
Buffer Memory1MB
PoENo
StackableNo
SNMPNo
QoSNo
LACPNo
Layer2
Port MirroringNo
Module SupportYes
TopologyStar
Power100~240VAC, 50/60Hz
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
Package Contents5-Port Switch with 4 x 2.5G Ethernet Ports and 1 SFP+ Uplink, Power adapter, Power cable, Instructions

Questions about this item

How do I confirm the IES-04-2.5G01 is operating at 2.5 Gbps after connecting my devices?

Each RJ45 port has LED indicators that light for link and blink for activity; a solid 2.5G LED means the port has negotiated 2500 Mbps with the connected device.

What comes with the switch and what must I purchase separately for the 10G uplink?

The box includes the metal-cased switch, a power adapter and mounting brackets; an SFP+ transceiver module and compatible fibre or DAC cable for the 10G uplink slot are sold separately.

Which version should I choose if I need four 2.5G ports and a 10G uplink for Wi-Fi 6 access points?

This single model provides exactly four 2.5GBASE-T RJ45 ports plus one SFP+ slot running at 10G, matching the requirement without any alternative SKUs to consider.
