Compact metal desktop switch with eight RJ45 ports and no fan

Intellinet Network Solutions

Intellinet Network Solutions 8-Port Gigabit PoE+ Passthrough Switch 85W

SKU CH-GTQC-B6V9J

An eight-port Gigabit switch that draws up to 90 W from a PoE++ source and passes 85 W to seven devices, extending reach to 200 m

  • FormatDesktop
  • Network Management TypeUnmanaged
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Primary Port TypeRJ45
  • Switching MethodStore and Forward
  • Powers up to seven devices from a single PoE++ source
  • 85 W budget with 90 W input via IEEE 802.3bt
  • Extends PoE reach to 200 m (656 ft) without new cabling
  • Fanless metal housing runs silently in 0 °C to 40 °C environments
  • Eight Gigabit RJ45 ports deliver 1000 Mbps data and PoE+ power

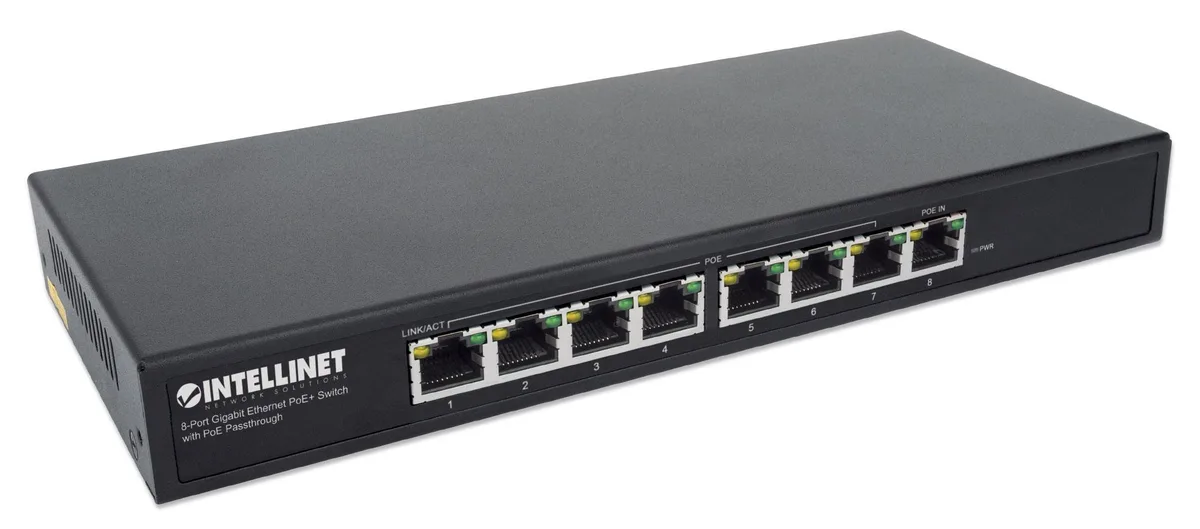

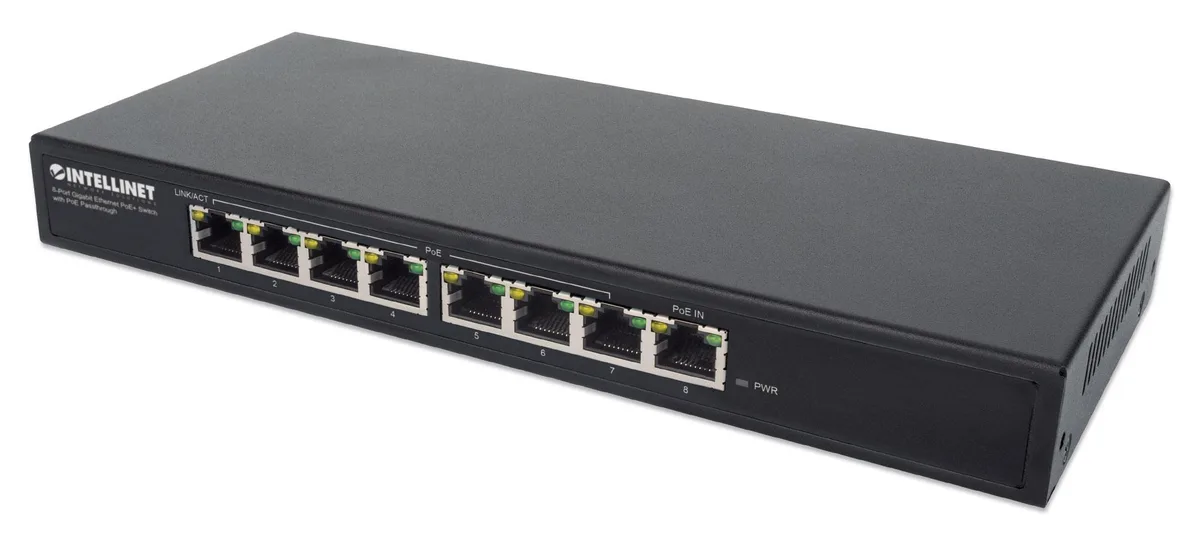

Intellinet 8-Port Gigabit PoE+ Passthrough Switch

This unmanaged desktop switch provides eight RJ45 ports operating at 10/100/1000 Mbps. It accepts up to 90 W of power input via IEEE 802.3bt and passes up to 85 W to connected PoE devices. The fanless metal housing operates silently in temperatures from 0°C to 40°C.

Installers extending PoE reach without mains power

The switch draws all power from a PoE source, removing the need for a local outlet and doubling cable runs to 200 m (656 ft). It suits deployments of access points, IP cameras or VoIP phones where electrical wiring is impractical. Builders who need managed features, stacking or a dedicated power supply should look elsewhere.

85 W PoE budget from 90 W IEEE 802.3bt input

The single figure that decides fit is the 85 W passthrough budget available only when the upstream link delivers 90 W over IEEE 802.3bt. With an IEEE 802.3at source the budget falls to 20 W, and with IEEE 802.3af it drops to 10 W. Match the source capability to the load before buying.

Highlights

  • Powers up to seven devices from a single PoE++ source
  • 85 W budget with 90 W input via IEEE 802.3bt
  • Extends PoE reach to 200 m (656 ft) without new cabling
  • Fanless metal housing runs silently in 0 °C to 40 °C environments
  • Eight Gigabit RJ45 ports deliver 1000 Mbps data and PoE+ power

Specifications

BrandIntellinet Network Solutions
ModelUnmanaged Gigabit Ethernet PoE Switch
Part Number8
FormatDesktop
Network Management TypeUnmanaged
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port TypeRJ45
Switching MethodStore and Forward
PoEYes
StackableNo
Layer2
Module SupportNo
TopologyStar
FanNo
PoE Power Budget85W
Max Power Consumption90W
Temperature0°C to 40°C (32°F to 104°F)
FeaturesPoE Powered

Questions about this item

What is the maximum PoE power budget when the switch receives 90 W over IEEE 802.3bt?

The switch delivers up to 85 W total PoE budget when powered by a 90 W IEEE 802.3bt source.

What physical space and mounting does the fanless metal housing require?

The desktop-format metal chassis sits on a flat surface; no rack ears or wall brackets are included.

How is the switch powered and which port must connect to the upstream PoE source?

Connect the upstream IEEE 802.3bt injector or switch to the dedicated PD input port; the unit has no AC adapter and draws all power through that link.
