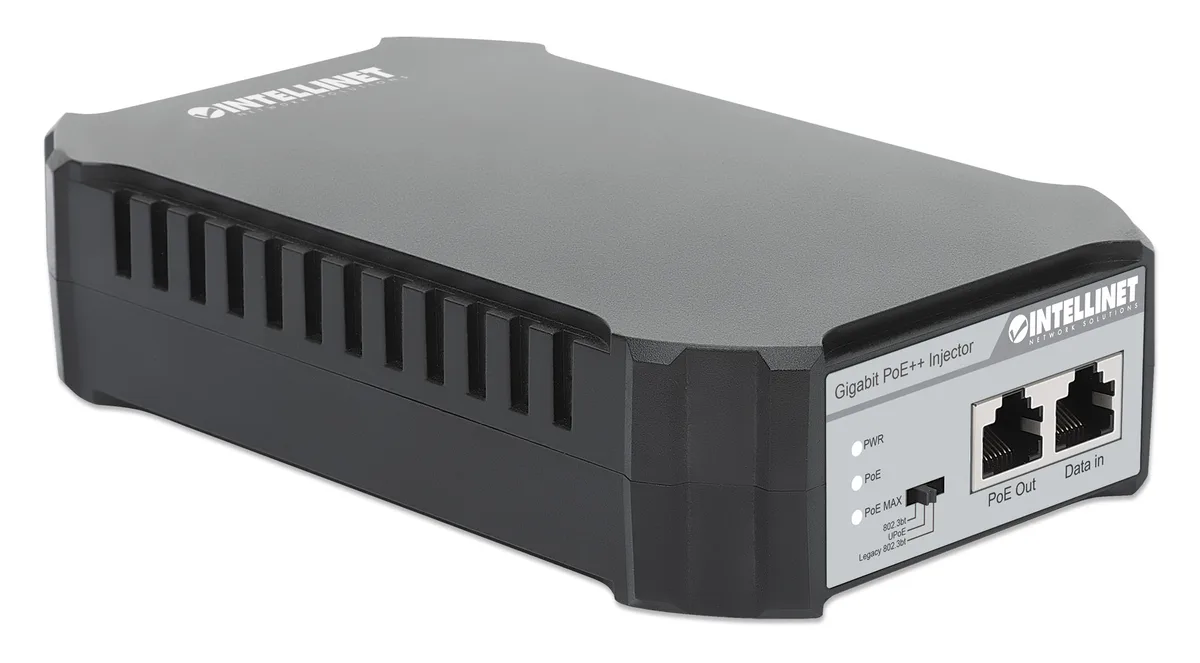

Black and grey plastic PoE++ injector with LED indicators, wall-mountable

Intellinet Network Solutions

Intellinet Network Solutions 561495-UK Gigabit PoE++ Injector 95 W

SKU CH-R4XB-131TK

A Gigabit PoE++ injector delivering 95 W over four pairs with IEEE 802.3bt, at and af compatibility

  • TypePoE Injector
  • SpecificationsDesign Product colour: Black, Gray LED indicators: Data, PoE
  • FeaturesSave time and money by delivering data and power via existin
  • Delivers up to 95 W through existing network cables
  • Powers devices up to 100 m away without extra wiring
  • Silent fanless operation suits noise-sensitive locations
  • Built-in short-circuit, overload and high-voltage protection
  • Works with IEEE 802.3bt, 802.3at and 802.3af devices

Power Delivery

The Intellinet 561495-UK is a Gigabit PoE++ injector that supplies up to 95 watts over a single Ethernet cable. It targets installers who need to power high-draw devices such as motorised IP cameras, lighting controllers or nurse-call systems without running separate mains wiring.

IEEE 802.3bt Compliance

The unit follows the IEEE 802.3bt (4PPoE) standard using all four twisted pairs, while remaining backward compatible with IEEE 802.3at and IEEE 802.3af equipment. This single specification decides whether the injector can support 95-watt loads or only lower-power gear.

Build Integration

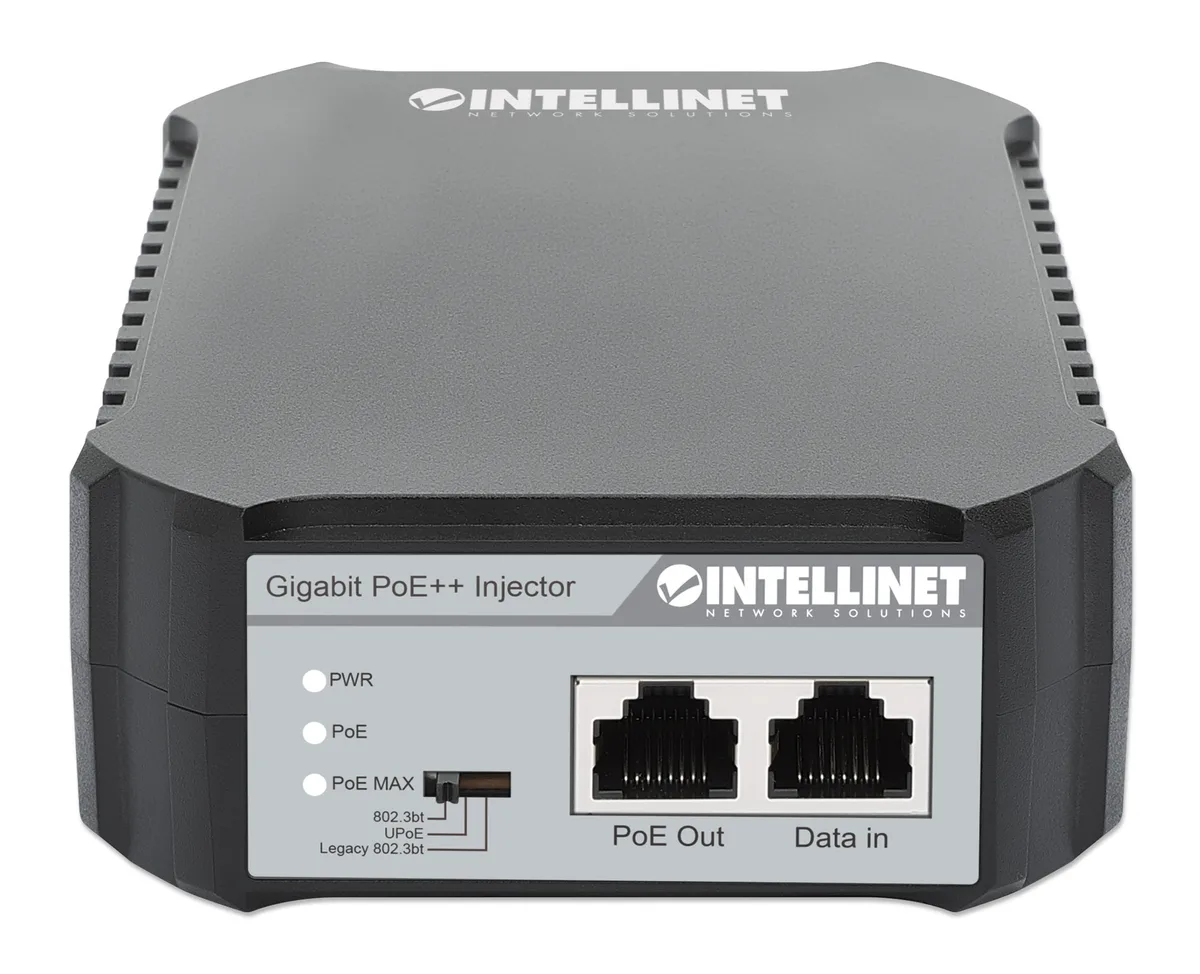

The injector connects between a non-PoE switch and a powered device over Cat5 or Cat5e cable up to 100 metres. Its internal power supply and fanless design allow silent wall-mount installation, and LED indicators show power, data and PoE status at a glance. It does not suit buyers who need multi-port PoE switching or fibre uplinks.

Highlights

  • Delivers up to 95 W through existing network cables
  • Powers devices up to 100 m away without extra wiring
  • Silent fanless operation suits noise-sensitive locations
  • Built-in short-circuit, overload and high-voltage protection
  • Works with IEEE 802.3bt, 802.3at and 802.3af devices

Specifications

BrandINTELLINET
Model561495-UK
TypePoE Injector
SpecificationsDesign
Product colour: Black, Gray
LED indicators: Data, PoE, Power
Networking
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cable types supported: Cat5, Cat5e
Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Total Power over Ethernet (PoE) budget: 95 W
FeaturesSave time and money by delivering data and power via existing network cables
Total PoE power budget of 95 watts
Compatible with IEEE 802.3bt (Ultra-PoE), IEEE 802.3at and IEEE 802.3af
Short-circuit, overload and high-voltage protection
Supports all IEEE 802.3bt-, IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)

Questions about this item

What does the 95 W rating mean for a device connected to this injector?

It delivers up to 95 watts over all four cable pairs so a single PoE++ device such as a motorised IP camera or lighting controller can run without a local power supply.

How does the IEEE 802.3bt interface affect the maximum cable run?

The injector supports the standard 100 m (328 ft) distance on Cat5 or Cat5e cabling while negotiating 10, 100 or 1000 Mbit/s speeds.

What mounting options does the plastic housing provide?

The unit includes a wall-mount option and an internal power supply in a fanless design for silent operation.
