Intellinet Network Solutions

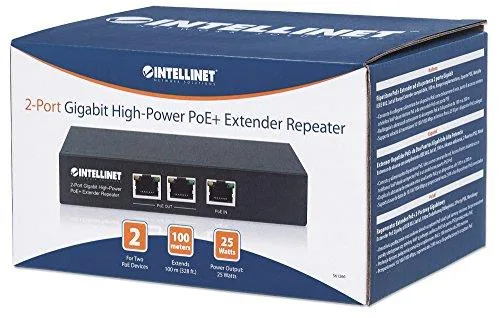

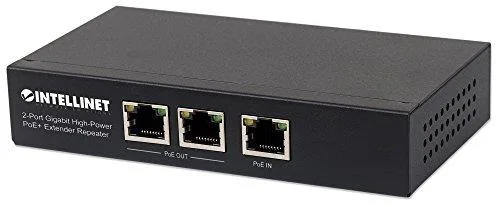

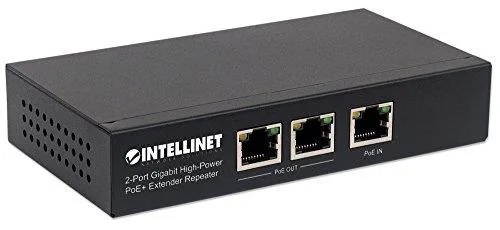

Intellinet Network Solutions 561266 2-Port Gigabit PoE+ Extender Repeater
Extends a PoE connection by 100 m (328 ft) to power two devices up to 25 W each from a single PSE port
- Powers two PoE devices from a single source port
- Extends PoE reach to 200 m (656 ft.) total
- Delivers up to 25 W per connected device
- Operates without an external power supply
- Forwards data at Gigabit speeds over Cat5e/6
Two-Port PoE+ Extender for Network Devices
The Intellinet 561266 extends a single PoE connection to two powered devices such as cameras, access points or VoIP phones. It accepts up to 30 W from a compliant injector or switch and delivers up to 25 W to each attached device. The unit draws all its power from the PoE input so no separate supply is required. It is built for installers who need to run two endpoints from one cable run.
Plug-and-Play Installation With Distance Limits
Connect the PoE In port to the source and the two PoE Out ports to the powered devices using Cat5e or Cat6 cable. Each segment can reach 100 m, giving a total path of 200 m between source and endpoint. Power is only sent to IEEE 802.3af or 802.3at compliant gear; non-PoE devices receive data only. The extender will not work if the source cannot supply enough power for both endpoints or if cable runs exceed the stated lengths.
Gigabit Data Rate and Power Budget Constraints
The repeater passes 10/100/1000 Mbps traffic while staying within the 25 W per-port output limit. Total power available to the two devices depends on what the upstream PSE provides, up to its 30 W input ceiling. It does not amplify the signal beyond the 200 m total reach, nor does it add managed switching features such as VLANs or QoS. Buyers needing more than two endpoints or longer runs must look at additional repeaters or fibre links.
Highlights
- Powers two PoE devices from a single source port
- Extends PoE reach to 200 m (656 ft.) total
- Delivers up to 25 W per connected device
- Operates without an external power supply
- Forwards data at Gigabit speeds over Cat5e/6
Specifications
| Brand | INTELLINET |
|---|---|
| Shipping weight | 0.39 kg |
| Package size | 165 × 124 × 94 mm |
Questions about this item
How do I confirm the 561266 is passing both data and 25 W to each connected camera after installation?
Check the link and PoE LEDs on the unit; solid lights indicate a valid 10/100/1000 Mbps link and IEEE 802.3at/af power negotiation on both output ports.
What ships with the 561266 and which cables or injectors must I source separately?
The extender itself is supplied; you must provide Cat5e or Cat6 patch cords and an IEEE 802.3at/af PoE injector or PoE switch to feed the PoE In port.
Should I choose a different model if I need more than two PoE Out ports or a longer single-run distance?
This 2-port repeater adds 100 m per segment for a total of 200 m; for additional ports or greater reach a multi-port PoE switch or fibre link would be required.
