Silver metal 19-inch rackmount switch with 24 RJ45 ports and two SFP slots

Intellinet Network Solutions

Intellinet Network Solutions 561044 24-port Gigabit network switch with 2 SFP

SKU CH-G1DN-BX9X3 MPN 561044

A 24-port Gigabit switch with two SFP uplinks delivers 26 non-blocking ports for rackmount deployment

  • FormatRack-mountable
  • Network Management TypeUnmanaged
  • Primary Port Speed10/100/1000Base-TX 1000Base-X
  • Weight6.61 lb
  • Package ContentsPackage Contents: 24-Port Gigabit Ethernet Switch with 2 SFP
  • 24 auto-sensing Gigabit RJ45 ports adapt to 10/100/1000 speeds
  • Two dedicated SFP slots add true fiber uplinks without sharing RJ45 bandwidth
  • IEEE 802.3az Energy Efficient Ethernet cuts power on idle links
  • Green Ethernet scales port power to cable length and disables unused ports
  • 19-inch rackmount metal chassis with 52 Gbps total switching capacity

24-port Gigabit rackmount switch

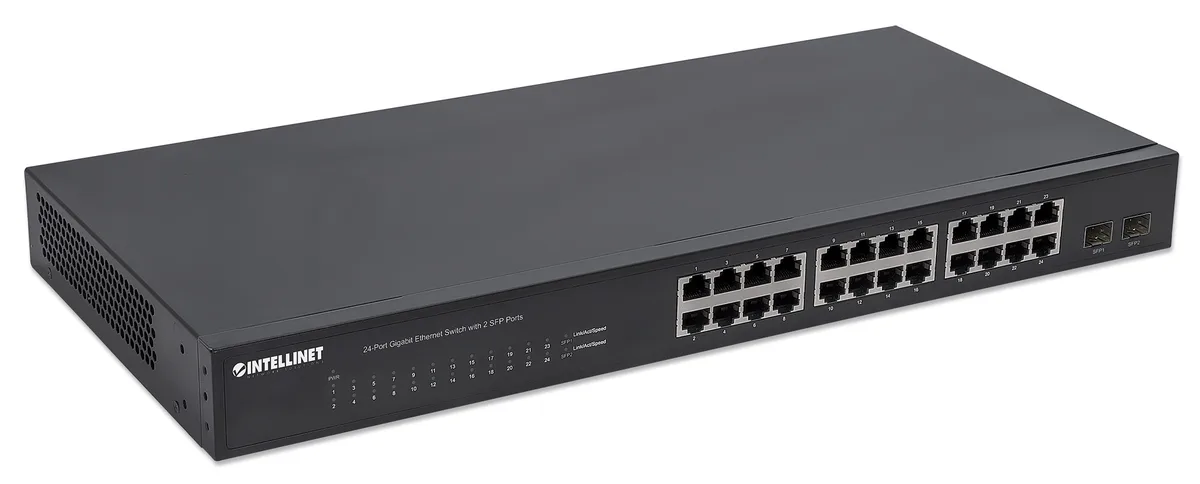

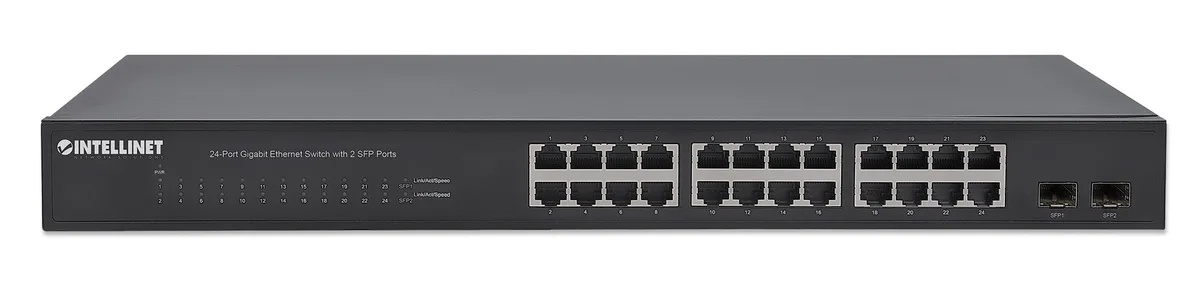

The Intellinet 561044 is an unmanaged 19-inch rackmount switch with twenty-four 10/100/1000 Mbps RJ45 ports and two SFP slots for fiber uplinks. It uses store-and-forward switching with Auto-MDIX on every copper port and complies with IEEE 802.3az Energy Efficient Ethernet. The metal chassis weighs 6.61 lb and ships with rack brackets and a power cable.

Suits simple high-port-count deployments

This switch fits installers who need twenty-four Gigabit copper connections plus two independent fiber uplinks in a single rack unit without any configuration. It is not for networks that require VLANs, link aggregation, SNMP monitoring, PoE power on the copper ports, or any Layer 2 management features.

Unmanaged operation fixed by hardware

The device is permanently unmanaged; there is no operating system to configure, no web interface, and no command-line access. If the installation needs any software-controlled feature — port mirroring, traffic prioritisation, or remote status alerts — a different switch must be chosen.

Highlights

  • 24 auto-sensing Gigabit RJ45 ports adapt to 10/100/1000 speeds
  • Two dedicated SFP slots add true fiber uplinks without sharing RJ45 bandwidth
  • IEEE 802.3az Energy Efficient Ethernet cuts power on idle links
  • Green Ethernet scales port power to cable length and disables unused ports
  • 19-inch rackmount metal chassis with 52 Gbps total switching capacity

Specifications

BrandIntellinet
FormatRack-mountable
Network Management TypeUnmanaged
Primary Port Speed10/100/1000Base-TX
1000Base-X
Weight6.61 lb

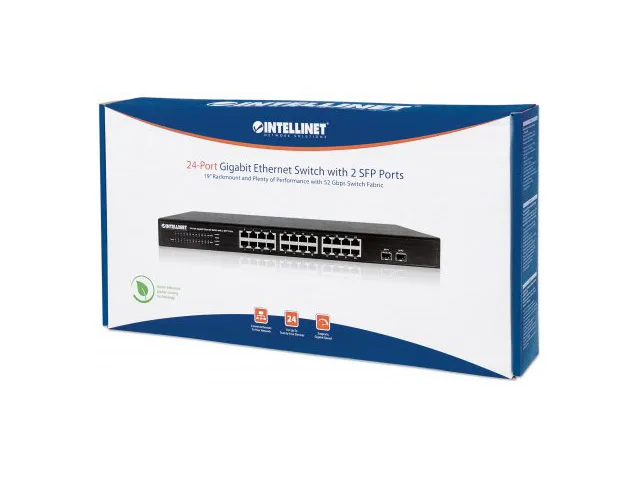

Package ContentsPackage Contents:
24-Port Gigabit Ethernet Switch with 2 SFP Ports
Power Cable
19" Rackmount Brackets
User Manual
Shipping weight4.08 kg
Package size555 × 295 × 88 mm

Questions about this item

Does the 561044 come with SFP modules or must they be purchased separately?

The box contains the switch, a power cable, 19-inch rackmount brackets and a user manual. The two SFP slots accept standard GBIC modules which are not included.

Should I use the RJ45 ports or the SFP slots for a 1 Gbps uplink between two switches?

Both interfaces run at 1000 Mbps. RJ45 works up to 100 m on copper; SFP takes fibre modules for longer links. They are independent ports, not shared combo ports.

What does the 52 Gbps figure mean for actual throughput on a 24-port switch?

52 Gbps is the aggregate non-blocking fabric — 26 full-duplex Gigabit ports each able to send and receive 1 Gbps simultaneously.
