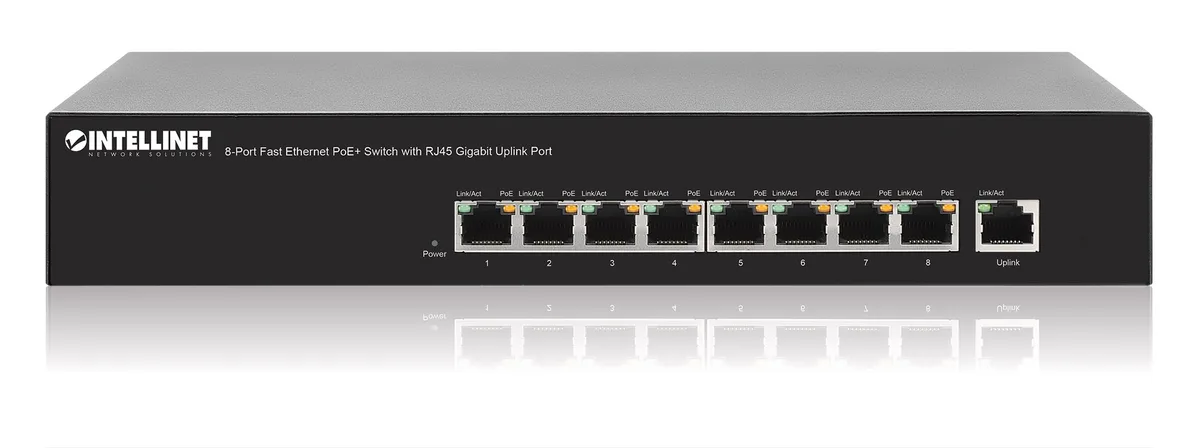

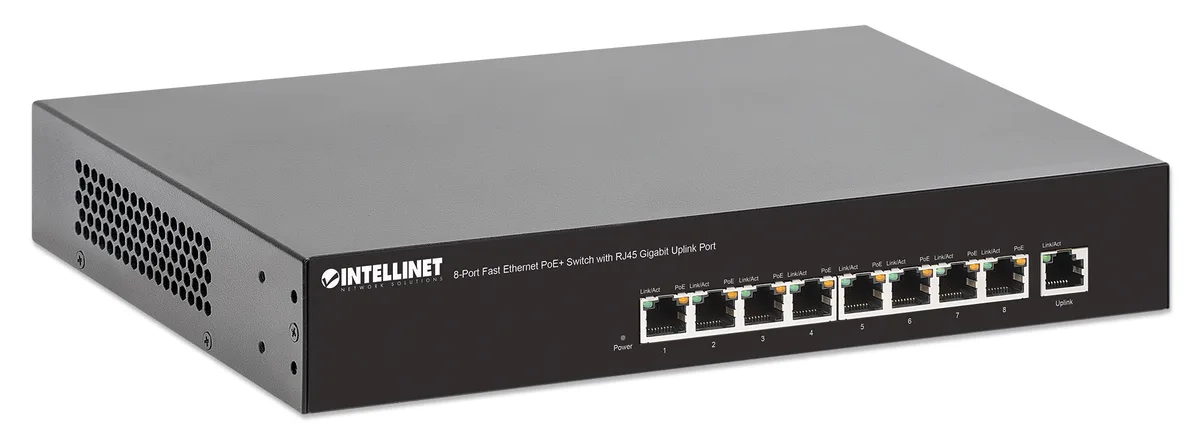

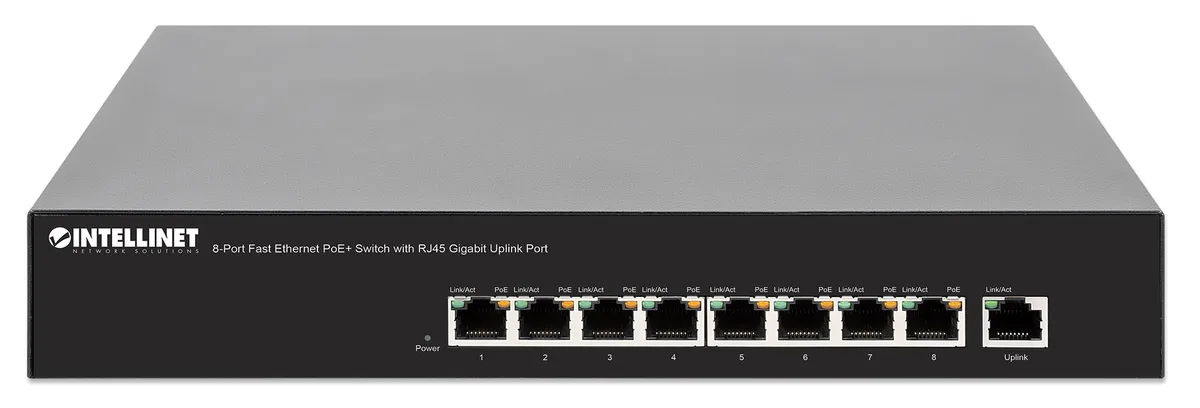

Compact desktop network switch with eight front RJ45 ports and status LEDs, metal grey finish

Intellinet Network Solutions

Intellinet Network Solutions 560764 8-Port Fast Ethernet PoE+ network switch

SKU CH-54Z9-R3TYV MPN 560764

Eight-port Fast Ethernet switch delivers data and up to 30 watts of PoE+ power per port over standard network cables

  • FormatDesktop
  • StandardsIEEE 802.3/3u, IEEE 802.3af/at
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100Mbps
  • MAC Address Table4096 entries
  • Switching MethodStore and Forward
  • Powers up to eight devices with 140 W total PoE+ budget
  • Delivers data and power over existing Cat5e or Cat6 cables
  • Auto-sensing 10/100 Mbps ports set optimal speed automatically
  • IEEE 802.3at/af compliant ports supply up to 30 W per device
  • Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption

8-Port Fast Ethernet PoE+ Switch

The Intellinet Network Solutions 560764 is an eight-port desktop switch that delivers data and electrical power over standard network cabling. Every RJ45 port operates at 10/100 Mbps and supports IEEE 802.3af and 802.3at PoE standards. The unit provides a total PoE power budget of 140 watts, allowing up to 30 watts per port for connected devices such as wireless access points, VoIP phones and IP cameras. Auto-sensing ports automatically negotiate the optimal link speed for each device.

Suits PoE deployments up to 100 Mbps.

This switch is designed for installers who need to power multiple PoE or PoE+ endpoints from a single desktop unit without running separate power lines. It fits environments where 100 Mbps bandwidth satisfies the application, such as IP surveillance or voice networks. Buyers who require Gigabit Ethernet throughput on any port should consider a different model, as every port on this device is limited to 100 Mbps. The 1.6 Gbps backplane and 160 kByte buffer are sized for Fast Ethernet traffic loads.

140-watt PoE budget across eight ports

The single specification that determines suitability is the 140-watt total PoE power budget shared across all eight ports. Each port can supply up to 30 watts under the 802.3at standard, but the combined draw of all connected devices must stay within the 140-watt limit. Calculate the aggregate power requirement of your access points, cameras or phones before purchase; if the total exceeds this budget, you will need a switch with a higher power capacity or fewer powered devices.

Highlights

  • Powers up to eight devices with 140 W total PoE+ budget
  • Delivers data and power over existing Cat5e or Cat6 cables
  • Auto-sensing 10/100 Mbps ports set optimal speed automatically
  • IEEE 802.3at/af compliant ports supply up to 30 W per device
  • Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption

Specifications

BrandIntellinet
Model560764
FormatDesktop
StandardsIEEE 802.3/3u, IEEE 802.3af/at
Primary Ports8 x RJ45
Primary Port Speed10/100Mbps
MAC Address Table4096 entries
Switching MethodStore and Forward
Buffer Memory160 kBytes
PoEYes
LEDsPoE
Power
Link/activity

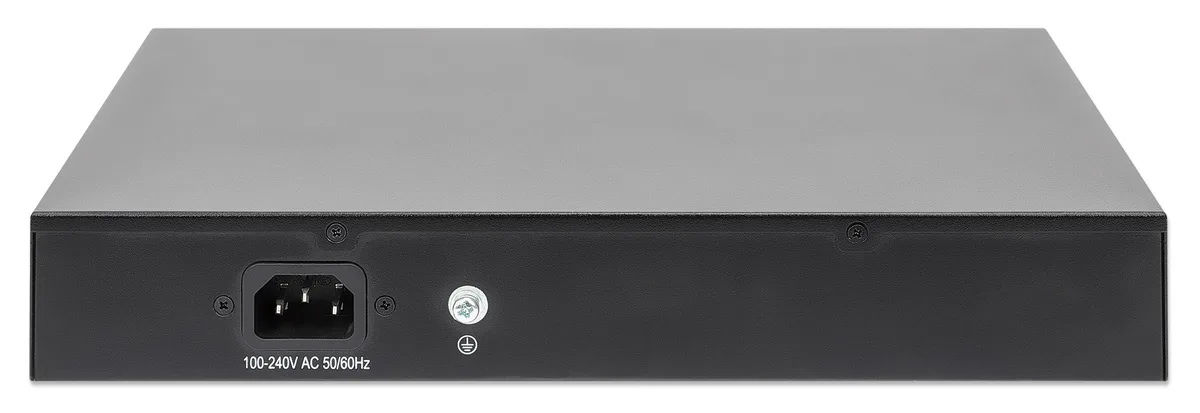

Power100~240VAC, 50/60Hz
Dimensions8.9" x 4.8" x 1.7"
Weight3.3 lbs.
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesBackplane speed: 1.6 Gbps
Provides power and data connection for up to eight PoE network devices
Save time and money by delivering data and power via existing network cables
10/100 auto-sensing ports automatically detect optimal network speeds
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Total power budget of 70 watts
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX (auto uplink) support
Store an

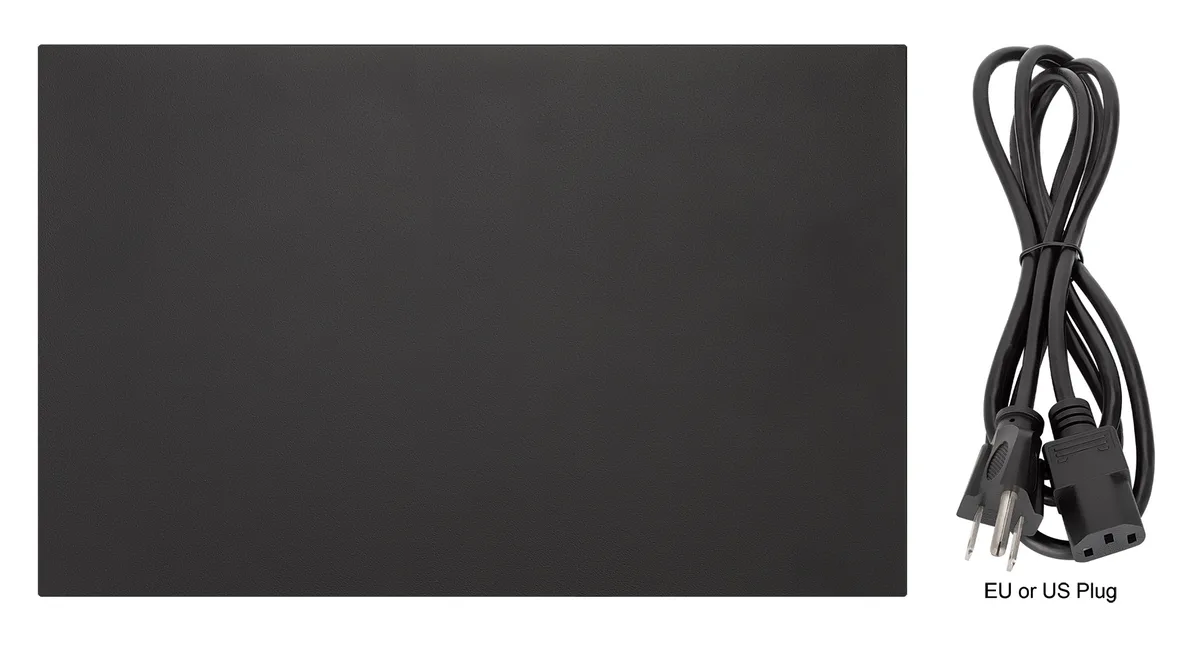

Package Contents8-Port PoE+ Desktop Switch
Power cable
User manual
Shipping weight3.03 kg
Package size226 × 122 × 43 mm

Questions about this item

How do I install the 560764 switch on a desktop and what step is often missed?

Place the unit on a flat surface, connect the included power cable to a 100~240VAC outlet, then plug devices into the eight RJ45 ports; the step often missed is verifying each linked device shows a PoE LED so you know the 140 W budget is actually delivering power.

What maintenance or replacement will the 560764 need over time?

The switch has no moving parts or user-serviceable modules; keep ventilation clear so the 0 °C to 40 °C operating range is maintained and wipe dust from the 8.9" x 4.8" x 1.7" chassis periodically — no scheduled component replacements are required.

Which limit appears first when all eight ports run at full 30 W PoE+ load continuously?

The 140 W total PoE budget is reached before the 1.6 Gbps backplane saturates, so sustained full-power use on every port will hit the power ceiling first.
