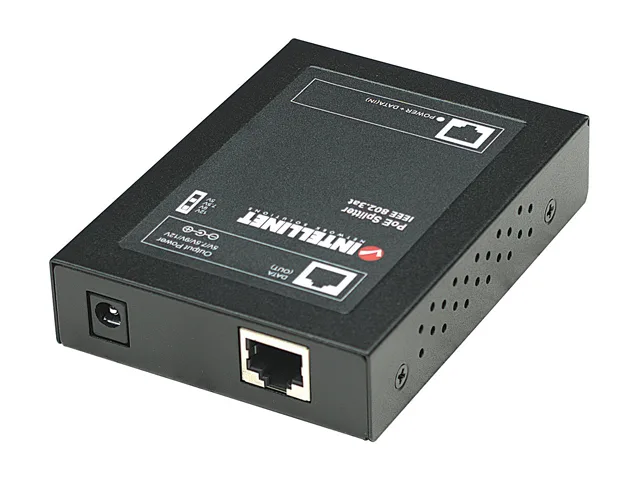

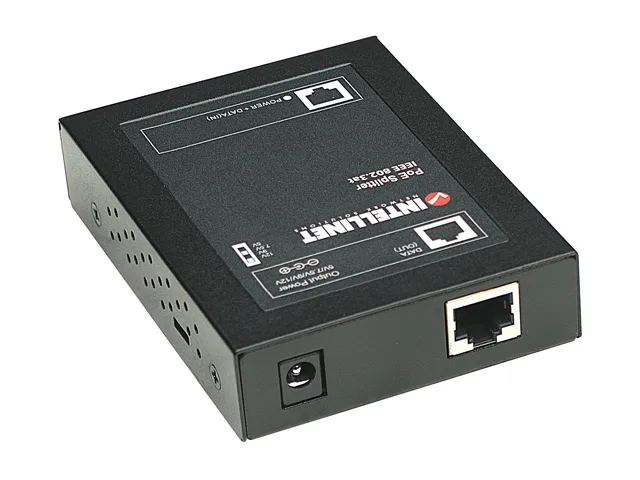

Small rectangular PoE+ splitter unit with RJ45 ports and voltage selector switch

Intellinet Network Solutions

Intellinet Network Solutions 560443 PoE+ Splitter wireless accessory

SKU CH-1YYM-FVXP9 MPN 560443

A PoE+ splitter that powers non-PoE devices at selectable 5, 7.5, 9 or 12 V DC over Ethernet up to 100 m

  • TypePoE Splitter
  • SpecificationsStandards IEEE 802.3af (Power over Ethernet) IEEE 802.3at (H
  • FeaturesCan be used to connect non-PoE IEEE 802.3af/t-compliant devi
  • Powers non-PoE devices via Ethernet cable
  • Selectable 5, 7.5, 9 or 12 V DC output
  • Up to 4 A at 5 V for demanding devices
  • Compliant with IEEE 802.3af and 802.3at standards
  • Install up to 100 m from power source

PoE+ Splitter for non-PoE devices

The Intellinet 560443 separates power and data from a single Ethernet cable, letting you run non-PoE equipment such as cameras or access points up to 100 metres from a PoE switch or injector without a local mains outlet. It supports IEEE 802.3af and 802.3at standards for broad compatibility.

Installers needing flexible voltage without extra

The splitter suits projects where a device requires 5 V, 7.5 V, 9 V or 12 V DC and the only infrastructure is a PoE-enabled network. It is not for hardware that already accepts native PoE input, nor for setups that need more than the rated output current at the chosen voltage.

Selectable output replaces a dedicated power supply

A rotary switch chooses between 5 V at 4 A, 7.5 V at 2.7 A, 9 V at 2.3 A or 12 V at 1.7 A, so the same unit powers different devices without stocking multiple adapters. No software or tools are required, and the box includes only the splitter itself.

Highlights

  • Powers non-PoE devices via Ethernet cable
  • Selectable 5, 7.5, 9 or 12 V DC output
  • Up to 4 A at 5 V for demanding devices
  • Compliant with IEEE 802.3af and 802.3at standards
  • Install up to 100 m from power source

Specifications

BrandINTELLINET
Model560443
TypePoE Splitter
SpecificationsStandards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
Media support:
10Base-T Cat3, 4, 5 UTP/STP RJ45
100Base-TX Cat5 UTP/STP RJ45
Ports:
1 RJ45 10/100 Mbps input port for 48 V IEEE 802.3af-compliant signal
1 RJ45 10/100 Mbps output port
1 power output port
Certifications: FCC Class A, CE
LEDs: LINK
Power
Output power:
5, 7.5, 9 or 12 V DC, selectable via switch
Maximum output: 5 V - 4 A, 7.5 V - 2.7 A, 9 V - 2.3 A, 12 V - 1.7 A
Polarity, outer: negative ( - ); inner: posit
FeaturesCan be used to connect non-PoE IEEE 802.3af/t-compliant devices to a PoE injector or PoE switch
Output voltage, selectable: 5, 7.5, 9 or 12 V DC
Power output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A
10/100 auto-sensing input port automatically detects optimal network speeds
RJ45 input port with Auto-MDIX and NWay auto-negotiation support
Full/half duplex operation
Compact metal case
LED for link on PoE input port
Shipping weight0.91 kg
Package size193 × 119 × 94 mm

Questions about this item

What PoE standard must my injector or switch support for the 560443 splitter to work?

The splitter is compatible with IEEE 802.3af and IEEE 802.3at PoE+ sources, so your injector or midspan switch must comply with one of those standards.

Will the 560443 splitter pass data to a legacy 10Base-T device at 10 Mbps?

Yes, the unit supports IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, so it will carry 10 Mbps or 100 Mbps Ethernet to older network cameras or access points.

How can I confirm the 560443 splitter is delivering the correct voltage after I set the output selector?

Measure the DC output at the device connector with a multimeter; it should read 5 V, 7.5 V, 9 V or 12 V matching the selector position, and the connected equipment should power up normally.
