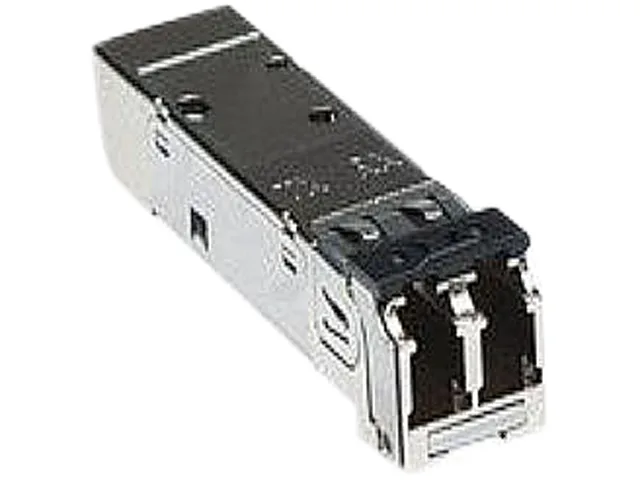

Small metal SFP transceiver with LC duplex port

Intellinet Network Solutions

Intellinet Network Solutions 545006 1 Gbps 850 nm SFP transceiver

SKU CH-R94B-9EX2P MPN 545006

Gigabit SFP transceiver with LC duplex port for 850 nm multi-mode fibre up to 550 m

  • StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
  • Wavelength850nm
  • Fiber Cable1000Base-SX multi-mode 50/125 Fiber 1000Base-SX multi-mode 6
  • PortsOne 1000Base-SX multi-mode Fiber LC duplex port
  • Max Distance550 m (50/125 Fiber cable) 220 m (62.5/125 Fiber cable)
  • Transfer Rate1 Gbps
  • Gigabit fibre link up to 550 m on 50/125 µm cable
  • Hot-pluggable SFP module installs without network downtime
  • IEEE 802.3z compliant for multi-vendor interoperability
  • Metal housing cuts EMI and hardens the transceiver
  • Compact 2.2" form factor fits high-density patch panels

1 Gbps 850 nm SFP transceiver

The Intellinet Network Solutions 545006 is a gigabit Ethernet SFP mini-GBIC module built for multi-mode fibre links. It serves network engineers and system integrators who need a standards-based 1 Gbps uplink in switches, routers or media converters. The transceiver follows the IEEE 802.3z specification and fits any SFP-compliant cage.

Multi-mode fibre reach upgrade

This module replaces copper gigabit links or older single-mode optics when the run stays within multi-mode distance limits. The jump is worth it when you need 550 m over 50/125 µm fibre or 220 m over 62.5/125 µm fibre at 850 nm wavelength. It supports hot-plugging so the swap can be done without powering down the chassis.

LC duplex port and 3.3 V supply check

Verify that the host device presents an SFP cage with an LC duplex receptacle and can deliver 3.3 V to the module. Confirm the operating temperature range of 0 °C to 70 °C matches the installation environment. Ensure the fibre patch cables are terminated for 1000Base-SX multi-mode with the correct core size for the desired reach.

Highlights

  • Gigabit fibre link up to 550 m on 50/125 µm cable
  • Hot-pluggable SFP module installs without network downtime
  • IEEE 802.3z compliant for multi-vendor interoperability
  • Metal housing cuts EMI and hardens the transceiver
  • Compact 2.2" form factor fits high-density patch panels

Specifications

BrandIntellinet Network Solutions
Model545006
StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
Wavelength850nm
Fiber Cable1000Base-SX multi-mode 50/125 Fiber
1000Base-SX multi-mode 62.5/125 Fiber
PortsOne 1000Base-SX multi-mode Fiber LC duplex port
Max Distance550 m (50/125 Fiber cable)
220 m (62.5/125 Fiber cable)
Transfer Rate1 Gbps
Power AdapterPower requirement: 3.3 V
Temperature0° ~ 70° C
FeatureSFP standard form factor
Supports hot-plugging
Dimensions2.2" x 0.5" x 0.5"
Weight0.5 oz.
Package ContentsGigabit Ethernet SFP Mini-GBIC Transceiver
Shipping weight0.09 kg
Package size127 × 56 × 38 mm

Questions about this item

Will the 545006 fit a standard SFP slot on my switch?

Yes, it uses the SFP standard form factor measuring 2.2" x 0.5" x 0.5" so it fits any compliant SFP cage

How do I install the transceiver and what step is often missed?

Insert the module until it clicks while the switch is powered on — hot-plugging is supported — then connect the LC duplex patch cable matching the 850 nm wavelength

What fiber cable should I keep on hand for future replacements?

Stock 1000Base-SX multi-mode 50/125 µm cable for runs up to 550 m or 62.5/125 µm cable for runs up to 220 m
