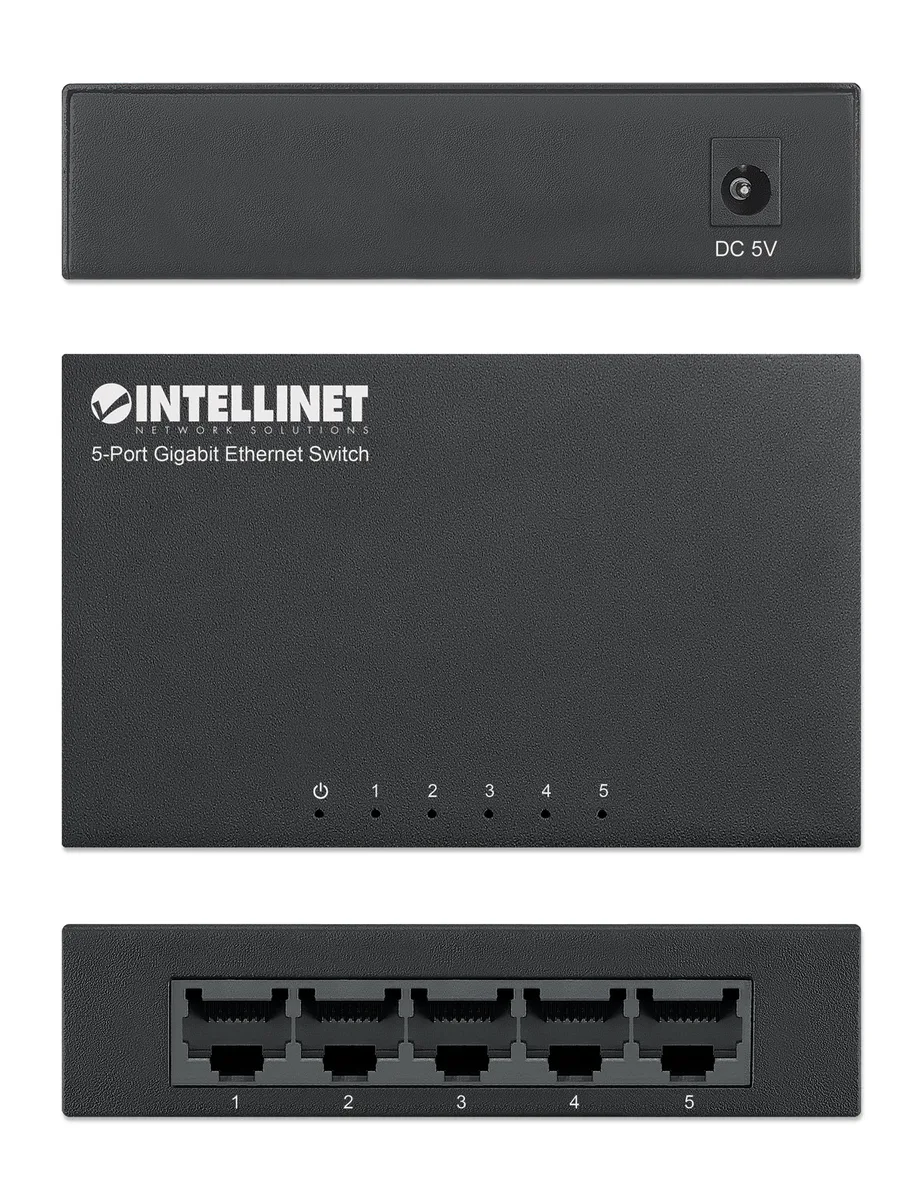

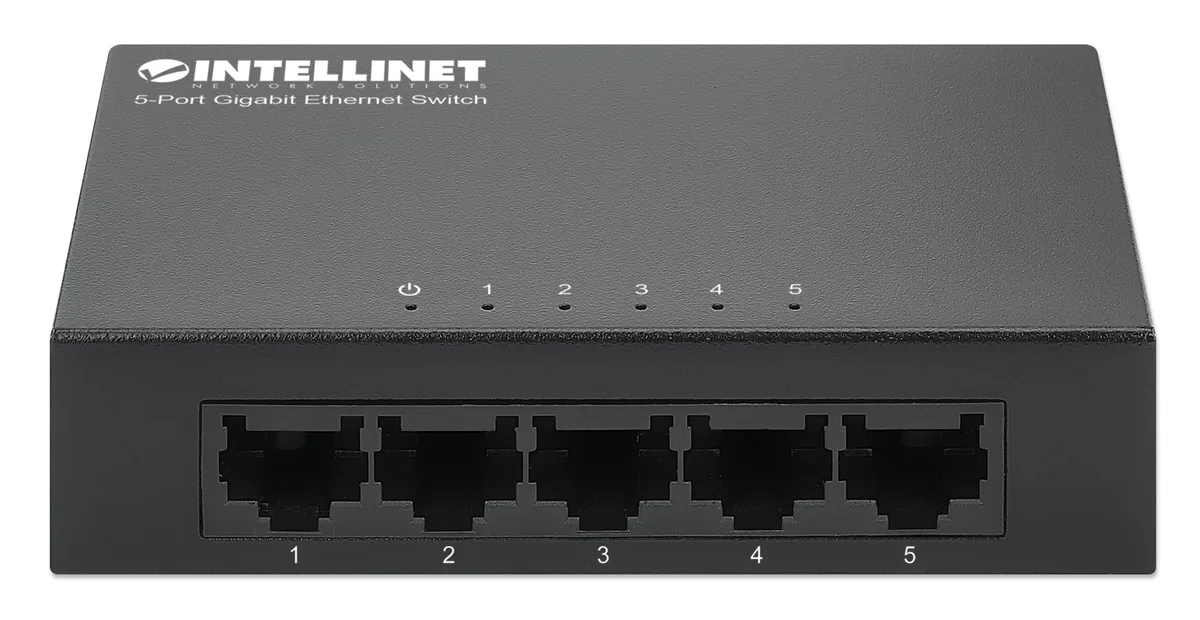

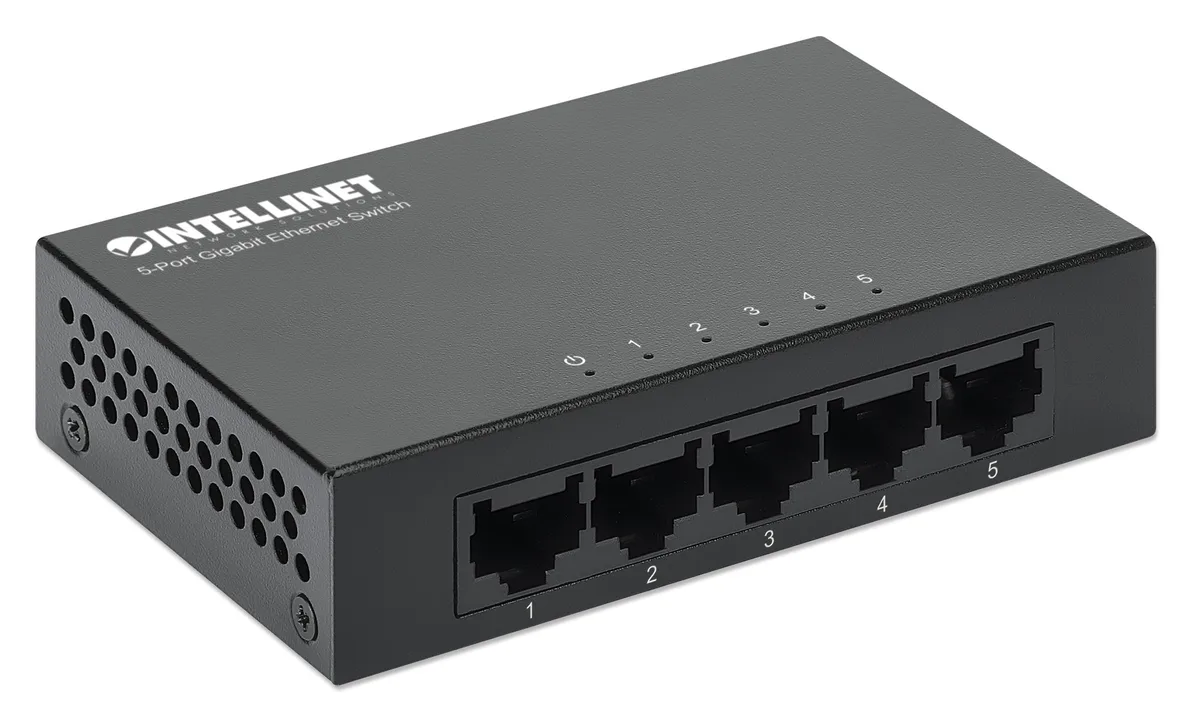

Small black metal box with five Ethernet ports on the front

Intellinet Network Solutions

Intellinet Network Solutions 530378 5-Port Gigabit network switch

SKU CH-FMN2-BJ241 MPN 530378

A five-port Gigabit switch with auto-negotiating RJ45 ports, metal housing and energy-efficient Ethernet for desktop use

  • FormatExternal
  • StandardsIEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast
  • Primary Ports5 x RJ45
  • MAC Address Table1K
  • Jumbo Frames9.7 kB
  • Buffer Memory112KB
  • Five 10/100/1000 ports auto-negotiate speed for fast wired links
  • Green Ethernet saves power by deactivating unused ports and adjusting to cable length
  • Store-and-forward architecture with 1K MAC table ensures zero packet loss
  • Plug-and-play install needs no configuration or crossover cables
  • Compact metal housing 6.3" x 5.5" x 1.3" fits any desktop

Five-Port Gigabit Desktop Switch

This five-port Gigabit Ethernet switch connects computers, printers and other wired devices in a home or small office. Each port auto-negotiates 10, 100 or 1000 Mbps and supports Auto MDI-X so no crossover cables are required. The metal housing measures 6.3 x 5.5 x 1.3 inches and weighs 1.5 lbs.

Check Power And Cable Reach

The unit needs a DC 5 V supply, so confirm an outlet is near the planned location. All five ports use RJ45 connectors and accept standard twisted-pair cable up to 100 metres. Operating temperature is 0 to 40 °C with 10 to 90 % non-condensing humidity, so avoid hot or damp cabinets.

Plug In And Expand Wired Ports

No software configuration is needed; the switch learns MAC addresses automatically and builds a 1K entry table. Jumbo frames up to 9.7 kB pass through the 112 kB buffer using store-and-forward, non-blocking architecture. Green Ethernet logic powers down idle ports and scales power to cable length, freeing energy without user intervention.

Highlights

  • Five 10/100/1000 ports auto-negotiate speed for fast wired links
  • Green Ethernet saves power by deactivating unused ports and adjusting to cable length
  • Store-and-forward architecture with 1K MAC table ensures zero packet loss
  • Plug-and-play install needs no configuration or crossover cables
  • Compact metal housing 6.3" x 5.5" x 1.3" fits any desktop

Specifications

BrandIntellinet
Model530378
FormatExternal
StandardsIEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control and Backpressure)
Primary Ports5 x RJ45
MAC Address Table1K
Jumbo Frames9.7 kB
Buffer Memory112KB
LEDsPower
LINK/ACT for each 10/100/1000 Mbps port
PowerDC 5V
FeaturesANSI/IEEE 802.3 NWay auto-negotiation
Non-blocking, store and forward switching architecture
Backpressure flow control for half duplex mode on 10/100 Mbps ports
Switch architecture: store and forward switch technology
Network cables:
- 10Base-T: Cat3, 4, 5 UTP/STP
- 100Base-TX: Cat5 UTP/STP
- 1000Base-T: Cat5e UTP/STP
Certifications: FCC Class B, CE Class B
Filter/forward rate
- 10Base-T: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,480,000 pps (packets per second)
Dimensions6.3" x 5.5" x 1.3"
Weight1.5 lbs.
Temperature0 – 40°C (32 – 104°F)
Humidity10 – 90% RH, non-condensing
Shipping weight0.91 kg
Package size119 × 74 × 25 mm

Questions about this item

What comes in the box with the 530378 and what must I buy separately?

The switch includes the metal-housed unit with five RJ45 ports and a DC 5 V power adapter; you supply the Cat5e or better Ethernet cables to connect your devices.

Which capacity or version of this switch should I choose for a small office?

This model is a single 5-port Gigabit version; choose it when you need exactly five 10/100/1000 Mbps ports in a desktop metal enclosure.

What does the 9.7 kB jumbo frame figure mean in daily use?

It allows frames up to 9.7 kB to pass through the store-and-forward engine, reducing CPU overhead during large file transfers such as backups or disk imaging.
