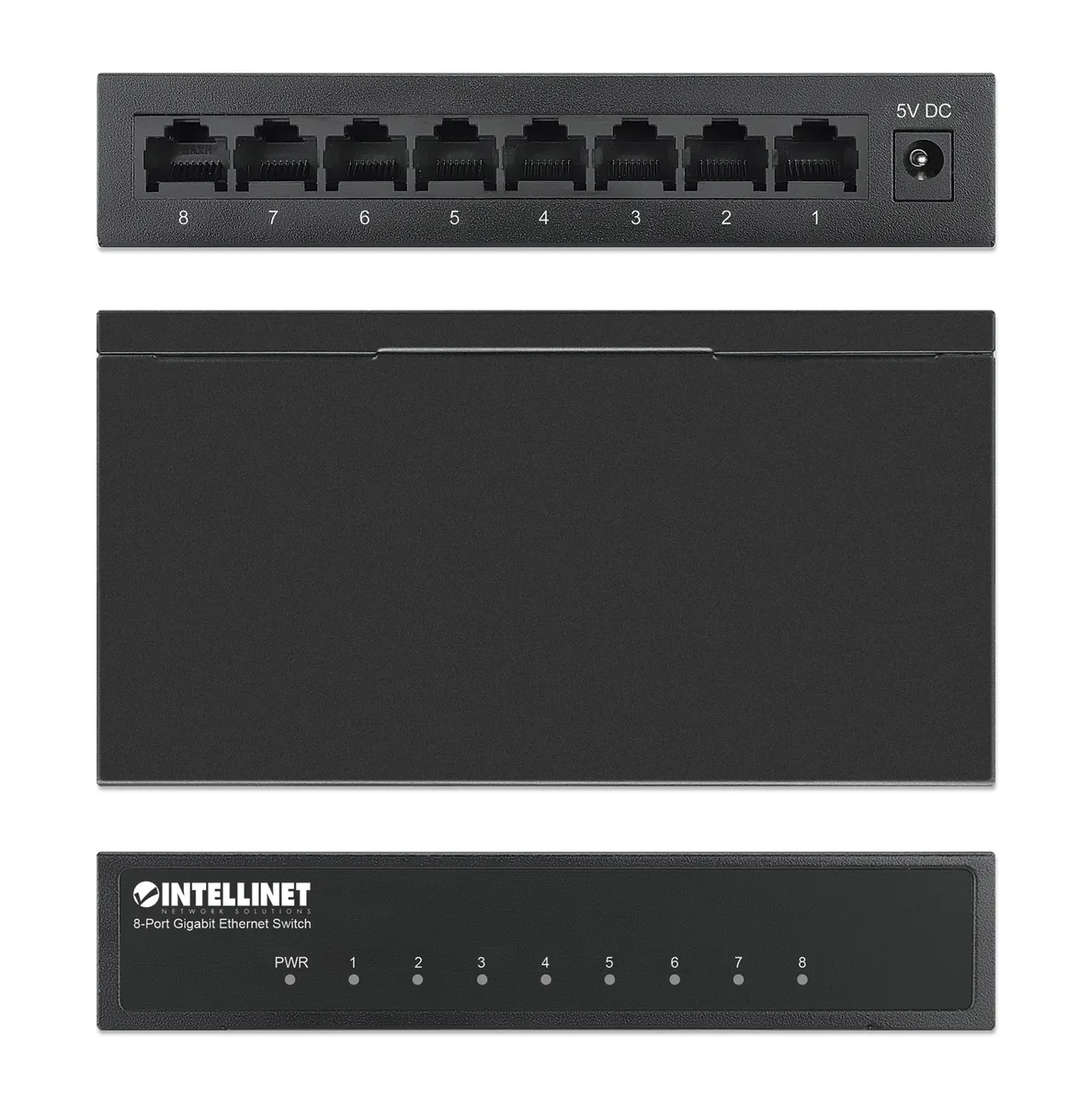

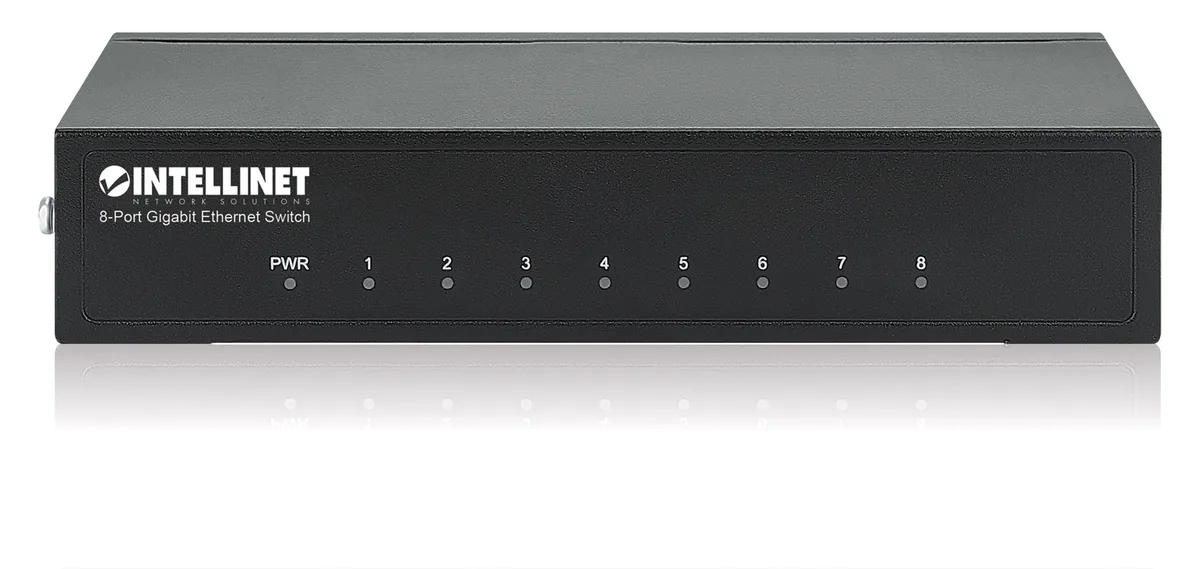

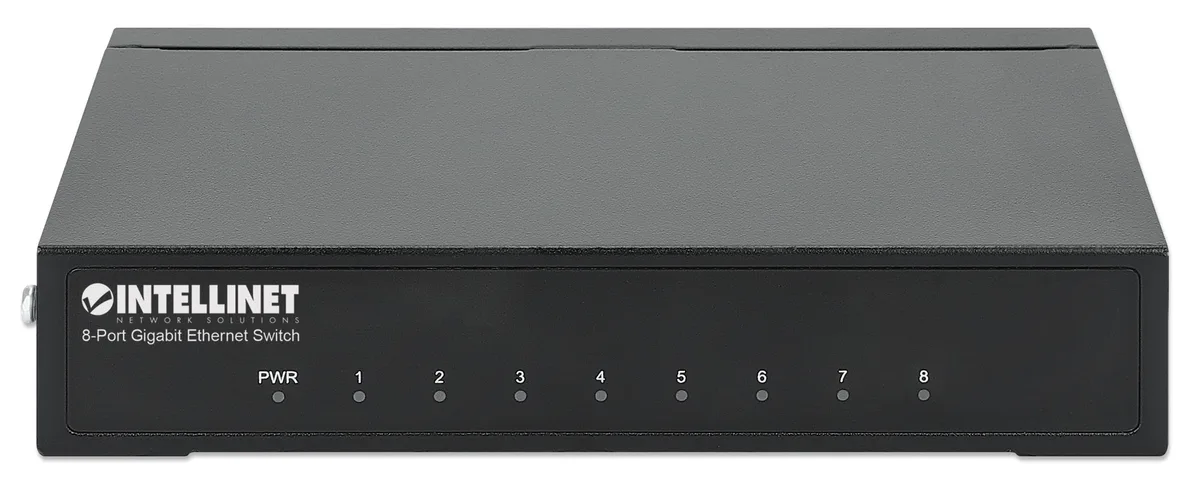

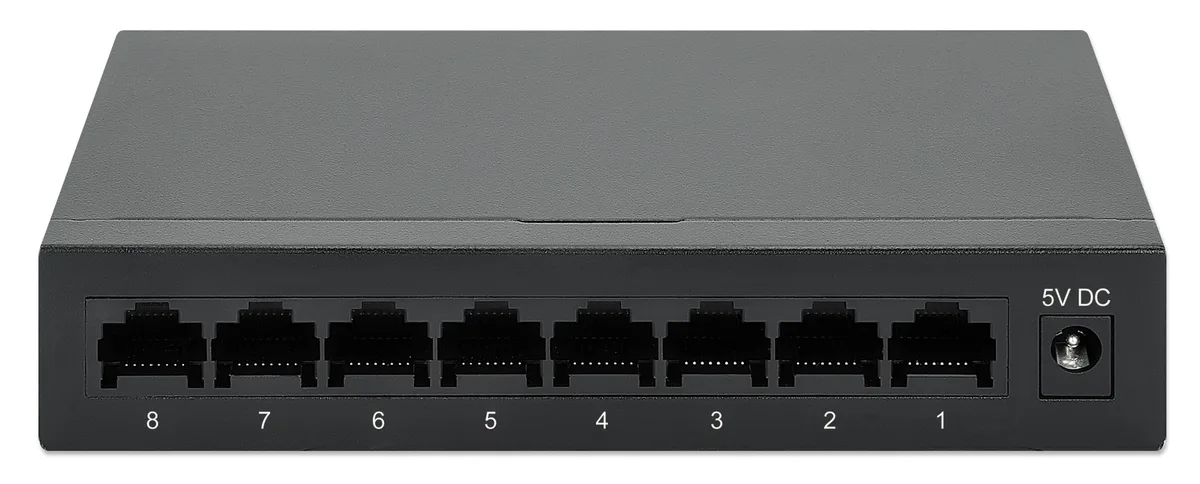

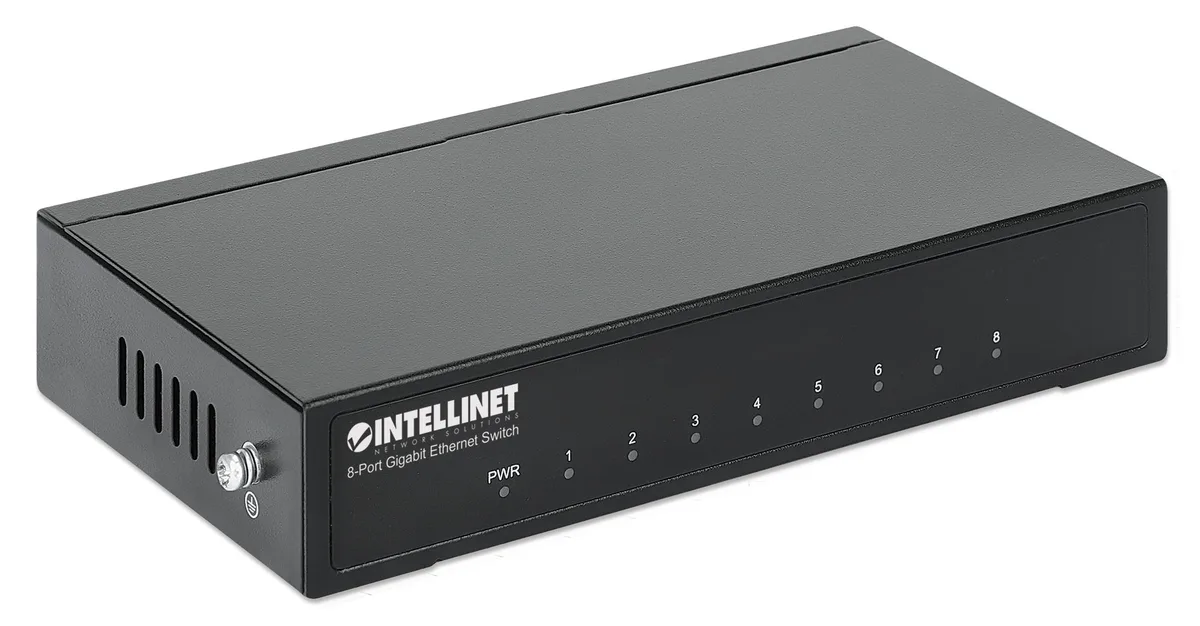

Compact metal desktop switch with eight RJ45 ports and status LEDs

Intellinet Network Solutions

Intellinet Network Solutions 530347 8-Port Gigabit network switch

SKU CH-DVKP-QPXTH MPN 530347

An 8-port Gigabit desktop switch with auto-sensing ports, energy-efficient operation and metal housing for small-office networks

  • StandardsIEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast
  • Network Management TypeUnmanaged
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table4,096 entries
  • Switching MethodStore and Forward
  • Eight Gigabit ports deliver 1000 Mbps wired throughput
  • Auto MDI-X on every port removes the need for crossover cables
  • Green Ethernet technology cuts power on idle ports and short cables
  • Store-and-forward switching with 4096 MAC entries ensures zero packet loss
  • Jumbo frame support up to 9.7 kB handles large data transfers

Eight Gigabit ports for home or small office

This Intellinet 530347 switch provides eight RJ45 ports that operate at 10, 100 or 1000 Mbps. It is an unmanaged desktop unit designed for plug-and-play expansion of a wired network. Auto MDI-X and auto-sensing remove the need for crossover cables or manual speed configuration. The metal housing supports silent, fanless operation.

Check power outlet and cable reach before ordering

The switch requires the supplied external adapter with a DC input of 5 V and 2 A. Ensure a suitable mains socket is available near the intended location. Verify that existing Ethernet cables are Cat5e or better to achieve gigabit rates. The operating temperature range is 0°C to 40°C, so avoid enclosed spaces without airflow.

Frees router ports and adds wired endpoints

Eight gigabit connections let you wire PCs, NAS devices, printers and access points directly, reducing wireless congestion. Store-and-forward switching with a 4,096-entry MAC table and 9.7 kB jumbo-frame support handles bandwidth-intensive transfers. IEEE 802.3az Energy Efficient Ethernet lowers power on idle ports and short cables. The compact 5.5" x 6.3" x 1.3" footprint fits on a desk or shelf.

Highlights

  • Eight Gigabit ports deliver 1000 Mbps wired throughput
  • Auto MDI-X on every port removes the need for crossover cables
  • Green Ethernet technology cuts power on idle ports and short cables
  • Store-and-forward switching with 4096 MAC entries ensures zero packet loss
  • Jumbo frame support up to 9.7 kB handles large data transfers

Specifications

BrandIntellinet
Model530347
StandardsIEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control and Backpressure)
Network Management TypeUnmanaged
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table4,096 entries
Switching MethodStore and Forward
Jumbo Frames9.7 kB
LEDsPower, LINK/ACT for each 10/100/1000 Mbps port
PowerDC input: 5 V, 2 A
Dimensions5.5" x 6.3" x 1.3"
Weight1.7 lbs.
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
Features10/100/1000 auto-sensing Auto MDI-X ports — automatically detect optimal network speeds
High performance, half and full duplex, with zero packet loss
Full flow control support provides optimum performance
Auto-learning of network configuration
Non-blocking wire-speed forwarding and filtering
ANSI/IEEE 802.3 NWay auto-negotiation
Backpressure flow control for half duplex mode on 10/100 Mbps ports
Plastic housing, desktop size
Network cables:
10Base-T: Cat3, 4, 5 UTP/STP
100Base-TX: Cat5 UTP/STP
1000Base-T: Cat5e UTP/STP
Certifications: FCC Class B, CE Class B
Filter/forward rate:
10Ba
Package Contents8-Port Gigabit Ethernet Desktop Switch
External power adapter
User manual
Shipping weight0.64 kg
Package size155 × 84 × 25 mm

Questions about this item

What comes in the box with the 530347 switch and is a power adapter included?

The package contains the 8-port Gigabit desktop switch, an external 5 V 2 A power adapter and a user manual.

There is only one version listed — how do I know this 8-port model is the right capacity for my network?

The switch provides eight 10/100/1000 Mbps RJ45 ports with a 4096-entry MAC table and 9.7 kB jumbo frame support, suitable for small-office or home networks needing up to eight wired devices.

What does the 1000 Mbps port speed actually deliver when the switch is installed in a real network?

Each port auto-negotiates to 10, 100 or 1000 Mbps, supports full-duplex flow control and store-and-forward switching, giving wire-speed forwarding with zero packet loss across all eight ports.
