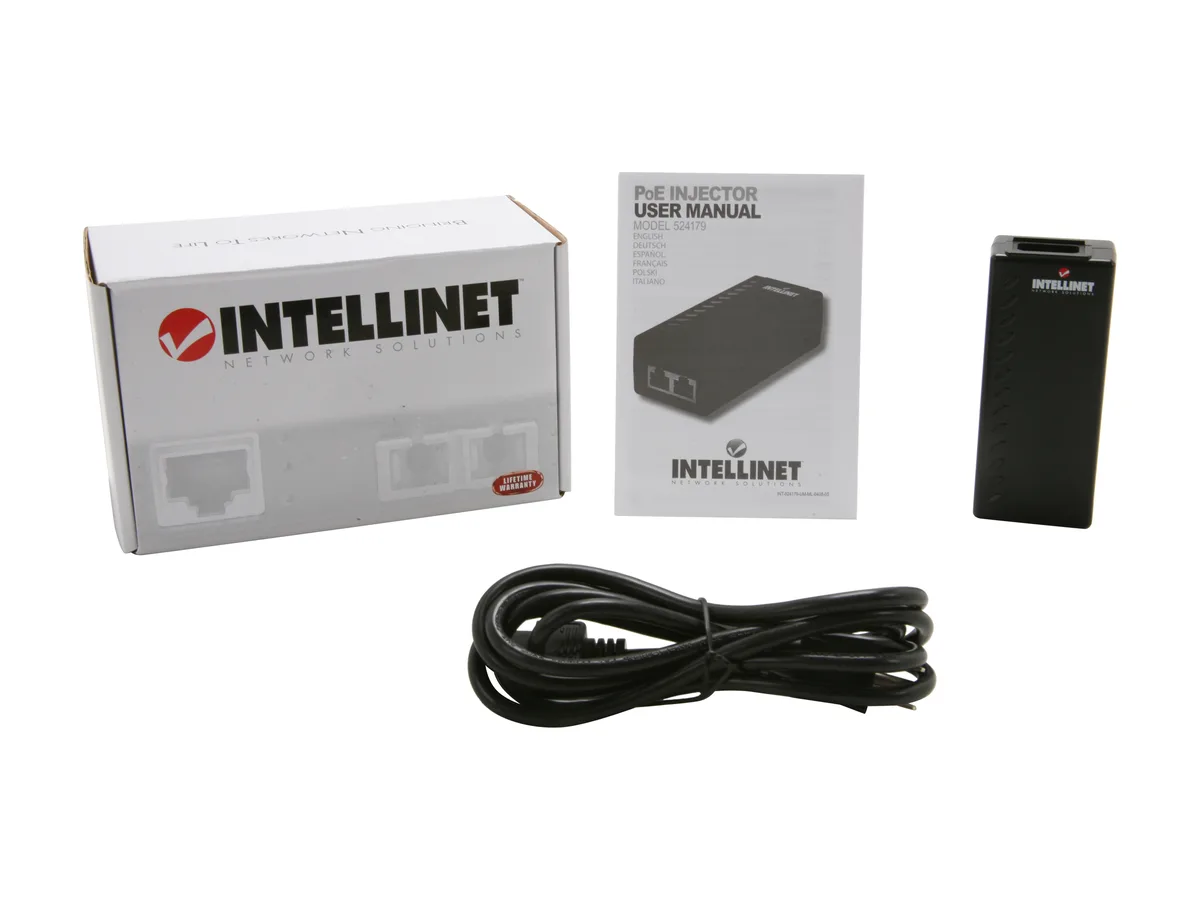

Small black rectangular PoE injector with two RJ-45 ports and power jack

Intellinet Network Solutions

Intellinet Network Solutions 524179 PoE Injector 1 Port 48 V DC 15.4 W wireless accessory

SKU CH-77R6-348QX MPN 524179

Adds 48 V DC PoE power up to 15.4 W over Cat5 cabling to a single 100 Mbps device

  • TypePoE Injector
  • SpecificationsStandards: IEEE 802.3af (Power over Ethernet) IEEE 802.3 (10
  • FeaturesIdeal when AC power is not available Full-power Class 3 PoE
  • Powers devices without nearby AC outlets using existing Cat5 cabling
  • Delivers up to 15.4 W at 48 V DC to compatible equipment
  • Complies with IEEE 802.3af for broad device compatibility
  • Adds PoE to non-PoE switches protecting current infrastructure investment
  • Single 100 Mbps RJ-45 port simplifies installation and reduces cable clutter

Single-port PoE injector for non-PoE networks

The Intellinet 524179 adds IEEE 802.3af power to one Ethernet link, delivering 48 V DC at up to 15.4 W over existing Cat5 cabling. It targets installers who need to power a wireless access point, IP phone or network camera where no AC outlet exists.

Steady 15.4 W output under continuous load

The injector maintains full Class 3 power without throttling while the connected device draws up to 15.4 W. It passes both data and DC power through the same RJ-45 connection, so sustained camera streams or VoIP calls do not reduce available wattage.

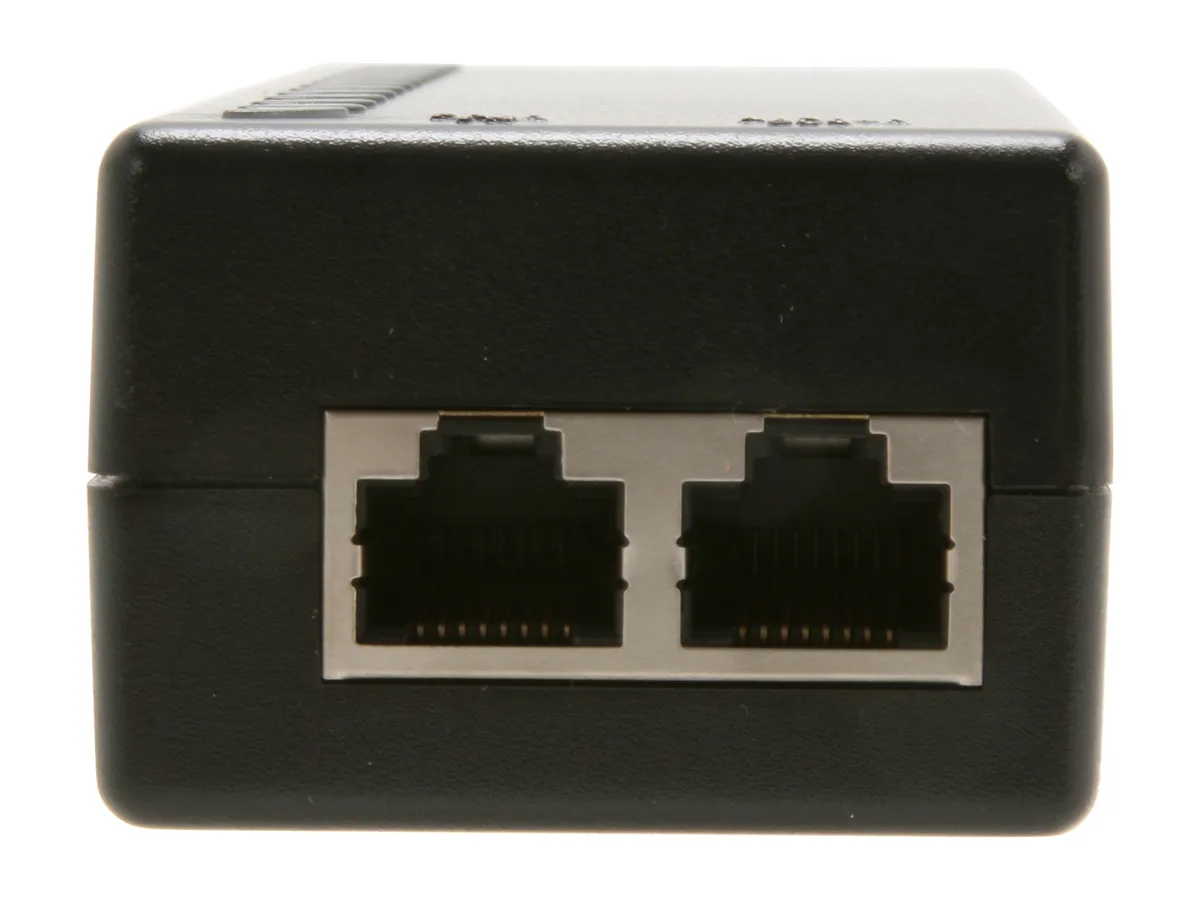

Plug-and-play with two RJ-45 ports

One port connects to the non-PoE switch, the other to the powered device; no configuration or software is required. The unit assumes the switch already supplies 10/100 Mbps Ethernet, so Gigabit-only links will not work. Buyers who need multi-port injection or 802.3at power levels cannot use this model.

Highlights

  • Powers devices without nearby AC outlets using existing Cat5 cabling
  • Delivers up to 15.4 W at 48 V DC to compatible equipment
  • Complies with IEEE 802.3af for broad device compatibility
  • Adds PoE to non-PoE switches protecting current infrastructure investment
  • Single 100 Mbps RJ-45 port simplifies installation and reduces cable clutter

Specifications

BrandINTELLINET
Model524179
TypePoE Injector
SpecificationsStandards:
IEEE 802.3af (Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
General:
Media support: 100Base-TX Cat5 UTP/STP RJ-45, 8 pin
Ports:
1 RJ-45 100 Mbps input port
1 RJ-45 100 Mbps data and power output ports

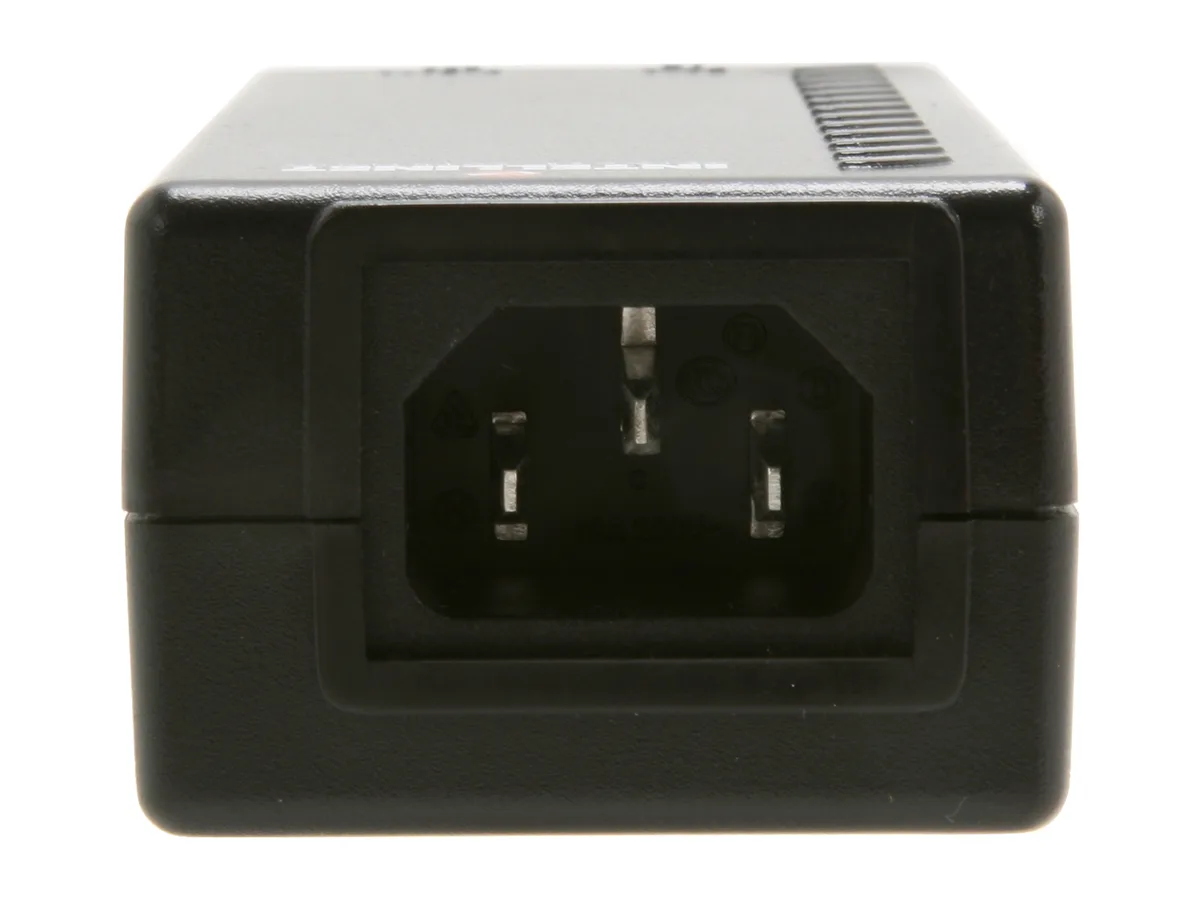

1 power input connector (3 pin)
Protection functions:
Short-circuit protection for short GND
Overload protection for currents over 450 mA
High-voltage protection for output voltage exceeding 52 V
Compatibility - general: all IEEE 802.3af-compliant PoE devices
Supported INTELLINET NETWORK SOLUTIONS products:
Wireless 300N Access Poi
FeaturesIdeal when AC power is not available
Full-power Class 3 PoE design
Power output of up to 15.4 Watts
Supports all IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras)
Supports IEEE 802.3af detection and short circuit, overload and high-voltage protection
Shipping weight0.14 kg
Package size69 × 51 × 36 mm

Questions about this item

How much power does the 524179 injector draw when it runs continuously?

The injector delivers up to 15.4 W at 48 V DC to the powered device; its own heat output is low because it has no fan and only passes the power the connected device requests.

What cabling and switch port do I need to use this injector?

You need a standard Cat5 UTP or STP cable with RJ-45 plugs and a free 10/100 Mbps Ethernet port on your LAN switch for the data input side.

Will this work with my older 10Base-T switch that only supports IEEE 802.3?

Yes — the injector complies with IEEE 802.3 and 802.3u, so it passes 10 Mbps and 100 Mbps traffic through the same Cat5 cable while adding 48 V DC power for the end device.
