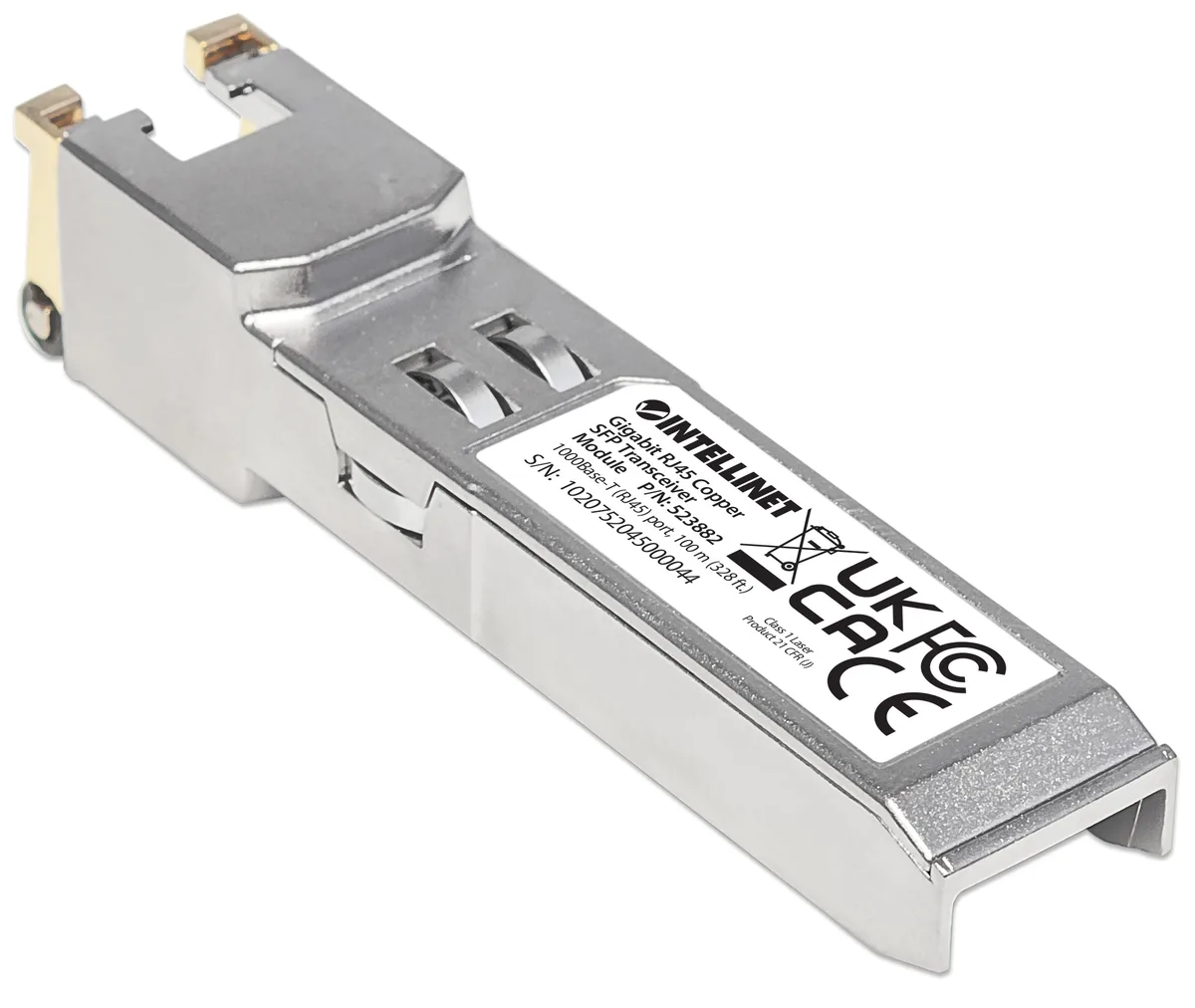

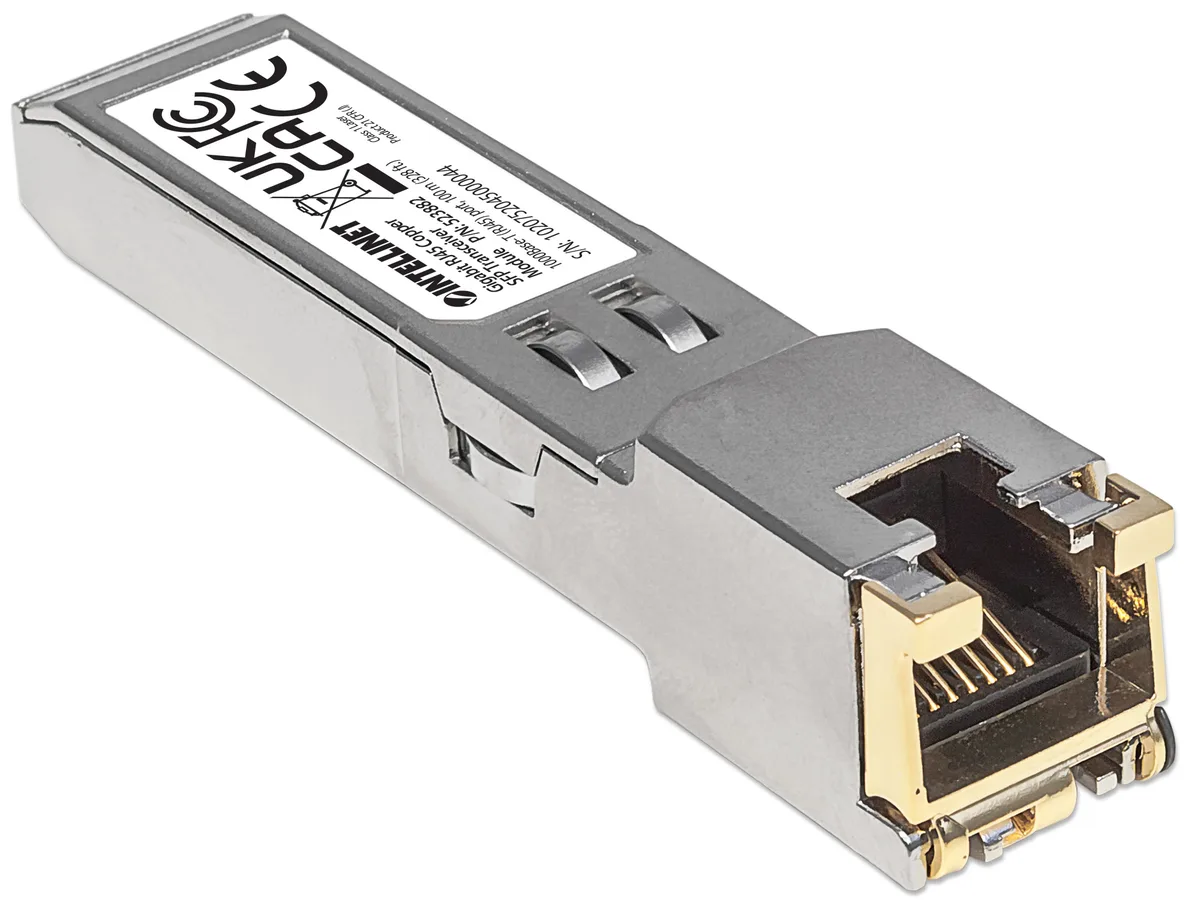

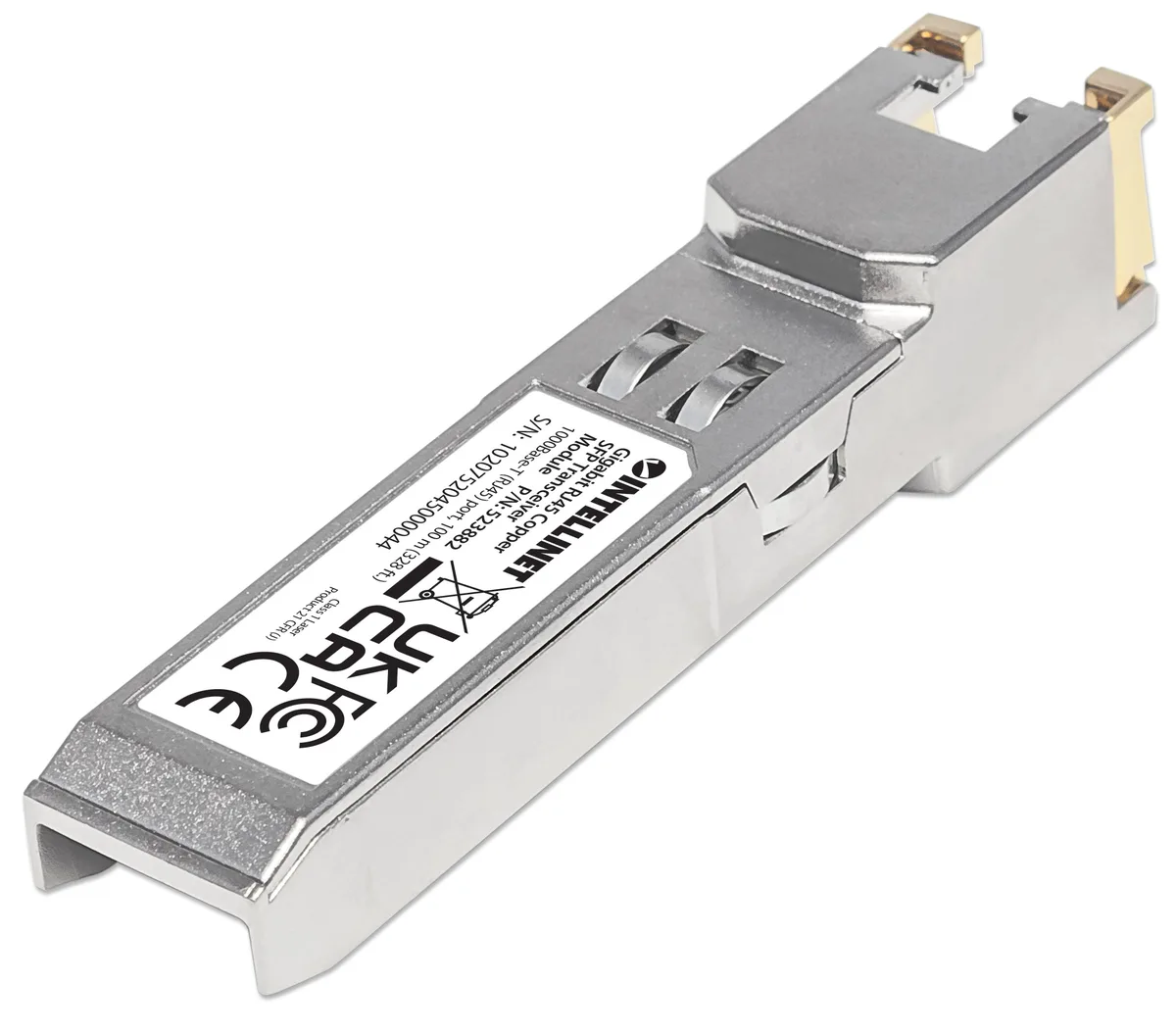

Small rectangular metal module with RJ45 port and gold edge connector

Intellinet Network Solutions

Intellinet Network Solutions 523882 SFP transceiver 1000Base-T 100 m

SKU CH-RPEX-65FQ9 MPN 523882

Adds a 10/100/1000 Mbps RJ45 copper port to any MSA-compliant SFP slot, reaching 100 m over twisted pair

  • StandardsIEEE 802.3 (Twisted Pair Ethernet) IEEE 802.3u (Twisted Pair
  • Power AdapterPower requirement: 3.3 V Power consumption: 1.2 Watts (maxim
  • TemperatureOperating temperature: 0 - 70 degree C (32 - 158 degree F) S
  • Humidity10 - 85% RH, non-condensing
  • FeatureFits any Intellinet Gigabit Ethernet switch with SFP module
  • Dimensions0.47" x 2.65" x 0.55
  • Adds a Gigabit copper port to SFP-equipped switches
  • Hot-pluggable installation without switch reboot
  • Auto-sensing 10/100/1000 Mbps with Auto MDI/MDI-X
  • Up to 100 m reach over Cat5e or better
  • MSA and Cisco GLC-T compliant form factor

Copper SFP for Gigabit switches

The Intellinet 523882 is a hot-pluggable SFP transceiver that converts an empty SFP slot on a switch or media converter into a 10/100/1000 Mbps RJ45 copper port. It draws up to 1.2 W at 3.3 V and operates from 0 °C to 70 °C, making it suitable for standard indoor network equipment.

Replaces fixed copper ports

When a switch lacks enough built-in RJ45 interfaces, this module adds one without replacing the whole chassis. The jump is worth it when you need a short-run copper link up to 100 m and the switch already has a free SFP cage that follows the MSA or Cisco GLC-T pinout.

Steady throughput at temperature

Under continuous load the transceiver maintains line-rate Gigabit Ethernet across the full 0 °C to 70 °C range with a typical draw of 1.05 W. Auto MDI/MDI-X and auto-sensing handle cable polarity and speed negotiation without link flaps during prolonged traffic.

Highlights

  • Adds a Gigabit copper port to SFP-equipped switches
  • Hot-pluggable installation without switch reboot
  • Auto-sensing 10/100/1000 Mbps with Auto MDI/MDI-X
  • Up to 100 m reach over Cat5e or better
  • MSA and Cisco GLC-T compliant form factor

Specifications

BrandIntellinet Network Solutions
Model523882
StandardsIEEE 802.3 (Twisted Pair Ethernet)
IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
Power AdapterPower requirement: 3.3 V
Power consumption: 1.2 Watts (maximum)
TemperatureOperating temperature: 0 - 70 degree C (32 - 158 degree F)
Storage temperature: -40 - 85 degree C (-40 - 185 degree F)
Humidity10 - 85% RH, non-condensing
FeatureFits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ-45 port with Auto MDI / MDI-X support
Adds a Gigabit Ethernet copper connection to a network switch or media converter that supports SFP transceivers
Distance support: up to 100 m (328 ft.)
Compliant with the SFP Multi-Source Agreement (MSA)
Cisco compatible
SFP standard form factor
Low power dissipation (1.05 watts typical)
Low EMI due to fully metallic housing
Up to 1.25 Gbps bi-directional communication
Supports hot-plugging
Th
Dimensions0.47" x 2.65" x 0.55
Weight0.05 lb.
Package ContentsGigabit RJ45 Copper SFP Transceiver Module
Shipping weight0.20 kg
Package size57 × 14 × 12 mm

Questions about this item

What switch port does the 523882 transceiver fit into?

It fits any MSA or Cisco compliant SFP port, including Intellinet Gigabit Ethernet switches with SFP module slots.

How is the module installed without interrupting traffic?

The transceiver is hot-pluggable, so insert it into the SFP slot while the switch is powered on; the step people miss is waiting for the link LED to confirm auto-negotiation before connecting the cable.

When should the transceiver be replaced due to heat stress?

Operating temperature is 0 to 70 °C; sustained use above this range degrades components, so replace the unit if the switch chassis regularly exceeds 70 °C.
